Follow a detailed guide to designing your own house blueprints.
Whether you’re constructing a house, a treehouse, or even a storage shed, the cornerstone of any successful build is a solid blueprint. While complex projects may require professional architects for accurate drafts, simple designs can be created independently. You can use traditional tools like tracing paper and an architect’s ruler or take advantage of digital software to bring your design to life.
Blueprint Creation: A Quick Overview
- Start by understanding how to interpret blueprints, then examine existing plans for ideas as you begin crafting your design.
- Choose your scale, then draw the outer walls, doors, and windows.
- Afterward, add the internal walls and doors, labeling each space before incorporating symbols for appliances, plumbing, and electrical outlets.
Steps
Understanding the Basics of Blueprint Design

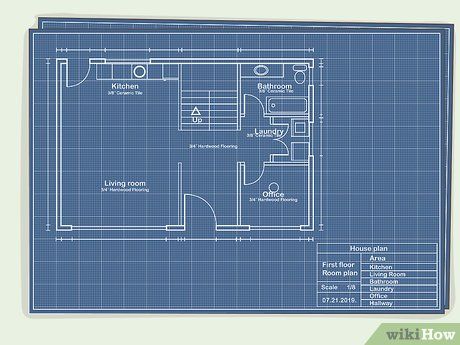

Learn how to interpret blueprints. Before creating your own blueprints, it's essential to understand how to read existing ones to ensure yours includes all necessary details and structure. You should be familiar with the standard scale, grid, lines, as well as the notes and legend.
- Examine the title blocks to identify the blueprint's name, location, site, and vendor so you can include this information when creating your own.
Tip: Look for blueprints similar to your design idea to use as a reference.

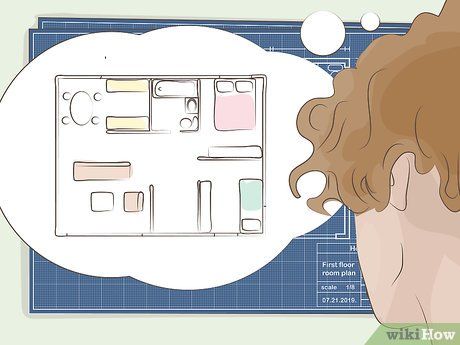

Visualize how your structure will look. While reviewing other blueprints for inspiration, think about your own design. How will you utilize the space? Imagine the room layouts, flooring materials, where to place appliances and electrical outlets, as well as positioning the windows and doors.
- Consider the thickness of both exterior and interior walls.
- Don't forget to plan for hallways and entryways in your design.

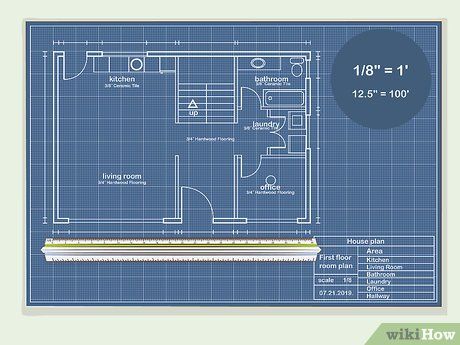

Choose a scale for your blueprint. Blueprints are scaled versions of a design or layout. The accuracy of your blueprints depends on selecting and maintaining a precise scale throughout. The scale determines the measurement proportions for your design.
- For example, you might use 1⁄8 inch (0.32 cm) to represent 1 foot (0.30 m).
- Ensure consistency by sticking to the chosen scale across the entire design.
Manual Drawing Techniques
Place a 24 by 36 in (61 by 91 cm) sheet of tracing paper on a poster board. The poster board serves as the foundation for your blueprint drawing on the tracing paper. Lay it down on a flat surface like a table or desk, and position the tracing paper with its long edge running horizontally.
- Large format tracing paper can be purchased at craft stores or online.

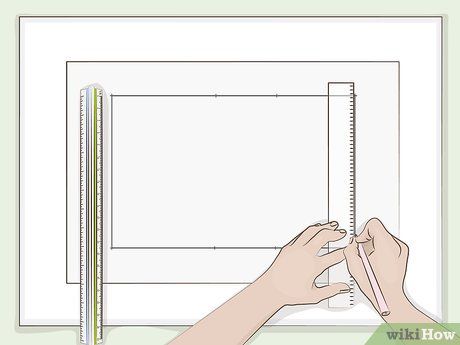

Draw the outer boundary of your design. Begin by deciding where you want the perimeter of your design to be and draw it according to scale. Use an architect’s scale, a straight edge, and a pencil to outline the outer wall. Center your design roughly within the space on the tracing paper.

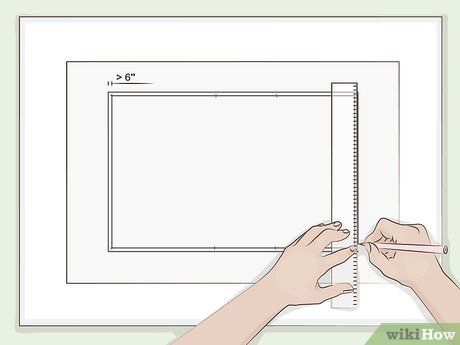

Draw a second line to indicate the thickness of the outer walls. Once you’ve completed the outer wall, draw another parallel line to represent the wall’s thickness. Ensure you're using the architect's scale for consistency.
- Typically, outer walls are at least 6 inches (15 cm) thick in most homes.

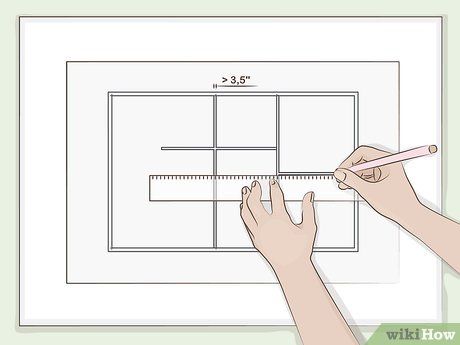

Add interior walls to define rooms and separate spaces. After finishing the exterior walls, add lines for the interior walls to form the different rooms. Draw them to scale for accurate room and hallway sizes. Use two lines for each interior wall to represent its thickness.
- Most interior walls in a home are at least inches (8.9 cm) thick.
- Consider how the walls will divide the space into areas such as bedrooms, hallways, kitchens, or any other rooms you plan to include.
Include doors and windows in your design. After finishing the interior walls, use the appropriate symbols to draw doors and windows into your blueprint. Place doors at entry points and ensure they swing in the desired direction. Position windows where you want them in each room.
Tip: Use a specialized architect ruler that shows the necessary symbols to add details like doors, sliding doors, double casement windows, and other design elements. Some rulers even come with stencils to assist with drawing these symbols.

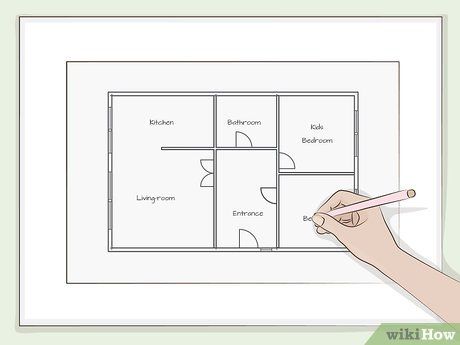

Label each room in your design. Clearly label each room in the center with a name or description for easy reference. Be sure to label all spaces, including hallways, closets, and entrances.
- Ensure the name or description is legible.

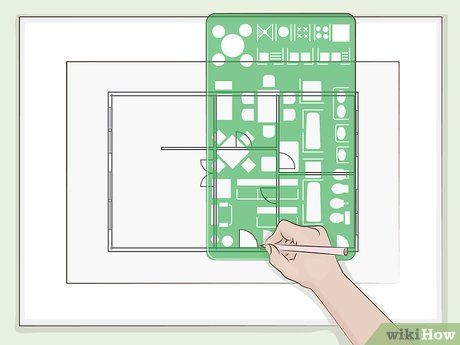

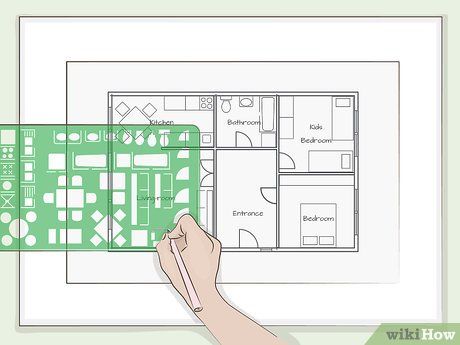

Add symbols for appliances, plumbing, and electrical outlets. If your design includes appliances, plumbing, cabinets, counters, or electrical outlets, incorporate symbols for these elements into your blueprint. This ensures there’s sufficient room for them.
- These symbols should be simple yet easy to recognize.
- Ensure that they are scaled correctly within the layout.
- Label the symbols for clarity.
- You can also include symbols for furniture or other items you intend to place in the room.

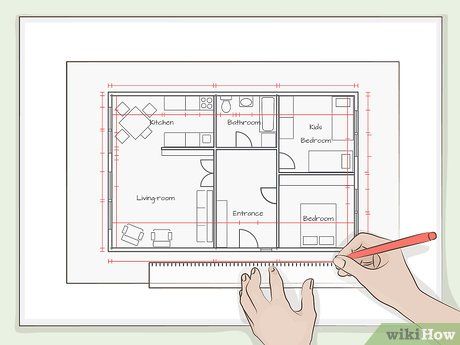

Finalize your blueprint with dimension lines. The final step is to add dimension lines to show the measurements of your design. Start by adding lines about 0.5 inches (1.3 cm) from the edges of the walls in each room to indicate their length. Then, add another line about 1 inch (2.5 cm) from the exterior walls to show the total length.
- Include dimension lines for every room, window, closet, cabinet, and appliance you've added.
Using Design Software

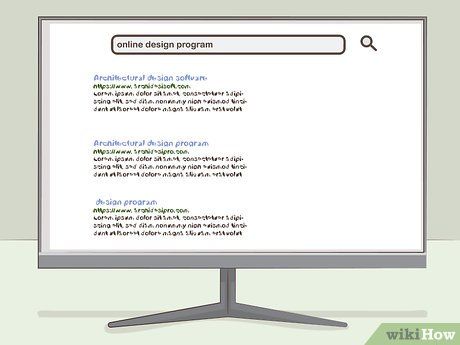

Choose a design program or an online tool. Select a design tool that fits the project you’re working on. If you’re not a professional architect, it’s a good idea to go for a program that’s beginner-friendly and easy to use. Install the program on your computer.
- Design programs can be purchased at computer stores or online.
- Check the packaging or description to ensure your computer meets the program’s requirements.
- If you prefer, you can also use online design tools so you don’t need to install software. Search for an online program that fits your budget.

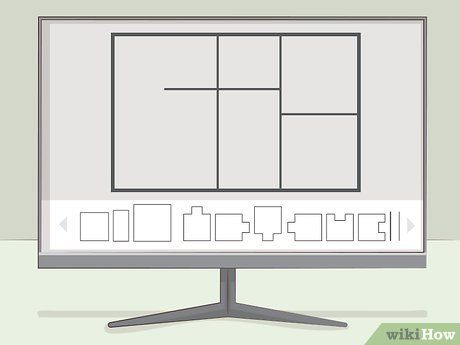

Design the walls and rooms based on your preferences. Start with a blank slate and utilize the software’s tools to build your walls and rooms. Many programs offer simple, intuitive design features that let you click to add a room or component to your design.
- Adjust wall thickness to suit your specifications.
- Don’t forget to label each room once it’s created.

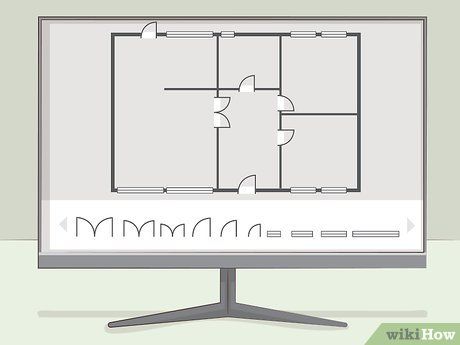

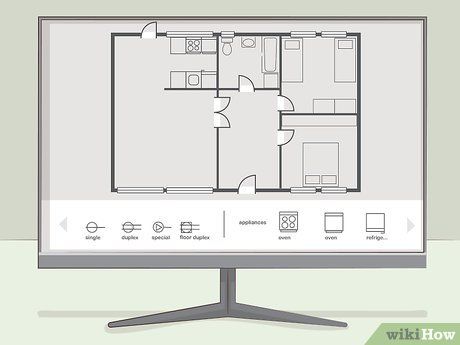

Add doors and windows to the design. Use the program’s tools to select the window styles you want and place them where needed in your design. Add doors to mark entry and exit points. Resize the doors and windows to fit the dimensions of your design.
- Ensure that each door swings in the desired direction.
- Most design programs offer a variety of window and door options, so browse the selection before making your choice.
Enhance your design with additional features. The design software includes options to add symbols for appliances, furniture, fixtures, electrical outlets, showers, and other essential elements. Choose the symbol you need and drag it into place within your design.
- Label the features you add to make them easy to identify.

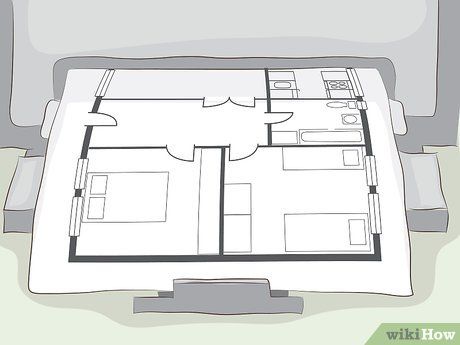

Print your finalized blueprint. Once you're happy with your design, save the file and print it. This will give you a clear, legible copy of your blueprint, ready to use for building and bringing your project to life!
Tip: Roll your blueprint carefully and store it in a protective tube to keep it safe from damage.
-
If you’re uncertain about any aspect of your design or struggling with drafting your blueprint, consider reaching out to an architect for expert help.
Materials You Will Need
Hand Drawing
- Architectural scale
- Tracing paper, 24 by 36 in (61 by 91 cm)
- Poster board, 24 by 36 in (61 by 91 cm)
- Graphite pencil
- Ruler or straightedge
- Symbol stencil
