Mica is a cost-effective and durable material, widely used in various projects such as photo frames, tabletops, or as a glass substitute. It is lightweight, inexpensive, and quite resilient, as it does not rot or shatter easily. Mica can also be easily shaped into different forms with the right tools, proper safety precautions, and accurate measurements. For thin mica sheets, you can score and snap them using a utility knife or scoring blade. For thicker sheets, a jigsaw should be used for straight cuts or a scroll saw for intricate shapes.
Steps
Score and Snap Thin Mica Sheets

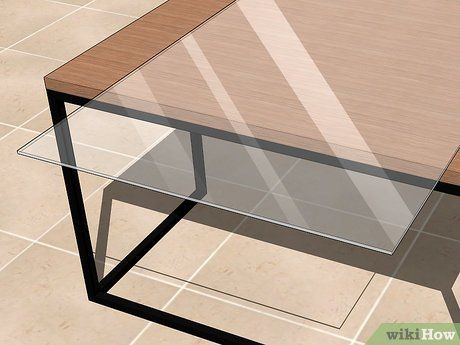

Place the mica sheet on a stable working surface. For mica sheets thinner than 0.5 cm, the scoring and snapping method is the easiest. Lay the sheet flat on a table or work surface that provides a firm foundation for accurate measuring and cutting.
- Ensure that the table is clean and free from any objects that might interfere with your cutting process or leave marks that could damage the mica.
- Choose a sturdy and level structure to avoid any wobbling during the cutting process.
Draw a cutting line using a whiteboard marker at the desired spot. Lay the acrylic sheet flat on the table and use a ruler to draw a straight line at the cutting position. Make sure the line is visible and avoid smudging it.
- Use a whiteboard marker so you can erase the line after cutting the acrylic.
Tip: If you make a mistake while drawing the line, simply erase it and redraw. Use a wet cloth or paper towel to wipe it off.

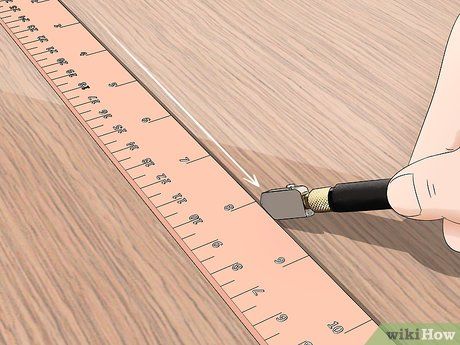

Score along the drawn line with a utility knife. Ensure the acrylic sheet is flat and stable on the surface. Press the knife firmly and use the ruler to guide the cut along the line. Score the line 10-12 times until you form a deep groove on the surface of the acrylic.
- You can also use a cutting knife if the blade is sharp enough to cut through the acrylic.
- The deeper the score, the easier it will be to snap the acrylic later.

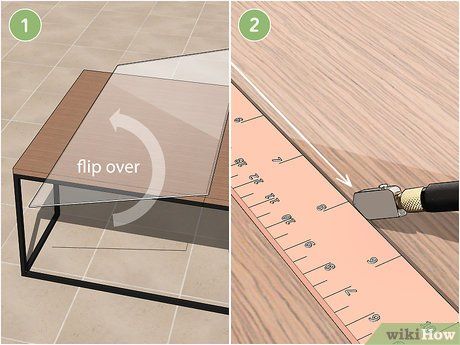

Flip the acrylic sheet over and score the other side. After scoring a deep groove on one side of the acrylic, flip it over and cut along the same line on the opposite side. Continue scoring until you create another deep groove on the second side.
- Be careful when handling the acrylic to avoid warping or bending it before snapping.

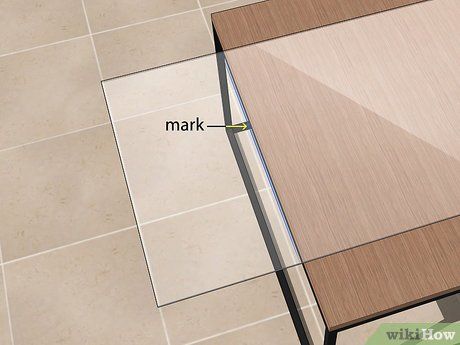

Place the acrylic sheet on the table so the section you want to cut hangs over the edge. Once you have scored the sheet, move it to a position that will make it easier to snap. Position the acrylic so the part you want to cut extends beyond the edge of the table.
- Ensure the entire section you wish to cut is hanging off the work surface.

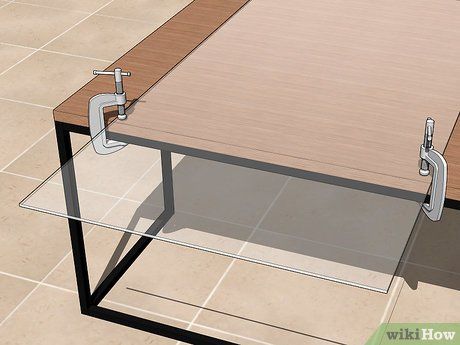

Secure the acrylic sheet firmly on the table. Use spring clamps or C-clamps to hold the acrylic that you do not want to cut. Clamp the sheet tightly to the work surface to prevent it from moving.
- Be careful not to clamp too tightly, as this could leave indentations on the acrylic.

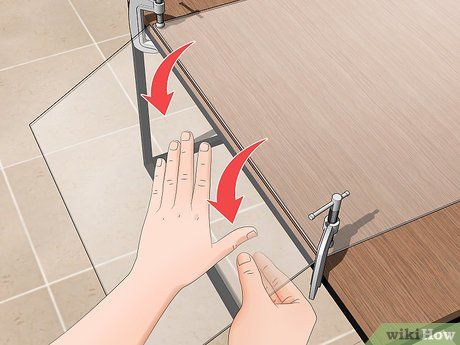

Snap off the section of acrylic you want to cut. After securing the acrylic sheet, quickly press down to break off the piece along the line you scored. The acrylic should separate neatly along the marked cutting line.
- You can hold the acrylic with one hand and apply pressure with the other to snap the piece off.
- If the acrylic doesn't break completely along the scored line, you can use a utility knife to cut along the groove and then snap it.
Cut straight lines with a jigsaw

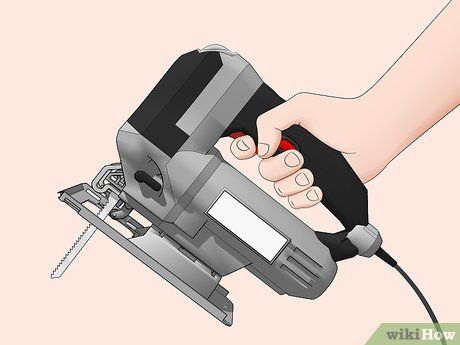

Use a metal jigsaw with carbide-tipped teeth. Ensure that the teeth of the blade are evenly spaced, of the same size and shape, for consistent cutting. A carbide-tipped blade designed for metal cutting is sturdy enough to cut through acrylic without releasing dust or debris into the air.
- A blade with fewer teeth will help reduce dust and debris when cutting acrylic.
- You can find jigsaw blades specifically designed for cutting acrylic.
Warning: Small particles of acrylic can harm your eyes. Wear protective goggles when cutting acrylic.

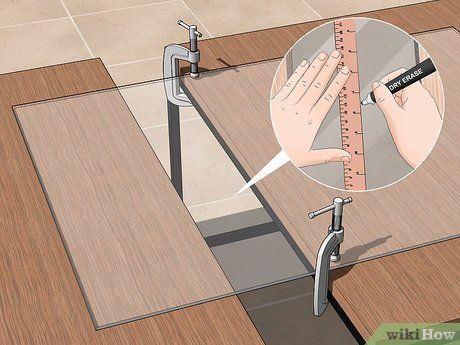

Place the acrylic sheet on the saw table and mark the cutting position. Position the acrylic sheet on the saw table so it remains flat and steady while cutting. Use a ruler or a straight edge to draw a straight line on the acrylic sheet. This line will be your cutting guide, so make sure it's straight and clearly visible.
- Use a whiteboard marker so you can easily erase the line if you need to adjust it.
Align the saw guide with the line you just marked. The jigsaw has a gap that lets you see where the blade will go. Place this guide along the straight line you drew on the acrylic.
- Ensure the acrylic sheet stays firmly in place without shaking or shifting.

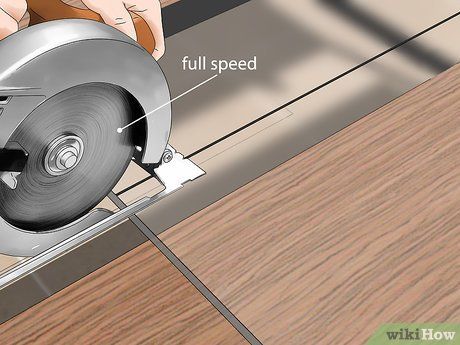

Allow the saw to reach full speed before cutting. The blade must be at full speed before it touches the acrylic to ensure smooth and even cuts. Turn on the saw and let it reach maximum speed.
- If you start cutting before the saw reaches full speed, the teeth might get caught on the acrylic, causing jagged or uneven cuts.

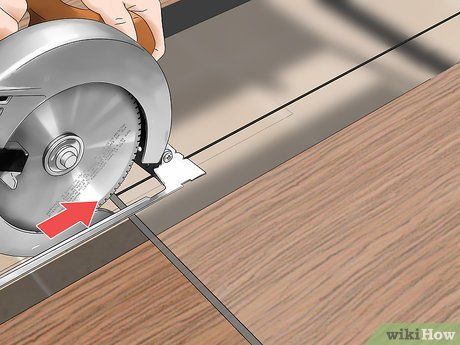

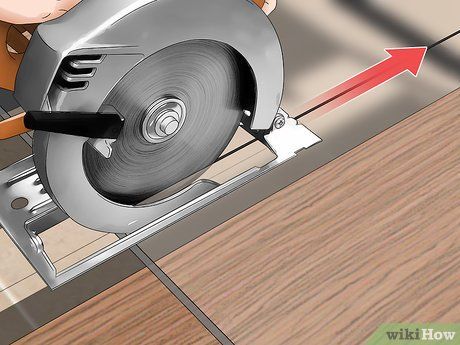

Push the saw blade through the acrylic smoothly and slowly. Follow the guide and the marked line as you cut the acrylic. Push the saw at a steady pace to avoid the blade getting stuck.
- If the saw stutters or gets stuck, you might be pushing too fast. Stop, let the blade regain speed, and then continue cutting through the acrylic.
- Make sure both halves of the acrylic are balanced on the saw table to prevent them from falling when the cut is finished.
Use a coping saw to cut different shapes
Use a coping saw to create circular cuts on the acrylic sheet. A coping saw looks similar to a jigsaw but is shorter and moves up and down. This tool is great for both straight and circular cuts, making it an excellent choice if you need to cut the acrylic into specific shapes or a round piece.
- Use a blade without coating and with small teeth for cutting acrylic.
- Keep a few extra blades handy in case you need to replace them while cutting.

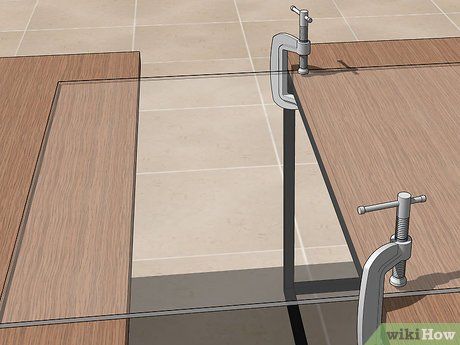

Place the acrylic sheet on the saw table. Use the saw table as a stable work surface to secure the acrylic while cutting. Position the acrylic sheet so that it is steady and firmly in place on the saw table.
- Check to ensure that the acrylic is not slipping or vibrating before you start cutting.

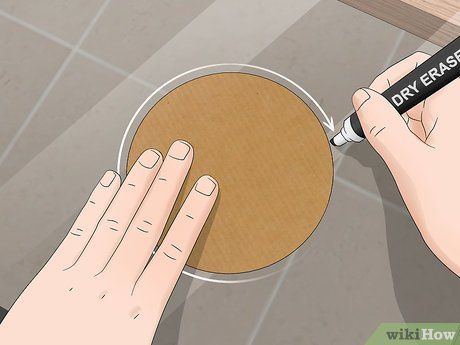

Use a whiteboard marker to draw a guide line for the coping saw. It's crucial to have a guide line when using a coping saw, especially if you're cutting a circle or a specific shape. The coping saw allows for precise shapes, but you need a clear guide line. Use a whiteboard marker to draw the shape you want to cut.
- The whiteboard marker will allow you to easily erase it once you've finished cutting or if you need to adjust the design.
Tip: If you're planning to cut a pattern or specific shape, you can use a stencil or round object to trace a consistent guide line.

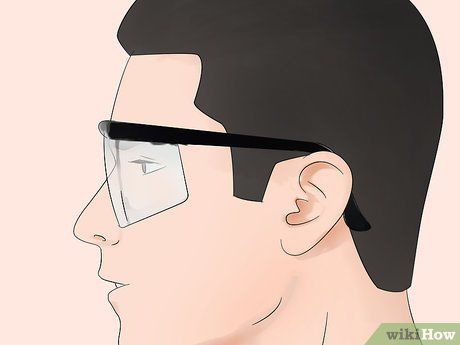

Wear protective goggles to safeguard your eyes. Small fragments or particles may fly into the air when cutting acrylic and can harm your eyes if they get in. Be sure to wear protective goggles before starting to cut.
- Make sure the goggles fit snugly on your head so they don't fall off while you're working!

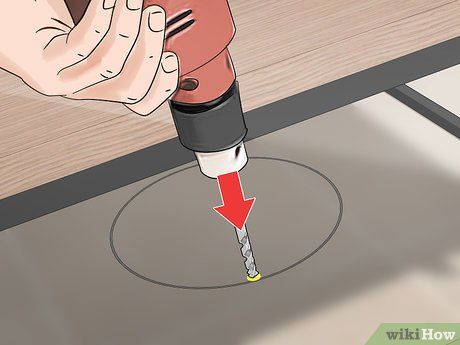

Drill a hole to insert the coping saw blade into the acrylic sheet. The coping saw requires a gap to fit the blade, so the first step is to drill a hole using a drill and masonry bit large enough for the saw blade to pass through. If you're cutting a spiral or circular shape, drill the hole at the smallest corners of the shape. This will make it easier for the saw blade to rotate when reaching those areas.
- The saw blade can bend or break if it doesn't rotate smoothly.

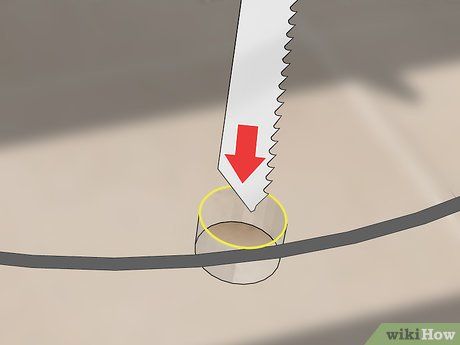

Insert the saw blade into the hole and set the speed to the highest. Place the coping saw blade into the hole you drilled in the acrylic sheet and turn on the saw. The coping saw operates more slowly than a jigsaw or circular saw, so you need to let it reach full speed before you start cutting.
- If the saw blade hasn't reached maximum speed when it makes contact with the acrylic, it could get stuck, bend, or break, damaging the saw.
- The blade could get caught and cause injury, so be cautious.
Push the saw slowly to cut through the acrylic sheet. Apply consistent pressure to prevent the saw blade from slipping off the acrylic sheet. Follow the guide line closely and slow down when reaching corners. If you hear or feel the saw blade sticking or getting caught, reduce speed, back off, then accelerate again to finish cutting through the acrylic sheet.
Things you'll need
Score and snap the thin acrylic sheet
- Whiteboard marker
- Ruler or straight edge
Cutting straight lines with a coping saw
- Whiteboard marker
- Ruler or straight edge
- Coping saw
- Protective glasses
- Carbide-tipped saw blade
Using a scroll saw to cut various shapes
- Whiteboard marker
- Ruler or straight edge
- Scroll saw
- Protective glasses
- Non-coated saw blade with small teeth
- Electric drill
