Today, Mytour will show you how to open the Xbox One gaming console's casing. Please keep in mind that disassembling the console will void its warranty. This guide is not applicable for the Xbox 360.
Steps
Gather all necessary tools. To disassemble the Xbox One console, you will need the following items:
- Flathead screwdriver (or a plastic replacement tool if available)
- Torx T8 screwdriver
- Torx T9 screwdriver
- Torx T10 screwdriver
- Plastic pry tool (optional, but it will make the process easier)

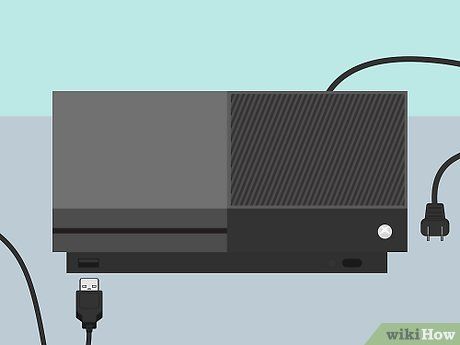

Disconnect the Xbox One from all power sources. The Xbox One should be fully disconnected from all accessories and cables, including external storage, HDMI/audio cables, and charging cables.
Ground yourself before disassembling the console. Static electricity can permanently damage the circuits, so it's important to perform proper grounding techniques, such as touching a metal surface before proceeding.

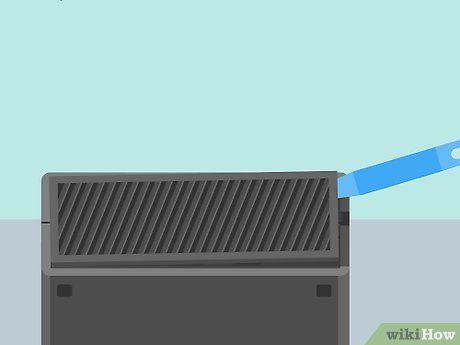

Remove the left side cover. Start by using a flathead screwdriver or a plastic pry tool to gently wedge into the gap between the left rear corner of the gaming console and the plastic mesh on the left side of the device. Carefully pry up the mesh to remove it.
- Plastic tools are preferable over metal ones as the mesh is quite fragile.

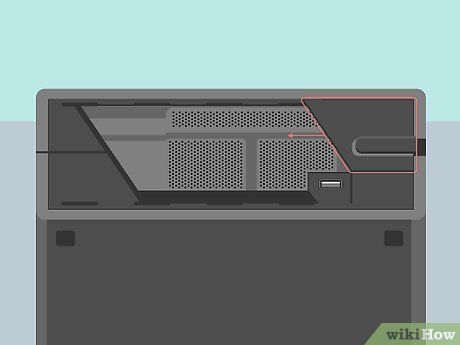

Slide the casing off the gaming console. The casing is located to the right of the plastic mesh; slide this portion to the left to detach it from the console.

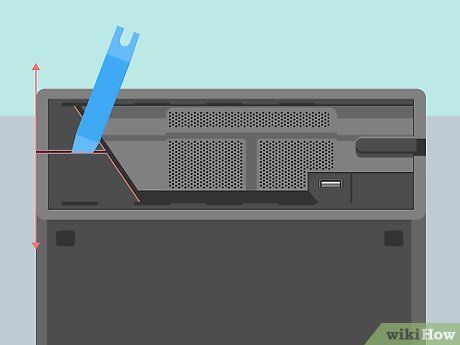

Remove the second casing on the left side of the plastic mesh. To remove this part, push the top and bottom frames in opposite directions to create a gap. Insert the flathead screwdriver into the seam near the warranty sticker on the back of the console. Pry gently until the casing detaches from the device.
- This step is easiest when the console is placed upright.
- Once the warranty sticker is torn, the console will no longer be covered under warranty.
Remove the remaining casing. Insert the screwdriver into the top of the plastic mesh at the back of the console and pry until the casing separates. Continue working along the seam on the opposite side of the device. After detaching all the casing clips, the rear cover of the Xbox One is ready to be removed.
- Do not remove the cover immediately as this could damage the ribbon cable connecting the front of the Xbox One to the motherboard.
Lift the top cover. Place the Xbox One on a flat surface with the base facing downward. Then, lift the top cover and open it about 90 degrees from the main body of the console.

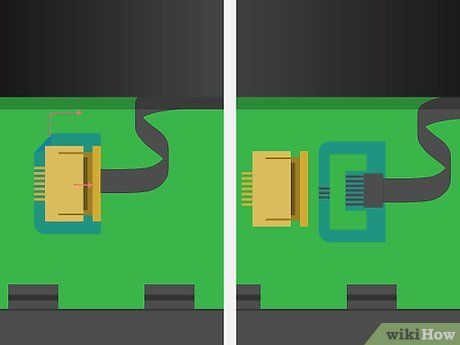

Disconnect the ribbon cable from the front panel. Locate the cable near the "On" button on the front of the console. Once you find it, lift the blue frame surrounding the connector and gently slide the cable to the left. This will disconnect the ribbon cable from the top cover.
Remove the top cover from the console. Now you can lift the top cover without any obstructions, as all connections have been detached.
- Place the top cover in a dry and secure location.
Disconnect the speaker and Wi-Fi cables. These two cables connect the top of the console to the control board; unplug them from the front of the console.

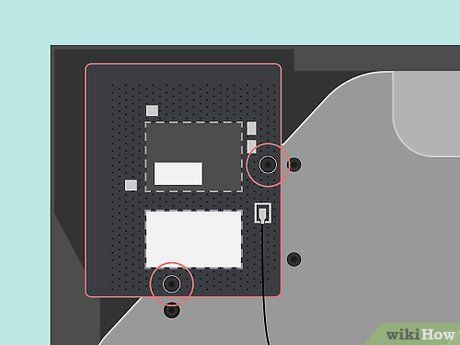

Unscrew the Wi-Fi card securing screw. Use a Torx T8 screwdriver to remove the screw holding the Wi-Fi card in place at the bottom left corner of the console (with the front of the Xbox One facing you).
Remove the Wi-Fi card. Gently lift the Wi-Fi card vertically upwards. The Wi-Fi card will detach from the internal circuit board of the Xbox One.
- Place the Wi-Fi card alongside the top cover of the Xbox One.

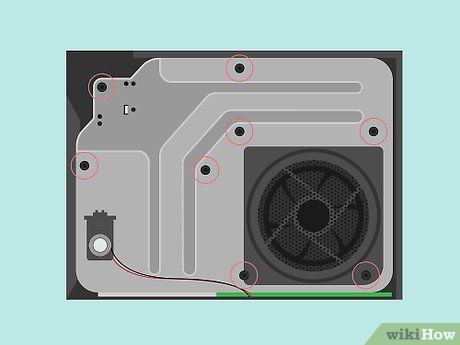

Unscrew the metal casing. Use a Torx T9 and T10 screwdriver for this step. The metal casing is the final part to remove in order to open up the Xbox One. There are 8 screws to take out in total, marked with the letter 'C' and a number next to them.
- Two screws are located underneath the fan base.
- After unscrewing, make sure to put the screws in a plastic bag to avoid losing them.

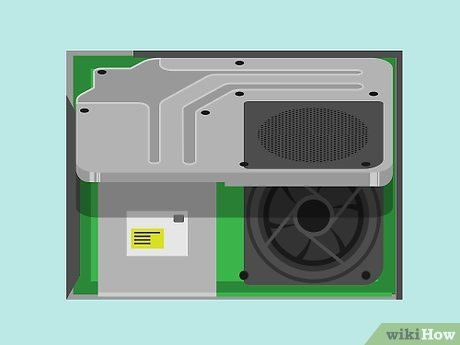

Carefully open the metal casing. Grip the fan base corner and gently pry it open at a diagonal angle to avoid damaging the cable in the opposite corner.
- This step requires a delicate touch. If you encounter resistance, place the metal casing back down, inspect the area, and try again.

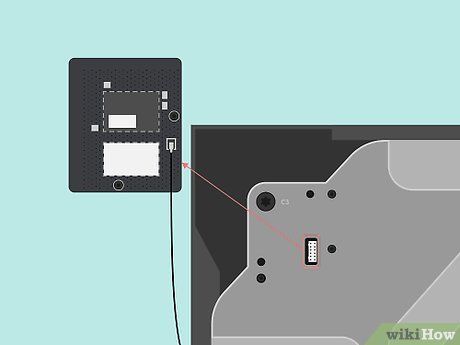

Disconnect the cable. This cable connects the Wi-Fi card to the internal circuit. Gently pull the white connector out of the white port. This completes the removal of the upper metal casing from the Xbox One.
- Place the metal casing aside with the cable facing up.

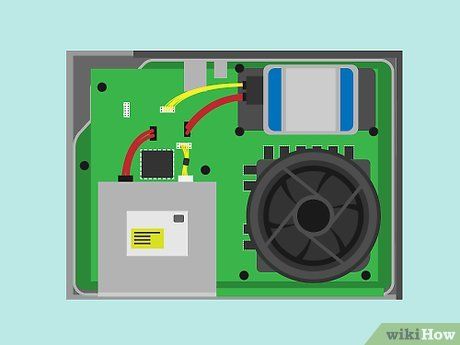

Inspect the internal components of the Xbox One. You will see the cooling fan, hard drive, CD drive, and the green motherboard along the bottom inside the console.
- At this point, the bottom portion of the Xbox One casing has been fully separated. You can now proceed with painting or decorating the Xbox One casing (if that was your initial intention).
- If you're attempting to fix a stuck CD in the drive, locate the small hole on the front of the panel and insert a straightened paperclip to manually eject the disk tray.
Advice
- Exercise extreme caution, as even a small mistake can result in electrical accidents.
- Only disassemble the Xbox One if you are certain of what you intend to do. If it's just out of curiosity, you will forfeit your warranty. Additionally, if you want to explore the internal components without tampering with your beloved gaming console, you can watch Xbox One teardown videos online.
Warning
- Disassembling the Xbox One while it is connected to a power source could result in an electrical shock.
