Today's guide by Mytour will walk you through effective steps to protect the delicate components inside your computer from electrostatic discharge. While the chances of damaging a computer due to static electricity are low, it's always good to make sure you're not inadvertently harming any important parts of your device.
Steps
Prepare Your Work Surface

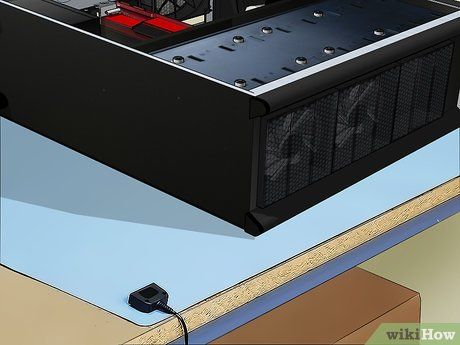

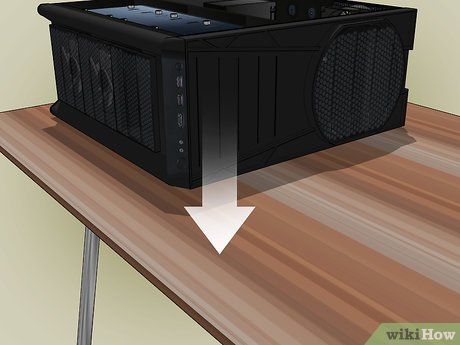

Work on a Solid Surface. Ensure you're assembling or disassembling your computer on a firm, clean surface (such as a table, counter, or wooden board) to minimize the risk of static buildup.
- Avoid placing the computer on surfaces like carpets, blankets, or towels when performing any tasks that require grounding.
Stand barefoot on a hard surface. Carpets and socks can accumulate static electricity. Therefore, you should stand barefoot on wood, tiles, or any other hard flooring.
- If standing on a carpet is your only option, make sure to ground yourself every few minutes.
- You could wear rubber slippers to fully avoid body contact with the floor, but this is less feasible since you may not always have rubber slippers available at home.
- If you don’t have rubber slippers, you can also wear shoes with rubber soles.
Avoid wearing clothes that easily accumulate static electricity. Wool and some synthetic fibers are highly prone to static buildup, so it’s better to opt for cotton clothing when possible.
- You can wash and dry clothes with fabric softener sheets to reduce static buildup before working with computers.

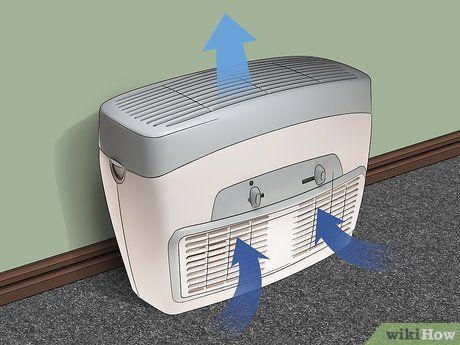

Moisturize the dry air. Static electricity is more of a problem in dry environments. If you have a humidifier, use it; but if not, don’t rush to buy one. There are other methods that can be just as effective.
- You can also make the air more humid by hanging a damp towel in front of a fan.

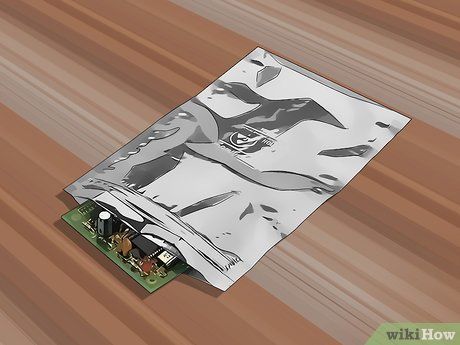

Place all components in anti-static bags. All new computer components should be stored in the anti-static bags that come with them from the moment of purchase until they are ready for installation.
Grounding yourself

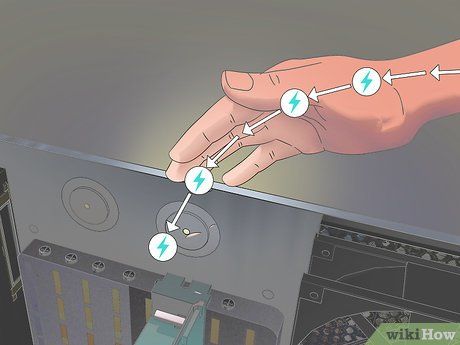

You need to understand the purpose of grounding. To prevent static electricity from transferring to sensitive computer components, you must discharge static into something more durable. In most cases, you can touch a metal object that is in contact with the floor or a series of grounded objects.

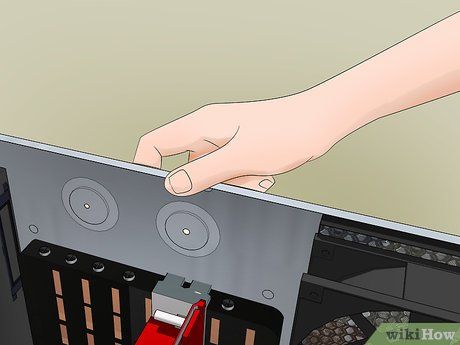

Use the computer case for grounding. This is a technique commonly used by computer builders: before touching or installing any component that could be damaged by static electricity (such as the computer's motherboard), place your hand on the unpainted metal part of the computer case.
- You can even assemble the computer while keeping your non-dominant hand on the metal case to ensure static does not interfere with the components.

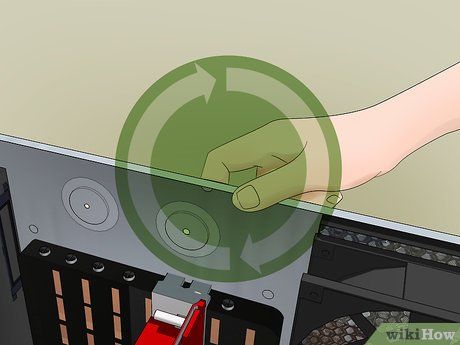

Touch a metal object on the ground every few minutes. This object should be an unpainted metal piece with its own grounding wire, such as a metal heatsink or a grounding lug on the computer case. This is the quickest and easiest method when assembling a computer without additional precautions.
- However, this method still carries a slight risk. You should rely on it only if you're working quickly and the components are not too expensive.

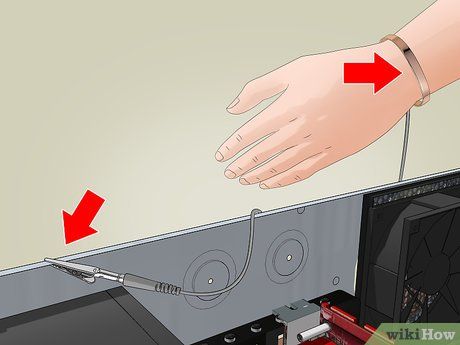

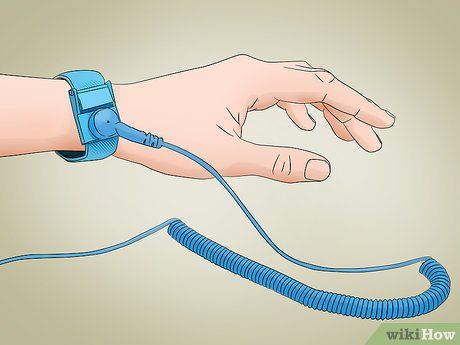

Use an anti-static wrist strap to ground yourself. These affordable devices are available online and in electronics stores. Simply wear the strap tightly around your wrist and clip the grounding connector onto an unpainted metal object like a screw.
- Do not use wrist straps without wires, as they are ineffective.
- If your strap has a hook instead of a clip, you can easily attach it to a grounded screw in a wall socket. This screw is grounded (at least in the U.S.), but you may want to double-check with a meter to be sure.
Use a grounding wire to connect yourself to a metal object. This common grounding technique involves tying a wire (such as copper wire) around your finger or wrist and attaching the other end to a metal object that is grounded on the floor. This method is ideal if you are working with conductive materials and cannot work on a solid surface.
Work on an anti-static rubber mat (ESD). ESD mats are designed to "discharge" or "neutralize" electricity. Place computer components on the mat and occasionally touch it while working. Some mats even have spots for attaching an anti-static wrist strap.
- If you're only repairing a computer, you can opt for a vinyl ESD mat as they are cheaper than rubber mats, and not strictly necessary for basic tasks.
- An anti-static mat is the best choice for most home projects. It ensures complete peace of mind.
Tips
- Only handle the edges of the CPU. Avoid touching any pins, circuit boards, or metal heads unless absolutely necessary.
- Today, static electricity-related damage to computers is less of a concern than it was ten years ago. While we cannot deny the importance of precautions to prevent electrostatic discharge accidents, most modern computer components have multiple layers of protection against common threats, including static electricity.
Warning
- Even if the static discharge is so weak that you don’t notice it during assembly, it could still damage or reduce the lifespan of the components. In the worst-case scenario, a strong discharge could permanently damage the motherboard.
