How to Inject Dye into the AC System

If your car's air conditioner blows hot air, it could be a sign of a refrigerant leak. The air conditioning system is quite complex, making it difficult to pinpoint the exact location of the leak. This is when UV dye comes into play! By using a special gauge to inject UV dye into the AC system, you can easily identify the leak by finding glowing spots where the dye escapes. Remember, this method is not for beginners, and it's recommended to take your car to a repair shop if you're not experienced with AC systems.

If the AC system blows hot air and you’ve recently serviced it, the cause is likely a leak. Refrigerant loss over time is entirely normal, so don't jump to conclusions that a leak is the problem if the AC blows hot air and you've had no recent service. However, if you’ve serviced or recharged the AC system and it starts blowing hot air again after a few weeks, it's almost certain there's a leak.

• If your vehicle starts blowing hot air after a long period, try adding more refrigerant first. You may just need a small refill to solve the issue.

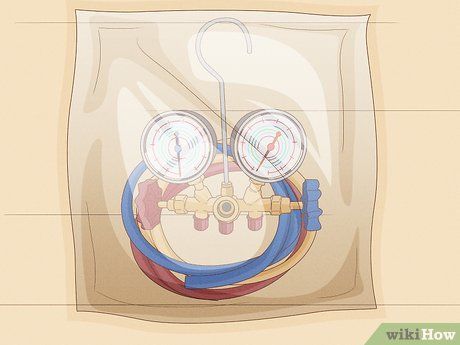

Yes, but it can be a tough task if you're not familiar with machinery. The car's AC system is quite complex, and it can be hard to identify the parts that need replacing or repairing if there is a leak. If you have a good understanding of how the AC system works, how the gauge set operates, and what type of refrigerant to use, you can handle the job yourself.

• Hiring a service to repair the AC leak doesn't cost much. It might not be worth investing your time and money into buying a gauge set to do this yourself.
• If your car was manufactured before 1994, it might be using Freon instead of modern refrigerants. Since Freon is toxic and only certified mechanics can purchase the correct type for your car, you should take it to a repair shop.
• Never attempt to repair the air conditioning system at home; always hire a professional. The consequences of trying to fix the central AC system yourself can be disastrous.

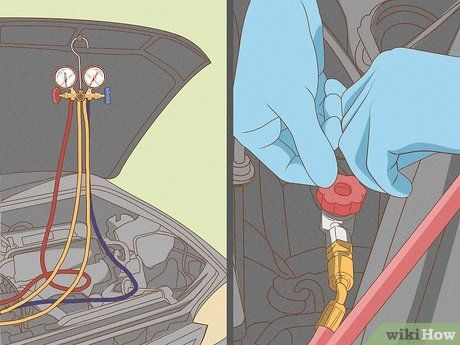

Hang the gauge set on the hood to inject the fluorescent dye. Turn off the engine. Open the hood and hang the gauge set on it. Take the low-pressure hose (blue) and attach it to the low-pressure port in the engine compartment. Connect the high-pressure hose (red) to the high-pressure port. Use the knobs on each hose to secure the connections.

• The location of the pressure ports will depend on your car's make and model. If you can't find these ports, look for small tubes with caps labeled “H” and “L.” Open the caps and connect the hoses to these ports.
• The high-pressure and low-pressure hoses are different sizes. If the ports are unlabeled and the hoses don't fit, you've likely connected them incorrectly.

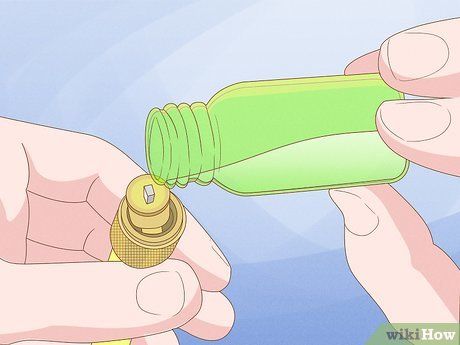

Place a few drops of UV dye into the yellow hose on the gauge set. The yellow hose is typically connected to the air compressor or vacuum pump and is located in the center of the gauge set. Its purpose is to supply the dye into the AC system. Pull the yellow hose out of the car to prevent the UV dye from spilling into the engine compartment. Hold the hose with the opening facing up and carefully drop some dye into the hose.

• Wear gloves to avoid getting the dye on your hands.
• Wipe off any dye that may have spilled on the opening of the hose. The dye isn't harmful, but it could make it more difficult to detect any leaks later on.

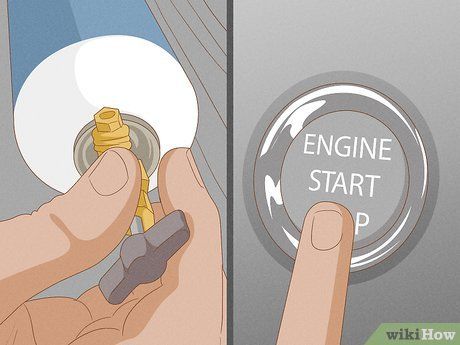

Connect the yellow hose to the refrigerant can and start the car. Make sure the red and blue knobs on the gauge set are tightened properly. Take a refrigerant can and connect the yellow hose to the valve on the can. Turn the knob on top of the can all the way down to puncture the can, then turn it back to allow the refrigerant to flow into the hose. Wear protective eyewear and perform a quick discharge test with the gauge set before opening the high and low-pressure hoses. Start the engine to push the dye through the hose.

• You must perform a quick discharge of the yellow hose before starting the car. Here's how: hold the gauge set away from the engine compartment and use a flathead screwdriver or wrench to press the valve where the yellow hose connects to the body of the gauge. Do not look directly at the gauge, and stop pressing the valve when the liquid starts to flow out.
• If the high-pressure and low-pressure hoses aren't open, the refrigerant won't pass through the AC system. Simply turn the knobs on the gauge set counterclockwise to open these hoses.
• Not all vehicles use the same refrigerant, so refer to your owner's manual to find the correct type for your car.

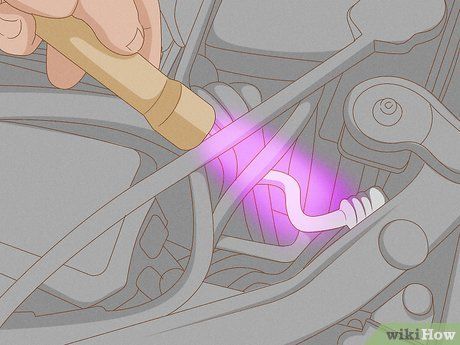

Use a UV flashlight and start the car. Turn on the flashlight and shine it into the engine compartment. You may need to search for a while because the AC system runs the full length of the compartment. If there's a leak, it will immediately reflect the light when exposed to the flashlight. If you don't see the dye in the engine, check under the vehicle. If you still can't find anything after about 10 minutes, it's likely that the AC system isn't leaking.

• If you're unsure, “Is this UV dye?” the answer is almost certainly “No.” UV dye is very bright and noticeable.
• If you're working outdoors, wait for it to get a bit darker. In a workshop, turn off all the lights. It can be difficult to spot leaks if the surroundings are too bright.
• Green or purple lights can also make the dye glow, as long as the light is LED.

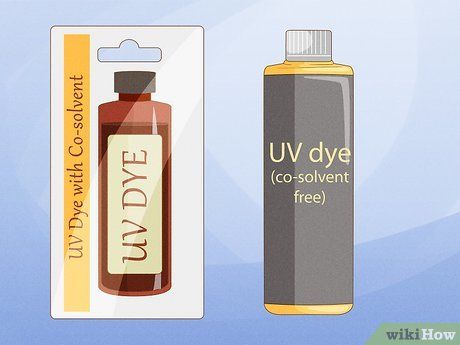

No, as long as the dye does not contain hidden solvents. Standard UV dye is inert and functions like food coloring, having no effect on the system. However, you should ensure the dye is free of any hidden solvents, as they could damage aluminum, metal, and plastic parts.

• The good news is that UV dye manufacturers no longer include hidden solvents. Modern dyes typically do not contain them, unless you have a bottle that’s been sitting for about 10 years.
• Common hidden solvents include Aromatic 200 and NMP (N-methylpyrrolidone). If the dye bottle is labeled “solvent-free,” feel free to use it.

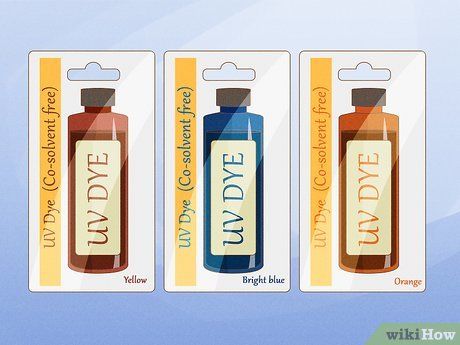

UV dye is typically yellow, green, or orange. However, it will not display these colors unless exposed to a UV or LED flashlight. It can also be hard to see the dye if you’re working in direct sunlight or a well-lit area, so it’s best to work when it’s a bit darker or with all lights turned off.

• There are UV multi-color test kits available that help you spot specific items you’re looking for.

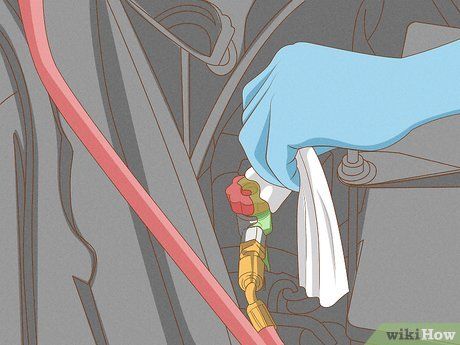

There are no significant drawbacks, but cleaning can be a bit tedious. UV dye is very bright and easy to spot, making it straightforward to locate leaks. When the vehicle is started, the dye tends to splatter throughout the engine compartment if a leak is present. Typically, a wet rag will suffice to wipe the dye off, but you may also use mineral spirits, brake cleaner, or UV dye cleaning solution to clean it up.

• Mechanics consider the UV dye method the most accurate way to find leaks. You cannot miss the dye if there is a leak.

• Since the dye is inert, you can also use it in other systems of the vehicle to locate leaks. For example, you can pour a little into the engine oil, coolant chamber, or brake fluid lines to find potential leaks.

• If you lack mechanical knowledge or experience with AC systems or manifold gauges, it is better to take your vehicle to a repair service. This is not an easy process and can even be quite complex.
• HVAC specialists also use the UV dye method to detect leaks in central air conditioning systems. However, you should not attempt this on your own. HVAC refrigerant lines contain Freon, which is toxic. For safety reasons, you should not attempt to repair central air conditioning systems unless you are a certified technician.
