How to Install a DVD Drive

You need to add a DVD drive to your computer. While searching online, you might encounter a few technical terms that confuse you. With the addition of Blu-Ray drives, your choices are more diverse than ever. Fortunately, once you have selected the right drive, installation takes only a few minutes.

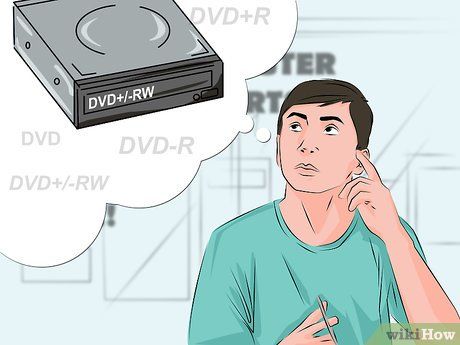

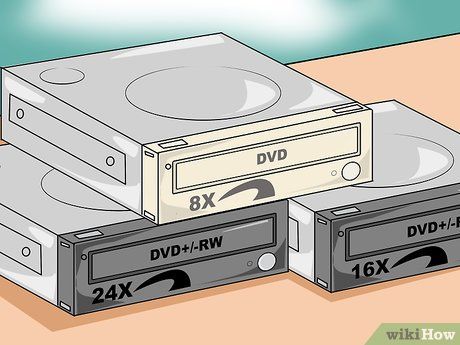

Learn about different formats. There are several types of DVD drives available: DVD, DVD+R, DVD-R, DVD+/-R, DVD+/-RW. These labels correspond to the read and write capabilities of each drive. Modern drives are typically DVD+/-RW or DVD RW, which can both read and write to DVDs.

• Most newer drives support writing to discs, though you can still find drives that are read-only, typically labeled as DVD-ROM.

Decide whether to buy a Blu-Ray drive. Blu-Ray is the latest disk storage format on the market, offering more storage capacity than regular DVDs. Blu-Ray drives allow you to watch high-definition Blu-Ray movies, read data from both Blu-Ray and DVD discs.

• The price of Blu-Ray drives has significantly dropped, and even the writeable versions are now more affordable.
• Even if a Blu-Ray drive doesn't specifically mention BD-ROM, it might still be able to write to DVD discs.

Compare read and write speeds. When browsing through various models, you should compare their read and write speeds. This will give you an idea of how long it takes to read and write different formats on discs.

• Modern DVD drives typically offer a 16X read speed and up to 24X write speed. These values are relative to the 1X drive speed, not the actual read and write speeds of the drive.

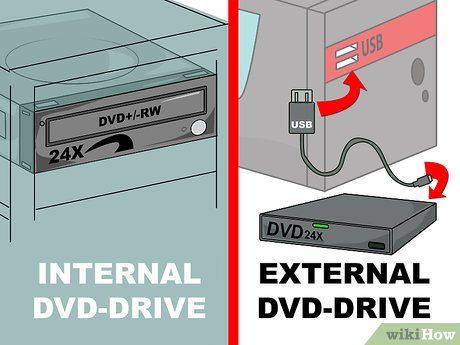

Decide between internal and external drives. If you're using a laptop, you'll need to opt for an external drive. For desktop computers, you can choose either, but internal drives tend to have better performance.

• If you decide on an external drive, you can skip Section 3 which provides installation instructions.

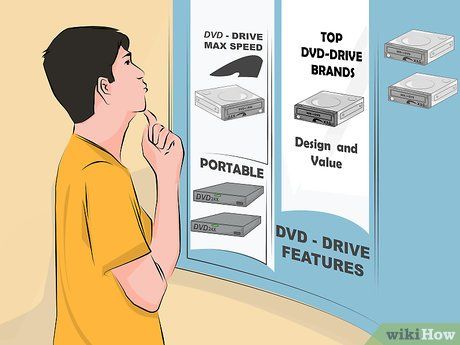

Select a quality drive. Look for reputable brands. This ensures the durability of the drive, and you'll also enjoy reliable warranty services. Here are some trusted optical drive manufacturers:

• LG
• Philips
• Plextor
• Lite-On
• BenQ
• Samsung

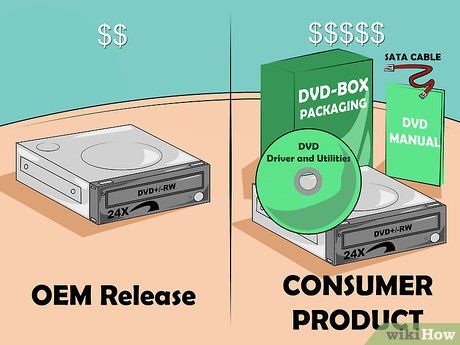

Consider buying an OEM version. If you have a SATA cable and don’t need a user manual or driver installation disc, go for an OEM version. OEM drives are cheaper than regular consumer models but still provide all the necessary features.

• If you buy an OEM version, you can find the drivers and documentation on the manufacturer's website.

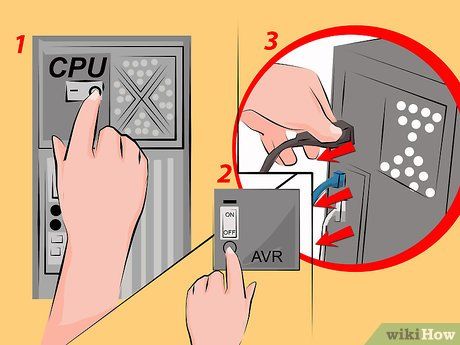

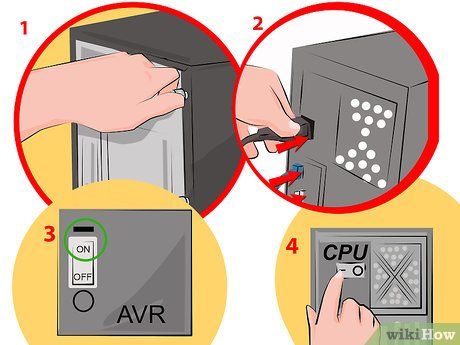

Turn off the computer and unplug all cables. You will need to open the computer to install the internal drive. Move the computer to a stable surface for easy handling.

• If installing an external drive, simply plug it into the computer via USB and skip the rest of this section.

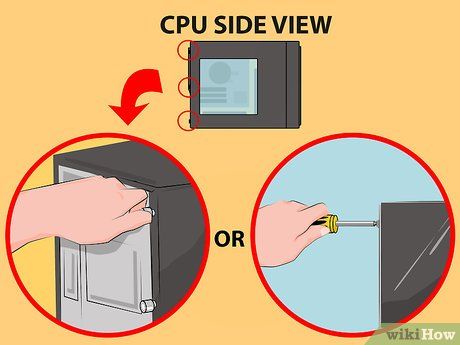

Remove the computer case. Newer computer cases often use screws at the back for easy removal. You may need a screwdriver to unscrew the fasteners. Take off the side panels to access the drive bay from both sides.

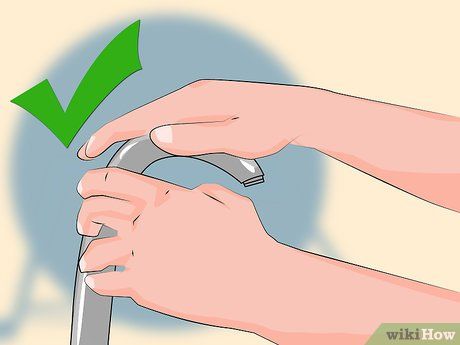

Ground yourself. Before working inside the computer, it’s important to ground yourself. This will prevent static electricity from damaging internal components. The best method is to wear an anti-static wrist strap and connect it to the case. If you don’t have one, you can discharge static by touching any metal object.

Remove the old drive (if necessary). If replacing the old drive, you must remove it before installing the new one. Disconnect all cables attached to the drive, unscrew the screws securing it, and gently push from the rear to slide the drive out of the bay.

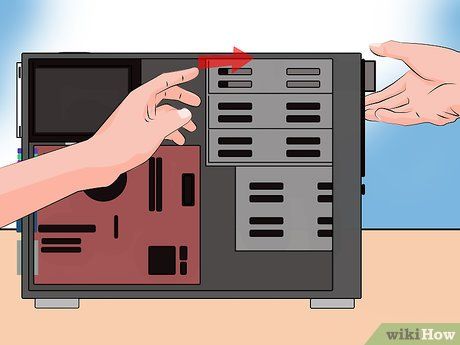

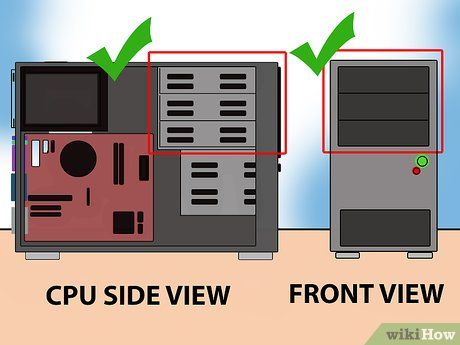

Identify the position of the 14cm drive bay. If you're not replacing an old drive, you'll need to locate the drive bay position. Typically, the bay is placed near the top, at the front of the case. Your system might already have one or two drives installed in this location. Remove the front panel to access the bay.

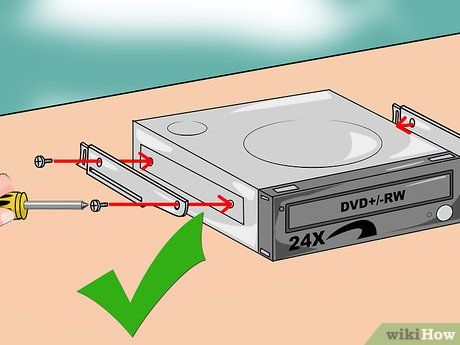

Install the rails (if necessary). Some drive bays require rails to secure the drive. In such cases, attach the rails to the sides of the drive before sliding it into the computer case.

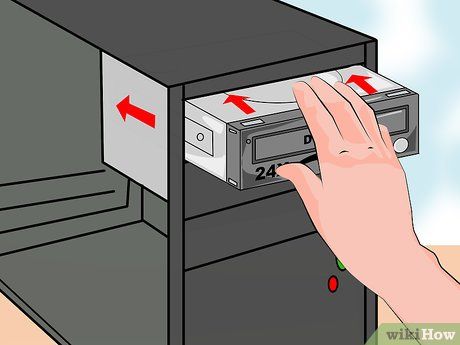

Slide the drive into the appropriate position. Most drives are inserted from the front of the case, but it's a good idea to consult the manual for confirmation. Make sure the drive is properly oriented before installation.

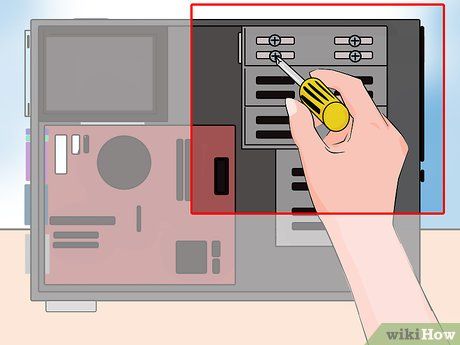

Secure the drive. You can fasten screws on both sides to keep the drive in place. Remember to secure the drive on both sides of the case. If using rails, make sure the drive slides into position and locks correctly.

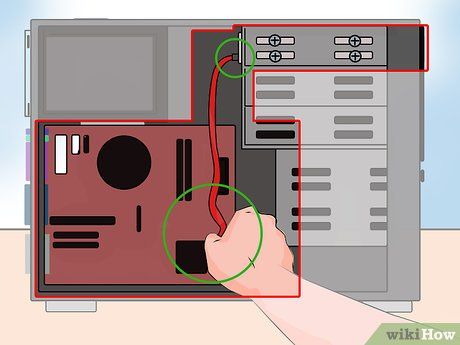

Connect the SATA port to the motherboard. Use the included SATA cable to connect to the corresponding port on the motherboard. Review the manual if you're unable to locate the SATA port on the motherboard.

• The SATA cable can only be connected in one direction to both the drive and the motherboard, so don't force the connector into place.
• Be cautious not to disconnect other devices like hard drives, as this may prevent the computer from starting.

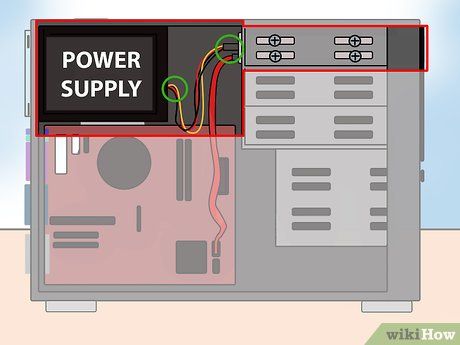

Connect the power source to the drive. Locate the power port on your computer's power supply unit, which is usually found at the bottom of the casing. Plug the power cable into the corresponding port at the back of the drive. Just like the data cables, the power cable can only be inserted in one direction, so avoid forcing the connection.

• If you can't find the power connector, you'll need to buy a replacement adapter for it.

Assemble the computer and turn it on. Close the case, move the computer to its designated position, and reconnect all cables as they were before. Power up the system.

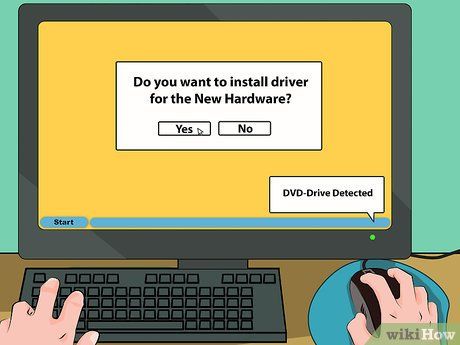

Wait for the operating system to detect the drive. Typically, the operating system will automatically recognize the new DVD drive. Compatible drivers will also be installed automatically. The system will notify you once the installation process is complete.

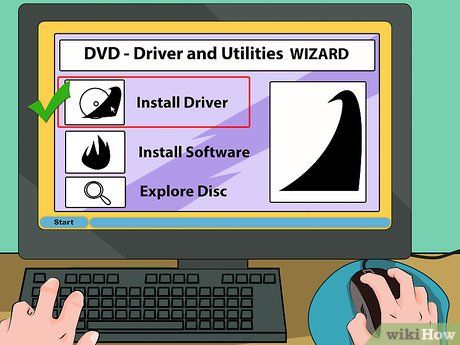

Install drivers using the included disk (if necessary). If the drivers are not automatically installed, you will need to install them from the provided disk or download them from the manufacturer's website. Follow the on-screen instructions to complete the installation. You may be prompted to restart the system after installation is finished.

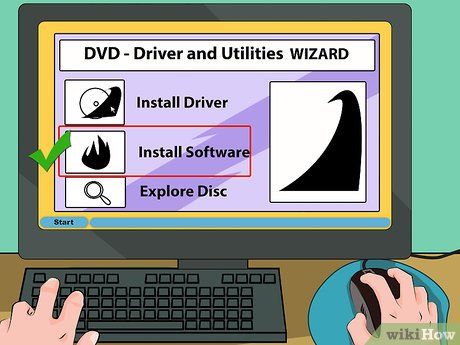

Install the included software, such as disc burning or video playback software. Many drives come with software that allows you to burn multimedia files to blank DVDs or watch high-definition videos. While these programs are not essential as you can easily download alternatives from the internet, you can still install them if you prefer.
