How to Install a Graphics Card

Is your computer struggling to run games as smoothly as others? Have you ever wondered, "I wish my computer could do that" when you see those stunning screenshots? The secret often lies in the graphics card (also known as the video card). Upgrading your graphics card might seem intimidating, especially with so many options available on the market today, but by narrowing down your budget and having a little patience with a screwdriver, you’ll quickly be able to install that shiny new graphics card.

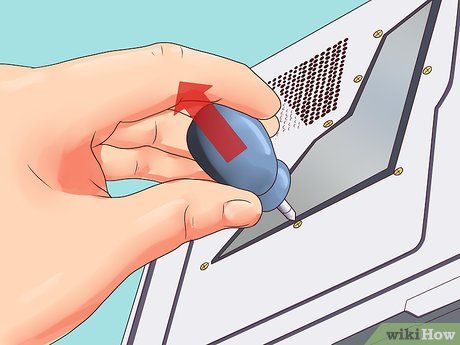

Open the computer case. To locate the old graphics card, check the power supply, and install the new one, you’ll need to open the case. Most new cases come with screw holes at the back for easy removal of the panel, but you might need a small screwdriver to undo the screws if you have an older case.

• Before opening the case, disconnect all cables and peripherals.
• Remove the panel opposite the motherboard. On the back of the case, you’ll notice a plate with several ports, including USB, Ethernet, and display ports. This is the I/O motherboard plate, which will help you locate the motherboard. Lay the case flat on this side, and remove the panel opposite to have a clearer view of the motherboard.

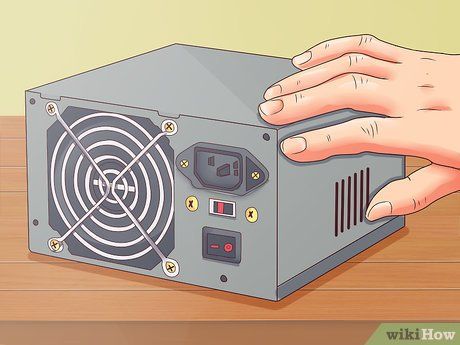

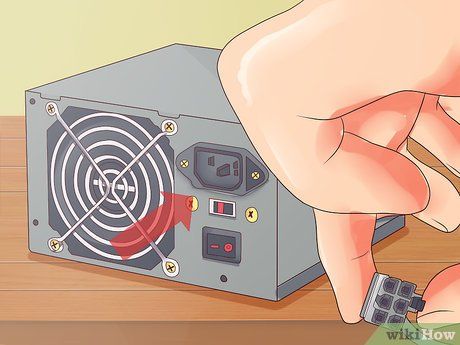

Ensure that the power supply is functioning properly. A powerful graphics card requires enough power to operate. If you're using an old power supply or your computer has multiple other components demanding power, the power supply may not provide enough wattage. In such cases, consider upgrading the power supply when upgrading your graphics card.

• There are websites that can help you calculate the power requirements by analyzing all the hardware currently installed or to be added. Just search for "power supply calculator" using your preferred search engine.
• Your power supply must also have a PCI-E connector. This is generally not an issue if you're using a newer power supply, but a power supply from over 10 years ago may not have the required connector.
• The maximum power output is usually labeled on the power supply itself. You may need to remove the power supply to view this information.

Ensure that the motherboard supports the graphics card. Almost all modern graphics cards are PCI-E, so you’ll need to make sure your computer has at least one PCI-E slot. These slots are typically located near the processor within the PCI slot row. If you can’t find a PCI-E slot, you’ll need to install a new motherboard to upgrade your graphics card.

• Refer to your motherboard's manual to locate the PCI-E slots.
• Installing a new motherboard will require you to reinstall the operating system.
• Note: Most laptops do not allow for a graphics card upgrade.

Ensure that the graphics card fits the slot. Many newer graphics cards are quite large and require two PCI slots. Additionally, they can be tall and long, so you’ll need to ensure that your case has enough room both horizontally and vertically.

• Measure the available space inside the case. Nearly all graphics card models list their dimensions in the product details, allowing you to check if they’ll fit in your case before purchasing.

Balance price with functionality. Graphics cards can be incredibly expensive, sometimes ridiculously so. There are times when users won’t see any additional benefits from purchasing a more expensive card. Research the applications you need the graphics card for and find the one that offers the best performance within your budget.

• Expensive cards are usually for those looking to overclock the card or those using multiple graphics cards in a system.

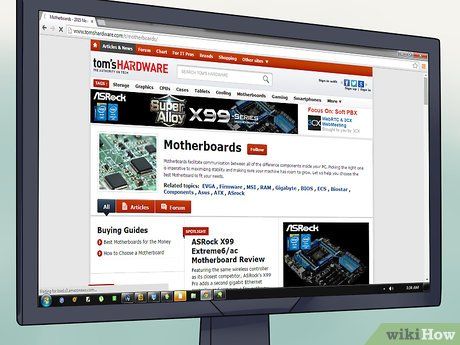

• Check as many reviews as possible before buying. There are many online resources to help you find a good product within your price range. Websites like Tom’s Hardware often publish comparisons of the most popular graphics cards within various price ranges, and customer reviews on sites like Newegg can give you insight into real-world experiences.
• Look into the system requirements for your favorite games. Find out which graphics card is recommended to run your favorite games smoothly, and consider the needs for future games as well.

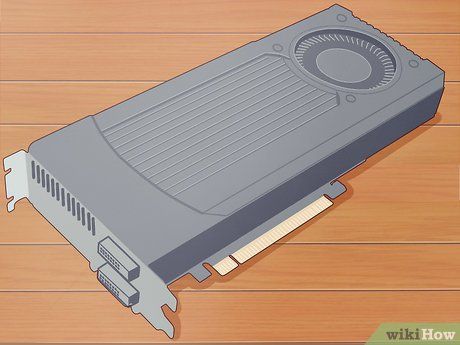

Choose a graphics card that fits your needs. Each graphics card is optimized for specific applications, but most cards perform well across many different fields. Here are some popular graphics cards as of 2015:

• AMD Radeon R9 290X – A versatile card that can run most games on Ultra settings without issues. Typically priced around $300 (roughly 7 million VND). Its counterpart is the Nvidia GeForce GTX 970, priced about $50 more (approximately 1.2 million VND) but with lower power consumption.
• AMD Radeon R7 260X – A budget-friendly option that can handle most games on Medium to High settings. You can typically find this card for under $120 (around 2.8 million VND). The Nvidia GeForce GTX 750 Ti is a similar card, costing $30 more (around 700,000 VND), but with lower power consumption and no need for a PCIe power connector, making it suitable for low-power systems.
• Nvidia GTX 980 – One of the best high-end cards available, capable of running most content at 1440p resolution. The EVGA ACX 2.0 model costs around $550 (over 12.5 million VND), and the Classified version is priced at $680 (more than 15.6 million VND).
• If you’re focused on graphic design, look for a card with more memory, like 3GB or 4GB. This option will cost more but will increase rendering and encoding speeds.

Check the display support of the card. As display technology advances, graphics cards now come in various types. Your new graphics card may support HDMI, DVI, DisplayPort, VGA, or a combination of these. Find out which connection your computer uses and select a compatible graphics card.

• For the best quality, it’s recommended to connect via HDMI or DisplayPort.
• If you plan on using multiple monitors, make sure your graphics card supports multiple displays with high-quality ports. You wouldn’t want to connect one screen via HDMI and another via VGA, as VGA has lower resolution and would look poor next to an HDMI-connected display.

Uninstall old drivers. One of the leading causes of errors and issues is driver incompatibility. Before installing a new graphics card, it’s best to uninstall the drivers Windows is currently using for the graphics hardware.

• The quickest way to uninstall drivers is by opening Device Manager and uninstalling them from there. To open Device Manager, search using the Start menu or press ⊞ Win+X and select from the menu (Windows 8 only).

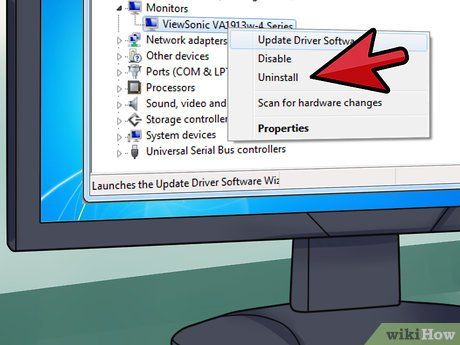

• Once Device Manager is open, expand the Display Adapters section. Right-click on your current display adapter and choose Uninstall. Follow the prompts to remove the driver from your system. Your display will appear in low resolution with large icons and blurry text. Don’t forget to power off your computer after uninstalling the driver.

Ground yourself. Always ensure proper grounding when handling sensitive computer components. Static discharge can damage or ruin hardware, rendering it useless. It’s best to wear an anti-static wristband that’s connected to a metal part of the computer case. If you don’t have one, you can ground yourself by touching a metal faucet.

• Do not place an open computer case on a carpeted surface, and make sure you are standing on tile or linoleum floors while working inside the case.
• Ensure the computer is disconnected from the power supply before handling the case.

Locate the old graphics card. You’ll find the old graphics card inserted into a PCI-E or AGP slot on the motherboard (AGP cards are usually found in older computers). Most old graphics cards are relatively large and may be the biggest component inside the case. They are often equipped with additional fans and cooling units.

• If the computer has integrated graphics (with the monitor connected directly to the motherboard), you don’t need to remove the graphics card.

Remove the current graphics card. To upgrade your graphics card, you must first remove the old one. Start by unscrewing the screws that hold the graphics card in place. Most modern graphics cards have a latch at the bottom, near the rear of the PCI slot, which must be released to remove the card.

• When removing the card, pull it upwards to avoid damaging the PCI slot.
• Ensure that all cables and components connected to the old graphics card are disconnected before removing it.

Clean the dust. While removing the graphics card, take the opportunity to clean any dust accumulated in the PCI slot. Use compressed air to blow away dirt and dust from the crevices around the slot. Dust buildup can cause overheating, so regular cleaning helps extend the lifespan of your computer.

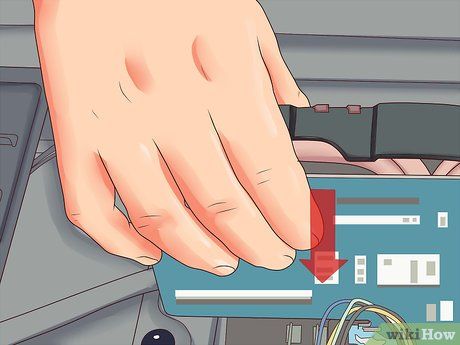

Install the new graphics card. Gently take the new graphics card out of its anti-static bag, avoiding contact with any electrical contacts or circuits. Insert the card into the empty PCI-E slot and press lightly from the top until it clicks into place. If the PCI-E slot has a latch, you will hear a snap once the card is securely in place.

• If the card is the size of two slots, you may need to remove the side panel.
• Ensure that there are no cables or other components obstructing the PCI slot before inserting the graphics card.

Secure the graphics card. Use the screws from your computer case to fasten the graphics card into place. If the card takes up the space of two slots, secure it with two screws, one for each panel. Ensure the card is aligned properly before securing it with the screws.

Connect to power. Most modern graphics cards come with a power connector located at the top rear of the card. You will need to connect one or two PCI-E power connectors, typically six-pin cables, from your power supply. Without this power connection, your graphics card won’t function properly.

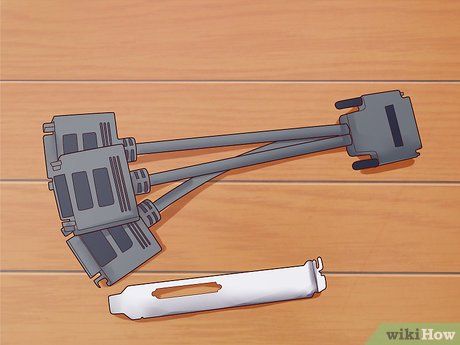

• Many graphics cards include adapters that can convert the current connector into one that is compatible with the card.

Close the computer case. Once the graphics card is properly installed, secured, and connected to the power supply, you can close the computer case. Don’t forget to connect the monitor to the new graphics card. If you were previously using an integrated graphics card, your monitor might have been connected to the motherboard. To take advantage of your new card, connect the monitor to the new graphics card.

• For the best performance, connect the monitor to the graphics card using HDMI or DisplayPort. If either the monitor or the graphics card doesn’t support HDMI or DisplayPort, you can use DVI or VGA as alternatives.

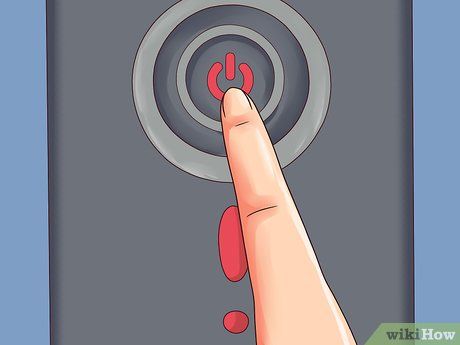

Turn on the computer. The operating system will detect the new graphics card and adjust the display settings to optimize resolution and color depth. Accept the changes and proceed to your operating system.

• If no image appears on the screen, you may need to troubleshoot the installation. Make sure the graphics card is installed and connected properly.
• If the image appears distorted, flickering, or skewed, it could indicate an issue with the graphics card. Double-check the card’s installation before contacting the manufacturer.

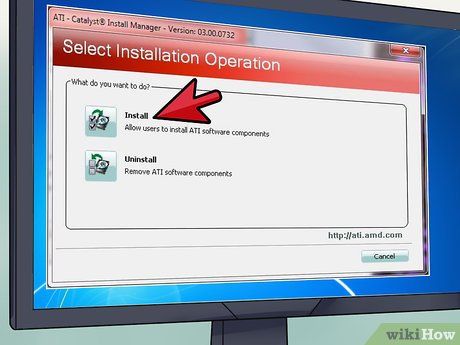

Use the installation disc or download drivers. If your graphics card comes with an installation disc, insert it into your computer to begin installing the drivers. If no disc is provided, or if you want to install the latest drivers, you can download them from the Nvidia or AMD website (depending on the type of card you have).

Install the drivers. The installation process is typically automatic, but you may be prompted to install additional software to manage the graphics card. While this software is optional, it can help ensure that the drivers stay up to date. During installation, your screen may flicker and reset.

• The drivers on the disc are usually outdated by the time you purchase the card, so you will likely be prompted to update them after installation.

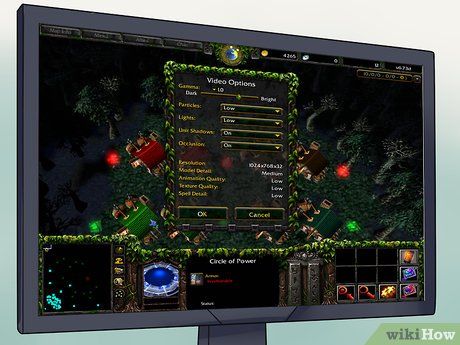

Launch the game. One of the main reasons for purchasing this graphics card is likely to play the latest and most demanding games. So, why not test it out by launching a game? Before you start, check the game's video settings menu. Set all settings to the highest possible level and enjoy the experience. If the game runs smoothly, everything is working as expected!

• When adjusting the resolution, always choose a setting that matches your monitor's resolution. Most flat-screen monitors have a resolution of 1920x1080, but newer monitors may offer higher resolutions.
• If the game stutters or the display is poor, try lowering individual settings. Don’t worry too much if your graphics card can’t run the game in Ultra mode; sometimes no graphics card can handle certain games!
• Remember, game graphics are not only influenced by the graphics card. The CPU, RAM, and even the hard drive speed contribute to the overall game display performance.
