Has your computer been running slower lately? Is it no longer performing as efficiently as before or unable to handle the latest software? Upgrading your RAM (Random Access Memory) is one of the simplest and most affordable ways to boost your computer's performance. Almost any computer can have its RAM upgraded with just a few minutes of work and a screwdriver. Keep reading to learn how to do it.
Steps
Installing RAM for a Desktop Computer

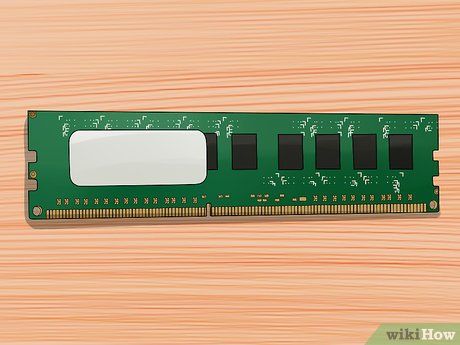

Determine the type of RAM compatible with your desktop computer. RAM comes in various generations and speeds. Your computer's motherboard dictates the type of RAM you can use. Check your motherboard, computer documentation, or the manufacturer's website to identify the technical specifications of RAM compatible with your hardware.
- RAM types include DDR (Double Data Rate), DDR2, DDR3, and DDR4. Most modern computers use DDR3 or DDR4. Ensure you use the type supported by your motherboard.
- RAM is classified by two different speed metrics: PC/PC2/PC3 and MHz. Make sure both speed metrics align with your motherboard's specifications.
- The PC number (e.g., PC3 12800) refers to the maximum bandwidth (e.g., 12800 = 12.8 GB maximum bandwidth).
- The RAM speed is indicated by the number following DDR (e.g., DDR3 1600 = 1600 MHz).
Check the number of RAM slots available on your computer. The motherboard limits the amount of RAM you can install. Some motherboards support only 2 RAM sticks, while others can accommodate 4, 6, or even more.
- Most motherboards also have a maximum memory capacity, regardless of the number of available slots.
- iMacs use notebook memory. You can refer to the RAM installation guide for iMacs in the next section.

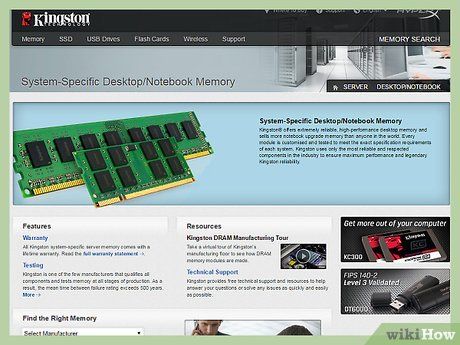

Explore your options. There are numerous RAM manufacturers offering a wide range of prices. Quality varies, and the risk of receiving defective products is relatively high. Here are some of the most reliable brands:
- Corsair
- Kingston
- Crucial
- G. Skill
- OCZ
- Patriot
- Mushkin
- A-Data

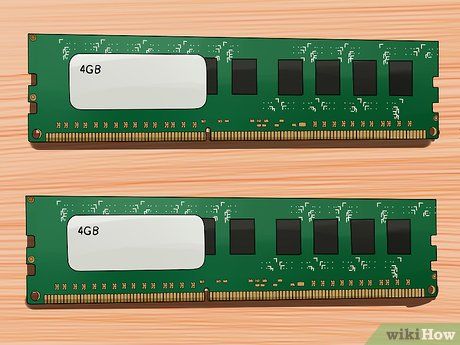

Make your purchase. Once you've identified the brand, you can select your RAM. When buying RAM for a desktop, opt for SDRAM. RAM should be installed in matching pairs: to achieve your desired RAM capacity, purchase two or four sticks.
- For example, to get 8 GB of RAM, you can use two 4 GB sticks or four 2 GB sticks. Ensure they fit properly on the motherboard. Always install RAM in pairs: if you want 4 GB, use two 2 GB sticks. Avoid mismatched pairs, such as one 2 GB and one 1 GB stick, as this can reduce RAM performance.
- All installed RAM must match in speed and bandwidth. Otherwise, the entire system will be downclocked to the speed of the slowest stick, reducing overall performance.
- Double-check the type of RAM supported by your motherboard before purchasing.

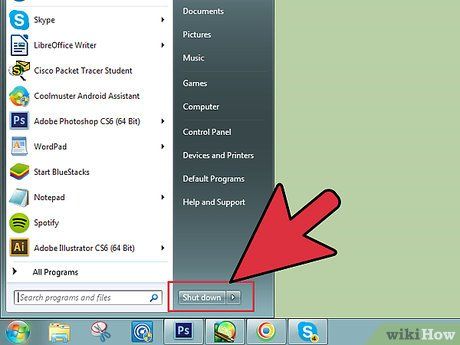

Turn off your computer. Unplug the computer and all peripherals, such as the monitor, keyboard, and mouse connected to it.

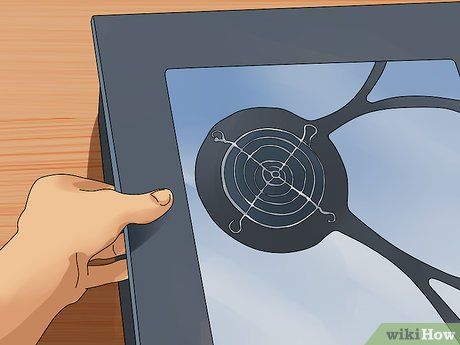

Open the computer case. Lay the case horizontally so you can work on the motherboard after removing the side panel. Some cases allow you to remove the side panel screws by hand, while others require a Phillips-head screwdriver.

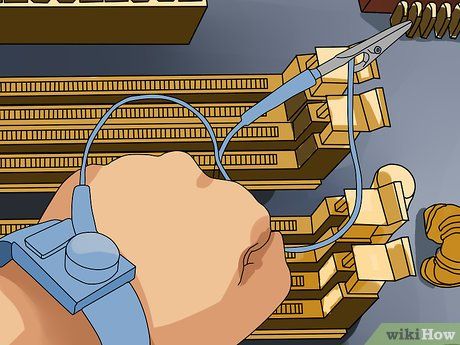

Eliminate static electricity. Ensure you are free of static electricity. Although we can't feel it, static electricity can damage computer components. Before starting, ground yourself or use an anti-static wrist strap.
- You can ground yourself by touching a metal part of the case while it is unplugged. If the computer is only turned off, standby voltage may still be present. Make sure it is unplugged.
- Avoid standing on carpets while working inside the computer.

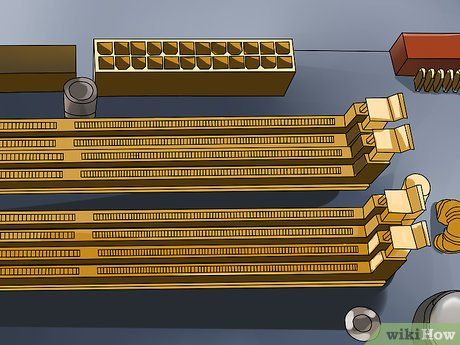

Locate the RAM slots. Most motherboards have 2 to 4 slots. While their exact position may vary depending on the manufacturer and model, RAM slots are usually located near the CPU. If you have trouble finding them, refer to the motherboard layout diagram in the user manual.
Remove old RAM (if upgrading). If you're replacing old RAM, you can remove it by opening the two latches on either side of the slot. The RAM will pop up, allowing you to lift it out of the motherboard.
Remove the new RAM from its protective casing. Carefully take the RAM out of its packaging. Hold it by the edges, avoiding contact with the connectors or circuits on the RAM stick.
Insert the RAM into the slot. Align the notch on the RAM with the ridge in the slot. Place the RAM stick into the slot and press down firmly until the latches click and lock the RAM in place. While you may need to apply some pressure, never force the RAM into the slot.
- Ensure matching RAM pairs are installed in dual-channel slots. These are often labeled on the motherboard or color-coded. In some cases, you may need to refer to the motherboard layout diagram. Make sure they are installed in the correct orientation.
- Repeat the process for any additional RAM sticks you want to install.

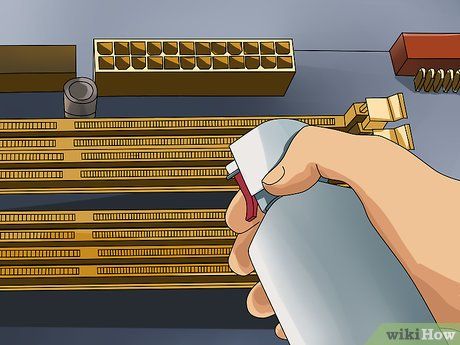

Clean dust using compressed air to improve performance and address overheating issues. Compressed air cans are available at most office supply stores. Avoid blowing air too close to the components.
Reassemble the computer case. Once you're done working with the RAM, reattach the side panel and secure it with screws. Avoid running the computer without the case, as the cooling efficiency of the fans will be reduced. Reconnect all peripherals and the monitor.

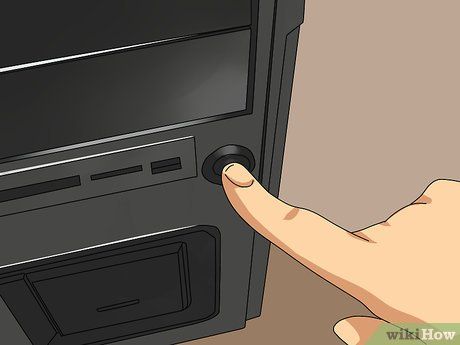

Turn on the computer. It should boot up normally. If the computer displays a self-test during startup, you can verify if the RAM was installed correctly. Otherwise, you can still check within Windows.
Check RAM in Windows. Press the Windows key + Pause/Break to open System Properties. Alternatively, click the Start menu, right-click on Computer/My Computer, and select Properties. The installed RAM will be listed under the System section or at the bottom of the window.
- Different operating systems calculate memory differently, and some computers reserve a portion of RAM for specific functions (e.g., video), reducing available memory. For example, the OS might display 0.99 GB even if you installed 1 GB of RAM.

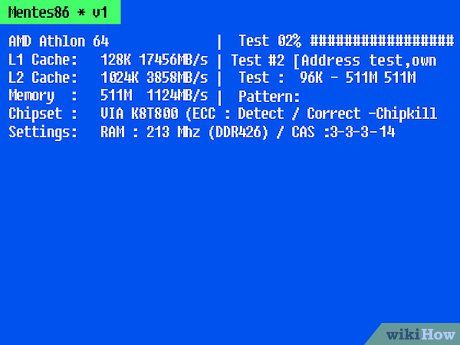

Run Memtest. If you're still unsure whether the RAM is installed or functioning correctly, you can run the free Memtest program to check. It may take some time, but the program will detect any errors and display the installed memory capacity.
Installing RAM for a Notebook
Determine the type of RAM compatible with your laptop. RAM comes in various generations and speeds. You need to choose RAM based on your laptop's specifications. Check the laptop's technical documentation or the manufacturer's website to identify the RAM type compatible with your hardware.
Ground yourself. Before removing any panels, ensure you are properly grounded to avoid damaging the computer's components. You can ground yourself by touching a metal part of the case while it is unplugged. Simply turning off the laptop is not enough: residual voltage may still be present.

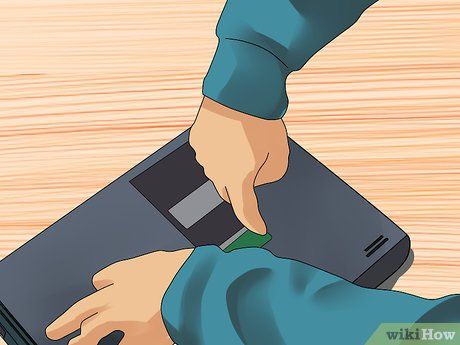

Unplug the notebook (if it's charging). Remove the battery (located at the back) from the laptop and press the Power button to discharge any remaining energy from the capacitors.

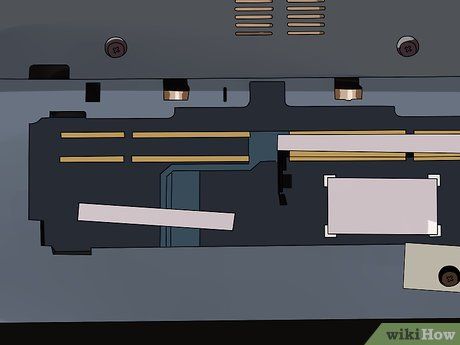

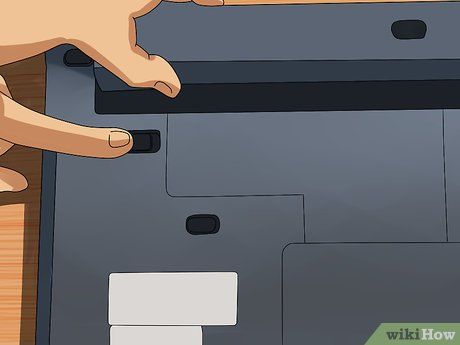

Check the number of slots available. You can access the notebook's RAM by removing the panel on the bottom of the laptop. There are usually multiple panels: look for the one with a memory symbol or refer to the user manual. You'll need a very small Phillips-head screwdriver to remove this panel.
- Most notebooks have only two RAM slots. Some may even have just one. Higher-end notebooks may offer more slots.

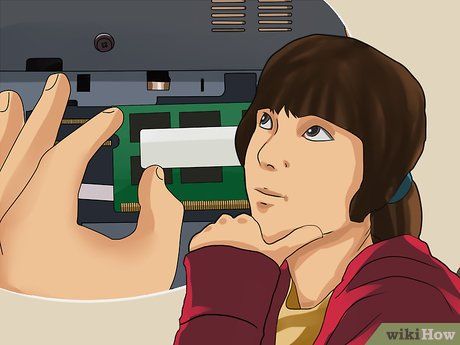

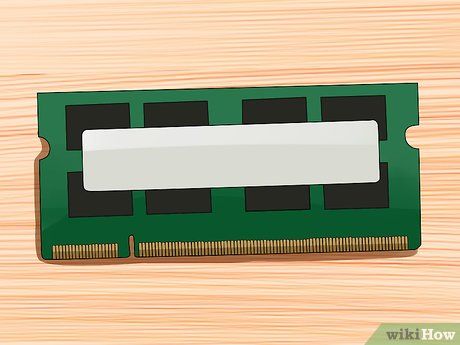

Determine whether RAM needs to be installed in pairs. Most laptop RAM, or SODIMM, does not need to be installed in matching pairs. If required, it’s because these pairs belong to the same memory bank: this will be clearly indicated on the laptop or in the user manual.

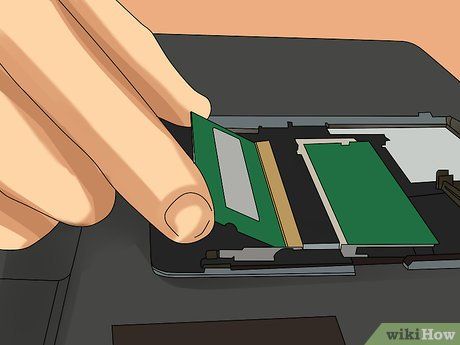

Remove old RAM (if upgrading). If you’re replacing old RAM, remove it by opening any latches on the sides of the slot. You can release the latches by pressing them down. The RAM will pop up slightly. Lift the SODIMM at a 45° angle and pull it out of the slot.
Remove the new RAM from its protective casing. Remember to hold the RAM only by the edges to avoid touching the connectors or circuits on the RAM stick.

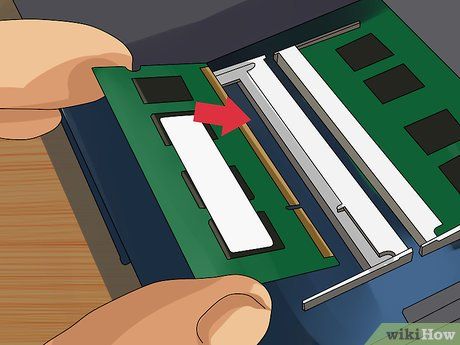

Align the notch on the SODIMM stick with the ridge in the slot. When installing the SODIMM, the side with the chips doesn’t matter, but the notch must align correctly. Slide the SODIMM into the slot at a 45° angle.
- If multiple slots are empty, install the RAM in the lowest-numbered slot first.
Press the SODIMM down. Once the RAM stick is inserted at a 45° angle, press it down toward the laptop body until the latches lock into place. The RAM is now fully installed.
Testing the RAM. Flip the laptop over, plug it in, and power it on. The computer should start up normally. To ensure the RAM is recognized, you might need to enter the BIOS. Alternatively, it could be automatically detected once the operating system runs.
- You can run Memtest if you suspect the RAM is malfunctioning or faulty.
Reassembling the laptop. Once you're confident the new RAM is correctly installed, you can put the laptop back together. Reattach the bottom cover, which protects the SODIMM, to the computer.
Advice
- The Crucial memory website http://www.crucial.com/ is an excellent resource: it offers a memory advisory tool, indicating the capacity and type of RAM your computer supports. You can also purchase RAM directly from this site.
- If you hear anything other than a single beep lasting about a second, consult your motherboard's technical documentation to decipher the beep code. Beep codes are warning systems indicating that one or more components failed the POST (Power-On Self-Test). This is often due to incompatible or non-functional hardware.
- If there's a beep when you turn on the computer, the RAM might be improperly installed or the wrong type. If you bought the computer from a store, contact the retailer or the manufacturer to interpret the beep code.
- Don't panic if the RAM capacity displayed on the computer is slightly less than what you purchased. This discrepancy is due to differences in measurement and memory allocation. If the RAM capacity is slightly more than what you installed, a chip might be faulty or incorrectly connected.
- Operating system memory requirements:
- Windows Vista and later: 1 GB for 32-bit; 2 GB recommended for 32-bit and 4 GB for 64-bit
- Windows XP: minimum 64 MB, recommended 128 MB
- Mac OS X 10.6 and later: minimum 2 GB
- Ubuntu: recommended 512 MB
Warning
- Avoid installing the RAM module incorrectly. Doing so can damage both the RAM slot and the improperly installed module when the computer is powered on. In rare cases, the motherboard may also be harmed.
- If you're uncomfortable disassembling your computer, seek professional assistance. Since you've already purchased the RAM, installation services shouldn't be too costly.
- Always discharge any static electricity before handling RAM, as it is highly sensitive to electrostatic discharge. You can do this by touching a metal surface before touching the computer.
- Do not touch the metal parts of the RAM module, as this can cause damage to the modules.
