Dynamic Link Library files, or DLLs, are a cornerstone of traditional Windows programming. These files enable programs to utilize additional features and libraries without needing to integrate them directly into the program. Occasionally, DLL files are shared among multiple programs. For most users, DLLs operate in the background, and interaction with them is rare. However, there are times when you may need to register a DLL to ensure a newly installed program functions correctly. If you have an interest in coding, exploring how a DLL file is constructed can be a fascinating topic.
Steps
Using DLL Files

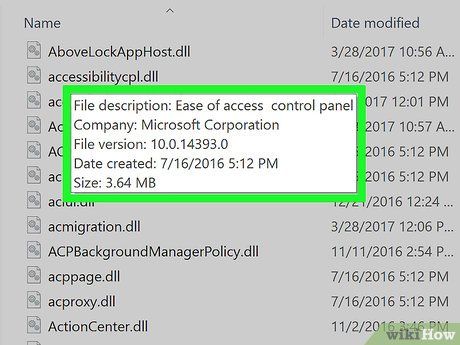

Understand what a DLL file is. A DLL (dynamic link library) is a Windows file used by programs to access existing functionalities. Essentially, they allow Windows and other programs to perform their functions without needing to have those features built-in.
- DLL files are indispensable in Windows programming, ensuring programs run smoothly and efficiently.

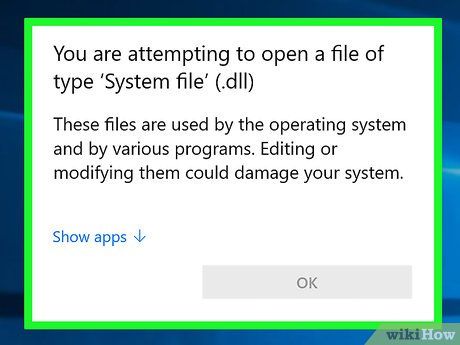

Ordinary users typically do not need to open or interact with DLL files. For them, DLL files operate in the background. Programs automatically install and request DLL files, so moving these files can cause serious system issues.
- Occasionally, during the installation of community-created programs, you may be asked to place DLL files in specific locations. Ensure you trust the program before following such instructions, as DLL files can be malicious.
- If you're curious about how DLL files are constructed, proceed to the next section.
Register a new DLL. If you manually copy a DLL file into a program's directory, you may need to register it in the Windows Registry before use. Check the program's documentation to confirm if this step is necessary (it is rare for most Windows programs).
- Launch Command Prompt. You can find it in the Start menu or press Windows + R and type cmd. Navigate to the location of the new DLL file.
- If you're using Windows 7 or later, open the folder containing the DLL, hold Shift, right-click, and select "Open command window here." Command Prompt will launch directly in that folder.

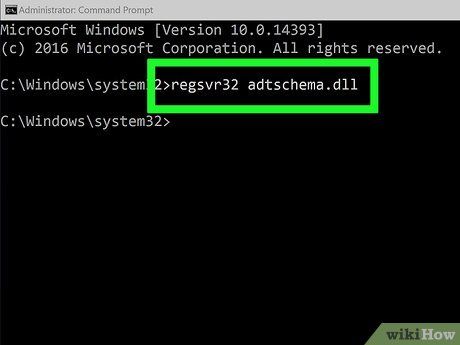

- Type regsvr32 dllname.dll and press Enter. This adds the DLL to the Windows Registry.
- Type regsvr32 -u dllname.dll to remove the DLL from the Registry.
Decompile a DLL File

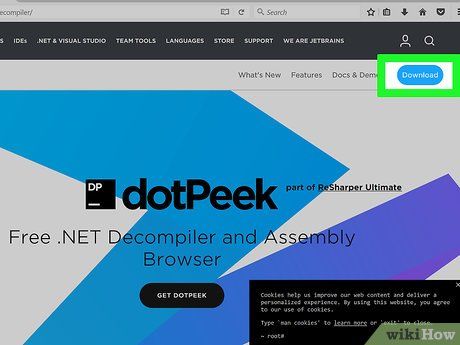

Download and install a decompiler. A decompiler is a program that allows you to view the source code used to build a file or program, in this case, a DLL. To see the code that makes a DLL function, you need a decompiler to translate the file into readable code. Opening a DLL without a decompiler (e.g., using Notepad) will only display unreadable characters.
- dotPeek is a popular free decompiler available at jetbrains.com/decompiler/.

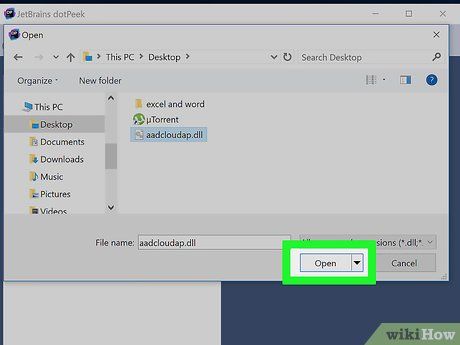

Open the DLL file in the decompiler. If using dotPeek, click "File" → "Open" and browse to the DLL file you want to decompile. You can explore the contents of the DLL without affecting your system.

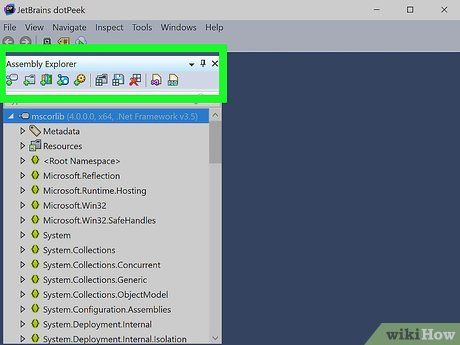

Use the "Assembly Explorer" window to browse the nodes of the DLL file. DLL files are composed of "network nodes," or code modules that work together to form the entire DLL. You can expand each node to view any sub-nodes it contains.

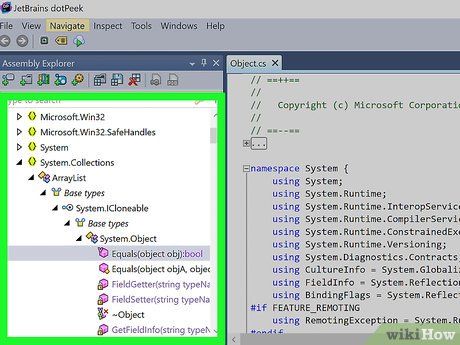

Double-click a node to view its code. The code for the selected node will appear in the right pane of dotPeek. You can scroll through the code from start to finish. dotPeek displays the code in C#, or it may load additional libraries to show the original source code.

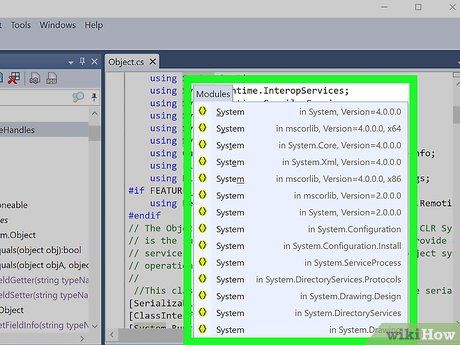

- If the node requires additional libraries to view the code, dotPeek will attempt to download them automatically.
Examine different sections of the code in detail. If you encounter a section of code you don't understand, use the Quick Documentation feature to see what the command does.
- Hover your mouse over the code you want to study in the Code Viewer pane.
- Press Ctrl + Q to load the Quick Documentation window.
- Follow hyperlinks to dive deeper into each aspect of the code you're analyzing.

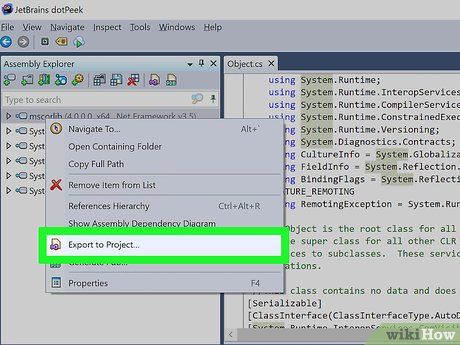

Export the code to Visual Basic. If you want to manually process, edit, and build the file, you can export it to Visual Studio. The code will be exported in C#, even if it was originally written in another language.
- Right-click the DLL file in the Assembly Explorer window.
- Select "Export to Project."
- Choose your output options. You can opt to open the project immediately in Visual Studio if you want to start working right away.

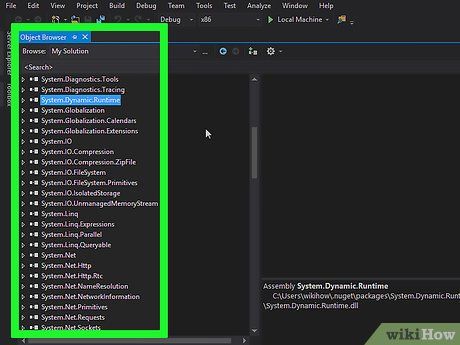

Edit the code in Visual Studio. Once the project is loaded in Visual Studio, you have full control to modify and build the DLL according to your own ideas.
