Overclocking a CPU involves boosting its clock speed to enhance performance. Originally a practice for gamers and computer hardware enthusiasts, advancements in hardware manufacturer support have made the process much simpler over time. While it can significantly improve your computer's performance when done correctly, improper overclocking can damage your hardware. Proceed with caution, ensure the CPU doesn't overheat, and you'll see a notable increase in speed and efficiency.
Steps
Preparation

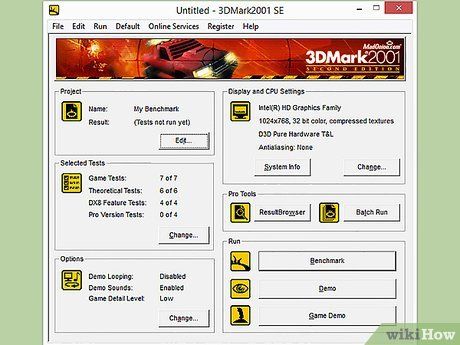

Understand the basics of overclocking. Overclocking increases the clock speed and voltage to improve CPU performance. It's an excellent way to maximize the potential of a powerful new machine or give a slight boost to an older or budget computer.
- Overclocking can damage your computer's components, especially if the hardware isn't designed for it or if the voltage is pushed too high. Only proceed if you're willing to risk potential damage.
- No two systems are the same when it comes to overclocking, even with identical hardware. This is because the process is heavily influenced by minor variations during manufacturing. Don't rely solely on online research about hardware to set your expectations.
- If your goal is to improve gaming performance, consider overclocking your graphics card instead of the CPU for better results.
- Due to limited cooling capabilities, laptops are not ideal for overclocking. Unlike desktops, where you can better manage temperature, laptops are more likely to overheat, potentially causing the CPU to burn out.

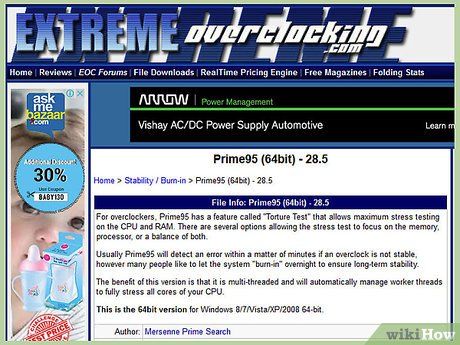

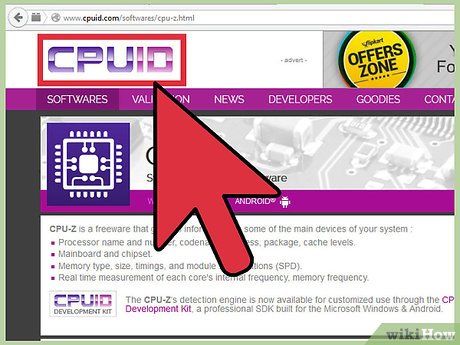

Download the necessary tools. You’ll need benchmarking and stress-testing tools to evaluate your overclocking results. These programs assess the processor's performance and its ability to maintain that performance over time.
- CPU-Z – A simple monitoring tool that allows you to quickly check clock speeds and voltages on Windows. While it doesn’t perform any tasks, this user-friendly monitoring program ensures everything is functioning as expected.
- Prime95 – A widely used free benchmarking tool designed for stress testing over extended periods.
- LinX – Another stress-testing program. Lighter than Prime95, LinX is ideal for quick checks after each adjustment.

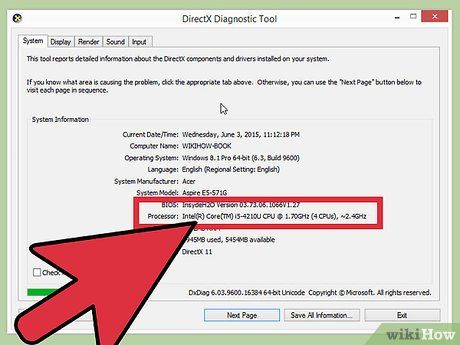

Check your motherboard and processor. Each motherboard and processor has unique overclocking capabilities. While there are minor differences, the overclocking process is generally similar for both AMD and Intel. The key factor to consider is whether your multiplier is locked. If it is, you can only adjust the clock speed, which significantly limits your results.
- Many motherboards are designed for overclocking and give you full control over the process. Refer to your computer’s technical documentation to determine your motherboard’s capabilities.
- Some processors are easier to overclock than others. For example, Intel’s "K" series i7s (e.g., Intel i7-2700K) are specifically designed for overclocking. You can identify your processor series by pressing ⊞ Win+Pause and checking the System section.

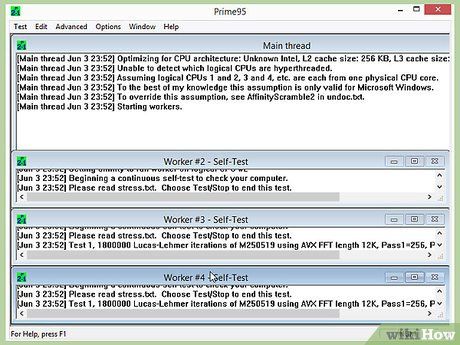

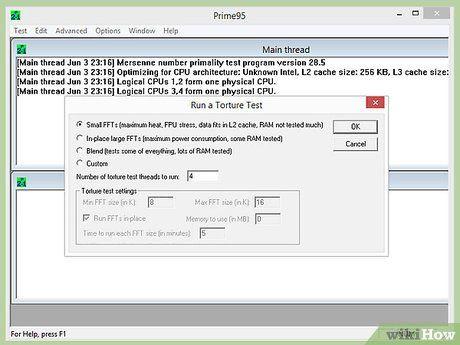

Run a baseline stress test. Before starting the overclocking process, run a stress test on your default settings to establish a baseline for comparison and identify any issues that need addressing before overclocking exacerbates them.

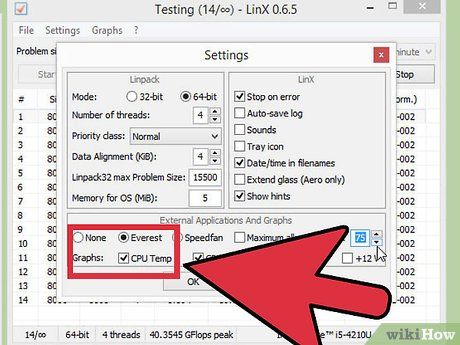

- Monitor temperatures during the stress test. If temperatures exceed 70 °C, overclocking may not yield significant improvements before reaching unsafe levels. You may need to apply new thermal paste or install a better cooling system.
- If your computer fails the baseline stress test, there may be underlying hardware issues that need resolving first. Check your memory for errors.
Increase the base clock

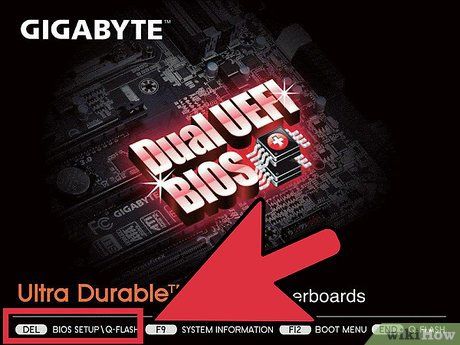

Access the BIOS. Most changes will be made in the computer’s BIOS. You can enter this configuration menu during the operating system boot process, typically by holding the Del key while the computer is starting. On some systems, it may be the F10, F2, or F12 key.
- No two BIOS setups are identical. Different systems may have varying menu names and layouts. Take your time to navigate the menus and locate the settings you need.

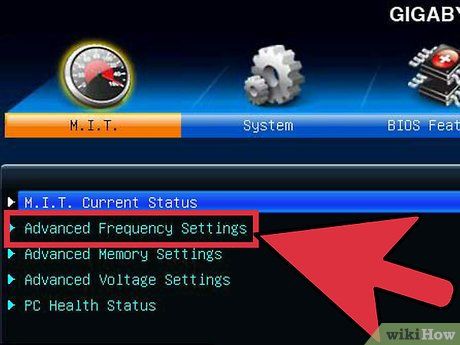

Open the "Frequency/Voltage Control" menu. This menu might be labeled differently, such as "Overclocking." You’ll spend most of your time here, as it allows you to adjust the CPU speed and voltage settings.

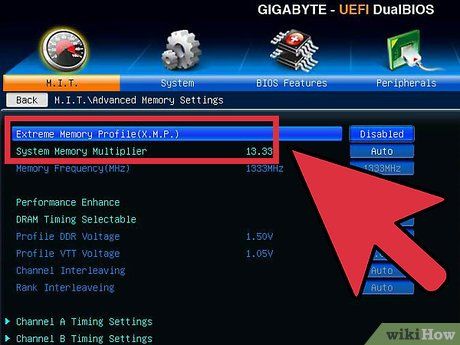

Reduce the memory link speed, also known as "Memory Multiplier," "DDR Memory Frequency," or "Memory Ratio." To prevent memory errors, lower this setting to its minimum before proceeding.
- If you can’t find this option, try pressing Ctrl+Alt+F1 on the main BIOS menu.

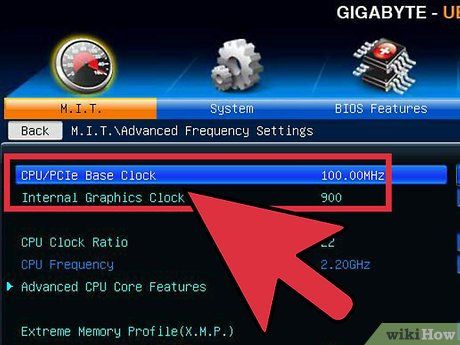

Increase the base clock by 10%. The base clock, also known as the front-side bus or bus speed, is the lower speed that gets multiplied to achieve the core’s total speed. Most processors can handle an initial 10% increase. For example, with a base clock of 100 MHz and a multiplier of 16, the clock speed is 1.6 GHz. A 10% increase raises the base clock to 110 MHz, resulting in a clock speed of 1.76 GHz.

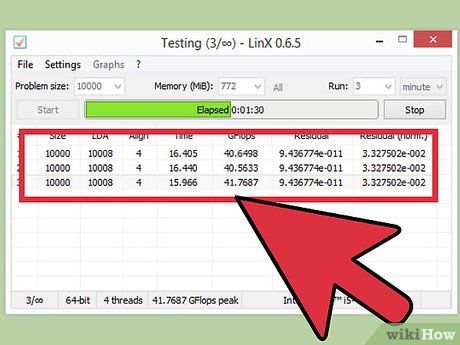

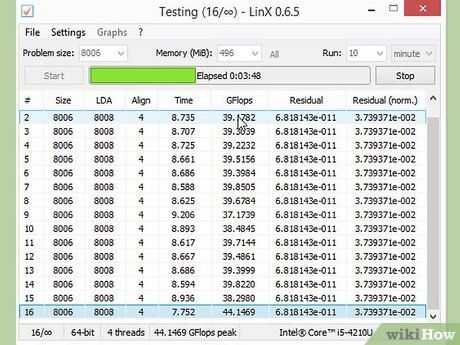

Run a stress test. After the first 10% increase, reboot into the operating system. Launch LinX and run a few cycles. If no issues arise, you’re ready to proceed. If the system becomes unstable, overclocking may not be viable, and you should revert to default settings.
Gradually increase the base clock until the system becomes unstable. After a successful adjustment, reduce increments to 5-10 MHz to find the optimal speed more precisely. Test after each adjustment until instability occurs, which often indicates insufficient power to the processor.
- If your motherboard doesn’t allow multiplier adjustments, skip to section 4. If it does, continue to the next section for further overclocking. Remember to note your current settings in case you need to revert.
Increase the multiplier
Lower the base clock. Before increasing the multiplier, slightly reduce the base clock. This allows for more precise adjustments to the multiplier. A lower base clock with a higher multiplier enhances system stability, while a higher base clock with a lower multiplier boosts performance. The goal is to find the perfect balance between these two approaches.

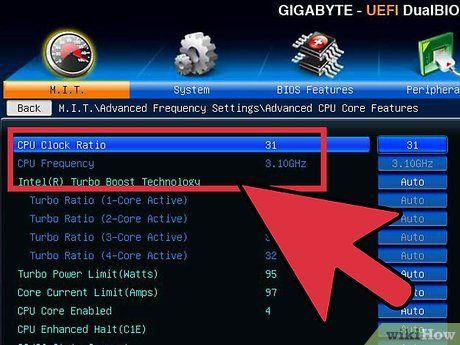

Raise the multiplier. After slightly lowering the base clock, start increasing the multiplier in increments of 0.5. On some systems, this setting is labeled "CPU Ratio" or something similar. Occasionally, it may be set to "Auto" instead of a specific value.

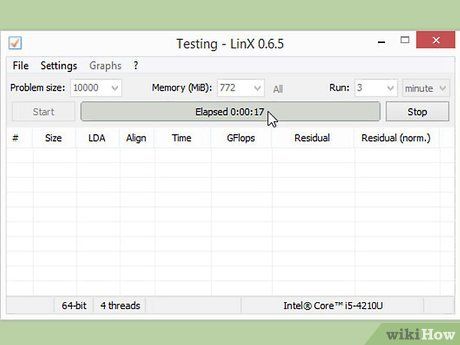

Run a stress test. Reboot your computer and execute a benchmarking program. If no errors occur after several runs, continue increasing the multiplier. Repeat this process after each adjustment.
Monitor temperatures. Keep an eye on temperature levels throughout this process. The system may reach thermal limits before becoming unstable. In such cases, you’ve likely hit the maximum overclocking potential, and it’s time to find the best balance between base clock and multiplier adjustments.
- While each CPU has its own safe temperature range, generally, CPU temperatures should not exceed 85°C.
Repeat until reaching the limit and the computer becomes unstable. At this point, you likely have settings that push the system to instability. As long as temperatures remain within safe limits, you can now adjust voltage levels to proceed further.
Increase voltage
Raise the CPU core voltage or "Vcore Voltage." Increasing voltage beyond safe limits can quickly damage your hardware. This is the most challenging and risky part of overclocking. Different CPUs and motherboards handle voltage increases differently. Closely monitor CPU temperatures throughout this process.
- For core voltage, increase by 0.025 increments. Larger increases risk damaging your hardware.

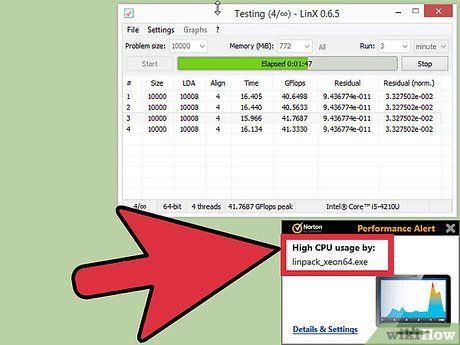

Run a stress test. Conduct a stress test immediately after the first voltage increase. Since the system was unstable before, the goal is to stabilize it now. If the system stabilizes, ensure temperatures remain acceptable. If instability persists, try lowering the multiplier or base clock.
Return to the base clock or multiplier settings. After stabilizing the system through voltage adjustments, you can now increase the base clock or multiplier, depending on your overclocking goals. Make small adjustments and run stress tests until the system becomes unstable again.
- Since voltage adjustments generate the most heat, the goal is to maximize the multiplier and base clock settings for the best performance at the lowest possible voltage. This requires extensive testing with various combinations.
Repeat the cycle until reaching the maximum voltage or temperature threshold. Eventually, you’ll reach a point where further increases are impossible or temperatures approach unsafe levels. This marks the limit of your motherboard and processor. Overclocking will likely need to stop here.
- Generally, you should not increase voltage by more than 0.4 above the default. For basic cooling systems, this limit should be 0.2.
- If you hit thermal limits before voltage limits, you might still push further by improving your cooling system. Consider installing high-performance fans/heat sinks or switching to more efficient liquid cooling solutions.
Final stress test
Revert to the last stable settings. Lower the base clock or multiplier to the most recent stable configuration. This will be your new processor speed, and if you’re lucky, it will be a significant improvement over the original. If everything boots normally, you’re ready for the final test.
Increase your memory speed. Gradually raise the memory speed, aiming for its original setting. Proceed slowly and run stress tests after each adjustment. You may need to stop before reaching the original speed.
- Use Memtest86 to conduct memory tests during this frequency adjustment process.

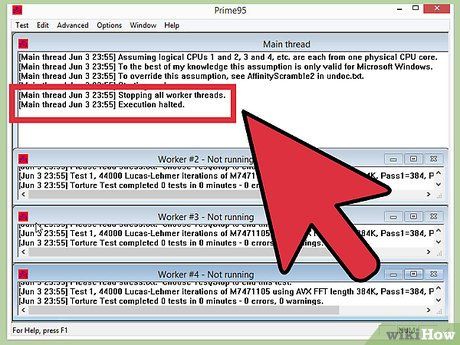

Run a long stress test. Open Prime95 and run a 12-hour test. While this may seem lengthy, the goal is to ensure long-term system stability, resulting in better and more reliable performance. If the system becomes unstable during this test or temperatures reach unacceptable levels, revisit previous steps to adjust clock speed, multiplier, and voltage.

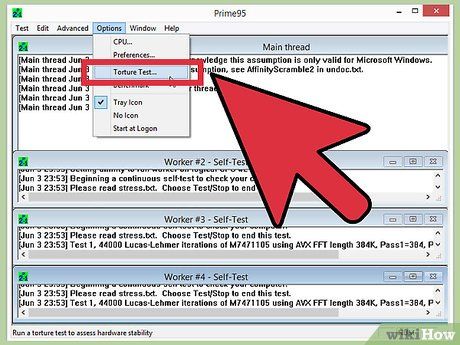

- In Prime95, select "Just Stress Testing." Click Options → Torture Test and set it to "Small FFT."
- Temperatures close to the maximum threshold are often acceptable since Prime95 pushes the system harder than most programs. However, consider slightly lowering overclocking settings for safety. Operating temperatures should not exceed 60°C.

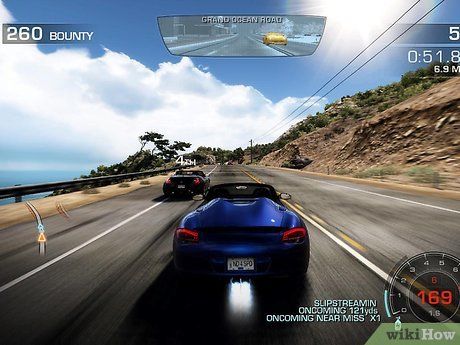

Perform real-world tests. While stress-testing programs are excellent for ensuring system stability, you should also verify that your computer can handle random real-world scenarios. If you’re a gamer, launch the most demanding game you own. If you encode videos, try processing a Blu-ray. Ensure everything runs smoothly. Sometimes, the results can exceed expectations!
Dive deeper. This guide only scratches the surface of what you can achieve with overclocking. To learn more, explore and experiment. Several communities specialize in overclocking and related topics, such as cooling. Overclockers.com, Overclock.net, and Tom's Hardware are among the most renowned. If you seek detailed information, these are excellent starting points.
Warnings
- Depending on the manufacturer, overclocking may void your warranty. Some brands, like EVGA and BFG, still honor warranties even if the device has been overclocked.
- For serious overclocking, a robust cooling system is essential.
- Overclocking and increasing voltage can reduce the lifespan of your hardware.
- Most computers produced by Dell (except the XPS line), HP, Gateway, Acer, Apple, and other pre-built manufacturers cannot be overclocked, as their BIOS lacks options to adjust CPU voltage and FSB settings.
