During the use of a car, there may be times when you need to remove the battery for various reasons, ranging from routine maintenance to major repairs. Although it may seem troublesome, the process is surprisingly simple and can be done in less than a minute if you know how.
Steps
Take necessary safety precautions before proceeding with battery removal. In addition to the risk of fatal electric shock, the battery contains corrosive components and may emit flammable gases. Follow these safety steps before moving the battery.
- Turn off the ignition.
- Wear safety glasses and gloves to protect your eyes and hands.

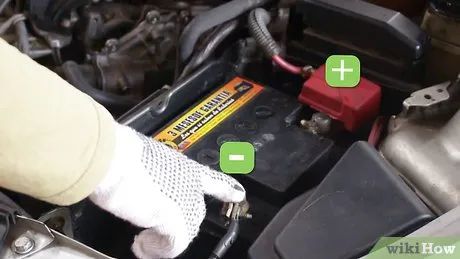

Locate the negative terminal at the top of the battery. This terminal usually has a black protective cover and is likely marked with a minus sign near the negative post. Similarly, the positive terminal often has a red cover or is marked with a plus sign near the positive post.

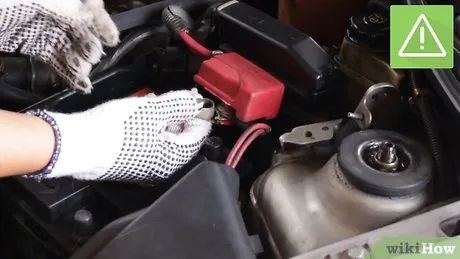

Identify the correct socket size needed to loosen the nut on the negative terminal. Always start removing the battery from the negative terminal.
- Select a socket from your toolkit and bring it close to the negative terminal nut, but do not attach it yet. Estimate the required size with your eyes.
- Attach the proper socket to the wrench. You may need an extension bar to reach the nut effectively.
- Place the wrench on the nut and turn it counterclockwise (remember: right tight, left loose). A few turns will loosen the nut.
- Once the nut is loose, pull the negative terminal clamp off the battery. Set it aside so it doesn't come into contact with the battery during the process.
- If the cable is tightly secured to the terminal, you may need a specialized battery cable removal tool. Consult a mechanic or visit your local auto parts store for assistance.
Use the same process for the positive terminal. After removing the terminal, ensure the clamp does not touch any metal parts of the vehicle. The system always has residual current, and contact with metal could cause interference or damage the car's electrical circuits.
Continue the task. Now that the battery cables are disconnected, you can safely proceed with any electrical repairs. If you're only replacing the battery, follow these simple steps to complete the job.
- Once the battery is disconnected, remove the bracket that holds the battery in place.
- Lift the battery straight up from the tray. If necessary, ask for assistance, as car batteries can weigh up to 20 kg.
- Use an old toothbrush to clean the tray and cables with a diluted baking soda solution, then allow them to dry before installing the new battery.
- Place the new battery in the tray and securely tighten the terminal clamps.
- Connect the cables to the positive terminal first, then proceed to the negative terminal. Ensure both nuts are tightened properly.
- Close the hood and start the vehicle.
- Make sure to dispose of the old battery properly. The store where you purchased the new battery may accept the old one as part of their service. If not, take it to a recycling center or auto garage – most of these places will accept used batteries for a small fee.
Tips
- A typical car battery can generate currents up to several hundred amps – almost equivalent to an arc welding current. Never test the battery by touching both terminals with metal tools. This current is powerful enough to damage your tools and put you at risk.
- Use cable ties to secure the electrical cables away from the battery, avoiding accidental contact with the terminals, which could lead to sparks or electrical shock.
- Remove all jewelry, especially rings and necklaces.
- Work outdoors to eliminate any risks of gas buildup.
- Wear protective glasses and gloves.
- Hybrid or electric vehicle batteries can generate voltages over 300V, which can be lethal. When working with any electrical components in a hybrid vehicle, the first step is to deactivate its high-voltage battery. The wiring is typically color-coded in orange. Use insulated tools and gloves to reduce the risk of electrical shock. Always follow the manufacturer's battery removal procedure, as additional steps may be required.
Things You Will Need
- Wrench Set - Socket
- Extension Bar
- Protective Glasses
- Insulated Gloves
- Old Toothbrush
- Small Pan
- Baking Soda
- Water
- Cable Ties
