This guide will walk you through each step of replacing a removable hard drive in a desktop computer.
Steps

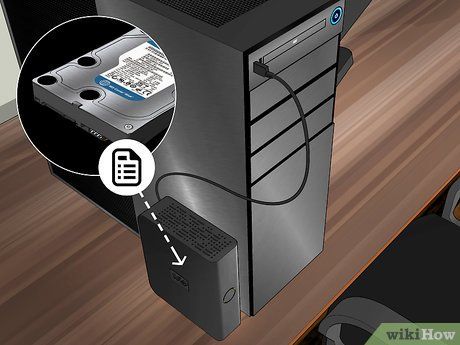

If the hard drive in your computer is still functioning, make sure you’ve created a recovery disk or image using backup or recovery software. If the drive is damaged, hopefully, you’ve backed up your important files somewhere.

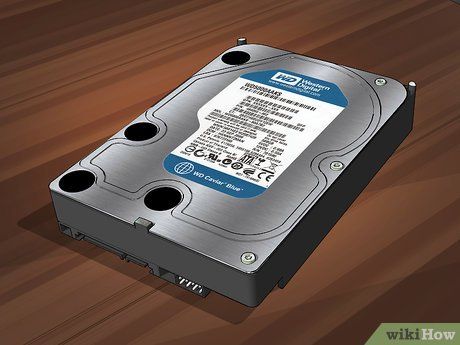

Prepare a new hard drive. Ensure the new drive is compatible with your computer. Generally, it’s best to replace the old drive with one of similar type for an easier process. Although the new drive may have a higher capacity, you should still choose one with matching data cables and physical dimensions. However, if you prefer not to use the same type of hard drive, proper preparation will help prevent future issues.

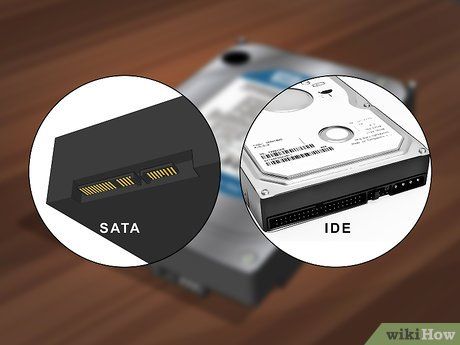

Hard drives come in two types: SATA (Serial ATA) and IDE for power/data cables. SATA cables typically come in three variations (SATA, SATA II, and SATA III). It's important to check what your motherboard supports to ensure the replacement hard drive is compatible. Additionally, hard drives come in various sizes, such as 6.4 cm and 8.9 cm. The 6.4 cm drive is mainly used in laptops, while the 8.9 cm type is used in desktop computers. However, the growing popularity of 6.4 cm SSDs (Solid State Drives) offers more choices for desktops. Some case manufacturers now include 6.4 cm hard drive bays in their newer designs. If you're planning to replace an 8.9 cm drive with a 6.4 cm one, ensure that your case supports this size; otherwise, you might need to buy an adapter kit.
Be cautious when handling electronic components. Incorrect handling of electronic components during installation can damage your computer. To avoid this, make sure you're grounded when working inside the computer. An anti-static wristband is a recommended solution when installing or removing the hard drive. Ensure the wristband is plugged into a grounded outlet. If you don't have one, you can frequently touch the back of the case to discharge static onto its metal surface.

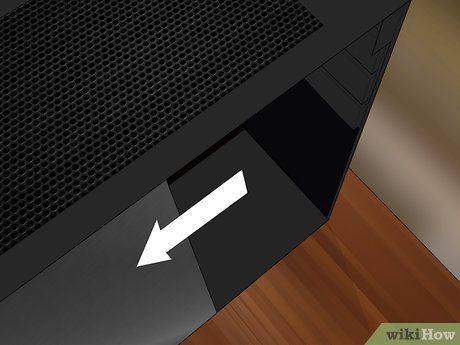

Open the computer case. Begin by removing the screws at the back of the case and sliding off the metal panel. Some computer cases don't require screws. If yours doesn't, look for latches or buttons to open the door or panel. Remove the door or panel as necessary.

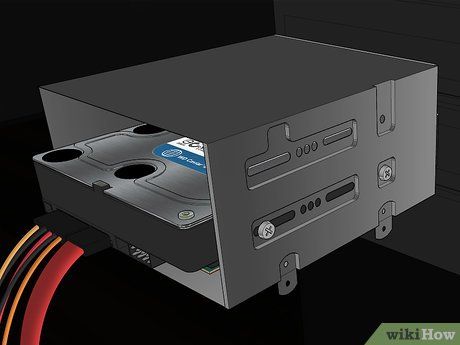

Locate the hard drive. Most computers have their hard drives secured inside the mounting bay with screws. Identify the power connector and data cables, and disconnect them.
Remove all screws securing the hard drive to the case or the mounting tray. Typically, the hard drive is fixed with screws on both sides. You will need to unscrew them. Hold the drive in place if the tray or case doesn't have a support for it. Once the screws are removed, you can slide the hard drive out of the tray or case.

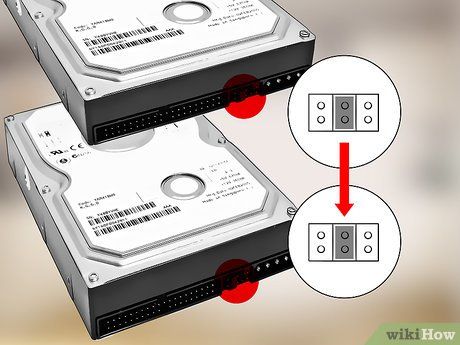

This step is necessary only if you're using an IDE hard drive. Move the jumper on the drive to match the original configuration. You can choose Master, Slave, or Cable Select. If you're using a SATA drive, there's no need to set the jumper. After removing the old hard drive, take note of the jumper positions on it. If you can't locate them, refer to the diagram on the drive's label. The jumper configuration can be Master, Slave, or Cable Select. You must set the new drive to match the original configuration.

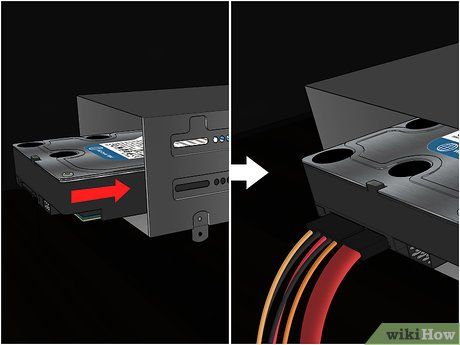

Install the hard drive by sliding it into the correct position. This is where the original drive was installed. Then, carefully screw it in place and reconnect the power cable and data cable to the drive.

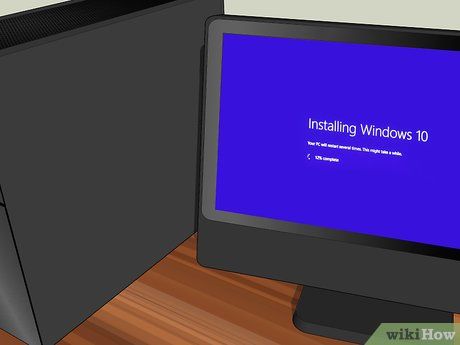

If you're replacing the primary hard drive, you'll need to reinstall the software or use recovery disks. Reinstalling the operating system, such as Windows, Mac OS, or Linux, may be necessary if you don't have recovery disks or images. If you're replacing a secondary drive, you may need to reinstall all software that was installed on the drive, or restore files from a backup source.
Items You Will Need
- Phillips screwdriver
- Hard drive
- Anti-static wrist strap (optional, but recommended if available)
- Software CD for the computer
