Drills are highly convenient and versatile tools, but it's essential to use the correct drill bit for your task. If you're unsure how to replace a drill bit properly, don't worry! We'll walk you through each step, whether your drill has a chuck key or not. The process is straightforward for both types of drills. In just a few minutes, you'll be ready to use your drill.
Steps
For Drills Without a Chuck Key

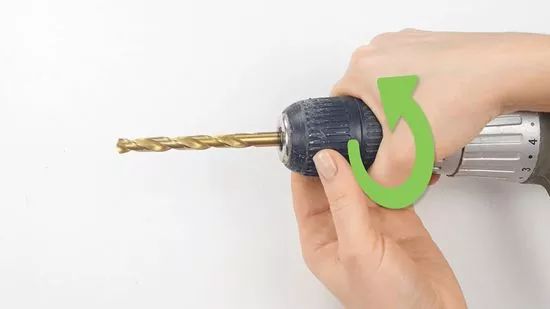

Loosen the drill chuck. The drill chuck is the part that can be loosened or tightened to hold the drill bit. Hold the chuck with one hand while using the other hand to grip the drill handle. Turn the chuck counterclockwise to loosen it, or you can gently squeeze the trigger while holding the chuck.
- Loosening the chuck will cause the jaws holding the drill bit to open.

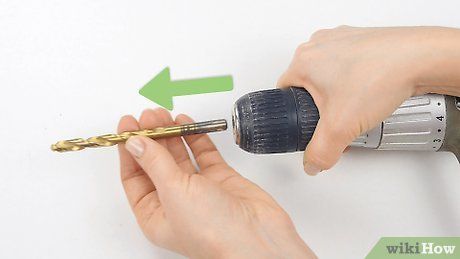

Remove the drill bit. Once the chuck is loosened, the drill bit will start to wobble. You can easily pull the drill bit out of the machine after the jaws holding it in place have been released.
Always inspect the drill bit after removal. If it is damaged or worn out, discard it to avoid accidentally reusing it later.
Insert the drill bit. Hold the drill bit between your thumb and index finger with the smooth part of the bit (the shank) facing toward the chuck jaws. Push the drill bit into the chuck and immediately pull it back toward you about a centimeter.
- Continue holding the drill bit and chuck with your fingers as it is not yet tightened.
Squeeze the trigger. Secure the drill bit by squeezing and clicking the trigger a few times. Keep your other hand gently holding the drill bit while squeezing the trigger.
Hold the drill bit lightly while squeezing the trigger to ensure the drill bit is inserted straight.
Install the ratchet mechanism if necessary. If your drill has a ratchet mechanism to apply additional pressure to the drill bit shank, you must attach it. Tighten this mechanism clockwise near the chuck.
For Drills with a Chuck Key
Insert the chuck key into the chuck. If your drill uses a chuck key, you’ll need it to loosen the chuck. The chuck key’s tip resembles a gear. To use it, align its gear with the teeth on the chuck and insert the key into the hole on the chuck body.
- Many drills have a built-in storage spot for the chuck key on the drill body.
- Drills that use chuck keys are more common than keyless models.

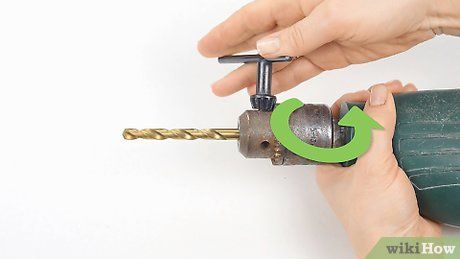

Turn the chuck key counterclockwise. As you rotate the key, the chuck jaws will begin to open. Continue turning until the chuck is wide enough to remove the drill bit.
The chuck typically has three or four jaws inside its mouth designed to grip the drill bit securely.
Remove the drill bit. Use your thumb and index finger to pull out the drill bit once the chuck is loosened. If the chuck is fully open and you tilt the drill downward, the bit will fall out on its own.
- Inspect the drill bit after removal. Look for signs of damage or wear. If the bit is too worn, replace it. If it’s bent or cracked, discard it to avoid accidentally reinstalling it.
Insert the drill bit. While the chuck jaws are open, place the new drill bit inside. Hold the bit between your thumb and index finger with the smooth part (shank) facing the chuck jaws, and push it in.
- Continue holding the drill bit and chuck with your fingers as it is not yet tightened.
Tighten the chuck. While holding the drill bit with one hand, use the other hand to turn the chuck key clockwise to secure the chuck jaws. Ensure it’s tight enough so the bit doesn’t fall out. Remove the chuck key.
- Release the drill bit and test the drill briefly before use.
Tips
- Store the chuck key on the drill or in a safe place. If lost, you can purchase a new set of chuck keys in various sizes to fit your chuck.
Essential Items You'll Require
- Power Drill
- Replacement Drill Bits
- Drill Bit Wrench (if necessary)
