How to set up a DVD player

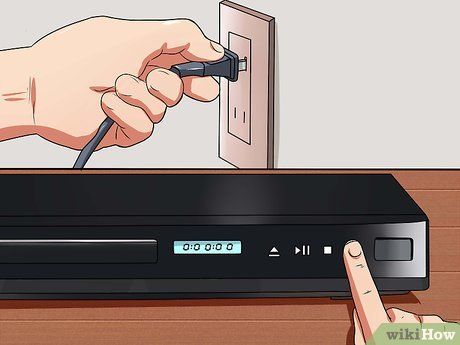

Plug in the DVD player and make sure to turn it on. Before connecting the DVD player to the TV, ensure it's plugged in and powered on. Typically, you'll notice a light or a message on the device confirming that it is operational.

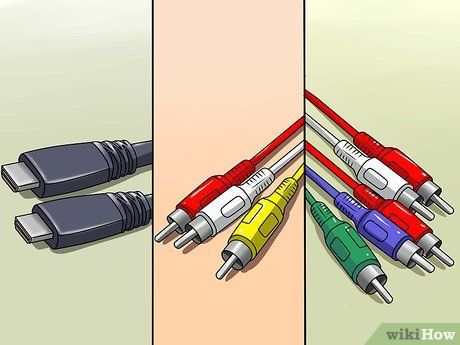

Choosing the right connection method. There are three connection methods for DVD players, each requiring a different type of cable. DVD players typically come with all the necessary cables that match the connection types, but you should also check the connection port on your TV. Refer to the manual or inspect the device to see which connection methods are supported. Below are the three most common connection methods:

• HDMI: This is the most modern connection, resembling a USB port but longer and thinner. HDMI provides the best quality, transmitting both audio and video signals through a single cable.
• A/V Cable (3 connectors): Short for Audio/Visual, this is the most common DVD connection. It includes three connectors—red, yellow, and white—compatible with the input ports on both the TV and DVD player.
• Component Cable: Offering better quality than A/V cables but less than HDMI, this hardware cable has five connectors that match the input ports on the TV and DVD player.

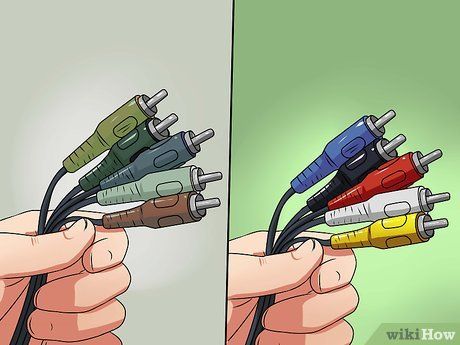

Find the compatible cable for the connection port. Once you’ve determined the connection port, select the appropriate cable, ensuring that it is not frayed or worn. If you need a new cable, take a photo of the device's input port and bring it to an electronics store to purchase a replacement.

• If possible, use an HDMI cable as it is easy to install and provides the best picture quality.

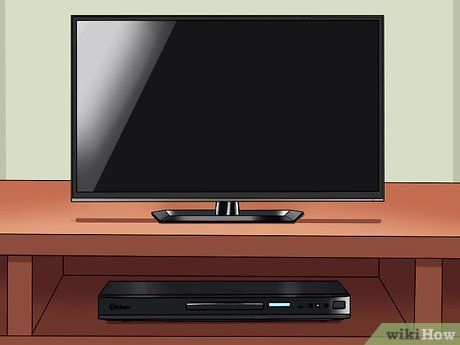

Place the DVD player near the TV. After identifying the connection type, position the DVD player close enough to the TV for the cable to reach.

• Avoid placing other electronic devices on top of the DVD player or TV, as the heat generated during use can damage the devices.

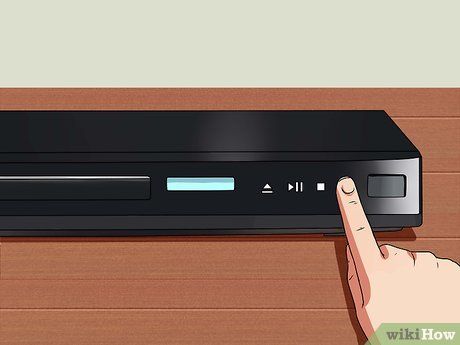

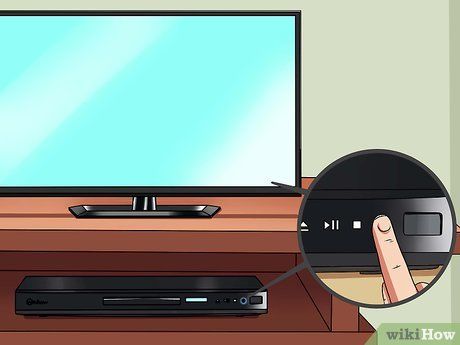

Turn off both the DVD player and TV before connecting. Doing so will prevent electrical shocks and protect your devices.

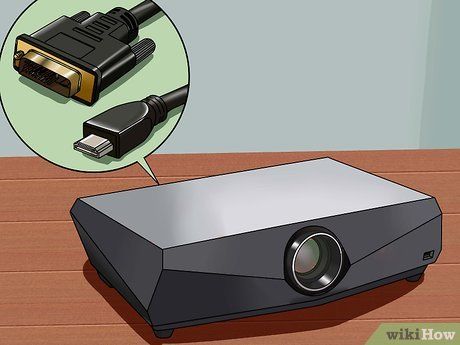

Understand the projector connection process. Most projectors have input ports similar to TVs, so switching to a projector won't require significant changes.

• Some projectors use a "DVI input port" instead of the three connection methods mentioned above. In that case, follow the "HDMI cable connection" process, replacing the DVI cable with an HDMI cable.

Insert one end of the HDMI cable into the HDMI port on the DVD player. Look for a port labeled "HDMI" or "HDMI Out" and plug the cable in.

• This is the highest quality connection for both sound and video, typically found on modern DVD players with HDMI ports.

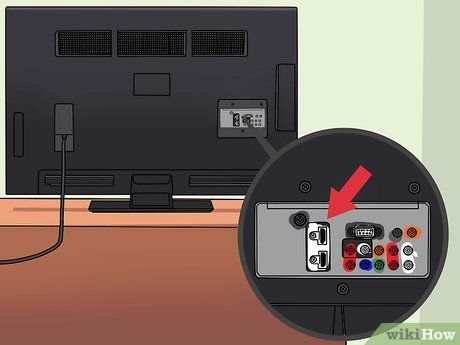

Plug the other end of the HDMI cable into the HDMI port on the TV. Just like the DVD player, only modern TVs will have HDMI ports. You'll find several HDMI ports on the TV, each labeled "HDMI" or "HDMI In".

• If the input ports are numbered, such as "HDMI 1", make sure to remember the number for use in the next setup step on the TV.

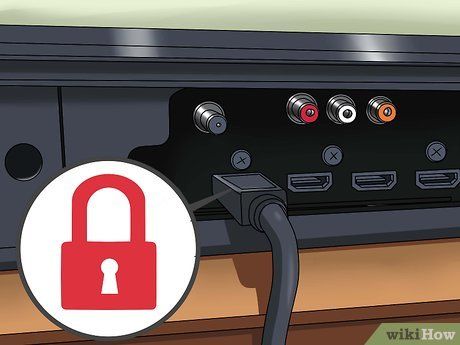

Ensure both HDMI connections are secure. HDMI only requires a single cable to transmit both sound and video signals. However, if the cable is plugged in too loosely or too tightly, the signal may be disrupted.

• There are many types of HDMI cables available, but the differences in quality are often subtle.

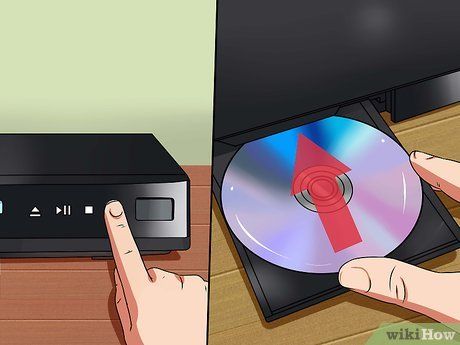

Power on the DVD player and the TV. Insert a DVD into the player to test the audio and video output.

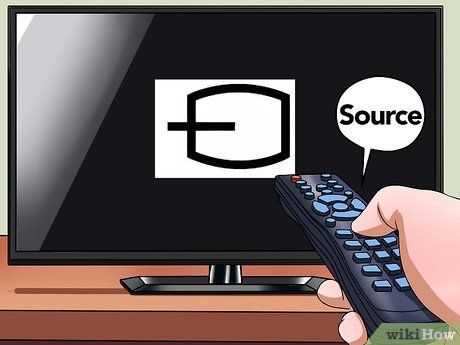

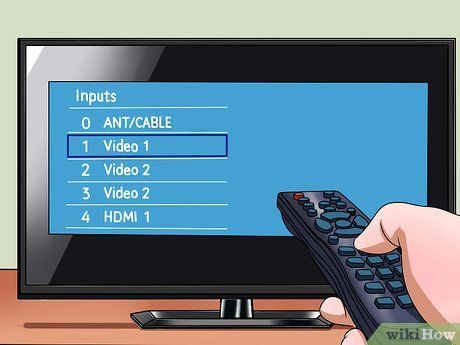

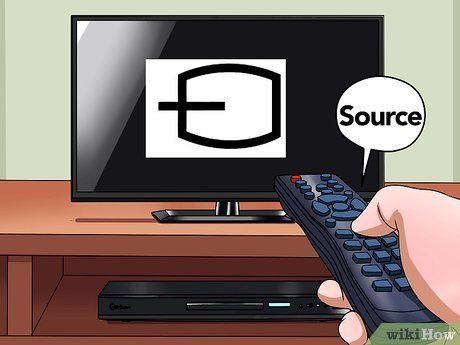

Select the TV input port by pressing the "Source" button on the remote control. On some TV models, this may be the "Input" button; use it to switch to the input port that receives the audio and video signal. You need to choose the input port that corresponds to the one where the cable was plugged in.

• If there is no label on the port or if you don’t remember which port you used, turn on the DVD player and try each port until you see the image and hear the sound.

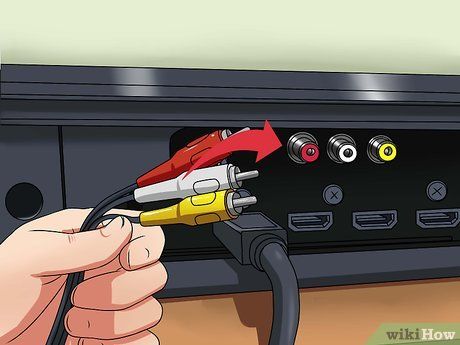

Plug one end of the A/V cable into the output port on the DVD player. The output ports are color-coded to match the A/V cable (Red, White, and Yellow), and are labeled "Output" or "Out". The Red and White (audio) ports may be separate from the Yellow (video) port.

• This connection set is often grouped together and marked with a surrounding border.

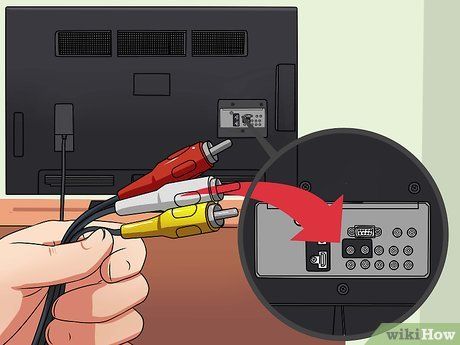

Insert the other end of the A/V cable into the input port on the TV. Similar to the DVD player, the input ports are also color-coded and grouped together. Look for the port labeled "Input" or "In". A/V inputs are often numbered for easier selection during setup on the TV.

• The input ports are usually grouped together and marked with a surrounding border.
• The Red and White (audio) ports might be separate from the Yellow (video) port. The port will clearly indicate which input it corresponds to.

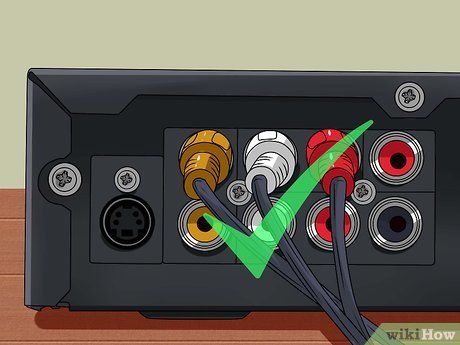

Ensure the connections are secure and the colors match correctly. Insert the colored plugs into the corresponding colored ports on both the DVD player and TV.

• The Yellow video port may be separate from the Red and White audio ports.

Turn on the DVD player and the TV. Insert a DVD into the player to test the audio and video output.

Select the TV input port by pressing the "Source" button on the remote control. On some TV models, this may be the "Input" button. Use it to switch to the input port where the TV receives the audio and video signal. You need to choose the input port that matches the one where you plugged in the cable.

• If the port is unlabeled or you can't remember which one you used, turn on the DVD player and try each port until the image and sound appear.

Ensure the A/V cable is plugged in correctly. If you only get either video or audio signal, or no signal at all, it’s likely that the cable isn't plugged in properly. Check each port to make sure the color-matched plugs are correctly inserted.

• If there is no image, ensure the Yellow plug is inserted into the corresponding input port on both the TV and the DVD player.
• If there is no sound, make sure the Red and White plugs are correctly inserted into the matching input ports on the TV and DVD player.

Insert all five connectors into the corresponding ports on the DVD player. The ports are color-coded to match the plugs (Green, Blue, Red, White, Red) and are typically grouped together and labeled "Output" or "Out". The Green, Blue, and Red (video) ports may be separate from the Red and White (audio) ports, so make sure all five connectors are plugged in.

• Component cables often come with two Red connectors, which can be confusing. To distinguish between them, simply lay the cable flat and the plugs will be arranged in the color order: Green, Blue, Red (video), White, Red (audio).
• Some component cables may only have the Green, Blue, and Red video connectors. In this case, you'll need to purchase a separate audio cable with individual Red and White connectors to hear sound from the DVD player, similar to the A/V cables mentioned above.

Plug the other end of the cable into the input port on the TV. Similar to the DVD player, you’ll find the color-coded ports grouped together and labeled "Input" or "In". These are usually numbered to guide you in selecting the correct input on the TV.

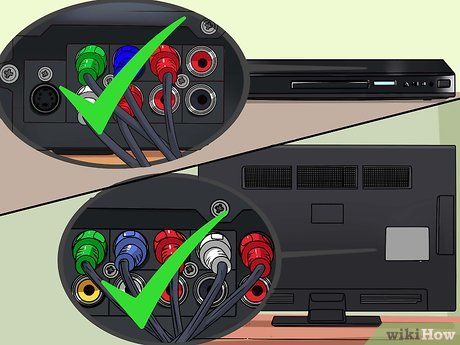

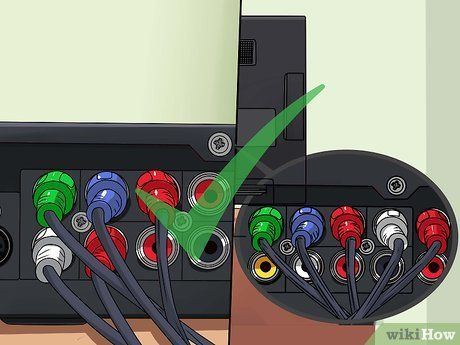

Ensure the connections are secure and color-coded correctly. You must insert the plugs into the corresponding color-coded ports on both the DVD player and the TV.

Turn on the DVD player and the TV. Insert a DVD into the player to test both the image and sound output.

Select the TV input port by pressing the "Source" button on the remote control. On some TV models, this may be the "Input" button. Use this to switch to the input port where the TV receives both the audio and video signals. You need to select the input that matches the port where you plugged in the cable.

• If the port is unlabeled or you don't remember which one you used, turn on the DVD player and try each port until the image and sound appear.

Make sure the component cable is plugged in correctly. If you're only receiving either the image or sound, or no signal at all, it's likely that the cable is not plugged in properly. Check each port to ensure the color-coded plugs are inserted correctly.

• If there is no image, make sure the Green, Blue, and Red plugs are inserted into the matching input ports on both the TV and DVD player.
• If there is no sound, make sure the Red and White plugs are properly connected to the corresponding input ports on the TV and DVD player.
• Double-check the two Red plugs to ensure they are in the correct ports. If they are swapped, you may not get both sound and image signals.

Don't forget to plug in the DVD player's power cable. This device needs to be connected to a power source to function. Make sure to check if the power is properly plugged in.

Check the Input and Auxiliary ports. The DVD player will display one of these input and auxiliary ports, but it will not run ports 3 or 4 like some video cassette recorders (VCRs).

• Some TVs label input ports based on connection type, such as "HDMI", "AV", and "COMPONENT" (Component). Refer to Step 1 to identify the type of connection you are using.

Try a different cable. Sometimes, old cables or loose connectors can weaken or prevent the signal transmission. Test with a new cable to see if it resolves the issue.

• Note: Many companies promote expensive cables, but you might not notice a significant difference in signal quality when using a high-end cable. Specifically, with HDMI cables, a 100,000 VND cable provides similar image and sound quality to one costing over 1 million VND.
