How to Set Up a Modem

Ensure that the modem is compatible with your current Internet service contract. While it's not common, some modems may have issues when connecting to certain ISPs (such as VNPT). If possible, verify that the modem works with your current Internet plan before purchasing.

• If the modem doesn’t work with your service contract, try using a different modem or switch to another service plan.

Find the cable outlet in the room. The cable outlet appears as a metallic cylinder with a small hole in the center and a surrounding nut. You can usually find this outlet on the wall, near the floor of the living room or bedroom.

• In some cases, the cable may already be plugged into this outlet.

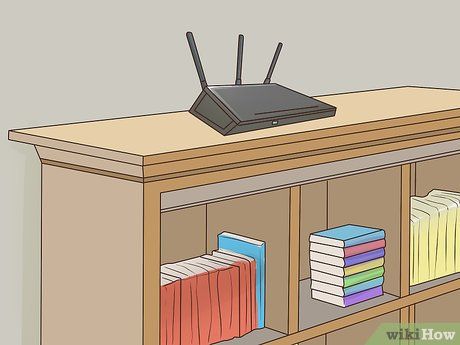

Decide where to place the modem. The modem should be positioned relatively high (such as on a bookshelf) and close to the cable outlet so that the cables do not become stretched or kinked.

• You will also need a power source nearby.

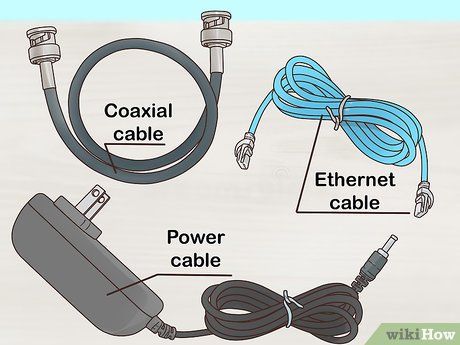

Ensure you have all necessary cables. The modem uses a coaxial cable to connect to the cable outlet and a power cable to connect to the power source. Both of these cables are usually included with the modem, but if you buy a second-hand device, you may need to find replacements.

• If you plan to connect the modem to a router, purchase an additional Ethernet cable.
• Consider buying a longer coaxial cable if yours is too short to properly install the modem.

Read the modem's user manual. Every modem is different, and your device might require additional setup steps that are outside the scope of this guide. The manual will help you with any extra steps you need to follow during the installation process.

Attach one end of the coaxial cable to the cable outlet. Each end of the coaxial cable has a connector resembling a pin, which is used to plug into the cable outlet. You need to tighten the coaxial cable into the outlet to ensure a secure connection.

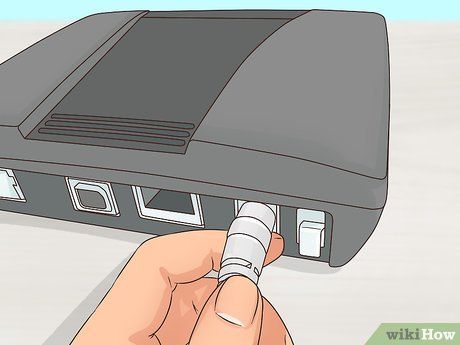

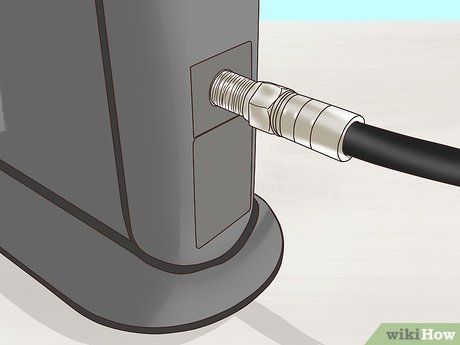

Plug the other end of the cable into the modem. On the back of the modem, you'll find an outlet resembling a cylindrical cable outlet. Insert the other end of the coaxial cable into this outlet, making sure to tighten it as much as possible if necessary.

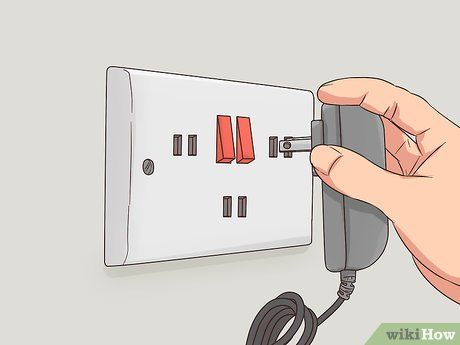

Plug the modem's power cable into an electrical outlet. You can use either the wall socket or a surge protector. It is important to plug the cable into the power source first before connecting it to the modem, as connecting the power cable to the modem first could cause damage.

Connect the other end of the power cable to the modem. You'll find the power cable port at the bottom, on the back of the modem. Be sure to refer to the manual included with the modem to confirm its exact location.

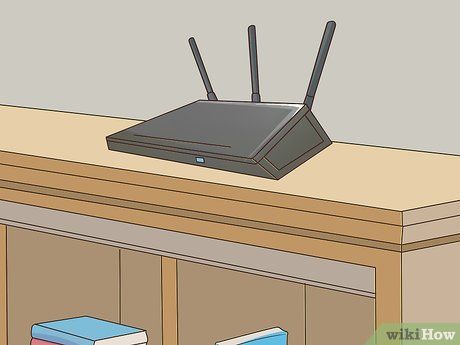

Place the modem in its intended position. After connecting the cables, carefully move the modem to its designated spot. The cables should be comfortably placed without any strain or obstruction.

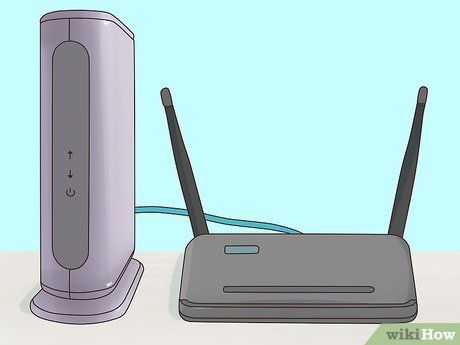

Connect the modem to the router. If you want to use a Wi-Fi router with the modem, plug one end of the Ethernet cable into the square port on the back of the modem, and then plug the other end into the 'INTERNET' port (or a similarly labeled square port) on the back of the router. The router will light up as soon as it is powered on.

• Wait a few minutes for the modem and router to initialize before attempting to connect to Wi-Fi.
• You can also directly connect a Windows computer to the modem using an Ethernet cable (or a converter cable from Ethernet to USB Type-C for a Mac computer).
