How to Set Up a Nintendo Wii

Place the Wii near your TV. Ensure the console is close enough for the cables to reach both the TV and the power outlet.

• If you're using a stand, first verify that the stand is securely attached to the circular plastic base by sliding the two pieces together until you hear a click.

Power up the Wii. Plug the included power cable into an electrical outlet, then connect the other end to the port on the left side at the back of the gaming console.

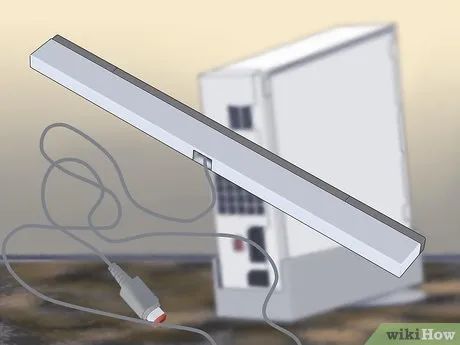

Set up the sensor bar. Insert the cable of the thin gray and black sensor bar into the red port located at the back of the Wii console, then place the sensor bar beneath the front of your TV. Remove the adhesive strip underneath the sensor bar to secure it in place.

• Alternatively, you can position the sensor bar on top of the TV.

Connect the Wii to your TV. Most Wii systems come with a yellow, white, and red A/V cable; insert the non-colored end into the wide, flat port on the back of the console, then plug the red, white, and yellow ends into their corresponding colored ports in the "Video In" section on the back or side of your TV.

• The Wii requires its specific cable for TV connection; standard A/V cables won't work.
• If you want to connect the Wii's A/V cable to a computer monitor, you'll need to purchase a video converter.

Insert batteries into the Wii remote. Remove the back cover of the Wiimote and insert two AA batteries. Batteries are usually included if the console is new. Ensure you align the positive (+) and negative (-) ends as indicated.

• If the Wii remote has a rubber sleeve, remove it first to access the battery cover.

Test the Wii remote. Press the A button on the Wii remote to check if the batteries are working. If the light at the end of the remote flashes quickly or stays lit, the remote is functioning.

• If the light doesn't turn on, try replacing the batteries.

Secure the Wiimote wrist strap. The wrist strap is essential for using the Wii, especially during active games. Attach the strap to the end of the Wiimote by threading it through the loop. You can wrap the strap around your wrist while playing.

Turn on the TV. Press the power button on the TV or remote to switch on the device.

Switch to the Wii input. Press the Input or Video button on the TV or remote until the correct input number appears. The Wii is typically connected to A/V input 1, 2, or 3.

• You can verify the Wii's input number by checking the label near the yellow, white, and red ports on the back or side of the TV.

Power on the Wii. Press the power button on the front of the Wii. After a few seconds, the Wii setup screen will appear on the TV.

• If nothing appears or you hear no sound, ensure the TV is set to the correct input and the A/V cables are properly connected.
• Cycle through the available inputs until the Wii setup screen appears.

Sync the Wii remote with the console. Once synced, the red light at the end of the remote will stay lit, allowing you to proceed with the Wii setup. To sync the remote:

• Open the SD card slot on the front of the Wii console.
• Remove the battery cover on the Wii remote.
• Press the Sync button inside the battery compartment.
• Wait for the light at the end of the remote to start blinking.
• Press the red Sync button inside the Wii's SD card slot.

Select your language and press the A button. The language you choose will be applied to the Wii menu.

Select Continue and press the A button. This option is located at the bottom right corner of the screen.

Choose the sensor bar position. Select Above TV or Below TV and press the A button, then choose Continue.

Set the date. Use the arrows above or below the day, month, and year values to adjust them, then press the A button to confirm. Once done, select Continue to proceed.

Set the time. Follow the same process as adjusting the date. After making your changes, select Continue to finalize.

• Note: The clock uses military time (24-hour format). For example, 12:00 PM is "1200", and 3:00 PM is "1500".

Choose the screen resolution. Select 4:3 for standard TVs or 16:9 for widescreen TVs, then choose Continue.

Enter a nickname for your console. Use the on-screen keyboard to type in a name, then select Continue.

Select your country. Choose the country where you reside, press the A button, and then select Continue.

Press the A button. This confirms that you have read the Wii's copy protection terms. The main Wii screen will appear, indicating the setup process is complete.

• Depending on the model, a tutorial video may start playing.

Select Wii and press the A button. This option is located at the bottom left of the screen. A menu will pop up.

Choose Wii Options and press the A button. This option is within the pop-up menu. The Wii Options page will open.

Scroll to the right, select Sensor Bar, and press the A button. When you scroll right, the second page of the Wii Options screen will appear with the Sensor Bar option. Select it to open the Wii sensor bar settings.

Choose Position and press the A button. The Position menu will open.

• Skip this step if you don't want to change the position you selected during the initial Wii setup.

Select the position. Choose Above TV or Below TV and press the A button.

Select Confirm and press the A button. This option is located at the bottom of the screen. The sensor settings will be adjusted based on the position.

Adjust the sensor bar sensitivity. Select Sensitivity and press the A button, then use the + or - buttons on the remote to increase or decrease the sensitivity of the remote on the screen.

Exit the Sensor Bar page. Select Back and press the A button to return to page 2 of the Options menu.

• If you have a Nintendo USB Ethernet adapter, you can plug it into the back of the console and connect the Ethernet cable from your router to the adapter.

Select Internet and press the A button. The Internet settings menu will open.

Choose Connection Settings and press the A button. A list of three connection types will appear.

• If the Wii has never connected to the Internet, all connection settings will display as "None".

Choose Wireless and press the A button. The wireless network page will open.

• If you're using an Ethernet connection, select Wired and choose OK to access the Internet.

Select Search for an Access Point and press the A button. A list of available networks will appear.

Choose a network and press the A button. The connection page will appear.

• If this is a public network, the Wii will automatically connect once you select it.

Enter the network password. If the network is password-protected, input the password and press the A button.

Update the Wii. After connecting the console to a wireless or wired network, you'll be prompted to update the system. These updates can enhance system functionality, so it's recommended to proceed if you plan to play online.

• Do not update the system if it has been modded (modified), as this may result in losing access to the Homebrew channel.

Add games and channels. Once the system is updated, you can connect to the Internet whenever the Wii is powered on. You can purchase games and channels from the Wii Shop. Games typically require payment, while most channels can be downloaded for free (some channels may require a separate subscription for full access).

• You can access the shop from the Wii Channels screen.

Insert the game you want to play. If the disc tray is empty, you can load the game disc to start it. Once the disc is inserted, the game's channel will open, and you can begin by pressing the on-screen button to play.

• Ensure the disc is inserted correctly (label side facing up).
• You can also download games from the Wii Shop, which will appear in the Channel menu.

Use the Wiimote to play. Depending on the game, you may need to swing the Wiimote to control actions. Make sure you have enough space to move around without hitting anyone or anything.

Play GameCube games. If you want to play GameCube games on the Wii RVL-001, you'll need to use a GameCube controller by connecting it to one of the ports on the top (if the Wii is vertical) or the left side (if the Wii is horizontal). You'll need to open the cover to access these ports.

• GameCube games are inserted similarly to regular Wii games. However, GameCube discs are smaller and can be placed anywhere in the disc slot.
