How to Set Up a TP-Link Router

A router connects multiple devices, such as computers and smartphones, to a network. With a newly purchased TP-Link router, you can configure the device using the Quick Setup process through the user interface on your PC’s web browser. If you lack the necessary information, try the Basic setup steps to get your Wi-Fi network up and running. Additionally, you can use the web interface to set up Parental Controls on the router or specify port forwarding for specific devices. Today, Mytour will guide you through the process of setting up a TP-Link router.

Power off the modem. If you're using a separate modem, unplug it to turn it off. If the modem has a backup battery, be sure to remove the battery as well.

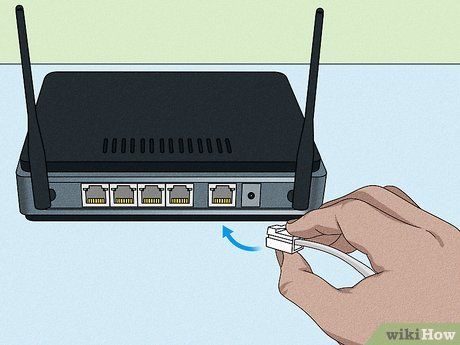

Connect the router to the Internet. You will need an Ethernet cable for this. Follow one of the steps below to link your router to the network.

• If you have an integrated modem-router, simply connect the network cable from your Internet Service Provider (ISP) to the "WAN" or "Internet" port on the back of the device.
• If you are using a separate modem, connect the home network cable to the "WAN" or "Internet" port on the modem. Then, plug the other end of the Ethernet cable into the "WAN" or "Internet" port on the back of the router.

Power up the modem. If you are using a separate modem, plug it in and reattach the battery to power up the device.

Power on the router. Ensure you are using the AC adapter that came with your router. Plug the AC adapter cable into the power port on the back of the router. Then, connect it to a power source. The router will power on. Wait for the front lights to stop blinking and remain steady, indicating the router has fully booted up.

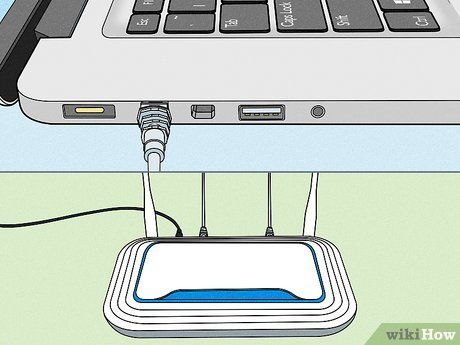

Connect your PC to the router. You will need another Ethernet cable for this. Plug one end of the Ethernet cable into any available "LAN" port on the router. Then, connect the other end to an available Ethernet port on your computer.

• If your computer doesn’t have an available Ethernet port, you’ll need to purchase a USB-to-Ethernet adapter to connect the Ethernet cable to your computer via a USB port.
• Alternatively, you can also connect wirelessly to the router by using the SSID and password listed on the device or in the user manual.

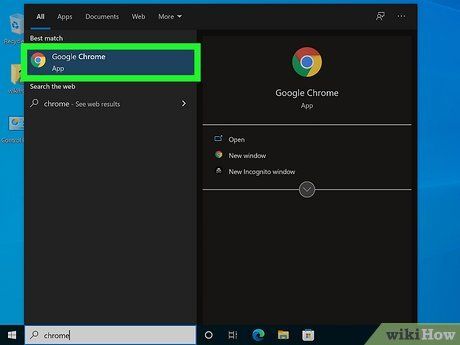

Open your web browser. You can use any browser on your computer, including Google Chrome, Safari, Firefox, and Microsoft Edge.

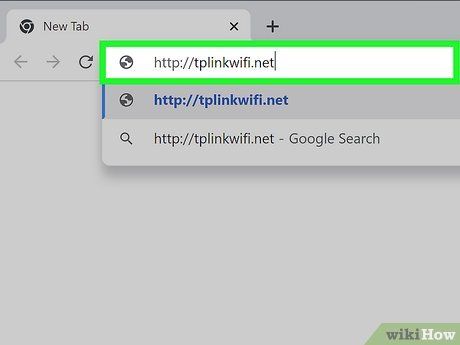

Enter the default access address in the browser's address bar. The router’s user interface will open. Typically, you can find this address on the underside of the router or in the user manual. The default access address is usually one of the following:

• http://tplinkwifi.net
• http://192.168.0.1
• http://192.168.1.1
• http://10.0.0.1

Create a new admin password and click Let's Get Started (Start). This password will be used to log into the router and make any changes to settings if necessary, not your Wi-Fi password. A strong password should be at least 8 characters long, including letters, numbers, and special characters. Remember: the password should be something memorable for you. Enter the password twice and click Let's Get Started to proceed.

Ensure that the Quick Setup tab is selected. This option will guide you through the router setup process. You need to click on the Quick Setup tab at the top (if it hasn’t been selected yet).

• If you’re using an older TP-Link model, click on the Quick Setup tab located at the top of the left menu.

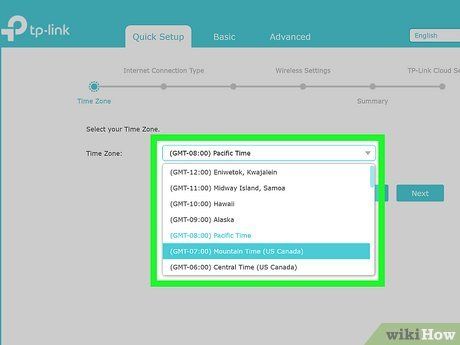

Select your time zone. Use the dropdown menu next to the "Time Zone" field to choose your current time zone. Then, click Next to continue.

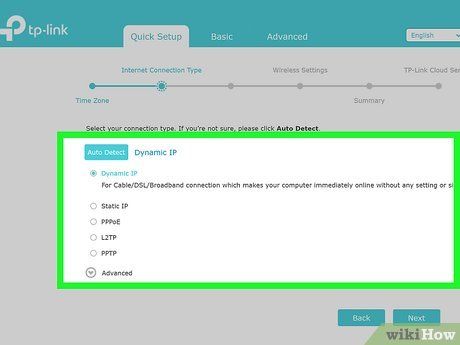

Select your Internet connection type. Click on the radio button next to the Internet connection protocol you wish to choose. You can opt for "Dynamic IP," "Static IP," "PPPoE," "L2TP," or "PPTP." If you are unsure about the connection type, click on Auto Detect at the top of the screen. Then, click Next to proceed.

• The "Auto Detect" feature may not always function accurately. If you're uncertain about your current connection type, it's advisable to check with your Internet Service Provider (ISP).
• If you can't get the necessary information from your ISP, you can try setting up and running your Internet through the basic setup process.

Enter IP address or MAC information. Depending on your connection type, you may need to provide your IP address, Subnet Mask (typically "255.255.255.0"), default gateway, along with your primary and secondary DNS addresses. If you're unaware of this information, you should ask your ISP. After entering the required information, click Next.

• If asked whether you want to clone the computer's MAC address, verify with your ISP whether your current Internet access is restricted to a specific MAC address. If so, make sure the computer you're using has that MAC address and select the radio option to clone your computer’s MAC address. If you're unsure, you should select the "Do NOT Clone my Computer's MAC Address" option and click Next.

Set up your Network Name (SSID) and Password. The Network Name is what others will see when they search for available Wi-Fi networks to connect to. The password is what they will need to enter to connect to your network. Enter the network name in the "Network Name (SSID)" field and the password in the "Password" field. Then, click Next to continue.

• If you plan to allow guests to connect to your network, consider using a separate password that is not linked to any apps or services. Choose a password you're comfortable sharing with others.
• If you're using a dual-band router, make sure to set up different network names (SSIDs) for both the 2.4 GHz and 5 GHz bands. The 5 GHz band offers faster speeds but shorter range. You can use the same password for both bands, but ensure the SSIDs are distinct for easier identification.
• If you prefer not to have your network name broadcasted when others are searching for Wi-Fi networks, check the "Hide SSID" box. However, you'll need to manually enter the network name and password to connect.
• If your router supports Smart Connect, you can tick the box to enable this feature. This will allow devices to automatically switch between the 2.4 GHz and 5 GHz bands based on their proximity to the router.

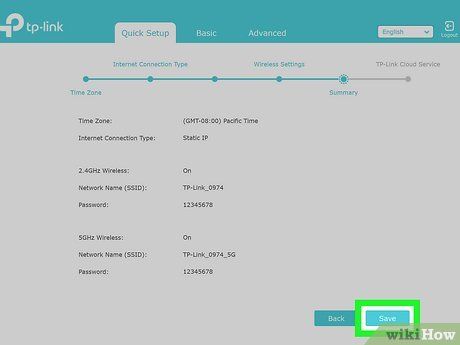

Review your details and click on Save. The summary page will display all the information you've entered. Once you've reviewed everything and are confident the details are correct, click Save to finalize.

Connect your device to the Wi-Fi network and click on Next. The next screen will show the network name and password to connect your device to the Wi-Fi. Afterward, click Next to continue.

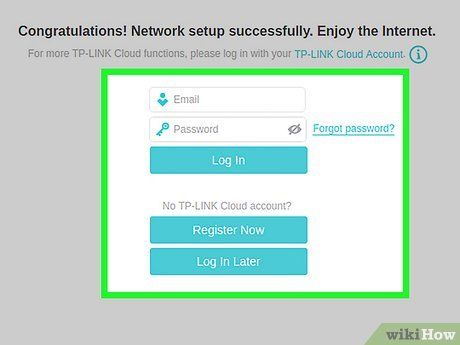

Log in with your TP-Link ID. If you already have a TP-Link ID, enter the associated email address and password, then click Log In to connect to cloud services and register your router. If you don’t have a TP-Link ID, click Register Now, input your email and password, then agree to TP-Link's terms and conditions to create an ID. Alternatively, you can click Log In Later to skip this step.

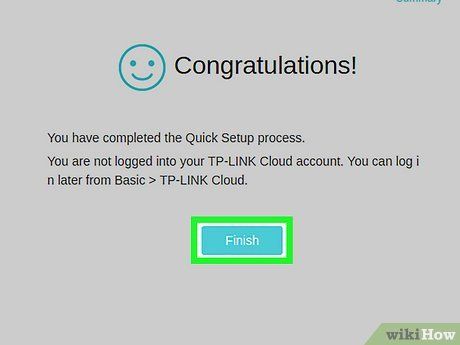

Click on Finish (Complete). You've now successfully set up your TP-Link router.

Update your router's firmware. Once your router is set up, it's recommended to update its firmware. The update process may take a few minutes, and your router will reboot once the update is complete. Follow these steps to update your router's firmware:

• Enter the default access address in your web browser.
• Log in using the administrator password.
• Click on Update at the top right corner.

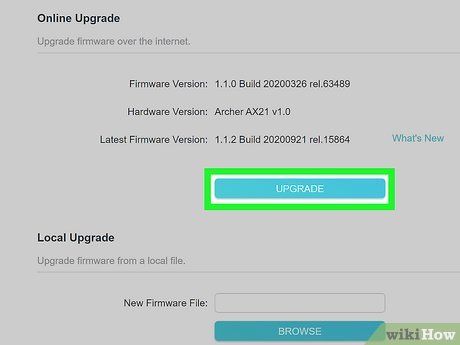

• If an update is available, click Upgrade under "Online Upgrade".
• Click Yes to confirm.
• Wait for the update process to complete.

Open a web browser. You can use any web browser on your computer, such as Google Chrome, Safari, Firefox, or Microsoft Edge.

Enter the default access address into the address bar of your web browser. The router's user interface will appear. This default address is usually listed on the underside of the router or in the user manual. Here are some common default addresses:

• http://tplinkwifi.net
• http://192.168.0.1
• http://192.168.1.1
• http://10.0.0.1

Create a new administrator password and click Let's Get Started. This password will be used to log into the router and modify settings if necessary, not your Wi-Fi password. A strong password should have at least 8 characters, including letters, numbers, and special characters. Make sure the password is something you can easily remember. Enter the password twice and click Let's Get Started to continue.

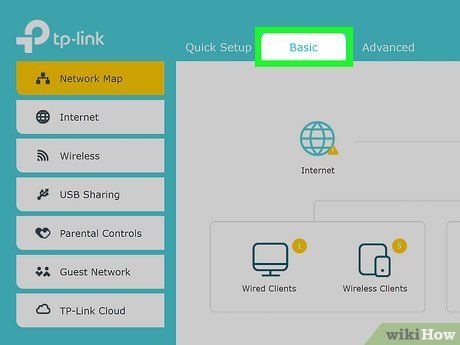

Click on Basic (Basic). The second tab at the top of the screen allows you to configure your router using the basic setup with the minimum required information.

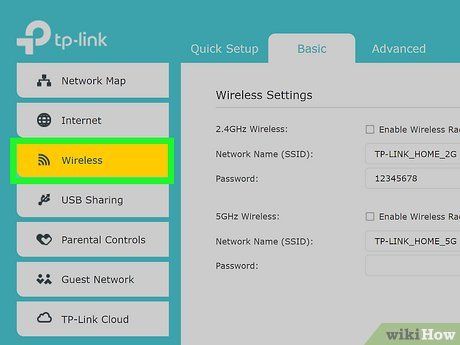

Click on Wireless (Wi-Fi). This is the third option in the left-hand menu. Here, you can configure your Wi-Fi settings.

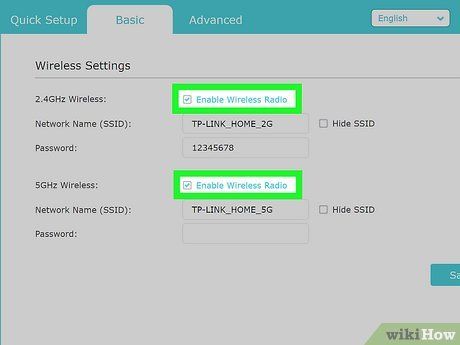

Tick the checkbox to enable a network band. Most dual-band routers offer two networks that you can enable and connect to. The 2.4 GHz band offers broader range but slower speeds, while the 5 GHz band offers faster speeds but shorter range. Click the checkbox next to the band you want to enable. You can enable both networks simultaneously.

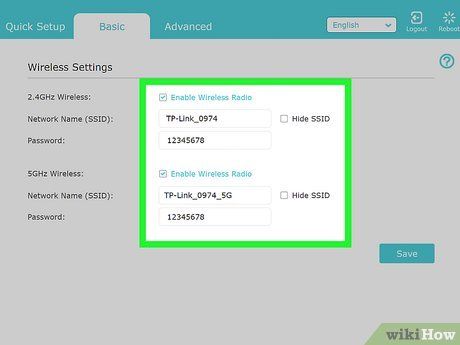

Enter the network name (SSID) and password. The network name is the one that others will search for when trying to connect to the Wi-Fi. The password is what they need to enter to access the network. You must provide separate names for the 2.4 GHz and 5 GHz bands, though the password can be the same for both.

• If you plan to allow guests to connect to the network, make sure to use a separate password, one that is not linked to any apps or services. Choose a password that you won't mind others knowing.
• If you're using an older TP-Link router, click on Wireless 2.4 GHz and Wireless 5 GHz in the left-hand menu to configure both bands.
• If you prefer the network name not to appear when others search for Wi-Fi networks, check the "Hide SSID" box. However, you'll need to manually enter the network name and password to connect.

Click on Save. This green button is located at the bottom-right corner. The network settings will be saved.

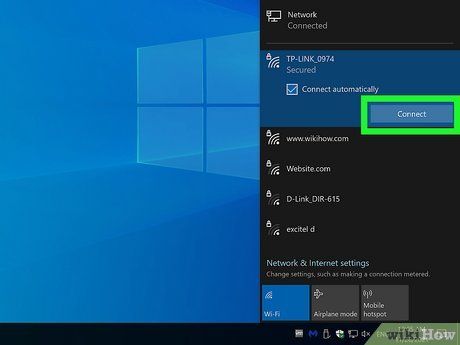

Reconnect to the network. When you change your Wi-Fi network's name and password, your computer and devices will automatically disconnect. Log back in with the network name (SSID) and password you set in the router. You'll be able to connect to the internet again.

Update your router's firmware. After setting up your router, it's a good idea to update the firmware. The router will take a few minutes to update and will reboot automatically when the process is complete. Here are the steps to update the router's firmware:

• Enter the default access address into your web browser.
• Log in using the administrator password.
• Click on Update at the top right corner.
• Click on Upgrade under "Online Upgrade" if an update is available.
• Click Yes to confirm.
• Wait for the update process to complete.

Mở trình duyệt web. Bạn có thể sử dụng bất kỳ trình duyệt web nào trên máy tính như Google Chrome, Safari, Firefox hoặc Microsoft Edge. Quyền kiểm soát phụ huynh nằm trong giao diện dựa trên web của bộ định tuyến TP-Link. Bạn có thể sử dụng quyền kiểm soát phụ huynh để chặn các website hoặc từ khóa, cũng như đặt giới hạn thời gian đối với thiết bị cụ thể.

Nhập địa chỉ truy cập mặc định vào thanh địa chỉ nằm đầu trình duyệt web. Giao diện người dùng của bộ định tuyến sẽ mở ra. Địa chỉ truy cập mặc định thường được liệt kê bên dưới bộ định tuyến hoặc trong sổ tay người dùng. Sau đây là một số địa chỉ mặc định thường gặp:

• http://tplinkwifi.net
• http://192.168.0.1
• http://192.168.1.1
• http://10.0.0.1

Đăng nhập bằng mật khẩu quản trị viên rồi nhấp vào Log In. Đây là mật khẩu mà bạn đặt vào lần đầu khi mở giao diện người dùng trong quá trình thiết lập bộ định tuyến ban đầu. Hãy nhập mật khẩu quản trị viên rồi nhấp vào Log In.

• Nếu như chưa đặt mật khẩu quản trị viên, bạn cần nhập mật khẩu rồi nhấp vào Let's Get Started. Sau đó, chọn thẻ Quick Setup và hoàn tất quá trình thiết lập ban đầu.

Nhấp vào thẻ Basic. Thẻ thứ hai nằm đầu màn hình này cho phép bạn thiết lập cấu hình cho bộ định tuyến thông qua các bước cơ bản với thông tin cần thiết ít nhất.

Nhấp vào Parental Controls. Tùy chọn với biểu tượng người lớn và trẻ nhỏ này nằm thứ năm trong menu bên trái.

Enter a name for the profile. In the "Name" field, input a name for the parental control profile.

Select the devices for parental control:

• Click on the large plus (+) icon located below the "Devices" heading.
• Select one or more devices that you wish to apply the settings to by checking the box next to each device.
• Click on Save at the bottom right corner to confirm the changes.

Click on Next. If the devices listed under the "Devices" heading are incorrect, click on Next at the bottom right corner to proceed.

Enter a keyword for the content you want to block and click on Add. You can enter keywords to block content from any website that contains the keyword, or enter a name to block specific websites or apps.

• You can add as many keywords or websites as needed.

Click on Next. After entering all the keywords you want to block, click Next to continue.

Set a daily time limit. To do so, click the Enable box under the "Time Limits" section. Then, use the slider to set the amount of time each device can access the network daily. You can set daily limits for weekdays (Monday to Friday) and weekends (Saturday & Sunday).

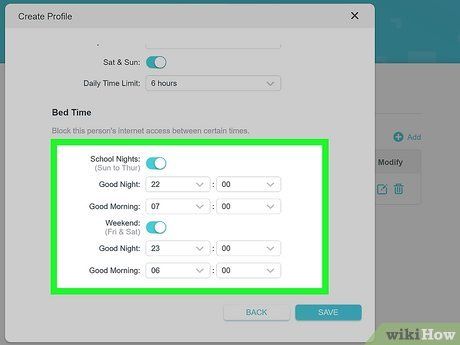

Set a bedtime limit. This feature will block the device from accessing the network during designated sleep hours. To set the bedtime, click the Enable box under the "Bedtime" section. Then, use the "From:" and "To:" fields to specify the time range during which the device will be blocked from internet access (e.g., "From: 9:00 PM, To: 6:00 AM"). You can set different bedtime hours for weekdays and weekends.

Click on Save to save the profile. You can add multiple profiles to enforce different restrictions as needed.

Open a web browser. You can use any web browser on your computer, such as Google Chrome, Safari, Firefox, or Microsoft Edge. If your computer or device requires access to a specific port or external web address, you will need to configure port forwarding on your router to allow direct access to the external Internet. Port forwarding can be set up through the web-based interface.

Enter the default access address into the browser's address bar. This will open the router's user interface. The default access address is typically listed on the router itself or in the user manual. Here are some commonly used default addresses:

• http://tplinkwifi.net
• http://192.168.0.1
• http://192.168.1.1
• http://10.0.0.1

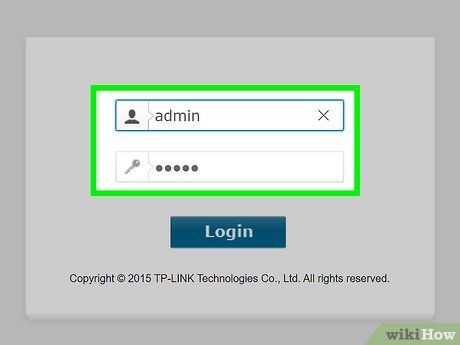

Log in using the administrator password and click Log In. This is the password you set up initially when you first accessed the user interface during the router's setup process. Enter the administrator password and click Log In.

• If you haven't set the administrator password yet, you'll need to enter a password and click Let's Get Started. Then, select the Quick Setup tab and complete the initial setup process.

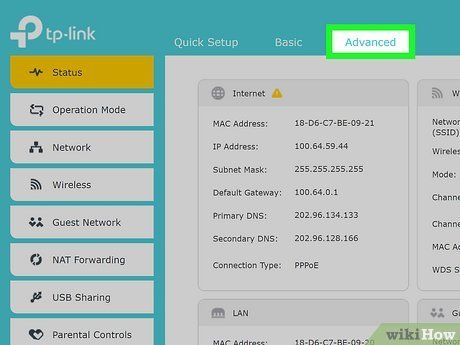

Click on Advanced (Advanced). The third tab at the top of the screen is where you can configure advanced settings for your TP-Link router.

Record the private and public IP addresses. The public IP address is listed next to "IP Address" in the "Internet" section. The private IP address is located next to "IP Address" in the "WAN" section. Make sure to note both of these numbers.

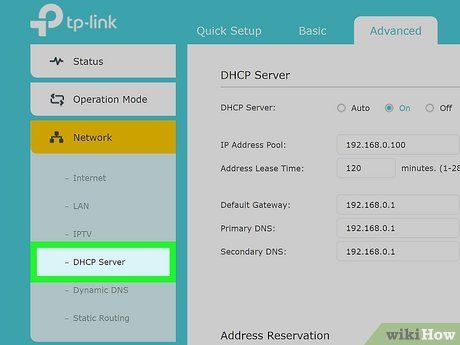

Navigate to the "DHCP Server" page. To do this, click on the Network heading in the left-side menu to expand the Network options. Then, click on DHCP Server in the submenu under the "Network" section.

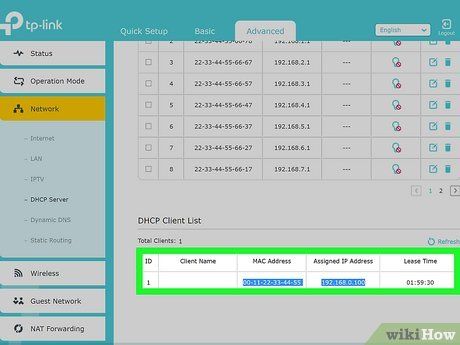

Record the IP address and MAC address of the device for which you want to set up port forwarding. Scroll down to the "DHCP Client List" table. All devices connected to the network will be listed here. Identify the device you wish to configure port forwarding for by its name, then write down the IP address and MAC address assigned to that device.

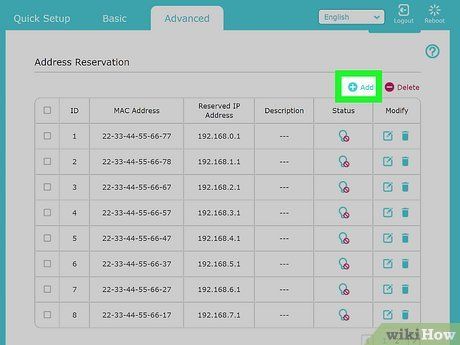

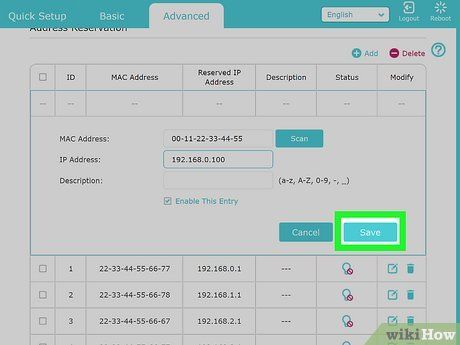

Enter the MAC address and IP address, then click Save. Input or copy and paste the MAC address into the MAC Address field. Then, enter the IP address into the IP Address field. Optionally, add a description and click Save. This ensures that the router will always assign the specified IP address to the selected device.

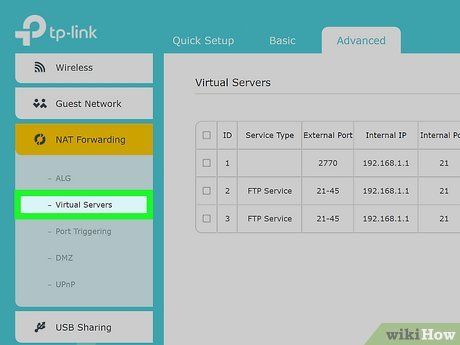

Access the Virtual Servers page. To proceed, scroll down and click on NAT Forwarding in the left menu. Then, click on Virtual Servers.

Select a service type. The available services include HTTP, FTP, DNS, Gopher, NNTP, and more. To choose a service, click on View Existing Services next to the "Service Type" heading. Then, click Choose next to the desired service to select it. The port number for that service will be automatically filled in.

• If the service you are connecting to uses a different port number than the one automatically filled in, you will need to verify the correct port number from the service provider.

Enter the device's IP address and click Save. Enter the same IP address that you assigned to the device earlier and click "Internal IP address". Afterward, click Save at the bottom right to complete the process. Port forwarding will now be set up for that device.

• To access the server you just added, either within or outside the network, enter the public IP address in the browser's address bar, followed by a colon (:) and the port number (e.g., 119.139.172.01:80).
