How to Set Up Your Router

A router is an essential device for your home network. Properly configuring your router can protect your personal data from intruders, provide secure connections for all devices in your home, and even prevent children from accessing inappropriate content. Follow the steps in this guide to set up your router in just a few minutes.

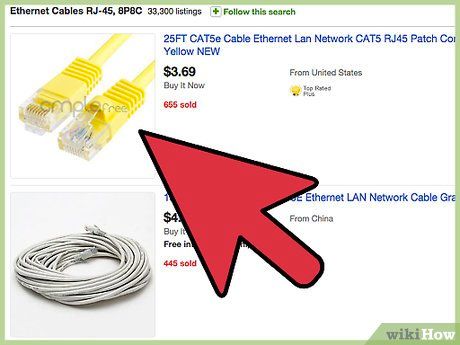

Connect the router to your computer and modem (gateway). Use an Ethernet cable to link the modem to the WAN/WLAN/Internet port on the router, and connect your computer to one of the router's numbered ports (1, 2, 3, or 4).

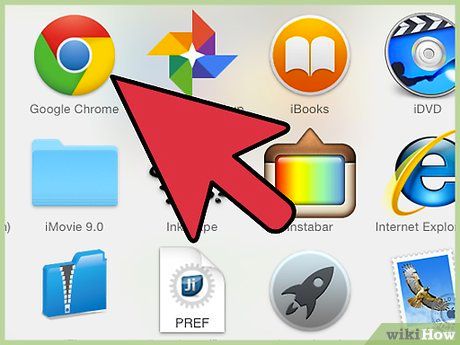

Open a web browser. The router's configuration page can be accessed from any computer connected to the same network. For optimal results during the setup process, it’s advised to connect the computer directly to the router using an Ethernet cable.

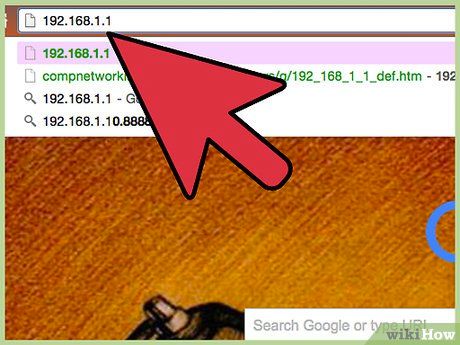

Enter the router's IP address. You can access the router by typing its IP address into your browser's address bar. The exact IP may vary slightly depending on the manufacturer, but most are similar or nearly the same. Below are some common manufacturers and their corresponding IP addresses:

• Linksys - http://192.168.1.1
• 3Com - http://192.168.1.1
• D-Link - http://192.168.0.1
• Belkin - http://192.168.2.1
• Netgear - http://192.168.1.1
• Arris - http://10.0.0.1
• Most routers have the default IP address listed in their manual or on the label of the device. You can also visit the manufacturer’s website, or if the default address doesn’t work, you can reset the router to its factory settings.

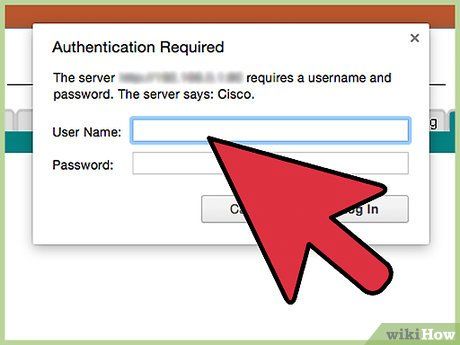

Enter your username and password. Before accessing the configuration page, you will be prompted to enter your login credentials. Most routers have a default username and password pair, though some may allow you to proceed without entering anything.

• The router's manual will typically provide the required username and password. These credentials may also be printed directly on the router.
• “admin” is one of the most common default usernames.
• “admin” or “password” are among the most widely used default passwords.

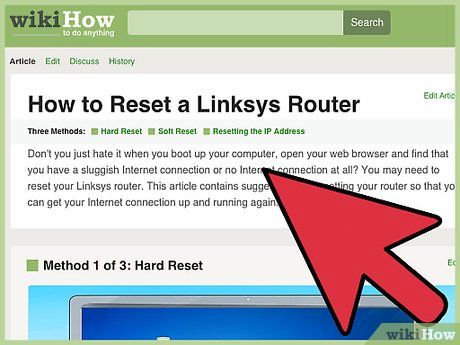

Reset the router if you cannot access it. If you’ve identified the IP address and default credentials but still can’t access the router, you can reset it to its original factory settings to remove any changes made recently. This is especially useful for second-hand routers or those whose settings you no longer remember.

• To reset the router, press the Reset button, which is typically small and recessed, requiring a paperclip to press. Some routers have a more accessible reset button.
• After pressing the Reset button, wait for 30-60 seconds and then attempt to enter the router's IP address and credentials again.

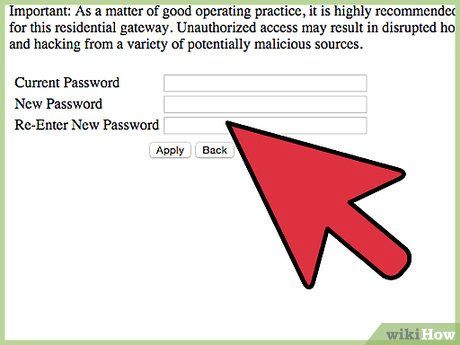

Create a new username and password for the router. It is not secure to leave the router's default username and password unchanged, so it’s essential to modify them immediately after setup. Typically, you will find this option under the Administration section when configuring the router.

• Be sure to select a username and password that are difficult to guess. Your password should contain both numbers and letters to ensure it is secure against potential theft.

Check the Internet settings. In the router's Internet, Setup, or Home menu, make sure that the IP address, DHCP (Dynamic Host Configuration Protocol), and DNS (Domain Name System) settings are properly configured. These are typically set to automatic, unless your ISP suggests a different configuration.

• Many routers have a Test button in the Internet menu. Click this to verify whether the Internet settings are correctly configured.

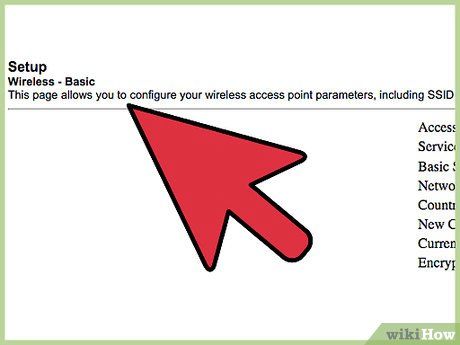

Access the wireless network settings. This menu may be labeled as Wireless, Wireless Settings, Basic Setup, or something similar. The page will display settings for the SSID (Service Set Identifier), channel, encryption, and other wireless network parameters.

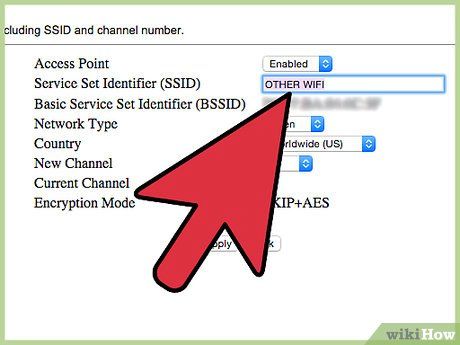

Assign a name to your network. Locate the SSID field. This is the name of your network and will appear in the list of available networks for wireless devices. Ensure that no personal information is included in the network name, as it will be publicly visible.

• Make sure the 'Enable SSID Broadcast' box is checked.
• The channel should be set to Auto. If there are many wireless networks around you, the router will automatically select the best channel with a clear signal.

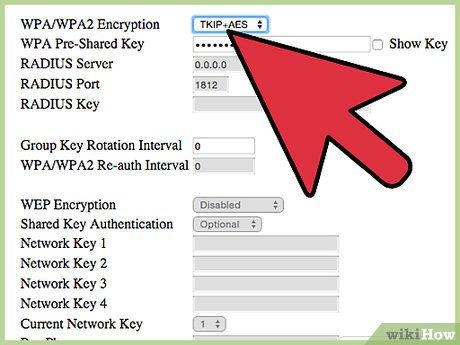

Choose your wireless encryption method. This section may also be labeled as Security Options. Here, you will be able to select the encryption method for securing traffic on your network. Common security options on most routers include WEP, WPA-PSK, and WPA2-PSK.

• WPA2 is the most secure encryption method, so you should use it if all your devices support it. Only older devices may not support WPA2.

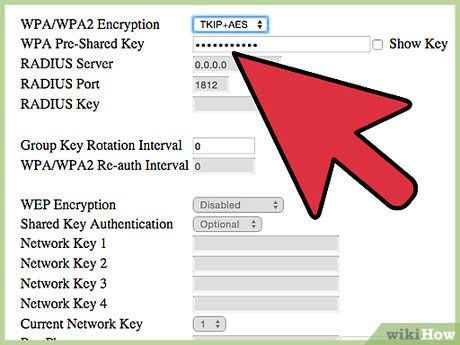

Choose a password. The password (passphrase) is what you enter when a device connects to your network. A strong password helps protect your network from unauthorized access. It is always recommended to set a password for your network.

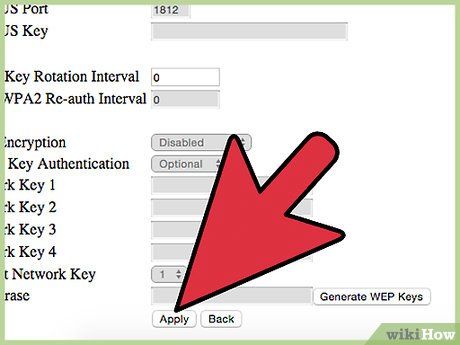

Apply the settings. After selecting the SSID, encryption type, and password, click the Apply or Save button to begin applying the settings to your wireless network. The router will process the changes for a few seconds, and then your wireless network will appear in the list of available networks for your devices.

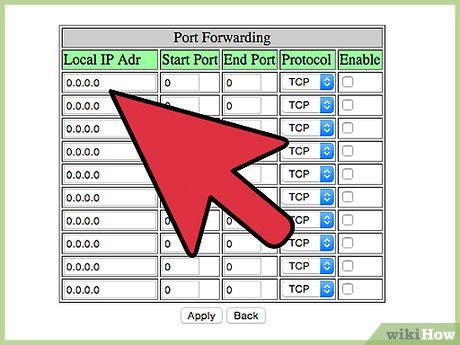

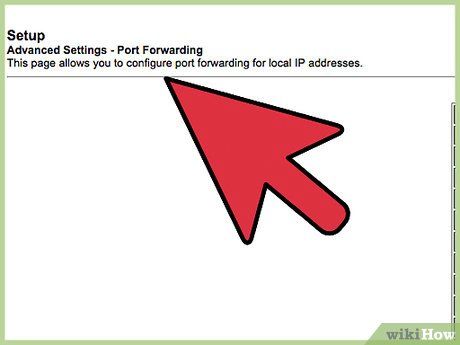

Open the Port Forwarding menu. This menu is usually located in the Advanced section of the router's configuration page.

Add a new service or rule. Click the button to add a service of your choice. This will open a form for you to enter the port forwarding details.

• Name/Service Name – This is the name of the program you are forwarding the port for. It helps you recognize it in the list.
• Protocol – The available protocol options are TCP, UDP, and TCP/UDP. Check the program you are forwarding the port for to determine which protocol to choose.
• External Starting Port – This is the first port in the range you want to open.
• External Ending Port – This is the last port in the range you want to open. If you're opening a single port, enter the same port number here.
• Check the box to use the same port list for the internal ports, or enter the same information in the Internal Port field.
• Internal IP address – This is the IP address for the computer you want to open the port for. To find the IP address of your device, follow the instructions in this guide for a PC or this guide for Mac OS X.

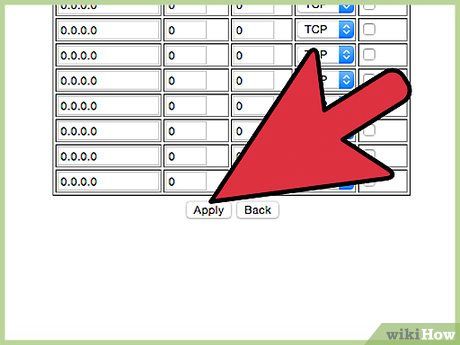

Save or apply the rule. The router will take a moment to process, after which the changes will be applied. Your system will now have access to the open port designated for the computer you specified.

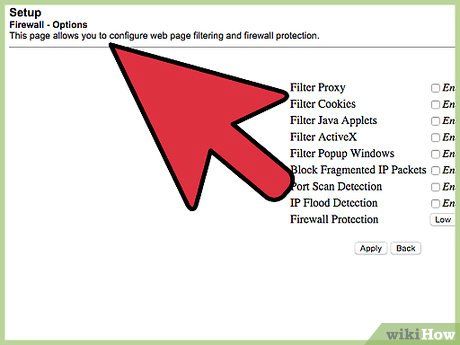

Open the Block Sites menu. This menu is typically found under the Security or Parental section of your configuration menu. You can block websites, preventing access from any device in your network, or allow only certain devices to access them. You can even schedule blocking, a particularly useful feature if you need to focus on homework or work tasks.

Add a website to the block list. The options may vary depending on the router you're using. Some routers allow you to block both keywords and specific websites. Add whatever you want to block to the list.

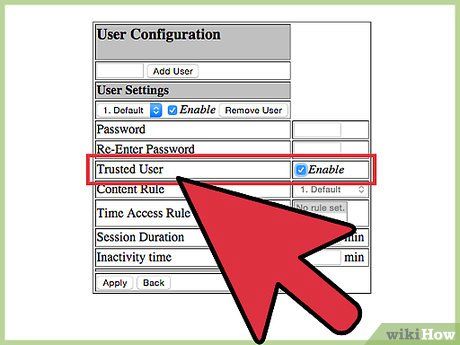

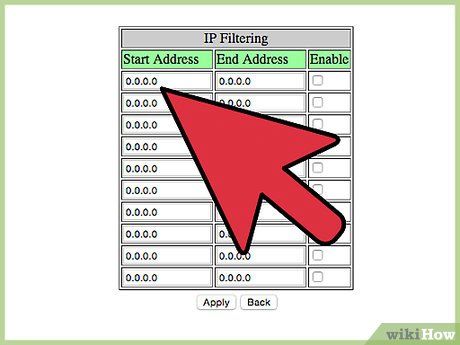

Allow trusted computers to view blocked websites. You can check the box to permit certain trusted IP addresses to access blocked sites. This feature may be helpful for parents who wish to visit a website they've blocked for their children.

• Once checked, add the desired IP address so it won't be blocked. This article will guide you in finding your IP address.

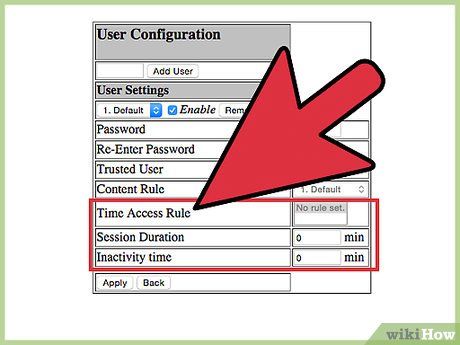

Schedule Blocking. This option may be found in a menu separate from the block list. You can select specific days of the week when you want the blocking to occur, as well as the time during the day that the blocking will take place. Once you've made your selections, click the Apply button.
