Most everyday users rarely need to edit DLL files. However, if you're a computer programmer, you might find yourself needing to modify DLL files for tasks like reverse engineering a program, extracting icons, software penetration, or simply understanding how a program operates internally. Microsoft Visual Studio allows users to open and edit specific parts of DLL files. If you want to alter the code within a DLL file, you'll need to use a decompiler to extract the code. Today, Mytour will guide you through the process of opening and editing DLL files using Visual Studio.
Steps
Can I edit DLL files in Visual Studio?
You can open and modify certain DLL resources in Visual Studio. With Visual Studio, we can add, extract, or remove specific text or graphic resources, but you cannot change the functionality of the DLL file.
Can I use Visual Studio to edit code?

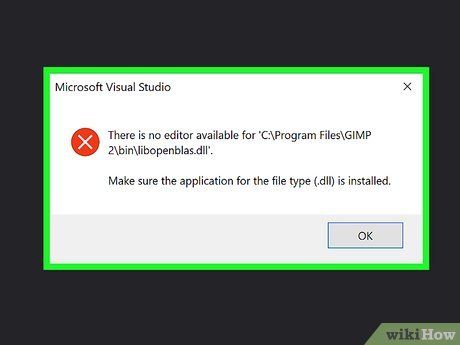

In most cases, no. The majority of DLL files do not contain editable source code. The code within most DLL files has already been compiled into binary or machine code.
- If the DLL file contains an intermediate language (IL), you can view the IL code using the IL Disassembler tool that comes with Visual Studio. Additionally, CIL Disassembler is another option for viewing common intermediate language in DLL files. While CIL Disassembler doesn't come with Visual Studio, it can be downloaded for free from the Microsoft Store.
- If a DLL file is not functioning correctly and needs modification, you can do so by editing the original source code used to create the DLL. This would be a separate file containing the code. You can use the original source code to generate a new DLL file to replace the non-functional one.
What if I don't have access to the original source code?
You can attempt to recreate the source code using a decompiler. This software can extract machine language from the DLL file and convert it into a higher-level language, such as C++ or C#.
- Important note: Any code you extract from a DLL file using a decompiler is only a reconstructed version. There is no guarantee that this data will match the original source code. If you replace the DLL file with code extracted from a decompiler, thoroughly test it to ensure all programs dependent on the DLL file continue to function correctly.
How do I open a DLL file in Visual Studio?

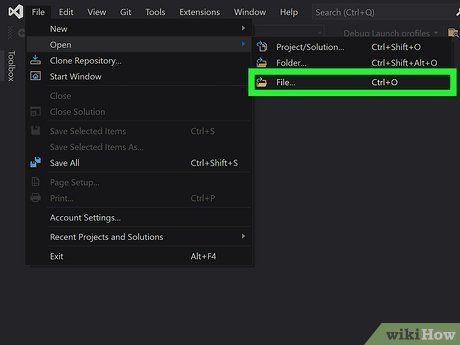

Opening a DLL file in Visual Studio is as straightforward as opening any other file. Begin by clicking on the 'File' option in the top menu bar, then select 'Open'. Next, click on 'File' again and choose the DLL file you wish to open by clicking 'Open'. The DLL file will then open in the Resource Editor window. Alternatively, you can follow these steps to open a DLL file: Ensure Visual Studio is installed, press 'Win + E' to open 'File Explorer', navigate to the folder containing the DLL file, right-click the folder and select 'Open with Visual Studio', expand the folder in the Solution Explorer window to the right, and double-click the DLL file you want to open.
How can new resources be added to a DLL file?

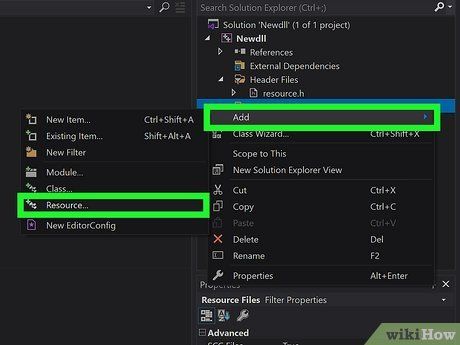

Adding new resources to a DLL file in Visual Studio is a simple process. These resources can include keyboard accelerators, bitmap images, cursors, dialog boxes, menus, HTML files, sound files (.wav), string tables, and version numbers. Here are the steps to add new resources to a DLL file: Open the DLL file in Visual Studio, right-click the folder where you want to add the resource in the Resource Editor window, click 'Add Resource', double-click the type of resource you want to add or click 'Import' to import an existing file, click 'File', and then click 'Save [filename].dll' to overwrite the file or 'Save [filename].dll as' to save a copy, where filename is the name of the file.
How to remove resources from a DLL file?
You can easily remove resources from a DLL file through Visual Studio. Important Note: Editing or deleting content in a DLL file may cause programs that depend on the file to malfunction. Always keep a backup copy of the DLL file before making edits. Here are the steps to remove resources from a DLL file: Open the DLL file in Visual Studio, expand the folder containing the resource you wish to delete in the Resource Editor window, right-click the resource you want to delete and select 'Delete', click 'File', and then click 'Save [filename].dll' to overwrite the file or 'Save [filename].dll as' to save a copy.
How can a new DLL file be created in Visual Studio?

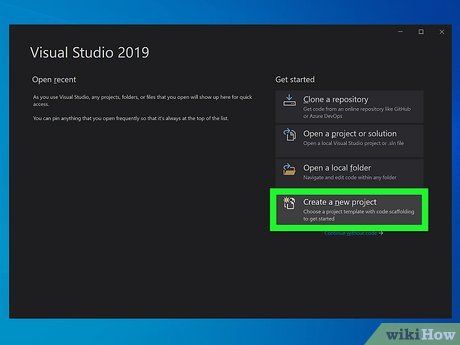

Creating a DLL file in Visual Studio is straightforward, whether using your own source code or code extracted from reverse engineering. Follow these steps to create a new DLL file: Launch Visual Studio, click on 'Create New Project', type 'class' into the search bar at the top, scroll down and select 'Class Library (.NET Framework)', then click 'Next'. Enter the project name and click 'Create'. Input the code for the DLL file, click 'Build' in the top menu bar, and select 'Build Solution' to generate the new DLL file. Check the Output window at the bottom to locate the newly created DLL file.
How to open a DLL file using the IL Disassembler tool?

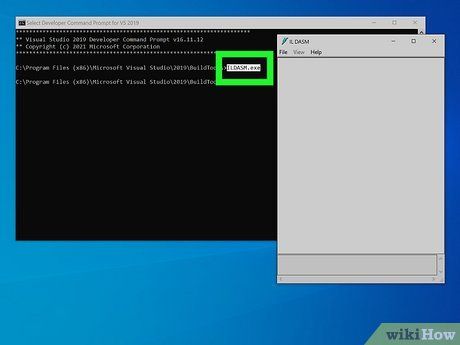

You can achieve this through the Developer Command Prompt. The IL Disassembler tool, installed with Visual Studio, allows you to view intermediate language (IL) and assembly code within a DLL file. Here’s how to open a DLL file in IL Disassembler: Click on the Windows Start menu, type 'Developer Command Prompt', and select the version corresponding to your Visual Studio installation. Enter 'ILDASM.EXE' and press Enter. Drag and drop the DLL file into the IL Disassembler window. Expand the file name under the 'MANIFEST' section, and click on the class or function name to view the assembly code.
How to reverse engineer a DLL file?

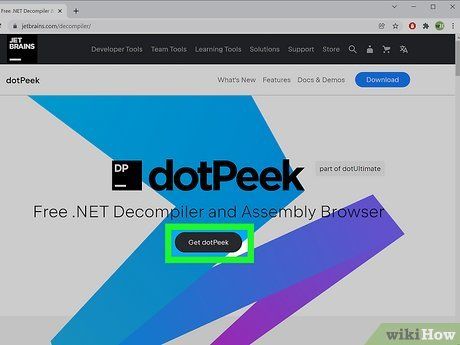

To reverse engineer a DLL file, you’ll need a specialized decompiler program, distinct from Visual Studio. These tools can convert the DLL into higher-level languages like C++ or C#. Important Note: The extracted code is a reconstructed version and may not match the original source code. Follow these steps to reverse engineer a DLL: Download and install a decompiler such as Reflector, dotPeek, or JustDecompile. Open the decompiler, drag and drop the DLL file into the program window, and expand the file or program name in the right pane. Click on the function or class name to view the code. the code into a Visual Studio file or select 'Export to Project' under the 'File' menu.
How to register a DLL file?
Certain DLL files require registration to function properly. You can register a DLL file using the Run program. Here’s how to register a DLL on Windows 10: Press 'Win + R' to open Run, type 'regsvr32' next to 'Open', drag and drop the DLL file into the 'Open' text box to add its path, enclose the path in quotation marks, and click 'Ok'.
