Where is the settings button located on the new Xfinity remote?

Feeling overwhelmed by all the buttons on your remote? You're not alone! Some Xfinity remotes are packed with features, resulting in a multitude of buttons on a compact surface, while others utilize voice control and lack a settings button altogether. This article will guide you on whether your remote has a settings button, its location, and how to configure it.

It's either at the bottom left or top right corner of the Xfinity remote. Silver remotes feature a grey oval-shaped settings button at the top right. For XR2, XR5, or XR11 models, look for a small grey round or square button at the bottom left. Note that some XR2 or XR5 remotes may not have a settings button. If you can't find it, don't worry! You can use the microphone feature for guided instructions or the Xfinity button to enter manufacturer codes. Refer to the user manual included with your remote for more details.

Voice-controlled Xfinity remotes do not include a settings button. The XR15 and XR16 models use voice commands to change channels or access desired content. To use the XR15 or XR16 with your TV or streaming box, you must pair the remote with the device. Refer to the manufacturer's manual for instructions on connecting the XR15 or XR16 to your TV or Xfinity Flex streaming box. In some cases, you can press the microphone button and follow on-screen instructions to pair the remote.

Check the device packaging or visit https://www.xfinity.com/support/remotes. Typically, Xfinity remotes are labeled with 'XR' followed by a number. If this information isn't on the packaging, visit Xfinity's remote support page, where you'll find images and names of each remote model. Currently, Xfinity offers the following remotes: Voice-controlled models: XR11, XR15, XR16; XR2, XR5; Silver remotes with a red or grey OK selection button.

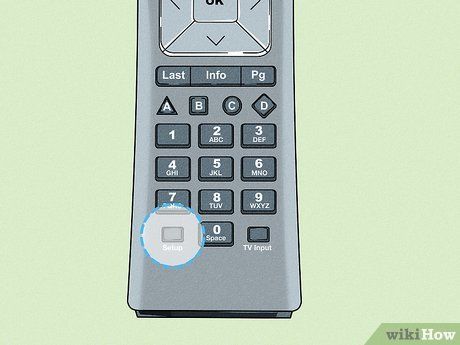

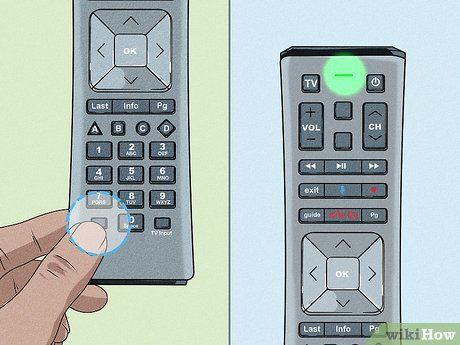

Press and hold the settings button. Continue holding until it blinks twice or the LED light on the remote changes from red to green. If you don't see the light, check the batteries before trying again.

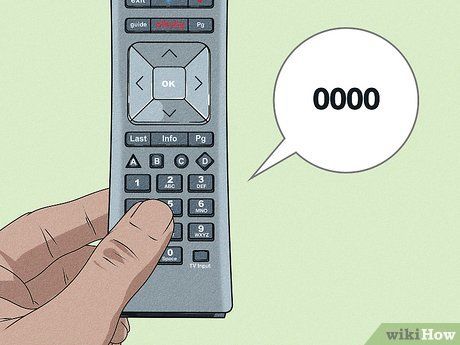

Enter a 4 or 5-digit setup code. Refer to the manual to find the setup code for your remote or TV. Typically, this code consists of 4 or 5 digits. Once entered, the remote will blink twice, indicating a successful connection. If the light flashes continuously or turns red, try using a different 4 or 5-digit code.

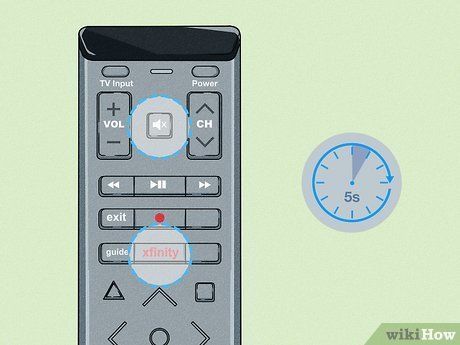

Enter a code to pair the XR15 remote with your TV. Press the 'Xfinity' and 'mute' buttons simultaneously for about 5 seconds. When the light turns green, enter the 5-digit code specific to your TV model. The green light will blink twice. Then, point the remote at the TV and press the power button. If the light turns red and then green, try entering the next TV code listed in the manual.

Use the microphone feature to connect the XR16 remote to your TV. Press the 'Xfinity' button to open the settings menu. Next, press the 'Voice' button to activate the microphone. Say 'Remote settings' and select 'voice remote pairing.' Follow the on-screen instructions to complete the setup. This method works specifically for the XR16 remote.

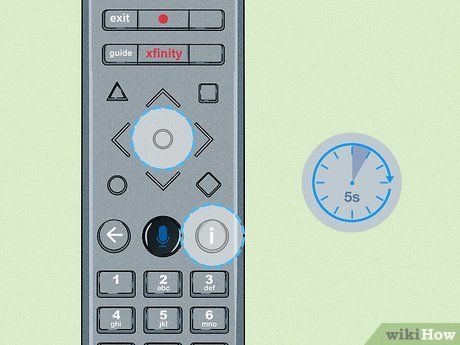

Press the 'info' and 'home' buttons simultaneously for about 5 seconds. Hold both buttons until the remote's light flashes. Then, press 'power,' 'last,' and 'volume down' to complete the reset. This method works for most Xfinity remotes, including the XR2, XR5, silver remotes, and XR15. Resetting is necessary if you want to connect the remote to a different TV.

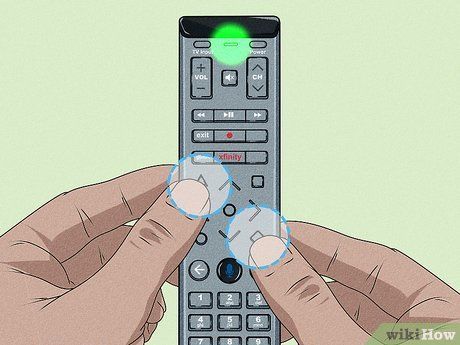

Press buttons A and D if you're using the XR15 remote. Button A is triangular, and button D is diamond-shaped. Hold both buttons until the light changes from red to green. Then, press the numbers 9, 8, and 1 to finish the reset. It takes about 5 seconds for the light to turn green. Buttons A and D are located near the center of the remote.

If you can't locate the settings button, don't hesitate to contact Xfinity customer service at 1-800-934-6489 or visit the nearest Xfinity store for assistance.
