Construction is already a challenging and intricate endeavor under normal circumstances. However, building military structures in preparation for conflict is one thing, while constructing them amidst a war is an entirely different challenge. In the midst of battle, with enemies lurking nearby, the risks become exponentially greater. Factors such as manpower allocation, material availability, and the terrain itself all present significant hurdles that truly test the ingenuity of combat engineers.
10. The Siege Ramp at Masada

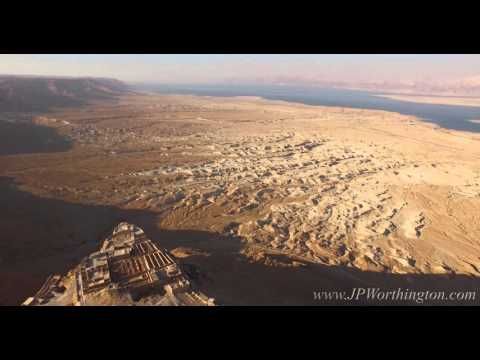

Perched high atop a rugged plateau in the Judean desert, 500 meters (1,500 ft) above the Dead Sea, the Masada fortress cast a menacing gaze over any potential invaders. After the fall of Jerusalem and the destruction of the Temple by the Romans in AD 70, a group of Zealots sought refuge here to continue their rebellion. For three years, they withstood the siege by the Romans. The 10th Legion under Flavius Silva attempted to starve them into submission, but it failed. So, the Romans resorted to every siege tactic they had in their arsenal to capture the stronghold. Silva realized that he needed to think outside the box.
Silva exploited a key geographical feature of Masada—a natural spur on the western side of the mountain. On this spur, the Romans began to accumulate earth and rubble, slowly constructing a massive ramp. Eventually, the defenders of Masada saw this enormous structure rising toward their walls. It is believed that the Romans forced thousands of Jews to work on the ramp, as the defenders refused to attack their fellow countrymen.
The Zealots could only watch in despair as the ramp grew taller and taller. Near its peak, the Romans built a stone platform and positioned a battering ram on it. The ram smashed through the wall, and the Roman infantry that followed it up the ramp surged into Masada, only to be met by . . . complete silence.
Out of the 967 men, women, and children inside the fortress, only seven chose to survive. The rest had opted for mass suicide, choosing to die free rather than fall into Roman captivity.
9. Kosciuszko’s Defense of West Point
During the Revolutionary War, the Polish engineer Tadeusz Kosciuszko built a series of fortifications that thwarted the British and denied them control of the Hudson Valley, an area that, if captured, would have divided the colonial forces. This strategic location was West Point, which now houses the United States Military Academy.
Kosciuszko arrived in America to offer his expertise to the Continental Army and was appointed as colonel of engineers in 1776 under General Horatio Gates. His defensive works at Bemis Heights were instrumental in the decisive American victory at Saratoga in 1777. Six months later, General George Washington entrusted Kosciuszko with fortifying the heights at a critical bend in the Hudson River. West Point, the gateway to the Hudson Valley, had to remain in American hands to prevent British control.
West Point was a marvel of military engineering at the time, using the advanced concept of interlinked strongpoints, a departure from the single positions commonly seen in the 18th century. The main citadel was a polygonal structure set atop a rock face 60 meters (200 ft) above the river, offering a commanding view. It was surrounded by four additional forts, with seven redoubts positioned between them. The complex also featured bombproof shelters and magazine storage. A 60-ton chain, with 0.6-meter (2 ft) links, was stretched across the Hudson River as a blockade against British ships.
The construction process was a logistical nightmare. Kosciuszko expressed frustration with the insufficient manpower, prompting Washington to send over 2,500 men. Issues arose with clothing, provisions, and wages for the laborers, leading to disputes. The harsh winter of 1779–80 made things even more difficult, causing a decrease in labor and deep snow that slowed progress to a crawl. A fire lasting three days destroyed part of the work, forcing the rebuilding of the north redoubt. As spring arrived, Kosciuszko created a small garden for quiet reflection and solitude.
Upon completion, the entire fortification complex, manned by 2,500 soldiers, was considered impenetrable. Without detailed knowledge of its layout, no one could breach it. One general remarked, “Kosciuszko’s achievement lies in this, that he designed the fortifications with such strength that they scared the enemy into abandoning all thoughts of attempting to take the Highlands.” This very fact led Benedict Arnold to betray his country. Appointed to command West Point, Arnold schemed to hand over its secrets to the British. However, his messenger, Major John Andre, was captured and executed, leaving Arnold forever disgraced. West Point remained unconquered and set the standard for military fortifications.
8. Defenses of Washington
At the start of the Civil War, Washington, DC, was highly vulnerable to any determined Confederate attempt to seize the capital. Only a single fort 19 kilometers (12 mi) to the south stood between the White House lawn and a potential Confederate camp. This fort, however, was poorly armed and commanded by a drunken ordnance sergeant. With enemy forces just across the Potomac River, the Union was forced to allocate an army, which could have been used elsewhere, to defend the city. The Union government urgently needed to act to address the situation.
General John Gross Barnard, the chief engineer, was tasked with the immense responsibility of safeguarding Washington through a system of fortifications. Starting in May 1861, a basic network of forts began to take shape, though they lacked coordination and structure. This effort somewhat eased President Abraham Lincoln’s anxiety, but he had to contend with his generals, who were reluctant to dedicate scarce resources to static defenses and instead favored offensive tactics. Within weeks of hurried construction, the defenses were already facing a Confederate force that had previously triumphed over the Army of the Potomac at Manassas Junction. Fortunately, the Confederates mistakenly believed the defenses to be unassailable and held back.
The fortifications were continuously enhanced and fortified throughout the war. At any given time, 15 engineering officers supervised a diverse workforce, including whites, blacks, soldiers, and civilians. By 1862, the system had grown to 37 forts; by 1865, it had expanded to 68, all within a 59-kilometer (37 mi) perimeter. These were armed with 807 mounted cannons, 93 mortars, and 401 field gun positions. Additionally, 30 kilometers (20 mi) of rifle trenches and blockhouses connected the forts. A network of roads and telegraph lines ensured communication with the central command. By the end of the war, Washington had become the most heavily fortified city in North America, if not the world.
The true test of the fortifications came in 1864 when 20,000 Confederate soldiers, led by Lieutenant General Jubal Early, advanced toward the capital. The defenders were able to mobilize quickly thanks to the well-designed access roads. This battle, the only one fought inside Washington, DC, saw President Lincoln observing the action from the parapets of Fort Stevens. This fort had been constructed on the site of a free black landowner's home, a woman who had been promised compensation by Lincoln for the sacrifice, though she never received any. Lincoln was exposed to enemy sharpshooters during the battle, and a nearby man was struck. It marked the only time in U.S. history that a sitting president came under enemy fire.
Ultimately, Early's assault only succeeded in terrifying the residents of Washington, DC. The fortifications held strong. However, as new technologies emerged, the government lost interest in maintaining the forts, deeming them obsolete by the war's end.
7. Fan Bay Deep Shelter
In 1940, after France had fallen to Nazi Germany, Britain braced for an imminent invasion across the English Channel. During a visit to the area around the White Cliffs of Dover, with the coast of occupied France clearly visible, Winston Churchill grew furious upon seeing German ships moving freely through the Channel. Dover, located on Britain’s front line in case of attack, was particularly vulnerable, as artillery shells from France could reach it in just 70 seconds. Churchill immediately ordered his chief of staff to ensure “superior artillery positions on the Dover promontory, no matter the form of attack. We must secure control of the Straits with artillery, destroy enemy batteries, and fortify our own.”

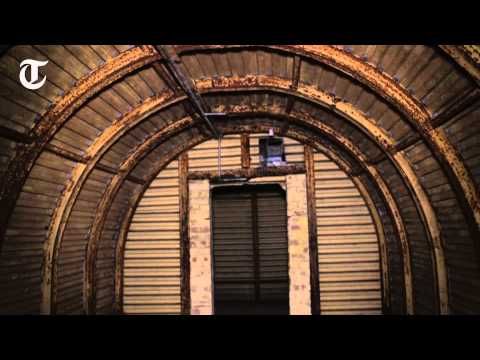

For 100 days, the 172nd Tunneling Company dug through the chalk cliffs to construct the Fan Bay Gun Battery and the Fan Bay Deep Shelter, an extensive network of tunnels located 23 meters (75 ft) below the surface. The completed battery featured cutting-edge technology, including three 15-centimeter (6 in) guns with a range of 23 kilometers (14 mi), radar, plotting rooms, five large bombproof shelters, medical facilities, and storage. A generator room provided power. By February 1941, it was fully operational, staffed by 185 men and four officers.
The battery was left abandoned in the 1950s and subsequently filled with debris in the 1970s. It remained largely forgotten until 2012, when the National Trust, which had acquired the site, rediscovered it.
6. The Amazing Bailey Bridge

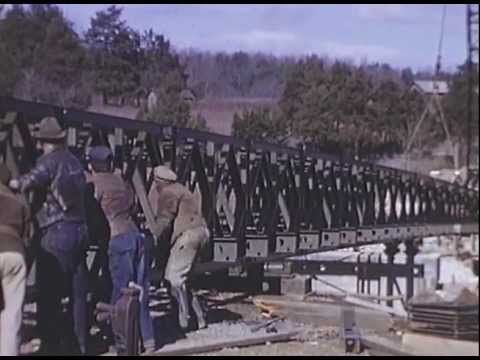

Crossing river obstacles has always posed a significant challenge in warfare. During World War II, this challenge grew even more pressing as the need to transport not just troops but also heavy vehicles and equipment added to the complexity. British civil engineer Donald C. Bailey, working for the Ministry of Supply, devised a brilliant solution: a bridge made up of 3-meter (10 ft) sections using only 28 standardized parts, which could be assembled by just 40 men. A short bridge could be erected in as little as four hours. The Bailey bridge’s speed and ease of construction left Field Marshal Bernard Montgomery in awe, declaring, “This bridge is quite the best thing in that line we have ever had; it does everything we want!” General Dwight Eisenhower also praised this engineering feat, calling it “one of the three pieces of equipment that most contributed to our victory in Festung Europa.”
The Bailey bridge was incredibly versatile, able to be adjusted during use to accommodate heavier traffic simply by adding additional panels and tiers. If bombed or shelled, damaged sections could be swiftly replaced by inserting new ones, without needing to dismantle the entire structure. This quick repair process saved valuable time. The bridge could be configured in numerous ways, including single-span, multi-span, dual carriageway, pontoon, and suspension designs, depending on the situation.
During the war, thousands of Bailey bridges were built across Europe, playing a crucial role in the Allied forces’ rapid advance toward retreating German troops. One of the longest of these bridges was a 400-meter (1,200 ft) span across the Sangro River in Italy, surpassed only by the 549-meter (1,803 ft) Blackfriars Bridge built over the Rhine in March 1945. Bailey bridges were also used in the Pacific Theater, such as the 334-meter (1,096 ft) floating Bailey bridge constructed over the Chindwin River in Burma in December 1944.
5. The Burma Oil Pipeline
In early 1943, Allied planners recognized the critical need to ensure fuel supplies for transports aiding the Chinese in their fight against the Japanese. C-47 aircraft operating from Assam in India could deliver an average of 17 barrels of fuel per trip, or 4,640 liters (1,225 gallons) a day. However, each ton of fuel delivered to China required an equivalent amount of supplies, which hindered the efficiency of Allied operations. Adding to the difficulty, the Japanese had cut off land access to China with their occupation of Burma. It was only through Lieutenant General Joseph Stillwell's campaign that the Burma Road, a fragile link to China, was reopened.
A decision was made to complement the Burma Road with a pipeline that would address the fuel issue. This meant constructing a pipeline stretching from Assam through northern Burma to Kunming in China, covering 4,200 kilometers (2,600 miles) of challenging terrain. Workers faced mountains as high as 3,000 meters (10,000 feet) and harsh monsoon winds. They had to navigate torrential rivers and dense jungles teeming with dangerous wildlife, including tigers, elephants, leeches, and insects. On some days, workers had to clear snakes that had made their way into the trenches overnight, including one 6-meter (20 ft) python that was killed on-site. Malaria, dysentery, and typhus were constant threats to the 5,000 workers. There was also the danger posed by the Japanese, with enemy snipers occasionally taking shots at the workers. The snipers succeeded in bombing a section of the pipeline at Warazup, Burma, but landslides were the more frequent disruptor, requiring the workers to rebuild sections of the pipeline.
The pipes were typically flown in by planes, but when aircraft weren't available, they were transported by boats, elephants, or even carried on the backs of soldiers navigating flooded roads. In these rugged conditions, army boots would typically last only five days, and shoes barely ten. In Assam, Indian women worked to tighten bolts, often balancing on bamboo scaffolds. Electric welders were forced to work in the monsoon rains, a perilous task under normal circumstances, sometimes standing knee-deep in gasoline, a dangerous situation. Tragically, the worst incident occurred when a section of the pipeline exploded, claiming the lives of 98 people.
When engineers reached the Salween River Gorge, they improvised a suspension bridge using salvaged materials to carry the pipeline across. The makeshift structure was crafted from armored plates of burned-out Japanese tanks, metal parts from trucks, and cables from destroyed bridges—American soldiers used anything available to construct the more-than-200-meter (600 ft) span.
In April 1945, the first shipment of gasoline finally made its way to Kunming. Over the course of the operation, the Allies delivered more than 150 million gallons of fuel through the pipeline, which held the title of the longest pipeline in the world at the time. After the war, the US sold the pipeline for scrap.
4. Liberty Ships
During 1941 and 1942, the Allies seemed to be on the losing side of the Battle of the Atlantic. German U-boats were sinking an alarming number of Allied ships—2,963 in that period alone. American shipyards were struggling to replace these devastating losses. The shipbuilding process had to be streamlined, making production faster and more cost-effective. The answer came in the form of a British design, which would later become known as the ‘Liberty Ships.’
A Liberty Ship measured 134 meters (441 feet) long and 17 meters (56 feet) wide, powered by a three-cylinder reciprocating steam engine with two oil-burning 2,500-horsepower boilers, giving it a speed of 11 knots. With five cargo holds, it could carry over 9,000 tons of goods, including airplanes, tanks, and locomotives secured to its deck. A Liberty Ship had the capacity to transport 2,840 jeeps, 440 tanks, or 230 million rounds of rifle ammunition. Its standardized design made mass production possible, using 250,000 prefabricated parts. Liberty Ships were built across the US in 250-ton sections, which were then transported by train to various shipyards. With a cost of around $2 million each, the Liberty Ships were designed as a temporary and expendable emergency solution. President Franklin Roosevelt referred to them as “ugly ducklings.”
The first of the 2,710 Liberty Ships, the SS Patrick Henry, was launched in September 1941, after just 150 days of construction. As engineers gained valuable experience, they refined the assembly-line process to speed up production. Eighteen shipyards competed to see who could build ships the fastest. In November 1942, the SS Robert E. Peary set a new record, completing its construction in just 4 days, 15 hours, and 29 minutes.
Approximately 200 Liberty Ships were lost while ferrying troops and supplies across both the Atlantic and Pacific theaters. Though small and slow, these ships proved reliable as the unsung workhorses of the sea, until they were replaced by the larger, faster Victory Ships in 1943. Only a few of these vessels remain today, with two serving as museums.
3. Cu Chi Tunnels
During the Vietnam War, the Viet Cong demonstrated remarkable resourcefulness, managing to fight and survive against the technologically superior American forces. One testament to the VC’s ingenuity is the network of tunnels at Ben Duoc in the Cu Chi district, 60 kilometers (40 miles) northwest of Ho Chi Minh City, formerly Saigon. This area held strategic importance due to its land and river routes, which the VC used to infiltrate South Vietnam. As a result, Cu Chi became one of the most heavily bombed, shelled, gassed, and defoliated regions in the history of warfare.

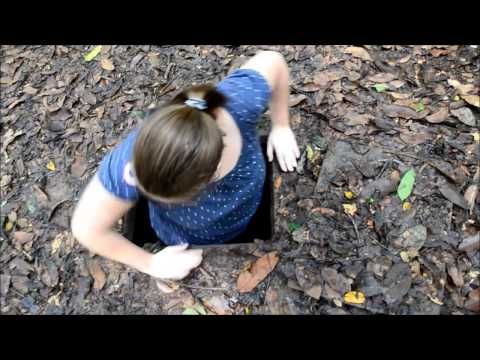

To endure this relentless barrage of ordinance, the VC dug an extensive network of interconnected tunnels and bunkers that stretched over 200 kilometers (120 miles), concentrated in a 40-square-kilometer (430-acre) jungle stronghold known as the Iron Triangle. These tunnels linked villages, hamlets, and support bases, enabling the guerrillas to move unseen. There was no set design for the tunnels; they grew and adapted as needs arose. Locals dug the red clay with hoes and their bare hands, creating an underground city complete with living quarters, munitions factories, kitchens, hospitals, storage rooms, and even a theater and movie halls. Some complexes had as many as four levels. Ingeniously concealed ventilation holes ensured air flow and some light.
The entire tunnel system was protected by hidden trapdoors. Many GIs were blown apart by booby traps made from salvaged unexploded ordnance, or impaled by sharpened bamboo punji stakes. Sharpshooters were concealed in spider holes, and trip wires triggered grenades or caused boxes of scorpions and snakes to fall onto the heads of unsuspecting Americans. The tunnels were designed in a zigzag pattern to thwart direct lines of fire and to deflect the force of explosions. The red clay, soft in the wet season but as solid as concrete during dry periods, was resilient enough to withstand 40-pound cratering charges and hand grenades. To counter US carpet bombing, the VC dug new cone-shaped shelters capable of withstanding deep-penetration artillery and bombs. This unique design also helped amplify the sound of incoming B-52 bombers, providing an early warning system.
Small-sized GIs, nicknamed “tunnel rats,” were tasked with infiltrating the claustrophobic tunnels, many of whom perished in close combat with the VC. A search-and-destroy operation in January 1967, named Operation Cedar Falls, failed to completely eradicate the tunnels and the VC Military Region IV Headquarters. In 1969, the US finally managed to destroy the majority of the tunnels through relentless carpet bombing, but by then, it was too late. The tunnels had already facilitated the massive infiltration of troops and supplies into South Vietnam. The Communists ultimately declared victory in 1975.
General William Westmoreland was so impressed by the ingenuity of the Viet Cong’s underground network that he took off his hat and remarked, “No one has demonstrated more ability to hide his installations than the Viet Cong; they were human moles.”
2. The Mulberry Harbors
One major challenge for the D-Day planners was how to offload supplies and equipment from ships onto land. With the Germans controlling the nearby French ports, using them was impossible. The British came up with a groundbreaking solution—bring their own portable ports along with them during the invasion.
Winston Churchill recognized the challenges involved in the proposal. In May 1943, he wrote:
Piers for use on beaches: They must rise and fall with the tides. The anchoring issue must be addressed. [ . . ] Let me have the best solution devised. Don’t argue the point. The difficulties will present themselves.

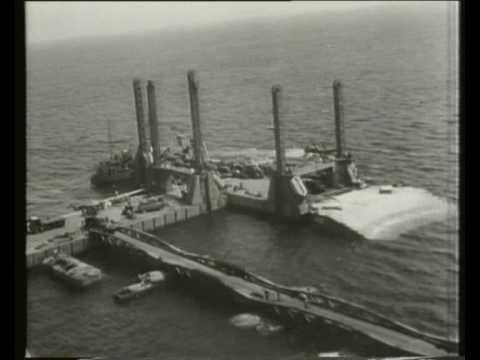

The floating harbors, code-named “Mulberry,” were finally designed to include 10 kilometers (6 mi) of flexible steel roadways mounted on steel or concrete pontoons. These roads would lead to massive piers that could be raised or lowered on legs fixed to the sea floor. To protect the harbors from rough waves, submerged caissons, sunken ships, and floating breakwaters would be used. The caissons alone were expected to consume 252,000 cubic meters of concrete and 31,000 tons of steel.
All components of the Mulberry harbors were manufactured in Britain under extreme secrecy and urgency. Two portable harbors, each the size of the Port of Dover, were planned. One, Mulberry A, would be used by the US forces at Omaha Beach. The other, Mulberry B, would serve the British and Canadians at Gold Beach.
After D-Day, the harbor parts were transported to Normandy and assembled. The harbors were operational by June 18. They were meant to support the invasion until Cherbourg, on the Cotentin Peninsula, could be taken. However, a storm destroyed Mulberry A and damaged Mulberry B. The wreckage of A was used to repair B, which then had to function at full capacity. Over the course of 10 months, far beyond its intended 90-day lifespan, Mulberry B unloaded 2.5 million men, 500,000 vehicles, and 4 million tons of supplies.
1. Operation PLUTO
As the Allies readied themselves for the invasion of Hitler’s Europe, one major issue they faced was how to ensure a constant fuel supply for their motorized units once the fighting began in France and Belgium. The traditional ship-to-shore pipeline method was considered impractical, as it would obstruct troops and equipment landing on the beaches. Tankers were also susceptible to bad weather and Luftwaffe attacks. A dependable fuel supply for the invaders was critical, or their offensive could be halted, giving the Germans a chance to launch a counteroffensive.
The breakthrough solution was to lay oil pipelines beneath the English Channel, directly pumping fuel from England to the invading forces in France. This operation, known as “Pipe Lines Under The Ocean,” or “PLUTO,” was conceived as a way to adapt the techniques used for laying submarine cables to pipeline installation. Although the concept had been under development since 1942, the urgency of D-Day pushed its swift implementation.
Two types of pipes were utilized: the 8-centimeter (3-inch) lead-based HAIS and, due to a shortage of lead, the alternative 8-centimeter steel HAMEL. The HAIS pipes were flexible enough to be coiled aboard a cable-laying ship and laid continuously without the need for pauses, making it harder for the ship to be targeted by air attacks. The HAMEL pipes, also flexible in long stretches, were wound onto large drums (nicknamed “Conundrums”), each 15 meters (50 feet) in diameter, and pulled out like cotton from a spool.

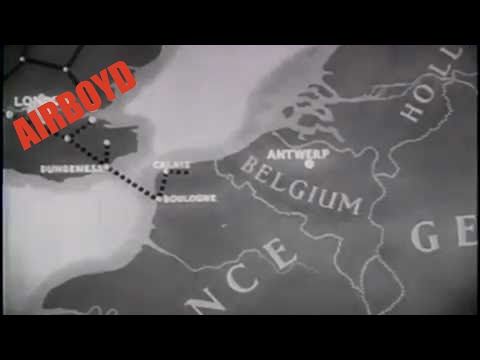

Beginning in August 1944, 20 pipelines were laid under the Channel, leading to Cherbourg and Boulogne. To avoid enemy detection, the pumping stations in England were camouflaged as bungalows, gravel pits, garages, and even an ice cream parlor. When the engineers at Cherbourg struggled with winches that lacked the strength to pull the pipes ashore, a naval officer suggested using steam-powered plowing engines. A quick call to the Ministry of Agriculture and Fisheries brought six engines to the site, and after minor modifications to the hauling drums, the pipes were successfully pulled onto the beach with a 14-ton pull.
In total, 800 kilometers (500 miles) of pipeline were laid, with each 50-kilometer (30-mile) stretch taking an average of five hours to complete. As the Allies advanced further into enemy territory, the pipelines followed—stretching to Antwerp, Eindhoven, and even the Rhine. A million gallons of fuel were pumped every day, ensuring that the Allies could sustain their momentum for the final push into Germany and eventual victory.
