War triggers an urgency that is unparalleled in times of peace. As nations race to develop the next revolutionary weapon, engineers often turn to unorthodox methods to craft their machines of war. This was especially true in the skies of World War II, where daring aerospace designers conceptualized some of the most peculiar aircraft ever made.
10. Blohm & Voss BV 141
At the outset of World War II, the German Air Ministry sought proposals for a tactical reconnaissance aircraft to support army operations with intelligence. Two companies responded: Focke-Wulf developed a fairly traditional twin-engine model, while Blohm & Voss came up with one of the most unique aircraft ever conceived—the asymmetric Bv 141.
Although the plane’s asymmetric design may appear to be the product of an engineer’s wild imagination, it was actually highly functional. By clearing the right side of the aircraft, the Bv 141 offered a remarkable field of vision for the pilot and crew, especially to the right and front, where the pilot was not obstructed by the large engine and spinning propellers found in conventional single-engine aircraft.
The design was inspired by Richard Vogt's realization that aircraft of the era inherently had asymmetric handling qualities. Single-engine planes with large nose-mounted engines generated significant torque, requiring constant adjustments to maintain control. By adopting the asymmetric layout, Vogt aimed to counterbalance that torque, ultimately creating a more stable reconnaissance platform that outperformed many of its contemporaries.
Luftwaffe official Ernst Udet was impressed by the plane after test-flying it, ordering 500 units. Unfortunately for Blohm & Voss, an Allied bombing raid severely damaged one of Focke-Wulf’s key factories, leading the government to repurpose 80 percent of Blohm & Voss' factory space for Focke-Wulf aircraft production. With a dwindling workforce shifted to Focke-Wulf, production of the Bv 141 halted after just 38 units were built. All were destroyed during the war.

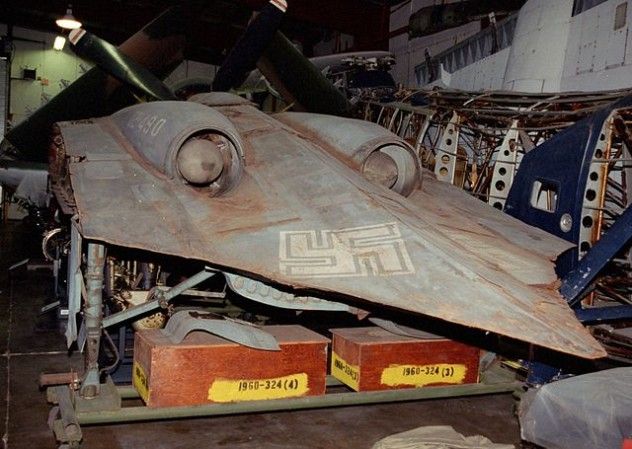

9. Horten Ho 229
Another remarkable Nazi project, the Horten Ho 229 was developed towards the end of World War II, after the Germans had advanced their jet technology. By 1943, Luftwaffe commanders realized they had made a critical error in not developing a long-range heavy bomber like the American B-17 or the British Lancaster. In response, Luftwaffe chief Hermann Goering issued the “3×1000” requirement, calling for a bomber capable of carrying 1,000 kilograms (2,200 lb) of bombs over 1,000 kilometers (620 miles) at a speed of at least 1,000 kilometers per hour (620 mph).
To meet the demand, the Horten Brothers began designing a flying wing aircraft—an aircraft without a tail or separate fuselage, similar to the later stealth bombers. In the 1930s, the brothers had experimented with flying wing gliders, which demonstrated exceptional handling qualities. Drawing on this experience, they built an unpowered glider prototype as a proof of concept for their bomber design. The concept impressed Goering, who shifted the project to the Gothaer Waggonfaebrik company for mass production. With some modifications, the brothers’ glider was given jet propulsion and reworked into a fighter to meet the Luftwaffe's urgent need for emergency fighter aircraft in 1945. Only one prototype was produced, which was captured by Allied forces as the war came to an end.
Initially, the Ho 229 was regarded as little more than a curiosity. However, when the B-2 stealth bomber entered service with a similar flying wing design, aerospace experts began to examine the Ho 229’s potential stealth features. In 2008, engineers at Northrop Grumman built a replica Ho 229 based on the surviving prototype, which is now housed at the Smithsonian Institute. Using radar frequencies from the World War II era, it was revealed that the Ho 229 indeed exhibited stealth characteristics, with a radar signature much smaller than that of contemporary fighters. By pure coincidence, the Horten brothers had created the first stealth fighter.
8. Vought V-173/XF5U-1

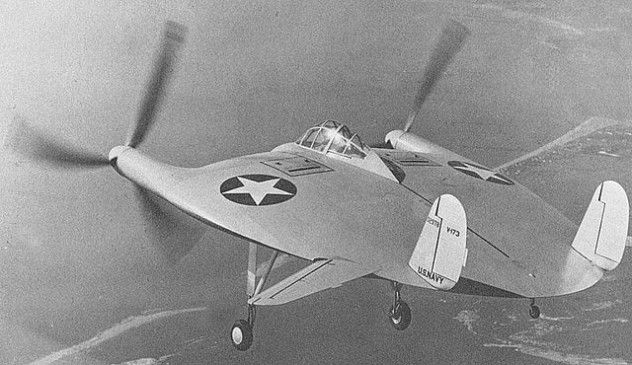

Beginning in the 1930s, Vought engineer Charles H. Zimmerman started experimenting with disk-shaped aircraft. The first flying model was the V-173 (shown above), which took flight in 1942. Although it faced issues with the engine gearbox, it proved to be a resilient, highly maneuverable airframe that was virtually immune to stalling. While his company was mass-producing the renowned F4U Corsair, Zimmerman continued to refine his disk-shaped fighter design, which would later become the XF5U.
Navy specifications for the new fighter suggested it was designed to vastly outperform any aircraft of its time. Powered by two massive Pratt & Whitney engines, the fighter was expected to reach a top speed of approximately 885 kilometers per hour (550 mph), with a low landing speed of just 32 kilometers per hour (20 mph). To enhance the airframe's strength while minimizing weight, the prototype was constructed using Metalite, a material made from a thin sheet of balsa wood laminated with aluminum. However, the engines encountered numerous issues, and World War II ended before the aircraft could undergo full testing.
Vought continued the project, but by the time it was ready for testing, the Navy had shifted its focus to jet aircraft. With the Navy contract lost, Vought attempted to destroy the XF5U, only to find that the Metalite construction refused to break apart—the wrecking ball bounced off without leaving a mark. After several more failed attempts, the airframe finally gave in, and blowtorches were used to burn the remains of it.

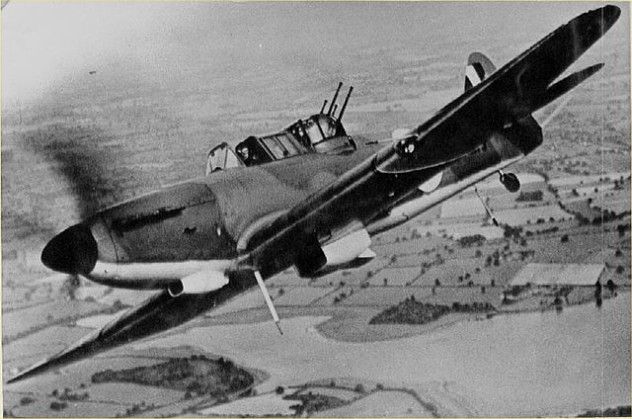

7. Boulton Paul Defiant
Among all the aircraft on this list, the Boulton Paul Defiant saw the most combat. Sadly, this also led to the loss of many young airmen. The plane was conceived during a 1930s misjudgment about the future of air combat. British commanders believed that bombers attacking Britain would mostly be unescorted and vulnerable. The theory was that a fighter equipped with all its weapons in a powered turret could infiltrate bomber formations and cause destruction from within. The turret allowed for a wide range of fire while freeing the pilot from the gunnery task, enabling them to focus on positioning the aircraft for the perfect shot.
The Defiant performed well during its initial sorties, as many German fighter pilots mistakenly identified it as the similar Hawker Hurricane, attacking from above or behind—perfect positions for the Defiant's gunner. However, Luftwaffe pilots quickly adapted, learning to avoid attacks from the rear and instead target from below or the front. With no forward-facing weaponry and limited maneuverability due to the heavy turret, Defiant pilots suffered heavy casualties during the Battle of Britain. Entire squadrons were nearly wiped out, and Defiant gunners found it impossible to escape the turret in emergencies.
While pilots developed a few makeshift tactics, the RAF soon recognized that the turret fighter was unsuitable for modern aerial combat. The Defiant was reassigned to night-fighter squadrons, where it had some success ambushing bombers on nighttime missions. Its stable airframe was also used for target practice and as a platform to test the first Martin Baker ejection seats.

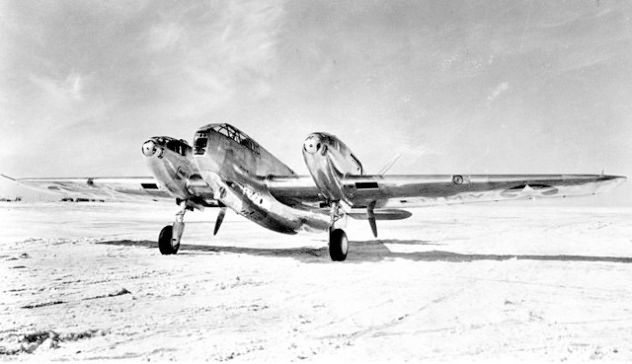

6. Bell YFM-1 Airacuda
In the time between the two World Wars, military leaders began to seriously consider the threat of strategic bombing in future conflicts. Italian General Giulio Douhet argued that mass bombing would be impossible to defend against, and British politician Stanley Baldwin famously declared, “the bomber will always get through.” In response, several major powers focused on creating a ‘bomber destroyer,’ or heavy fighters specifically designed to intercept bomber formations. While the British Defiant failed in this role and the German Bf-110 had some success in various capacities, the American YFM-1 Airacuda entered the picture.
The Airacuda marked Bell’s initial venture into military aircraft design, and it came with a number of unique features. To give the aircraft the best chance at destroying enemy bombers, Bell equipped it with two forward-facing 37-mm M-4 cannons, placed in front of its unconventional pusher engines and rear-mounted propellers. Each cannon was assigned a dedicated gunner responsible for manually reloading its five-round clips. The initial plan called for the gunners to fire the cannons using tracer machine guns to help with aiming, but this proved disastrous. The design was eventually altered to allow the pilot to fire the cannons, though the gunners remained to reload them.
The Airacuda also featured defensive machine gun positions on the fuselage, intended to prevent side attacks. Military strategists at the time believed the aircraft would be unbeatable both as an interceptor of enemy bombers and as an escort for B-17s on bombing runs. These features contributed to the aircraft's strange, bulbous appearance, which resembled a cute cartoon plane. The Airacuda was a lethal machine that looked almost cuddly.
Despite the high hopes for the Airacuda, testing quickly revealed serious issues. The engines overheated and lacked sufficient thrust, meaning the Airacuda had a slower top speed than the bombers it was supposed to intercept or protect. The unconventional gun placements caused even more trouble, as they quickly filled with smoke during firing, making it impossible for the gunners to do their job. To make matters worse, the propellers positioned directly behind the gunners made it nearly impossible to escape in an emergency, essentially condemning anyone trapped in the rear. Due to these flaws, the USAAF only ordered 13 Airacudas, none of which ever saw combat. The remaining aircraft were distributed across the country, allowing pilots to add the unusual plane to their logbooks, while Bell moved on to more successful combat aircraft designs.

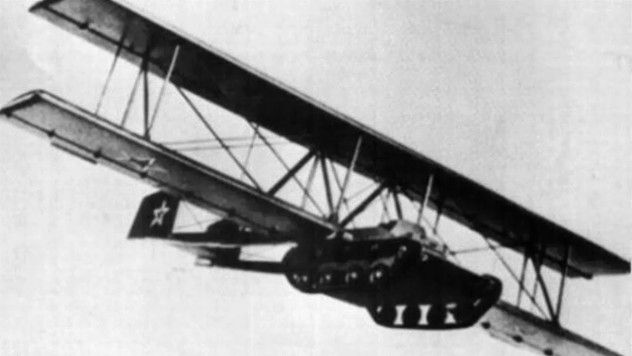

5. Antonov A-40
While military gliders may seem like an outdated concept in modern warfare, they played a significant role during World War II. These gliders were designed to be towed by aircraft and then released near enemy lines, allowing troops and supplies to be rapidly deployed during airborne operations. Among the various gliders developed for the war, the Soviet Union’s A-40 flying tank stands out as one of the most unconventional designs.
Many countries sought efficient ways to quickly move tanks to the frontlines. The idea of using gliders to airlift tanks seemed promising, but engineers quickly realized that tanks are some of the least aerodynamic vehicles, making them difficult to transport by air. After numerous failed attempts to create a successful system for delivering tanks, most nations abandoned the idea—but the Soviet Union pressed on.
Before developing the A-40, the Soviet Air Force had seen some success with airdropping small tanks like the T-27. These tanks were loaded onto large transport planes and dropped just above the ground. If the tank’s gearbox was set to neutral, it would land and roll to a stop. However, the tank crew had to be dropped separately, severely limiting the effectiveness of this method.
The ultimate goal was to have the tank crew fly the tank to the ground and be ready for combat within minutes. To achieve this, Soviet planners drew inspiration from American engineer John Walter Christie, who had first proposed the flying tank concept in the 1930s. Christie envisioned a tank equipped with biplane wings, believing that any war would be swiftly won, as no enemy would be able to defend against such a formidable flying machine.
Building on Christie’s ideas, the Soviets attached massive biplane wings to a T-60 tank and conducted the first flight test in 1942, with the daring (or perhaps reckless) pilot Sergei Anokhin at the helm. Despite the tank’s drag causing the tow plane to release the glider before it reached the desired altitude, Anokhin managed to land safely and even drove the tank back to the base. While Anokhin’s report was full of enthusiasm, the project was abandoned once the Soviets realized they didn’t have aircraft powerful enough to tow a fully operational tank (Anokhin had flown with most of the tank’s weaponry and fuel removed). Unfortunately, the concept of a flying tank never took off again.

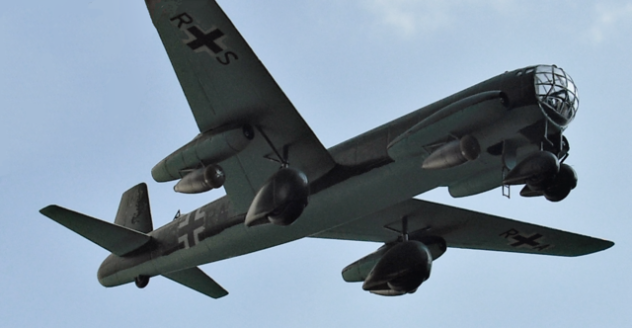

4. Junkers Ju-287
As Allied bombing raids took a toll on the German war effort, Luftwaffe commanders recognized that their decision not to develop multi-engine heavy bombers had been a major oversight. With a growing demand for heavy bombers, German aircraft manufacturers eagerly seized the opportunity. Among them were the Horten Brothers (mentioned earlier) and Junkers, both of whom had significant experience in bomber design. Junkers engineer Hans Wocke led the development of what would become one of the most innovative German aircraft of World War II: the Ju-287.
In the 1930s, engineers understood that an aircraft with straight wings would face an inherent upper speed limit, but at that time it wasn’t a significant concern since propeller engines couldn’t reach such speeds. However, with the introduction of jet technology, everything changed. German designers employed swept wings on early jet aircraft like the Me-262 to mitigate the air compression issues found in straight-wing designs. Wocke took this a step further by suggesting a forward-swept wing for his new bomber, which he believed would be fast enough to evade enemy air defenses. This new wing type offered several benefits: better maneuverability at high speeds and steep angles, improved stall performance, and more space for weapons and engines.
Wocke’s design was initially meant to serve as an aerodynamic test bed, with many parts sourced from other aircraft, including captured Allied bombers. During test flights, the Ju-287 performed exceptionally well, meeting all of the proposed performance targets. Unfortunately for Wocke, interest in a fast jet bomber diminished, and his design was put on hold until March 1945. By this time, Luftwaffe commanders were scrambling to find any new weapon to turn the tide of war, and production of the Ju-287 began swiftly, only for the war to end just two months later, after only a few prototypes had been completed. It wasn’t until 40 years later that forward-swept wings began to gain traction with American and Russian aerospace engineers.

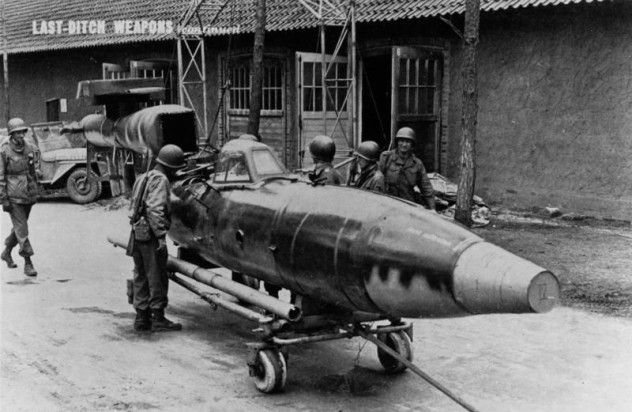

3. Fieseler Fi-103R
Most people are familiar with the Japanese kamikaze missions, where older aircraft packed with explosives were used as weapons against ships. They even developed a specialized kamikaze rocket plane, the MXY-7. Less commonly known, however, is the German effort to create a similar weapon by modifying the V-1 flying bombs into piloted missiles.
As the war was nearing its end, Nazi high command desperately sought ways to disrupt Allied shipping across the English Channel. V-1 rockets showed potential, but their lack of accuracy necessitated a manned version. German engineers repurposed existing V-1 fuselages, adding a small cockpit just in front of the jet engine and rudimentary controls for the pilot.
Unlike the V-1 rockets, which were launched from the ground, the Fi-103R piloted missiles were designed to be carried aloft by He-111 bombers. Once airborne, the pilot was expected to visually locate the target, steer the missile toward the ship, and then eject.
In contrast to their Japanese counterparts, German pilots were not sealed into their cockpits and were meant to try to escape. However, with the roaring engine just behind the canopy, bailing out would likely prove fatal. These slim chances of survival led Luftwaffe commanders to have a poor opinion of the program, and no missions were ever carried out. Nevertheless, 175 V-1 missiles were converted into Fi-103Rs, most of which ended up in Allied hands by the war's conclusion.

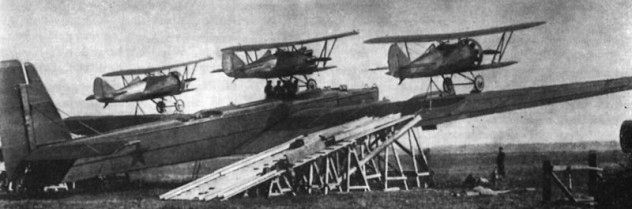

2. Zveno-SPB
The concept of a flying aircraft carrier was initially conceived during World War I and explored in the years between the two World Wars. At the time, military engineers envisioned a large airship that could carry small parasite fighters, which would detach to defend the mothership from enemy aircraft. While British and American tests ended disastrously, and the idea was abandoned as large rigid airships became less tactically viable, the concept didn't disappear entirely.
While the British and Americans were moving away from the idea, the Soviet Air Force (VVS) began to experiment with it. In 1931, aviation engineer Vladimir Vakhmistrov proposed using large Tupolev bombers as carriers for smaller fighter aircraft. This setup significantly extended the range of the fighters and allowed them to carry heavier bomb loads than when configured for dive bombing. Without bombs, the fighters could also protect the Tupolevs from enemy interceptors. Throughout the 1930s, Vakhmistrov refined his designs, eventually reaching the point of attaching five fighter planes to one bomber. By the start of World War II, Vakhmistrov had simplified his design, using just two I-16 fighter-bombers attached to a TB-3 mothership.
Soviet high command was sufficiently impressed with the concept to attempt using it operationally. The first raid against a Romanian oil depot was successful, with both fighters detaching and conducting the attack before returning to a Soviet forward base. Following this initial success, 30 raids were carried out, the most notable being the destruction of a bridge near Chernovodsk in August 1941. The Soviets had tried to destroy the bridge for months without success, but with the use of two of Vakhmistrov’s creations, both planes launched their fighters, which successfully destroyed the previously impregnable bridge. Despite these achievements, the Zveno project was abandoned just months later, and the planes were retired when all Soviet I-16 and TB-3 aircraft were withdrawn from frontline service in favor of more advanced models. Thus, the career of one of the most peculiar—yet effective—aviation concepts in history came to an end.

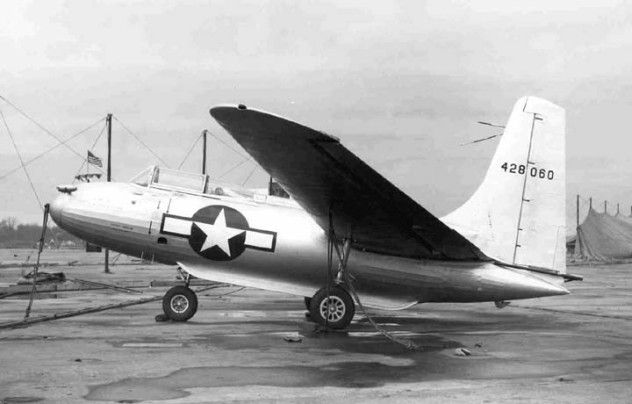

1. Cornelius XFG-1
George Cornelius was an engineer known for his unconventional glider and aircraft designs. Throughout the 1930s and 1940s, he experimented with new aircraft configurations, including several attempts with forward-swept wings (similar to the Ju-287). His gliders had outstanding stall characteristics and could be towed at high speeds without significantly increasing drag on the tow plane. When World War II broke out, Cornelius was tasked with designing the XFG-1, one of the most unique aircraft ever built. Essentially, the XFG-1 was a flying fuel tank.
Cornelius envisioned both manned and unmanned versions of his glider, with each capable of being towed by contemporary bombers at their cruising speed of 400 kilometers per hour (250 mph), which was double the speed of most other gliders at the time. In its unmanned form, the XFG-1 presented an innovative idea. B-29s would tow the glider with hoses providing fuel transfer to the bomber. With a fuel capacity of 764 gallons, the XFG-1 would function as a flying drop tank. Once emptied, the B-29 would release the glider, which would then drift down and crash. This would greatly extend the range of the B-29s, enabling long-distance raids on Tokyo and other Japanese cities. The manned version was similar but was considered more practical, as it allowed the glider to land rather than crash once the fuel was used. Though one might wonder, what pilot would willingly fly a fuel tank over enemy territory?
Testing of the XFG-1 was marred by a tragic crash of one of the prototypes, and the concept lost favor as Allied forces seized islands closer to Japan. With airbases now within range, B-29 missions no longer required extra fuel tanks to reach their targets, making the XFG-1 obsolete. After the war, Cornelius continued advocating for his idea to Air Force commanders, but by then the focus had shifted to dedicated air-refueling tanker aircraft. The XFG-1 faded into obscurity, becoming just a forgotten chapter in Air Force history.
