Basement insulation can be done in three different ways: from the exterior, within the foundation itself, or from inside the structure.
iStockphoto/George PetersDecades ago, many homes lacked basements and instead had cellars. These cool, damp spaces with dirt floors offered a stable temperature ideal for storing perishable goods like apples, jellies, fruit preserves, and pickled vegetables.
With advancements in construction and the rise of poured concrete foundations, basements have become an essential part of modern homes. These spaces now typically house systems like furnaces, water heaters, and laundry machines, but in recent years, they have also been transformed into multi-purpose living areas, including game rooms, home theaters, offices, craft spaces, or exercise rooms.
Since basements are typically situated below ground level, they tend to be cool and damp by nature. Additionally, they can contribute to significant heat loss in a home. Porous foundations can let in cold air and water, while issues like flooding or poor drainage may cause water to enter through cracks.
This is where insulation comes into play. When installed correctly, insulation helps create a more comfortable basement, reduces heat loss, and keeps moisture under control.
Before diving into your basement project, it's important to understand the basics of insulation. There are three methods for insulating a basement: from the outside, within the foundation, or from inside the structure. External and middle insulation are typically carried out during construction, although external insulation can be added alongside a drainage project aimed at protecting the foundation from water.
Unless your house is still being built, insulating from the inside is usually the most practical solution. This guide will focus on interior insulation, which is also the most budget-friendly option. However, if not done correctly, it may lead to moisture-related issues.
Keep reading to find out which tools you'll need to insulate your basement walls.
Essential Tools for Insulating Basement Walls
Local building codes may include specific requirements for interior insulation. For example, fire regulations typically mandate that foam or batt insulation be covered with drywall or another type of finished surface. Always check with your local building authority to ensure that your project meets all code requirements. The last thing you want is to fail an inspection after investing time and money into the work.
The first step is to determine the R-Value (thermal resistance) of the insulation you're using. Recommended values can be found in the International Energy Conservation Code. In the United States, there are five climate zones, with the northern regions requiring higher R-values for insulation. Most of the country falls within the R-5 to R-10 range [source: U.S. Department of Energy].
You may already have some of the tools needed for your basement insulation project. If not, you'll need to find the following items at your local hardware store:
- safety glasses
- dust mask or respirator
- protective clothing
- stapler (electric, standard, or hammer type)
- three-eighths or half-inch staples
- work light
- extension cord
- tape measure
- utility knife and blades; straightedge for cutting insulation
- stepladder [source: Home Improvement Web]
Depending on the type of insulation being installed, you may also find the following tools useful:
- expanding foam sealant
- caulk and caulking gun
- chalk line
- gypsum drywall (half-inch)
- 2 x 2 lumber
- tape: white vinyl, duct tape
- extruded polystyrene foam
- power-activated gun with fasteners
- construction adhesive
- wire insulation hangers
- noise protection for ears
- masonry screws, drill, and carbide drill bit
- asphalt roofing cement [source: Home Improvement Web]
Now that you have the necessary tools, don’t forget the insulation materials. Continue reading to learn more on the next page.
Although many interior insulation projects are relatively simple and require basic handyman skills, there are situations where hiring a professional is the better option. To find a local contractor, contact the Insulation Contractors Association of America (ICAA). However, before doing so, check with family members, friends, or neighbors who may have completed a similar project. They may be able to recommend a reliable contractor.
Essential Materials for Insulating Basement Walls
Homeowners have a variety of materials available for insulating a basement from the inside. The type of insulation and its installation method should be influenced by the local climate, the most effective way to manage moisture in that area, and the specific layout of the basement.
Here are several options to consider:
- Blanket insulation -- This is the most widely used insulation type, typically made from flexible fibers like fiberglass. It comes in batts, rolls, or blankets, and some have a facing made of kraft paper, foil, or vinyl. Standard widths generally match the size of wall studs, and batts are commonly available in lengths of 4 feet (1.22 meters) or 8 feet (2.44 meters). Rolls can be cut and adjusted as needed, and blankets can reach up to 64 feet (19.5 m) long. The R-value for standard fiberglass blanket insulation is generally between 2.9 and 3.8 per inch (7.36 - 9.65 cm) of thickness, making it more affordable than foam board, loose-fill, or spray-applied insulation.
- Rigid foam board insulation -- Made from materials like polystyrene, polyisocyanurate (polyiso), and polyurethane, rigid foam boards offer R-values between 3.8 and 5 per inch of thickness for polystyrene, with polyiso and polyurethane providing R-values ranging from 5.6 to 8 per inch. The advantage of foam board insulation is its ability to keep water vapor in a gaseous state, preventing it from condensing on walls. However, foam boards must be covered with a fire-resistant barrier, usually a half-inch (1.27 cm) gypsum wallboard.
- Loose-fill insulation -- This type uses small particles of fiber or foam that conform to various spaces. It can be installed by either pouring or blowing it in. Common materials for loose-fill insulation include cellulose, fiberglass, and mineral wool. The R-values vary from 2.2 to 3.8 per inch, with fiberglass being at the lower end and cellulose being the most efficient. Successful installation of loose-fill insulation requires achieving the right density and ensuring complete coverage.
Continue reading to discover the benefits of insulating basement walls.

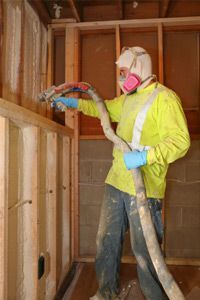

Liquid foam insulation can be applied by spraying, foaming, injecting, or pouring it into place. Common materials include cementitious, phenolic, polyisocyanurate, and polyurethane foams. These materials can fill even the smallest cavities and offer twice the R-value per inch compared to traditional blanket insulation.
The Advantages of Insulating Basement Walls
One of the key advantages of insulating basement walls is the significant reduction in energy costs. However, the actual savings will vary based on factors such as your local climate, the type of heating system used, fuel costs, and the way the basement is utilized.
In the end, the effectiveness of any insulation system depends on its proper installation. For this reason, it may be beneficial to hire a professional with extensive experience in basement wall insulation. The most cost-effective method for insulating an existing basement while minimizing moisture issues is by combining rigid foam insulation with an insulated wall frame assembly.
The key factor is airflow. Experts emphasize "inward drying," referring to the foundation's ability to release moisture into the basement, which allows it to dry. When airflow is restricted, moisture becomes trapped. A true vapor barrier, which is meant to block moisture from entering the basement, often ends up trapping moisture between the insulation and the wall. If insulation is installed on a wooden wall frame and sealed with a vapor barrier, like polyethylene sheeting, the moisture will be trapped, leading to damage to both the insulation and the wooden frame.
Now that you have an understanding of insulation types, tools, materials, and benefits, you should be ready to begin your basement wall insulation project and start saving on energy costs year after year. For more information, explore the links provided on the following page.
Homes with 2 to 3 inches (5.08 to 7.62 cm) of exterior foam basement wall insulation at an R-10 rating saved less in heating costs compared to those using insulated concrete forms (middle) insulation at an R-2 rating. For instance, a 1,500-square-foot (139.3-square-meter) home in the Midwest with exterior foam insulation at R-10 would save approximately $400 annually on natural gas heating. In comparison, the same home using insulated concrete forms with an R-2 rating would save about $450 each year [source: U.S. Department of Energy].
