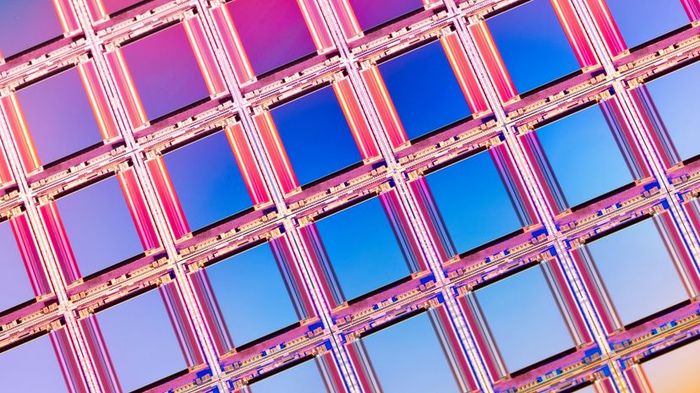

Check out these stunning, vibrant image sensors! MirageC / Getty ImagesDigital cameras have become widely accessible due to decreasing prices. One major factor behind this price drop is the advent of the CMOS sensor, which is significantly cheaper to produce than CCD sensors.
Fundamentals of Sensor Technology
Both CCD (charge-coupled device) and CMOS (complementary metal-oxide semiconductor) image sensors begin similarly — they both convert light into electrons. If you're familiar with the article How Solar Cells Work, you already know one of the technologies used in this conversion process. You can think of a sensor in a digital camera (or camcorder) as a 2-D grid of thousands or millions of tiny solar cells, each converting light from a small segment of the image into electrons. Both CCD and CMOS technologies carry out this function using different techniques.
The Value of CMOS Cells and CCD Cells
The next step involves reading the value (accumulated charge) of each pixel. In a CCD device, the charge is transported across the chip and read at one corner of the array. An analog-to-digital converter then transforms each pixel's value into a digital format. In most CMOS devices, each pixel is equipped with multiple transistors that amplify and transfer the charge using traditional wiring. The CMOS approach is more adaptable, as each pixel can be individually read.
The Image Quality of Digital Cameras
CCDs employ a specialized manufacturing technique that enables charge to be moved across the chip without distortion. This method results in highly accurate sensors with excellent fidelity and light sensitivity. In contrast, CMOS chips are produced using standard manufacturing processes, similar to those used for microprocessors. Due to these different manufacturing approaches, CCD and CMOS sensors generally exhibit some distinct differences.
- As previously mentioned, CCD sensors produce high-quality, low-noise images, whereas CMOS sensors are generally more sensitive to noise.
- Each pixel on a CMOS sensor is surrounded by several transistors, which reduces its light sensitivity. This means many photons that strike the chip are absorbed by the transistors rather than the photodiode.
- CMOS sensors are typically low-power devices, which makes them energy-efficient.
- On the other hand, CCDs use a power-heavy process, consuming up to 100 times more power than comparable CMOS sensors.
- CMOS chips can be produced using almost any standard silicon manufacturing process, which makes them much more affordable compared to CCD sensors.
- CCDs have been in mass production for a longer time, making them a more mature technology with superior quality and a higher pixel count.
Considering these distinctions, it's clear that CCDs are typically used in cameras that prioritize high-quality images with lots of pixels and excellent light sensitivity. Historically, CMOS sensors offered lower quality, resolution, and sensitivity. However, CMOS technology has progressed to a point where it rivals CCD performance in some applications. CMOS cameras are often more affordable and offer outstanding battery life.
