When a sudden heatwave strikes and your air conditioner fails, staying cool becomes a challenge. Although traditional AC units provide unmatched cooling, a DIY solution can come to the rescue. Crafting your own swamp cooler for emergencies is an easy task requiring minimal tools and materials.
What is a swamp cooler and how does it function?
A swamp cooler, or evaporative cooler, draws air into a chamber and passes it over water or ice, facilitating an energy transfer where the air's heat is absorbed by the ice or water, cooling the air around it. This method, called 'evaporative cooling,' mimics how sweating cools your body. You can buy a swamp cooler or build one affordably. The DIY version uses an inexpensive fan to push air over ice or water, achieving the same cooling effect.
A DIY swamp cooler can lower the surrounding air temperature by 15 to 40 degrees F, but it’s less efficient than an AC unit and performs best in smaller areas. Since the system relies on a fan, its cooling capacity depends on the fan’s airflow. Instead of cooling an entire house, focus on one room for better results. Regular cleaning is essential to prevent mold growth. Even though DIY swamp coolers aren’t ideal for long-term use, clean the interior every few days to avoid mold and bacteria buildup.
It’s also worth noting: Swamp coolers are ineffective in areas with high humidity, as they increase the room’s moisture levels.

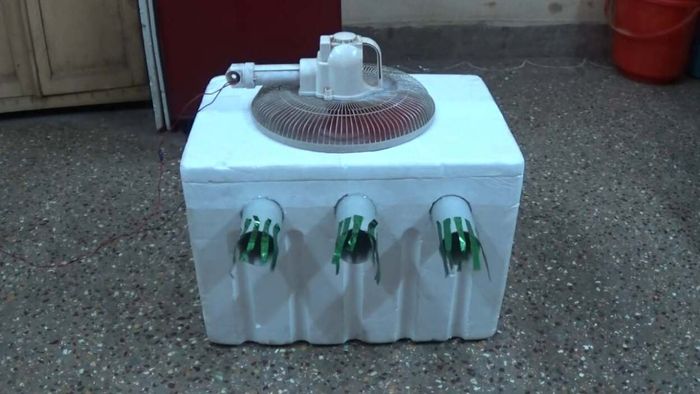

The container approach
An insulated container works best for a DIY evaporative cooler, though some have found success with a five-gallon bucket. Typically, a foam cooler is the easiest option for holding ice due to its insulation and ease of modification.
The key is to use a container with a five-gallon capacity and a lid. Besides ice and a cooler, you’ll need a small fan that can be mounted on the lid and two PVC elbows around two inches in diameter.
To build your swamp cooler, start by cutting a hole in the cooler’s lid slightly smaller than your fan. If the fan has a square frame, cut a hole matching the blade’s size and let the fan rest on the cooler’s top. Securing the fan with glue is ideal, but tape works as a substitute. Then, cut holes for the PVC elbows about four inches above the container’s base. Attach the elbows using glue or pressure fitting, add ice to the cooler, and replace the lid. Your swamp cooler is now ready to operate.
Some prefer using frozen water bottles over loose ice, but including water is crucial for effective cooling through evaporation. Frozen bottles are easier to replace, but a water reservoir is essential for the system to function properly.
The box fan technique
Another construction approach involves using a box fan.
This method is slightly more complex but offers greater airflow. You’ll need a bucket, a water pump, window screen, flexible tubing, and specialized evaporative fabric.
For this version, cut the screen and fabric to match the box fan’s dimensions. Position the screen on the fan’s back, then add the fabric layer on top. Secure both the screen and fabric to the fan using zip ties or wire. Attach the tubing along the fan’s edge with ties or wire, leaving a foot or two of tubing at one corner to draw water from the bucket. Create numerous small holes in the tubing around the fan’s edge, similar to a garden soaker hose. Fill the bucket with water, connect the tubing to the pump, place the pump in the bucket, and seal the tubing’s free end to ensure water flows through the holes. Turn it on, ensuring it’s placed on a waterproof surface or using a drip pan to catch any excess water.
