How Digital Notetakers Function

In 1975, Businessweek published an article envisioning the office of the future. The article forecasted that office workers would have computers by 1995, which proved to be largely accurate. However, some individuals interviewed questioned whether paper would ever be fully replaced in the office. Over 30 years later, it's evident that achieving a paperless environment remains challenging in today's digital world.

One potential reason paper remains prevalent, despite the advent of computers, digital storage, smartphones, and tablets, is its practicality and flexibility. While typing a document on a computer and storing it digitally is often more efficient than maintaining physical records, simple tasks like jotting down notes or completing forms are often easier with paper. This is where e-writers come into play.

A basic e-writer is a device that allows you to take notes directly on its screen. Depending on the specific model, you might need a stylus or be able to use your finger. Many e-writers come equipped with handwriting-recognition software that converts your handwriting into standard text.

The concept isn't new, but it has taken time for technology to develop enough for these devices to become truly practical. Could e-writers finally render paper obsolete?

Scribbling on Screens

E-writers come in various types. Some dedicated e-writers focus solely on note-taking or filling out forms on a screen. Many tablet devices have applications that allow you to write notes or convert handwriting into text. Despite the different models, most e-writers share a few common features.

One of these shared features is a touch-screen interface, which allows you to write your thoughts on an electronic device. The touch screen's role is to detect and track your touches. There are different methods for doing this, but most e-writers utilize either a resistive or capacitive screen, both of which rely on electrical tracking.

Resistive screens detect touch through pressure. These screens consist of multiple layers. The top layer, acting as the touch surface, bends when pressure is applied, causing it to contact the layers below. This contact forms a circuit, allowing a weak electronic signal to pass through, which the device detects as a touch. Moving the point of pressure alters the contact point, and the device tracks the movement accordingly.

A capacitive screen doesn’t detect pressure. Instead, it senses changes in the electric field whenever a conductive object, like your finger, touches the screen. The human body is conductive, so even a light touch will cause a change in the field, which registers as a touch on the screen.

Both screen types have their advantages and disadvantages. Resistive screens are typically cheaper to produce, making the devices more affordable. They also provide more accurate touch detection than capacitive screens. Furthermore, resistive screens can be interacted with using any object capable of applying pressure, such as your finger, a stylus, or other items.

Capacitive screens only respond to conductive materials. If you're wearing regular gloves or using a typical stylus, the screen won't register your touch. However, capacitive screens tend to react faster than resistive ones. Though regular styluses may not work, electronic styluses designed for capacitive screens are compatible. Additionally, capacitive screens are more durable, as they don't degrade over time with use like resistive screens.

Not all e-writers require energy to detect touches. Let’s explore how certain liquid crystal displays are able to capture your notes without using power.

No Electricity Required

Most mobile devices start using power as soon as they're in use. However, there's an alternative approach to e-writing that minimizes battery consumption. It uses a unique type of liquid crystal display (LCD).

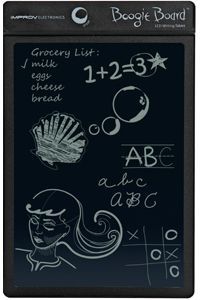

Here’s the process: Devices like the Boogie Board e-writer by Improv Electronics feature a resistive screen. This screen is made up of layers of electrodes with a layer of liquid crystals in between. The liquid crystals' appearance shifts depending on their alignment within the layers. Under normal conditions, they're transparent. When pressure is applied to the screen, the gap between the electrodes shrinks, causing the liquid crystals to align in a way that makes them reflective.

Place a dark background behind the screen, and voilà! You now have a writing surface. As you press on the screen with a stylus, finger, or any other object, the crystals shift and form a reflective layer. This reflective layer contrasts sharply with the dark background. The e-writer doesn’t need to provide power to the screen, allowing you to continue writing until you run out of space.

On a basic e-writing tablet with an LCD display, the only time the battery gets used is when you choose to erase the screen and start fresh. This activates the device to send a small electrical charge through its electrodes, which realigns the liquid crystals back to their default transparent state.

Such a simple tablet does come with a major limitation — it doesn't have a way to save your notes. It's like writing on a notepad and throwing away each sheet once you're finished. However, by adding a few extra features, you can preserve your notes for future reference.

Understanding the Components of an E-writer

E-writers share several key elements. The central processor of an e-writer is a microprocessor that handles operations on data. These operations may range from something as simple as saving a note to memory for future use, to more complex tasks like running algorithms that convert your scribbles into text.

An algorithm is a series of steps designed to solve a problem. Handwriting recognition algorithms analyze the movements you make on the screen and try to match them with corresponding letters. Depending on how advanced the algorithm is, it may be capable of recognizing both printed and cursive writing. Paired with word-recognition software, the algorithm might even make an educated guess to complete a word, even if you forget to dot your i's or cross your t's.

The microprocessor used in an e-writer differs based on the manufacturer, model, and brand. Key attributes of a mobile device's microprocessor include a compact design and high efficiency. As these processors operate, they produce heat. If the heat builds up too much, it can cause the device to malfunction. The most efficient microprocessors minimize heat output while maintaining high performance.

Another critical part of an e-writer is its memory. Flash memory chips, or solid-state memory, store data on mobile devices. When you write something and save it, the processor converts the data into binary bits — zeros and ones — and sends it to the memory. Some e-writers also allow you to use external memory cards to increase storage capacity.

Another essential component of e-writers is the battery. The battery life of an e-writer depends on multiple factors, including the type of processor, the touch-screen technology used, and other internal components.

E-writers can come with various additional features. Some may include full-color screens rather than just monochrome displays. Others could have Wi-Fi connectivity and biometric sensors. Some e-writers might even resemble full-fledged tablets more than dedicated writing devices. The line between e-writers, smartphones, tablets, and similar mobile electronics is not always clearly defined. It's possible that e-writers may not evolve into a successful standalone product category, and instead, their features may become integrated into other, well-established electronic categories.
