How do motion-detecting lights and security alarms function?

Motion detection is a vital aspect of modern security, whether for residential or commercial properties. From basic sensors lighting up a garden to sophisticated home security systems and high-security zones, motion detection has revolutionized how we interact with our surroundings. It's reinforced boundaries in a manner that traditional fences and walls can't.

Motion sensors can function in various ways, including using microwave radio waves or passive infrared radiation, both of which are widely used. This article will highlight everyday examples of motion sensor technology, explore the principles behind it, discuss the different types, and examine its applications, offering a thorough understanding of this fascinating and ever-evolving field.

Everyday Motion Detectors

Although we often associate motion detection with security measures, such as cameras detecting objects via microwave or infrared sensors, we encounter them in much more commonplace ways every day. For example, many retail stores have a light beam crossing the room near the door, with a photosensor positioned across from it. When a customer interrupts the beam, the photosensor notices the change in light levels and triggers a bell.

Many grocery stores use automatic door openers, which rely on a simple type of radar to detect when someone approaches. A box above the door emits a burst of microwave radio waves and waits for the reflected signal to return. When a person steps into the microwave field, the amount of reflected energy changes (or the time taken for the reflection to return), causing the door to open.

Since these devices use radar, they can often trigger radar detectors. A similar process can be done with ultrasonic sound waves, which bounce off a target and wait for the echo to return.

Motion Sensors With Infrared Radiation

All of these are active sensors. They emit energy (such as light, microwaves, or sound) into the environment to detect any changes. The "motion sensing" feature found in most lights (and security systems) is a passive system that detects infrared energy.

These sensors are commonly referred to as PIR (passive infrared) detectors or pyroelectric sensors. To create a sensor capable of detecting a human, it must be sensitive to the body temperature. Humans, with an average skin temperature of around 93°F, emit infrared radiation with wavelengths between 9 and 10 micrometers. As a result, these sensors are typically tuned to detect within the 8 to 12 micrometer range.

The sensors themselves are basic electronic components, similar to a photosensor. Infrared light causes electrons to be ejected from a substrate, and these electrons can be captured and amplified into a detectable signal.

Motion Detector Limitations

You’ve probably observed that a motion sensor camera detects movement but doesn’t respond to someone standing still. This is because the sensor’s electronics are designed to detect rapid changes in infrared energy. When a person walks past, the infrared energy in the field of view fluctuates quickly, making it easy to identify. The sensor is not designed to detect slower changes, such as the cooling of a sidewalk at night.

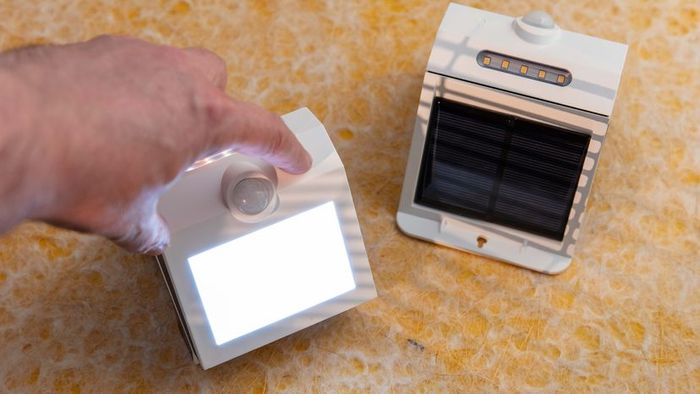

The motion sensing light is designed with a broad field of view, courtesy of the lens that covers its sensor. Since infrared energy is a type of light, it can be focused and redirected using plastic lenses. However, inside the device, you won’t find a grid of sensors. There’s typically only one (or occasionally two) sensor that detects variations in infrared energy.

If your burglar alarm is equipped with motion sensors, you may have noticed that they can't detect your presence if you're standing outside looking through a window. This is because glass blocks infrared energy. In fact, this principle is what makes greenhouses work – light passes through the glass, warming the interior.

The glass blocks the infrared energy emitted by heated objects inside the greenhouse, trapping the heat within. This is why a motion sensor that detects infrared energy can't see through glass windows.

Common Types of Motion Detection

Various motion detection sensors exist, each designed with specific features and purposes. Motion sensor lighting is a common choice for home security, turning on lights when motion is detected, thereby discouraging intruders and lighting pathways. Alternatively, dual-technology motion sensors combine two detection methods – usually a PIR sensor and a microwave sensor – to minimize false alarms and improve accuracy.

The PIR motion sensor is highly effective at detecting body heat, while the microwave sensor emits waves that bounce off moving objects. Additionally, pet-immune motion sensors are specifically designed to ignore the movements of pets, reducing false alarms. Each sensor generates unique signals based on the type of movement detected, which are then processed to trigger the appropriate response, such as activating lights, sounding an alarm, or sending a notification.
