How do Steam Engines function?

Steam engines were instrumental in shaping the industrial age, being the first widely used engine type. Invented by Thomas Newcomen in 1705, the design was greatly enhanced in 1769 by James Watt, whose name lives on through the '60-watt light bulbs'.

Steam engines powered early locomotives, steamships, and factories, forming the backbone of the Industrial Revolution.

Early Steam History

The roots of steam technology can be traced to around A.D. 75 when Hero, a famous mathematician, wrote about the mechanics of air and proposed a basic steam engine design. His invention involved a hollow sphere with bent tubes attached, and when placed over a fire, the heated water turned to steam, which would escape through the tubes and make the sphere rotate. This marked the beginning of steam technology, with further advancements from other innovators building on his idea.

In the 17th century, Italian scholar Giovanni Battista della Porta studied steam's role in creating a vacuum. He hypothesized that converting water into steam inside a sealed container would increase pressure, while condensing the steam back to water would reduce pressure.

In 1679, French scientist Denis Papin brought della Porta’s theory to life by creating a pressure cooker-like device called the 'Digest or Engine for Softening Bones.' This sealed pot was the first practical steam pressure application. Papin then enhanced the idea by designing a sliding piston on top of a sealed cylinder filled with water. As the water heated up, steam pushed the piston upward, and when it cooled and condensed, the resulting vacuum caused the piston to descend.

These early breakthroughs in steam technology were crucial steps in the development of steam power, paving the way for future engineers and inventors to refine and expand upon these foundational concepts.

The Birth of Steam Engines

In 1698, military engineer Thomas Savery received a patent for his pioneering steam pump, known as 'Miner’s Friend.' The pump consisted of a boiling chamber that directed steam into a separate container. The container was fitted with a pipe and a non-return valve that extended into the water requiring extraction. When cold water was poured over the steam-filled container, the steam condensed into liquid, creating a vacuum that drew water through the pipe from below.

Building on Savery’s design of separating the boiler and steam cylinder and Papin’s piston mechanism, English inventor Thomas Newcomen became a key figure in the development of steam power. In the early 18th century, Newcomen introduced the atmospheric engine, a practical steam engine used to pump water from mines. It worked by using steam to create a partial vacuum in a cylinder, with atmospheric pressure pushing the piston downward.

James Watt enhanced the efficiency and design of steam engines in the late 18th century. He developed the Watt atmospheric engine, which included a separate condenser and harnessed the expansive force of steam. His innovations greatly increased the engine’s efficiency, making it viable for transportation and helping to connect distant regions and promote the movement of goods.

The advent of steam power and its subsequent innovations fueled the growth of industrialization and brought about societal transformation. Steam power became the driving force behind the Industrial Revolution.

Steam Engine Mechanics

The depicted engine is a double-acting steam engine, meaning that the valve lets high-pressure steam alternately act on both sides of the piston. An animation demonstrates the engine's operation.

The slide valve controls the entry of high-pressure steam into either side of the cylinder. The control rod linked to the cross-head adjusts the valve, and in steam locomotives, this system allows the engineer to reverse the train.

In this diagram, the exhaust steam simply exits into the atmosphere, which provides insight into two features of steam locomotives.

In a steam locomotive, the cross-head connects to a drive rod, which in turn links to coupling rods that turn the train's wheels. These wheels are linked by coupling rods, ensuring they rotate together in sync.

Stationary Steam Engines

A stationary steam engine is a fixed engine designed for stationary use. Unlike those found in locomotives or ships, stationary steam engines remain in place, powering factories, mills, pumping stations, or electricity generators. They generally consist of a large steam boiler, a reciprocating or rotary steam engine, and various auxiliary components that regulate steam flow and control power output.

5 Types of Steam Engines

Throughout history, we have witnessed various types of steam-powered engines. Here are a few of the most significant ones:

Boilers

A steam engine's high-pressure steam is generated by a boiler, which heats water to produce steam. There are two primary types: fire tube and water tube boilers.

A fire-tube boiler was commonly used in the 1800s. It consists of a water tank that is perforated with pipes. The hot gases produced by burning coal or wood pass through the pipes to heat the water in the tank.

In a fire-tube boiler, the entire tank is pressurized, so if the tank ruptures, it can result in a significant explosion.

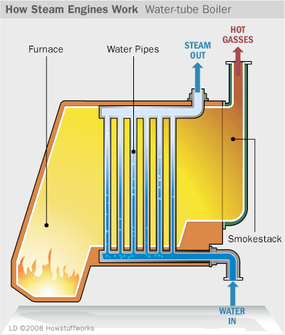

More prevalent today are water-tube boilers, where water flows through a series of tubes placed within the hot gases from the fire. The following simplified diagram illustrates the typical arrangement of a water-tube boiler:

In a real boiler system, the design is much more intricate, as the boiler’s primary goal is to capture every possible bit of heat from the burning fuel to maximize efficiency.
