How Does a Camera Obscura Function?

A pinhole camera, also referred to as a camera obscura, is the most basic form of a camera. It consists of a sealed box, a light-sensitive material, and a tiny hole. This hole, similar to one made by the tip of a pin in thick aluminum foil, allows light to pass through, forming an inverted image on the opposite side. This method enables simple photography without requiring a lens.

Principle of Camera Obscura

A pinhole camera is based on a straightforward idea: Picture yourself inside a large, dark box with a pinhole. Outside, a friend is shining a flashlight at different angles through the pinhole. As you observe the wall opposite the pinhole, you will see a tiny dot formed by the flashlight's beam passing through the hole. This dot will shift as your friend adjusts the flashlight. The smaller the pinhole (up to a certain limit), the sharper and more precise the light spot created by the flashlight.

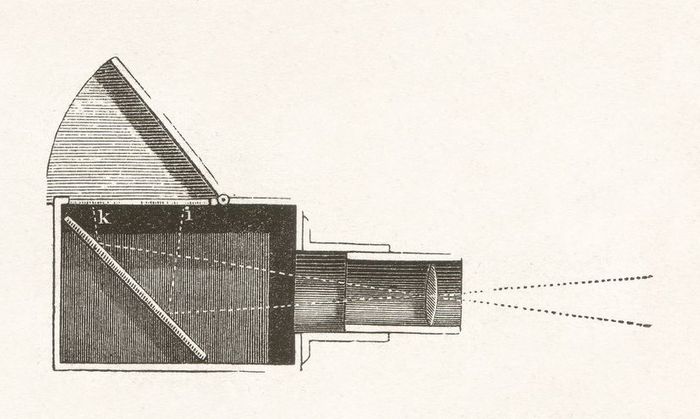

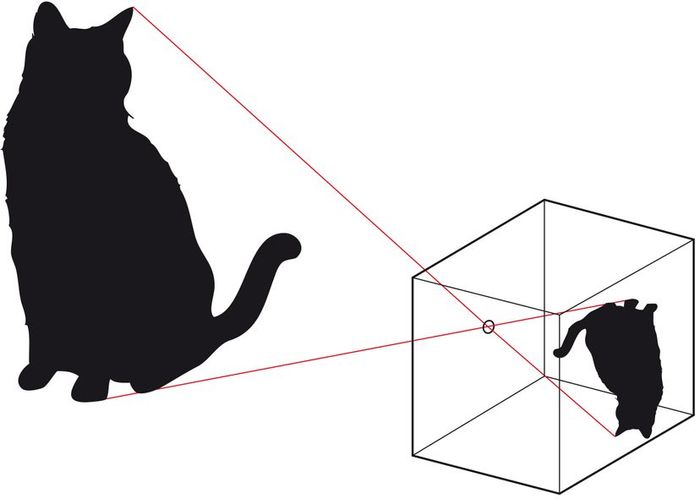

Now, if you take your large, dark pinhole-equipped room outside and point it at a beautiful landscape, the image that appears on the wall opposite the pinhole will be an upside-down and mirrored version of the scene outside. Each point in the landscape emits light, and much like the flashlight, the light beam from each point passes through the pinhole, forming a point of light on the opposite wall. All of the points in the scene do this at the same time, creating a focused, full image on the wall. Although the image is dim due to the tiny size of the pinhole, it can be seen in a very dark room. Some camera obscuras use a slanted mirror to display an upright image.

A pinhole camera works in a similar way. A smaller version of that room is created, where the film inside the photographic camera takes your place. The film captures the image that passes through the pinhole. The portable camera obscura captures a clear, focused image of whatever scene you direct it towards. Generally, the film needs to be exposed for a longer duration because the pinhole lets very little light through.

In a pinhole camera, the pinhole serves as the lens. It forces each light-emitting point in the scene to create a tiny dot on the film, ensuring a sharp image. The reason a regular camera uses a lens instead of a pinhole is that the lens creates a larger hole, allowing more light to reach the film, enabling quicker exposure. However, a pinhole camera can also use a convex lens to improve the clarity and sharpness of the projected image. The convex lens focuses incoming light rays, resulting in a more detailed and clearer image.

Brief History of Camera Obscura

The term 'camera obscura,' meaning 'dark room' in Latin, refers to an optical effect and served as a precursor to modern photography. It has fascinated artists, scientists, and thinkers for centuries. For instance, Chinese philosopher Mozi wrote about projecting images through a small opening as early as the 5th century BCE. The ancient Greek philosopher Aristotle studied how light behaved and created inverted images, and by the 11th century, scholar Alhazen (Ibn al-Haytham) detailed the workings of the camera obscura and its uses in astronomy and human perception in his Book of Optics.

Leonardo da Vinci’s exploration of camera obscura in his Codex Atlanticus influenced its use as an artistic tool during the 15th century. Though debated, Dutch painter Johannes Vermeer is one artist who is believed by some historians to have used camera obscura as an aid in drawing due to his precise perspective. Regardless of its use by Vermeer, camera obscura was helpful to many artists. Venetian nobleman Daniele Barbaro remarked, ‘There on the paper, you will see the whole view as it really is, with its distances, its colors and shadows and motion, the clouds, the water twinkling, the birds flying. By holding the paper steady, you can trace the whole perspective with a pen.’

As demonstrated by the pinhole camera, camera obscura was instrumental in the development of photography. Joseph Nicéphore Niépce, a key figure in photography’s early history, conducted groundbreaking camera obscura experiments, which led to ‘View from the Window at Le Gras,’ the first known photograph.

How to Create a Camera Obscura

With just a few simple materials, you can craft your own camera obscura. In no time, you’ll be able to project images from the comfort of your home.

1. Collect the necessary materials.

Here’s what you’ll need:

For better image quality, you may choose to add a lens or a magnifying glass as an option.

2. Pick an appropriate location.

Locate a room or area with minimal light. If using a cardboard box, ensure it is large enough for you to comfortably fit inside.

3. Get the box or dark room ready.

Use black duct tape or aluminum foil to cover any windows or openings, ensuring no light can enter. After closing the door, verify that the space is pitch dark.

4. Create the aperture.

On one side of the box or window covering, cut a small hole, approximately 1 to 2 centimeters in diameter. This will act as the entry point for light.

5. Set up a translucent screen.

Cut a piece of cardboard or thick paper to fit the interior of the box or the wall opposite the aperture. Attach tracing paper or a thin fabric to this surface using tape or glue. This will serve as the screen to project the image.

6. Set up the camera obscura.

Position the box or yourself inside the darkened room so that the aperture is facing a well-lit focal point, whether it's a scene or an object outside. The light passing through the tiny hole will create an inverted image on the viewing screen.

7. Experiment and fine-tune.

Adjust the distance between the aperture and the viewing screen to sharpen the image. You can also experiment by adding a lens or a magnifying glass in front of the aperture to improve the image quality of your camera obscura box.
