How the V-22 Osprey Aircraft Functions

Aircraft engineers have long envisioned a plane that combines the abilities to fly long distances at high speeds, carry substantial cargo, and also take off, hover, and land like a helicopter. Such a versatile aircraft would be ideal for various military missions and combat operations, as well as for civilian and commercial purposes.

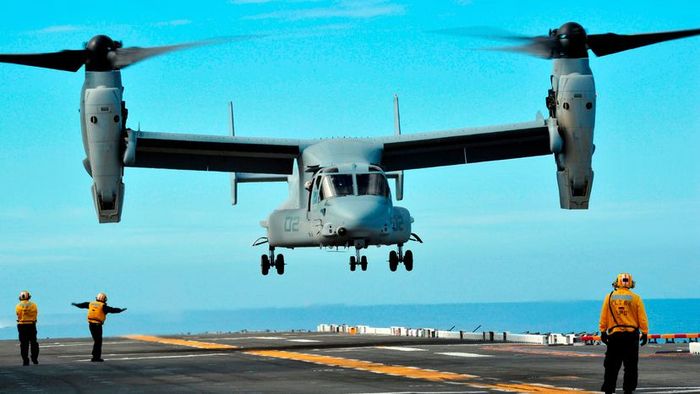

The V-22 Osprey is that very aircraft. Developed by Bell Boeing for military use, the Osprey features tilt-rotor technology, allowing it to take off and land like a helicopter while transforming into a turboprop plane during flight.

Boeing characterizes the aircraft as a fusion of helicopter-like vertical capabilities with the speed and range typical of fixed-wing planes. Its rotors can be folded, and the wings are designed to rotate, enabling it to be stored on an aircraft carrier.

Fly Like a Bird, Hover Like a Bee

The Osprey is a vertical takeoff and landing (VTOL) aircraft featuring a tilt-rotor design, a concept that dates back to the German air force's innovations at the close of World War II.

Following the war, the U.S. Navy experimented with two VTOL fighter aircraft prototypes: the Pogo and the Salmon. These projects, however, were discontinued due to various technical challenges.

In 1958, the U.S. Air Force introduced the Bell XV-3, marking the first successful VTOL aircraft capable of hovering (though it was not tested in airplane mode).

Once the XV-3 program demonstrated that the tilt-rotor concept could work, Bell developed the XV-15, which NASA then put through extensive testing.

In July 1979, the XV-15 made history as the first aircraft to transition between helicopter and airplane modes. It was also capable of reaching speeds of 346 miles per hour (557 kph) in airplane mode. The success of these tests led to the program’s expansion and eventual rebranding as the V-22 Osprey.

The Osprey comes in three different configurations, each tailored to specific missions such as search-and-rescue, medium-range assaults, or long-range special operations. For the Navy, its main roles include carrier onboard delivery and the transportation of mail, supplies, and cargo.

While the Osprey is currently in use by three branches of the U.S. Armed Forces — the Marines, Navy, and Air Force — Bell is also investigating its potential for civilian applications.

The Air Force and the V-22 Osprey

In January 2007, the Air Force Special Operations Command received its first operational CV-22 Osprey. It achieved its initial operational capability by 2009.

Advantages of the Osprey

The Osprey features two large, three-bladed rotors that spin in opposing directions to generate lift. Since the rotors rotate in opposite directions, there is no need for a tail rotor like in a traditional helicopter.

The wings of the Osprey tilt the rotors between helicopter and airplane configurations, generating lift in airplane mode. The aircraft is capable of transitioning smoothly from helicopter to airplane mode in as little as 12 seconds.

The primary advantages of the Osprey compared to a helicopter include:

The Osprey's advantage over a fixed-wing airplane lies in its ability to take off, hover, and land like a helicopter. This gives it greater versatility, making it ideal for missions such as transporting troops to remote areas without landing strips or conducting long-range rescue operations at sea.

Inside the Osprey

Like all aircraft, the Osprey is equipped with the following essential systems:

Propulsion

The Osprey is equipped with two rotors, each with three 38-foot (11.6-meter) blades. The propellers are powered by Allison AE 1107C turboshaft engines, each capable of delivering over 6,000 horsepower.

Each engine powers its respective rotor and also channels some power to a central mid-wing gearbox, which is responsible for driving the tilt mechanism.

In case of an engine failure, the Osprey can continue flying with just one engine. The remaining engine transfers power to both rotors through an interconnecting drive shaft.

Fuel

The Osprey features 16 fuel tanks, 10 of which are integrated into the wings and six located within the fuselage. Fuel from the other tanks is automatically transferred to supply the engines.

As fuel is drawn from the tanks, pressurized nitrogen gas is used to fill the empty spaces, helping to minimize the risk of fire. Depending on its configuration, the Osprey can carry between 1,450 and 3,640 gallons (5,489 to 13,779 liters) of fuel.

Cockpit Controls

The cockpit of the Osprey is designed to seat a pilot and a copilot. Additionally, there is a foldable seat behind them for a flight engineer, with other models offering space for two flight engineers.

The instrument panels feature multifunctional displays, similar to those found in the space shuttle's modern glass cockpit. These displays provide vital engine data (including oil pressure, temperatures, and hydraulic pressures) as well as flight information (such as fuel levels, attitude, and engine performance).

The cockpit is also equipped with keypads for interacting with the flight computer and flight sticks that are used to control the aircraft's maneuvers.

Communications

The Osprey is equipped with multiband radios (AM, FM, UHF, VHF) for voice communication and radio reception. It also includes navigational beacons, radar altimeters, and an internal intercom/radio system that enables communication between the crew and onboard troops.

Payload

The Osprey has the capacity to carry up to 24 personnel and transport up to 20,000 pounds (9,072 kg) of cargo in its cargo bay, which measures 5.7 feet in width, 5.5 feet in height, and 20.8 feet in length (1.72 x 1.68 x 6.35 m).

The cargo bay is equipped with fold-down seats along the walls and features a ramp for loading or unloading cargo and troops. It can also deploy personnel and equipment mid-air using parachutes.

In addition to carrying up to 20,000 pounds of cargo in its internal bay, the Osprey is also equipped with an external hook-and-winch system, enabling it to tow up to 15,000 pounds (6,803 kg) of cargo.

Stowage

When the Osprey lands on a ship's deck, it can be folded up to save space during downtime. Both the blades and wings are capable of folding. The sequence is shown below:

How the Osprey Flies

A V-22 Osprey transitioning from helicopter mode to airplane mode.

To grasp how the Osprey achieves flight, it's important to know that airplane wings generate lift by pushing air downward, which relies on the equal and opposite reaction produced by this action.

Helicopters work in a similar way with rotating blades, which are essentially wings that spin like the airfoils on an airplane. These blades are thinner and more narrow than airplane wings because of the need for faster rotation. The blades are attached to a central shaft, and as the shaft turns, it creates lift.

When the Osprey is set for takeoff, its rotors are positioned vertically. With the rotors mounted on its wings, it resembles a two-bladed helicopter. In helicopter mode (used during takeoff, landing, and hovering), the rotors generate lift.

In flight, the Osprey's rotors tilt to a horizontal position. At this point, the wings take over to provide lift, much like a conventional airplane, and the rotors act as propellers. For landing, the Osprey raises its rotors back to a vertical position, reversing the process of takeoff.
