Room air conditioners, also known as window units, function in a similar way to central air systems. They are more compact but tend to be costlier to run. Depending on the size, a room unit may only cool the room it is placed in, or it may also cool adjoining rooms.

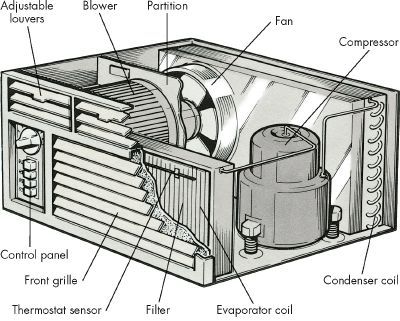

Inside a room air conditioner, the two key components are housed together. The condenser coil is positioned facing outward, while the evaporator is directed inward.In winter, it's essential to protect room air conditioners from harsh weather. Either remove the unit and store it or cover the exterior part with a specialized air conditioner cover or heavy-duty plastic sheeting, secured with duct tape.
Warning: For additional home repair guides, explore these helpful links.- How to Fix Central Air Conditioners: If your system cools the entire house, you have central air. Learn how to keep it running efficiently.
- Repairing Major Appliances: If your air conditioner isn't the only appliance on the fritz, discover how to fix other household machines here.
- Small Appliance Repairs: After mastering the a/c, you'll find fixing a toaster or blender easy. Get tips on repairs here.
- Thermostat Calibration: To determine if your a/c is malfunctioning, check the thermostat. Find out how to calibrate it for better performance.
Troubleshooting Window Air Conditioners
On a hot day, when your window air conditioner isn't providing relief, you don't want to wait for a technician. Refer to the chart below to see if the issue is something you can resolve on your own.TROUBLESHOOTING GUIDE FOR ROOM AIR CONDITIONERS
| Problem | Possible cause | Solution |
| Unit doesn't run | 1. No power. | 1. Check cord, plug, and outlet. Check for blown fuse or tripped circuit breaker at main entrance panel; restore circuit. |
| 2. Motor overload or safety shutoff. | 2. Wait 30 minutes; press reset button. Repeat if necessary. | |
| 3. Switch faulty. | 3. Check terminals and insulation; if burns are evident, replace switch. If switch looks all right, call a professional. | |
| Fuses blow | 1. Circuit overloaded. | 1. Put on different circuit. |
| 2. Voltage low. | 2. Call a professional or the power company. | |
| Coolinginadequate | 1. Thermostat set too high. | 1. Lower thermostat setting 5°. |
| 2. Filter dirty. | 2. Clean or replace filter. | |
| 3. Coils dirty. | 3. Clean coils. | |
| 4. Condenser blocked from outside. | 4. Make sure outside of unit is not blocked. | |
| 5. Motor faulty. | 5. Call a professional. | |
| 6. Compressor faulty. | 6. Call a professional. | |
| 7. Coolant leak. | 7. Call a professional. | |
| Fan runs, butunit doesn't cool | 1. Thermostat set too high. | 1. Lower thermostat setting 5°. |
| 2. Thermostat faulty. | 2. Test thermostat; if faulty, replace, or call a professional. | |
| 3. Coils dirty. | 3. Clean coils. | |
| 4. Motor faulty. | 4. Call a professional. | |
| 5. Compressor faulty. | 5. Call a professional. | |
| Unit cools, butfan doesn't run | 1. Control switch set wrong. | 1. Reset switch; try different settings. |
| 2. Fan clogged. | 2. Clean and tighten fan blades. | |
| 3. Fan blades bent. | 3. Straighten fan blades. | |
| 4. Fan motor faulty. | 4. Replace fan motor or call a professional. | |
| Unit turns onand off repeatedly | 1. Coils dirty. | 1. Clean coils. |
| 2. Filter dirty. | 2. Clean or replace filter. |
- Repairing Central Air Conditioners: If your system cools the entire house, you have central air. Learn how to keep your system running smoothly.
- Fixing Major Appliances: If the a/c isn’t the only appliance acting up, this guide will help you repair other machines in your home.
- Repairing Small Appliances: After fixing your a/c, you can tackle small appliances like a toaster or blender. Find out how to fix them here.
- Thermostat Care: To ensure your a/c is functioning properly, it’s important to check the thermostat as well. Learn how to calibrate it here.
Maintaining Key Parts: Filter, Power Cord, Coils, Switch, Drain Ports, Motor, and Compressor
To prevent larger issues, it’s important to regularly service the filter, power cord, coils, switch, thermostat, drain ports, and fan. Below are tips for maintaining these crucial components.
Filter At the start of each cooling season and once a month throughout, remove the front grille and clean or replace the filter. If you reside in a particularly dusty area, consider cleaning or replacing the filter more often. Many room air conditioners have washable filters that resemble sponge rubber. Clean these filters with a mild detergent solution and water, then rinse thoroughly. Allow the filter to dry completely before reinstalling. Some units use disposable filters, like those in furnaces. When these filters get dirty, replace them with an identical new one.
Power Cord The power cord connecting the air conditioner to the wall outlet can become worn, leading to a failure in power supply. To test the cord, remove the control panel. Unscrew the terminals of the cord and connect a test wire to the exposed lead wires. Use a volt-ohm-milliammeter (VOM) set to the RX1 scale, attaching the clips to the prongs of the cord’s plug. If the meter reads zero, the cord is functional. If the reading exceeds zero, replace the cord.
Evaporator and Condenser Coils At the start of the cooling season and every month thereafter, clean the evaporator and condenser coils. If you live in a dusty environment, clean them more frequently. Use a vacuum cleaner to remove debris from these components. If the coils' fins are bent, straighten them using a fin comb, available at most appliance stores. A fin comb slides between the fins to fix any bends. Be cautious, as the fins are delicate and easily damaged since they are made of lightweight aluminum.
SwitchDrain PortsMotor and CompressorDiscover more insightful articles on home repairs by exploring the following links.- Repairing Central Air Conditioners: If your system cools every room in the house, then it’s central air. Learn how to maintain it for optimal performance.
- Repairing Major Appliances: If your air conditioner isn’t the only appliance malfunctioning, check out how to repair other machines in this article.
- Fixing Small Appliances: After addressing your a/c issues, repairing small appliances like toasters or blenders will feel like a breeze. Learn how to fix them here.
- Thermostat Maintenance: If you suspect an issue with your a/c, it’s worth checking the thermostat. Learn how to calibrate and test it here.
Testing and Replacing a Thermostat
Maintaining the thermostat on your home air-conditioning window unit is vital to keep the whole system working properly. It won't be a difficult or burdensome task if you folllow the guidelines mentioned below.
|
Thermostat The thermostat is located behind the control panel. Here’s the procedure to test or replace your thermostat:
Step 1: Begin by removing the grille and control panel from the unit. The thermostat features a specialized sensing bulb attached to it, which extends into the evaporator coil area. This component detects temperature, and it is regulated by the thermostat.
Step 2: Carefully detach the thermostat, ensuring that the sensing bulb stays in its exact position for reinstallation. To make the process easier, mark the location of the bulb before removing the thermostat.
Step 3: Test the thermostat using a VOM set to the RX1 scale. Attach the tester probes to the thermostat terminals, and set the temperature dial to the coldest setting. If the meter reads zero, the thermostat is functioning properly. If the reading is higher than zero, replace the thermostat with an identical model. If the thermostat is secured to the control panel or frame using screws, clips, or metal tabs, install the new thermostat in the same manner.
Note:Explore more home repair tips and guides by checking out the following links.- How to Fix Central Air Conditioners: If your system distributes cool air throughout the entire house, you likely have central air. Keep it running efficiently with these tips.
- Repairing Major Appliances: If your A/C isn't the only appliance in need of attention, you can discover how to repair other devices in this guide.
- Fixing Small Appliances: After mastering your A/C repair, tackling appliances like a toaster or blender will feel like a breeze. Learn how to repair them here.
- Maintaining Your Thermostat: To ensure the issue is with your A/C and not something else, it's a good idea to check your thermostat as well. Find out how to properly calibrate your thermostat.
How to Fix the Fan of a Room Air Conditioner
The fan, motor, and compressor require routine maintenance to keep your air-conditioning unit running at its most efficient. The following are some simple guidelines.
|
Fan When the fan in your air conditioner is malfunctioning, it's usually due to loose or dirty blades. If it's not running or making unusual noise, cleaning and tightening the blades is often the solution. Here's how to repair a room air conditioner's fan:
Step 1: Open the cabinet and locate the fan.
Step 2: Use a vacuum and soft cloth to clean any debris off the fan.
Step 3: Check if the fan blade is loose on the motor shaft. The blade is attached to the shaft with a setscrew at the hub of the blade. Tighten the setscrew using a screwdriver or Allen wrench. If your air conditioner has a round vent fan, you can tighten the fan on the motor shaft by inserting a long-blade screwdriver through a port in the fan. The fan is mounted with bolts, and vibration may loosen them. Tighten them with a wrench to secure the fan.
Step 4: If the fan has oil ports, apply several drops of 20-weight nondetergent motor oil (avoid using all-purpose oil) to each port at the start of the cooling season.
Step 5: If you suspect a malfunction with the fan motor, test it using a volt-ohm meter (VOM) set to RX1 scale. Disconnect the terminal wires from the terminals and attach the VOM probes to the wires.
If the meter reading falls between approximately 3 and 30 ohms, the motor is functioning properly. If the meter shows zero or an unusually high reading, the motor needs to be replaced.
