Installing a Home Intercom System: A Step-by-Step Guide

Key Points to Remember

A home intercom system offers more than just a simple way to call family members or answer the door. At an affordable price, you can set up a paging system with integrated music or improve your home security with a speaker by the front door, allowing you to speak with visitors before letting them in.

Setting up a home intercom system is a manageable task that requires basic carpentry skills and some straightforward wiring. Many modern systems use wireless, battery-powered modules to expand the system without the need for running wires through walls.

The heart of an intercom system is the master station, which houses the electronic components responsible for voice communication. If the system includes a music feature, the master station also typically contains a radio or cassette player.

Stations that allow you to listen and respond are referred to as slave, remote, or substations. These usually feature a speaker (which also acts as a microphone for responding) and a switch to toggle between 'listen' and 'talk' modes.

A standard installation includes a master station placed in a central location, several indoor substations, and an outdoor substation. The outdoor unit, often positioned at the front door, includes a doorbell or chime button.

In certain intercom setups, the master station controls all functions: turning the system on/off, activating the radio, and selecting which station to call. You can contact one substation at a time, or all of them simultaneously from the master station. The called station is the only one able to respond. Pressing the push-to-talk button temporarily mutes the radio during your conversation.

Advanced systems offer features such as the ability to communicate with or monitor any substation, initiate calls between substations or from a substation to the master station, ensure privacy at any substation without being overheard, and transmit music to any or all stations.

All components of a built-in intercom system, including the master station, are slim enough to be installed flush against the wall in spaces cut into the wall. The master station typically fits between wall studs, and the wiring can be concealed by routing it through the wall and along the underfloor joists.

Refer to the next section for an example of how to install a system with one master station and four substations. While this setup is suitable for a small home, the same installation principles can be easily adapted for use in larger buildings.

Guidelines for Installing a Home Intercom System

Although your setup may differ from the one described below, the following steps will guide you through most home intercom system installations.

Step 1: Start by examining the master station box or enclosure to determine the size of the opening required. Next, choose the spot for the master station. Manufacturers often provide a bracket or flange with mounting holes to install the master station in the wall.

After measuring the required size and shape for the master station and its mounting brackets, find the studs inside the wall. The hole should be cut between the studs. Pick a convenient height, such as five feet (60 inches), which works well for both shorter and taller individuals, and mark the outline of the hole for the master station on the wall.

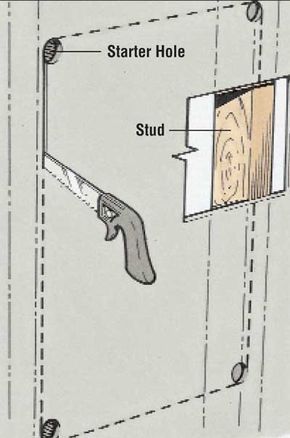

Drill 3/8-inch holes in the wall at the four corners of your marked outline. Then, use a keyhole or saber saw to cut the hole for the master station. Place the master station box into the hole to check for fit, and trim the edges of the hole if needed. Set the box aside until you complete the wiring installation.

Step 2: Cut similar holes in the walls at each location for the substations. Check the hole sizes, trim as needed, and set the substations aside until their wiring installation is complete.

Step 3: Review the wiring diagram. In a typical setup with a master station and substations, only the master station connects to the home’s electrical system. Multi-wire cable connects the substations to the master station. If your kit doesn’t include the required cable, or if you need additional wiring, you can purchase it separately from an electronics parts supplier. Request intercom cable with the necessary number of conductors, preferably with a protective jacket around the wires.

Step 4: Run a separate cable from each substation back to the master station. For a cleaner setup, route the wire from the substation down through the wall into the basement or crawl space, or up into the attic. Then pass the wire through holes in the joists and along them to the hole leading into the wall space for the master station. Since all the substation cables lead to the master station, you'll need a larger entry hole in the floor space beneath the master station. Guide each cable to the opening for the master station and label it according to the substation location. Using numbered pieces of pressure-sensitive tape is an easy way to label the wires.

Step 5: At each substation, connect the three wires to the substation's terminals, following the color code or other identification markings beside the terminal screws. Secure the substation unit to the wall—preferably to a wall stud—and attach the trim molding around the unit’s perimeter to cover the edges of the cut hole.

Caution: If the master station is connected directly to your home's electrical system, make sure to turn off the circuit before starting your work, and take precautions to ensure no one else turns it back on while you're working. If the system includes a transformer to power the master station, place it near a junction box or the main panel, and connect it to the electrical system (after de-energizing the circuit) following the manufacturer’s instructions.

Step 7: Connect all substation and power cables to the master station, ensuring you follow the terminal markings on the master station. Secure the master station into the wall, and attach it in place.

Secure the master station firmly to the wall studs and attach the trim molding. Once that's done, restore power to the circuit.

Step 8: Test the intercom system to ensure it operates properly. If any substation isn’t working, check the connections to the terminals and verify the wiring connections to the master station.

If you suspect a faulty substation unit, replace it with another to isolate the problem. This will help determine if the issue lies with the wiring or the unit itself, allowing you to make the necessary repairs. Note: For battery-powered substations, remember to replace the batteries periodically, marking the replacement date inside the cover or on the batteries.

Whether you want added security, music throughout your home, or a simple way to call everyone for dinner, a home intercom system is a great addition. Follow the steps in this article to install one today.
