The Mechanics Behind Invisibility Cloaks Explained

Let’s face it—owning an invisibility cloak would be a dream come true. Made a social blunder? Slip on your cloak and escape the judgmental stares. Curious about your boss’s true thoughts? Walk into their office unnoticed and find out firsthand.

These extraordinary garments are a staple in science fiction and fantasy realms. Characters like Harry Potter and Ron Weasley, as well as space explorers, often sport these elusive garments. But what about those of us living in the real world?

Good news for non-magical folks: Invisibility cloaks are no longer just fiction. Although the technology isn’t flawless and doesn’t offer complete invisibility, we’ll walk you through the current possibilities of this groundbreaking innovation.

The Mirage Effect

Let’s start by exploring the carbon nanotube invisibility cloak and delve into the fascinating phenomenon known as the mirage effect.

Understanding the Mirage Effect: Carbon Nanotubes

Most people associate mirages with stories of desert travelers who spot a distant oasis, only to realize it’s an illusion—no refreshing water, just endless scorching sand.

The intense heat of the sand plays a crucial role in creating the mirage effect, also known as photothermal deflection. The stark temperature contrast between the sand and air causes light rays to bend or refract. Instead of reflecting off the surface, the light is redirected upward toward the observer’s eyes.

In the classic desert mirage scenario, this phenomenon creates the illusion of a "puddle" of sky on the ground, which the thirsty brain mistakenly perceives as water. A similar effect can be observed on hot roads, where distant sections appear to shimmer with what looks like water.

Research and Future Possibilities

In 2011, scientists at the University of Texas at Dallas NanoTech Institute harnessed this effect using carbon nanotube sheets—cylindrical structures made of carbon [source: Aliev et al.]. These sheets, only a molecule thick yet as durable as steel, owe their strength to the tightly bonded carbon atoms. Their exceptional heat conductivity makes them perfect for creating mirage-like illusions.

During the experiment, the team electrically heated the sheets, transferring heat to the surrounding environment (a petri dish filled with water). This caused light to bend away from the nanotube sheet, rendering anything behind it invisible.

While a miniature, high-temperature thermal camouflage jacket submerged in water isn’t practical for everyday use, the experiment highlights the potential of such materials. Over time, this research could lead to not just invisibility cloaks but also other light-manipulating devices—complete with convenient on/off functionality.

The Concept of Metamaterials

Now, let’s explore an invisibility cloak crafted from metamaterials.

Harnessing Metamaterials to Manipulate Light Waves

Metamaterials present a more advanced approach to invisibility technology, eliminating the need for multiple projectors and cameras. Initially theorized by Russian physicist Victor Veselago in 1967, these microscopic, engineered structures are smaller than light wavelengths (a necessity for bending light) and possess unique electromagnetic properties that alter how objects interact with electromagnetic fields.

Refractivity and Its Role in Wave Interaction

All natural materials possess a positive refractive index, which determines how light waves behave when they encounter them. While chemical composition contributes to refractivity, the internal structure of a material plays a more significant role. By modifying a material’s structure at a microscopic level, we can alter how it refracts incoming waves—even shifting from positive to negative refraction.

Keep in mind that we perceive images through light waves and sounds through sound waves. By guiding these waves around an object, you can effectively conceal it from sight or hearing.

Picture a small stream. If you place a teabag filled with red dye into the flowing water, its presence would be noticeable downstream due to changes in the water’s color, taste, and smell. But what if you could redirect the water flow around the teabag?

The Science of Metamaterial Fabric and Energy Wave Manipulation

In 2006, David Smith from Duke University built upon a theory proposed by English physicist John Pendry, developing a metamaterial that could manipulate microwaves. Smith’s design featured concentric rings embedded with electronic microwave distorters. When activated, these rings redirected specific microwave frequencies around the material’s core.

While humans don’t perceive microwaves, this breakthrough showed that energy waves could be guided around objects. Picture a cloak that could deflect a spitball launched by a third grader, redirecting it around the wearer and allowing it to continue its path as if nothing had been in its way. Now, imagine applying the same principle to something larger—like a rock or even a bullet.

Smith’s metamaterials validated the concept. The key to achieving invisibility lies in adapting this technology to manipulate various types of waves.

Exploring the Microscopic Realm

Metamaterials are entirely man-made and do not exist in nature. To craft the intricate structures needed to bend electromagnetic waves, scientists rely on nanotechnology.

Metamaterials: Invisible Tanks

In 2007, Igor Smolyaninov and his team at the University of Maryland advanced invisibility research significantly. Building on theories by Purdue University’s Vladimir Shaleav, they developed a metamaterial that could bend visible light around objects.

Measuring just 10 micrometers wide, the Purdue cloak employs concentric gold rings illuminated with polarized cyan light. These rings guide light waves around the concealed object, rendering it invisible. Researchers at Wuhan University have extended this idea to sound waves, proposing an acoustic invisibility cloak that can divert sound around objects.

Currently, metamaterial invisibility cloaks have limitations. They are not only small but also restricted to two dimensions—far from what would be needed to disappear in a three-dimensional battlefield.

Additionally, the cloak would be too heavy for even the most robust wizard to carry. Consequently, this technology is more practical for concealing stationary structures or vehicles, such as tanks.

Optical Camouflage: Altered Reality

Ready to step into some classic optical camouflage attire?

This innovation leverages augmented-reality (AR) technology, a concept first developed in the 1960s by Ivan Sutherland and his students at Harvard University and the University of Utah.

Optical camouflage offers an experience akin to Harry Potter’s invisibility cloak, though it involves a more intricate setup. First, the individual wishing to become invisible (let’s call him Harry) wears a special garment resembling a hooded raincoat. This outfit is crafted from a unique material, which we’ll explore in detail shortly.

Next, an observer (let’s name him Professor Snape) positions himself in front of Harry at a specific spot. From this vantage point, instead of seeing Harry in a hooded raincoat, Snape sees through the cloak, making Harry appear completely invisible.

The image above depicts Snape’s view. If Snape were to move slightly and observe Harry from a different angle, he’d simply see the young wizard wearing a silver garment. This would likely result in scowls and detentions. Fortunately for Harry, his fictional cloak provides full 360-degree invisibility.

Comparing Augmented Reality and Virtual Reality

Augmented reality systems enhance a user’s sensory experience by overlaying computer-generated information. For instance, imagine walking through a city street. As you look around, additional details—like daily specials at a restaurant, movie showtimes, or bus schedules—pop up to enrich your view of the surroundings.

It’s crucial to recognize that augmented reality differs from virtual reality. While virtual reality seeks to replace the real world, augmented reality enhances it by adding useful, supplementary information. Imagine it as a heads-up display (HUD) integrated into daily life.

Key Elements of Optical Camouflage

Most augmented reality setups require users to view the real world through a specialized device that overlays digital graphics. They also rely on a high-performance computer. Optical camouflage shares these requirements but includes additional components. Here’s what’s needed to create the illusion of invisibility:

Optical Camouflage: Invisibility Cloak Components

Now that you have your video camera, computer, projector, combiner, and a remarkable reflective raincoat, how does augmented reality transform these items into a formula for invisibility?

The Role of Retro-Reflective Material

First, let’s examine the raincoat more closely: It’s constructed from retro-reflective material. This advanced fabric is embedded with countless tiny beads. When light hits one of these beads, the light rays bounce back precisely in the direction they originated from.

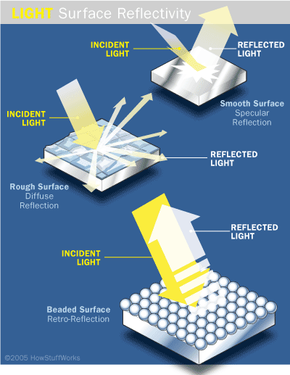

To grasp why this is special, consider how light interacts with other surfaces. A rough surface produces a diffused reflection, scattering incoming light rays in various directions. A perfectly smooth surface, like a mirror, creates a specular reflection, where the angle of incoming light matches the angle of reflected light.

Understanding Light Reflection and Retro-Reflection

In retro-reflection, the glass beads function like prisms, bending light rays through refraction. This ensures that the reflected light travels back along the same path as the incoming light. As a result, an observer positioned at the light source perceives a brighter reflection due to the increased intensity of reflected light.

Retro-reflective materials are widely used in everyday applications. Traffic signs, road markers, and bicycle reflectors utilize this technology to enhance visibility for nighttime drivers. Similarly, modern movie theater screens employ retro-reflective materials to achieve high brightness in low-light environments.

In optical camouflage, retro-reflective material is essential because it remains visible from a distance and performs well in bright sunlight—both critical factors for creating the illusion of invisibility.

For the remaining setup, the video camera must be placed behind the subject to record the background. The computer processes the captured image, adjusts the perspective, and converts it into the image that will be projected onto the retro-reflective material.

The Role of the Projector and Combiner

The projector then displays the adjusted image onto the garment by directing a light beam through an opening regulated by an iris diaphragm.

This diaphragm consists of thin, opaque plates, and rotating a ring alters the size of the central opening. For optical camouflage to function effectively, this opening must be as small as a pinhole. Why? This ensures a greater depth of field, allowing the cloak to be positioned at any distance from the projector.

Lastly, the system requires a specialized mirror to reflect the projected image onto the cloak while allowing light from the cloak to reach the viewer’s eyes. This mirror, known as a beam splitter or combiner, is half-silvered—reflecting light on one side and transmitting it on the other.

Combining Computer-Generated Imagery with Reality

When correctly positioned in front of the user’s eye, the combiner enables the user to see both the computer-enhanced image and the natural light from the surrounding environment.

This integration is crucial because the computer-generated image and the real-world view must blend seamlessly to create a convincing illusion of invisibility. The user views this augmented reality by looking through a small opening in the mirror.

Now, let’s assemble all these components to understand how the invisibility cloak creates the illusion of transparency. This diagram illustrates the standard setup of the devices and equipment involved.

When someone dons the cloak made of retro-reflective material, the following sequence occurs:

The wearer appears invisible because the background scene is projected onto the retro-reflective material. Simultaneously, light from the surrounding environment reaches the user’s eyes, creating the illusion of an invisible person in a normal-looking world.

Optical Camouflage: Real-world Invisibility Applications

The term "invisibility cloak" often conjures images of magical adventures, covert operations, and otherworldly trickery. However, the real-world applications of optical camouflage are far more grounded. While you can’t hide a Romulan starship or sneak into a wizard’s dormitory, the technology still offers numerous practical uses.

Practical Uses in Aviation and Automotive Industries

For example, pilots landing a plane could utilize this technology to make the cockpit floor transparent. This would allow them to view the runway and landing gear by simply looking down at the floor, which would display the external view of the aircraft.

Similarly, drivers could eliminate blind spots and mirrors by "seeing through" the rear of their vehicles. The technology also holds promise in the medical field, enabling surgeons to see through their hands and instruments for a clear view of the tissue beneath.

Exploring Mutual Telexistence

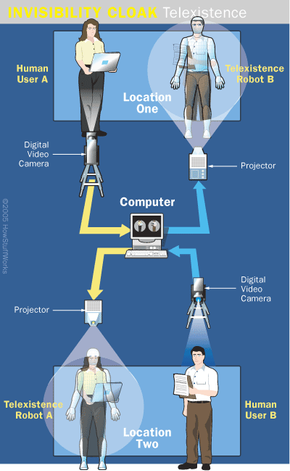

Interestingly, one potential application of this technology focuses on enhancing visibility rather than concealing objects. This concept, known as mutual telexistence, involves projecting a remote user’s image onto a robot covered in retro-reflective material.

For instance, if a surgeon were performing remote robotic surgery, mutual telexistence would give assisting doctors the impression they’re collaborating with a human rather than a machine.

The Rise of Pervasive Gaming

While mutual telexistence remains in the realm of science fiction, researchers are advancing the technology. Pervasive gaming, for example, is already taking shape. This form of gaming extends gameplay into the real world, whether on urban streets or in remote areas (e.g., Pokémon Go). Players use mobile devices to interact with their surroundings, while sensors gather data about their location and environment, creating a dynamic gaming experience that adapts to their actions and surroundings.
