The Mechanics of Wind Energy

Visualizing air as a fluid can be challenging due to its invisible nature. However, air behaves like any other fluid, with its particles existing in gaseous form. When wind blows, these particles move rapidly, creating kinetic energy. This energy can be harnessed, much like the energy from flowing water captured by turbines in hydroelectric dams. In wind-electric turbines, the blades are engineered to seize this kinetic energy. The process mirrors hydroelectric systems: as the blades capture wind energy and rotate, they spin a shaft connected to a generator. The generator converts this rotational energy into electricity. Essentially, wind power generation involves transferring energy from one medium to another.

Wind energy originates from the sun. When the sun heats a land area, the surrounding air absorbs some of this heat. As the temperature rises, the warmer air ascends rapidly because hot air is lighter than cooler air. Faster-moving air particles generate more pressure, requiring fewer particles to maintain normal air pressure at a given altitude (refer to How Hot Air Balloons Work for more on air temperature and pressure). As the hot air rises, cooler air rushes in to replace it, creating wind.

When an object, such as a rotor blade, is placed in the wind's path, the wind exerts force on it, transferring some of its kinetic energy to the blade. This process is how wind turbines harness energy from the wind. A similar principle applies to sailboats. As the wind pushes against the sail, it propels the boat forward, transferring its motion energy to the vessel.

In the following section, we'll explore the various components of a wind turbine.

Parts of a Wind Turbine

A basic wind-energy turbine is composed of three essential components:

• Rotor blades - These blades function like sails in the system; in their simplest form, they act as wind barriers (modern designs go beyond this basic approach). When the wind pushes the blades into motion, it transfers a portion of its energy to the rotor.

• Shaft - The shaft of a wind turbine is linked to the rotor's center. As the rotor turns, the shaft rotates in tandem. This mechanism allows the rotor to convey its mechanical, rotational energy to the shaft, which then feeds into an electrical generator.

• Generator - Fundamentally, a generator is a straightforward device. It leverages electromagnetic induction to create electrical voltage, which represents a difference in electrical charge. Voltage acts as electrical pressure, driving current from one point to another. Thus, generating voltage effectively produces current. A basic generator includes magnets and a conductor, typically a coiled wire. Inside the generator, the shaft connects to a set of permanent magnets surrounding the wire coil. Electromagnetic induction occurs when the conductor or magnets rotate relative to each other, inducing voltage in the conductor. As the rotor spins the shaft, the magnets rotate, generating voltage in the wire coil. This voltage produces electrical current (usually alternating current, or AC power), which is distributed through power lines. (Refer to How Electromagnets Work for more on electromagnetic induction and How Hydropower Plants Work for turbine-driven generators.)

Having examined a simplified system, we now turn to the advanced technology seen in today's wind farms and rural areas. While more intricate, the core principles remain unchanged.

Modern Wind-power Technology

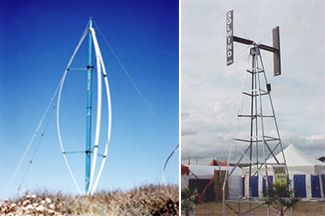

Modern wind turbines primarily come in two designs: horizontal-axis and vertical-axis. Vertical-axis wind turbines (VAWTs) are uncommon, with the Darrieus turbine being the only commercially available model, resembling an egg beater in appearance.

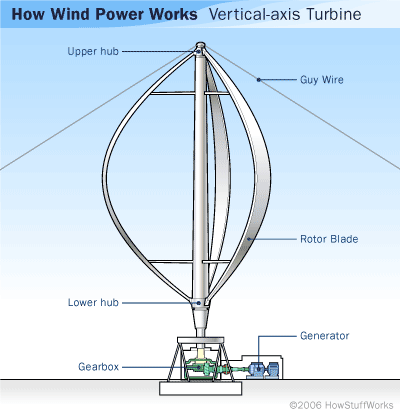

In a VAWT, the shaft is oriented vertically, perpendicular to the ground. Unlike horizontal-axis turbines, VAWTs are always aligned with the wind, eliminating the need for adjustments when wind direction shifts. However, VAWTs cannot start independently and require an electrical system to initiate motion. Instead of a tall tower, they rely on guy wires for support, resulting in a lower rotor elevation. This lower position exposes them to slower wind speeds due to ground interference, making VAWTs generally less efficient than HAWTs. On the positive side, all components are easily accessible at ground level, simplifying installation and maintenance. However, this design requires more ground space, which can be a disadvantage in agricultural areas.

While vertical-axis wind turbines (VAWTs) are suitable for small-scale energy generation and water pumping in rural settings, the majority of large-scale, commercially available wind turbines are of the horizontal-axis wind turbine (HAWT) type.

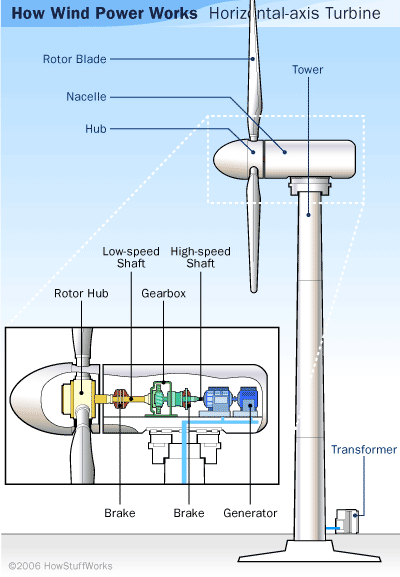

As the name suggests, horizontal-axis wind turbines (HAWTs) feature a shaft mounted parallel to the ground. These turbines require a yaw-adjustment system to continuously align with wind direction. This system, powered by electric motors and gearboxes, shifts the rotor slightly to the left or right. An electronic controller, guided by a wind vane, ensures the rotor is positioned to maximize energy capture. HAWTs are mounted on towers to elevate components to optimal heights for wind speed efficiency, with minimal ground footprint, as most parts are positioned up to 260 feet (80 meters) above the ground.

Key components of large HAWTs include:

• rotor blades - harness wind energy and convert it into rotational energy for the shaft
• shaft - transmits rotational energy to the generator
• nacelle - the enclosure housing the gearbox (which increases shaft speed between the rotor hub and generator), generator (converts rotational energy into electricity via electromagnetism), electronic control unit (monitors the system, shuts down the turbine during malfunctions, and manages the yaw mechanism), yaw controller (adjusts rotor alignment with wind direction), and brakes (halt shaft rotation during power overloads or system failures).
• tower - supports the rotor and nacelle, lifting the entire assembly to a height where blades can safely clear the ground
• electrical equipment - transports electricity from the generator down the tower and manages various safety features of the turbine

The entire process of generating electricity from wind energy and delivering it to consumers can be summarized as follows:

Turbine Aerodynamics

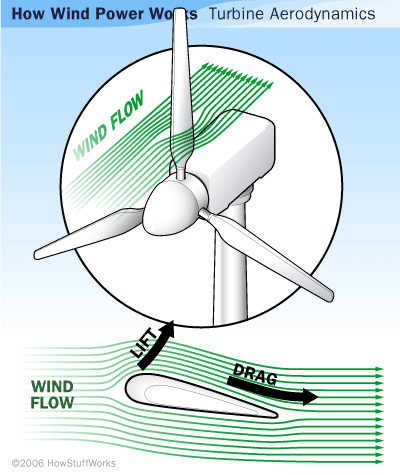

Modern wind turbines, unlike traditional Dutch windmills that relied on wind force to move the blades, utilize advanced aerodynamic principles to efficiently harness wind energy. The primary aerodynamic forces involved are lift, which acts perpendicular to wind flow, and drag, which acts parallel to wind flow.

Turbine blades are designed similarly to airplane wings, using an airfoil structure. One side of the blade is curved, while the other is flat. Lift, a complex phenomenon, can be simplified as follows: wind moving over the curved side travels faster, creating a low-pressure area that pulls the blade downwind, generating lift. On the flat side, slower-moving wind creates higher pressure, pushing against the blade. A high lift-to-drag ratio is crucial for efficient blade design, and blades are twisted to optimize this ratio. For more details, see How Airplanes Work.

Aerodynamics is just one factor in wind turbine design. Size is critical—longer blades and larger rotor diameters capture more energy, increasing electricity output. Doubling the rotor diameter can quadruple energy production. However, in low-wind areas, smaller rotors may outperform larger ones due to lower wind requirements for spinning the generator. Tower height also significantly impacts energy capture, as wind speeds increase with elevation. Scientists estimate a 12% wind speed increase with each doubling of height.

Calculating Power

To determine the power output of a turbine, you need the wind speed at the site and the turbine's power rating. Large turbines typically reach maximum power at wind speeds of 15 meters per second (33 mph). The rotor diameter plays a crucial role in energy generation, as larger diameters capture more wind. Additionally, taller towers, which accompany larger rotors, provide access to faster winds at higher elevations.

Most large turbines achieve their rated power capacity at 33 mph and shut down at 45 mph (20 meters per second). Turbines are equipped with safety mechanisms to deactivate during dangerous wind speeds. For example, some turbines use a vibration sensor with a metal ball on a chain; excessive vibrations cause the ball to fall, triggering a shutdown.

The most frequently used safety feature in turbines is the braking system, activated when wind speeds exceed safe limits. This system applies brakes during high winds and releases them once speeds drop below 45 mph. Modern turbines employ various braking mechanisms to ensure safety and efficiency.

• Pitch control - The turbine's electronic controller adjusts blade pitch to misalign with the wind when speeds exceed 45 mph, slowing rotation. This system requires adjustable blade angles.
• Passive stall control - Blades are fixed at a specific angle but designed to create turbulence and induce stall at high wind speeds, reducing lift and blade speed.
• Active stall control - Similar to pitch control, blades can be adjusted, but instead of misaligning with the wind, they are pitched to induce stall and reduce speed.

(For a clear explanation of lift and stall, refer to Petester's Basic Aerodynamics.)

Worldwide, over 50,000 wind turbines generate a combined total of 50 billion kilowatt-hours (kWh) each year. In the following section, we'll explore wind resource availability and the actual electricity output of wind turbines.

Wind-power Resources and Economics

Globally, wind turbines produce electricity equivalent to eight large nuclear power plants. This includes both utility-scale turbines and smaller units for homes or businesses, often paired with solar energy. A small 10-kW turbine can generate up to 16,000 kWh annually, enough to power a typical U.S. household, which consumes around 10,000 kWh per year.

A large wind turbine can produce up to 1.8 MW of electricity, or 5.2 million kWh yearly under optimal conditions, powering nearly 600 homes. While nuclear and coal plants generate cheaper electricity, wind energy is favored for being clean and renewable. Unlike coal, it doesn't emit harmful gases like CO2 or nitrogen oxides (see How Global Warming Works). Wind energy also offers energy independence, as it can be produced domestically without foreign reliance, and it provides electricity to remote areas beyond the central power grid.

However, wind turbines have drawbacks. They can't operate at full capacity consistently due to fluctuating wind speeds. Noise pollution can be an issue for those living near wind farms, and they pose risks to birds and bats. In desert regions, installing turbines may lead to land erosion. Additionally, wind's unpredictability necessitates backup power from non-renewable sources during low wind periods. Critics argue that using unclean energy to support wind power undermines its benefits, but the wind industry maintains that the minimal amount of backup energy required doesn't negate the advantages of wind power.

Wind Power Usage in the U.S.

Despite potential drawbacks, the U.S. has installed a significant number of wind turbines, with a generating capacity exceeding 9,000 MW in 2006. This capacity produces around 25 billion kWh of electricity annually, which, while substantial, accounts for less than 1% of the nation's total power generation. As of 2005, U.S. electricity generation was distributed as follows:

• Coal: 52%
• Nuclear: 20%
• Natural gas: 16%
• Hydropower: 7%
• Other (including wind, biomass, geothermal, and solar): 5%

Source: American Wind Energy Association

The United States generates approximately 3.6 trillion kWh of electricity annually. Wind energy has the potential to contribute significantly more than its current 1% share. According to the American Wind Energy Association, the U.S. wind-energy potential is estimated at 10.8 trillion kWh per year, equivalent to the energy in 20 billion barrels of oil. For wind energy to be viable, minimum wind speeds of 9 mph (3 meters per second) for small turbines and 13 mph (6 meters per second) for large turbines are required. These speeds are common across the U.S., though much of this resource remains untapped.

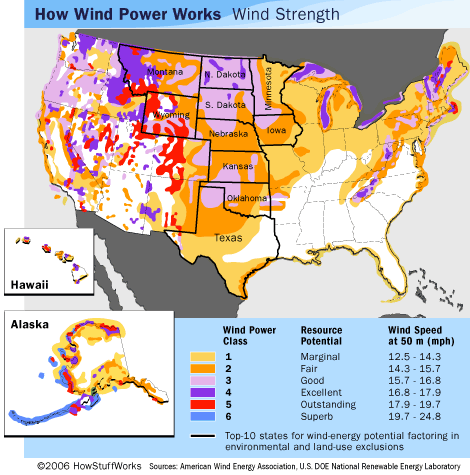

The success of wind turbines hinges on their location. Key factors include wind availability, speed, and duration. Wind's kinetic energy grows exponentially with speed, meaning even a slight increase in wind speed significantly boosts power potential. As a rule, doubling wind speed results in an eight-fold increase in energy output. For example, a turbine in a 26 mph wind area can theoretically produce eight times more electricity than one in a 13 mph zone. However, real-world efficiency is capped by the Betz limit, which restricts energy extraction to about 59% of the wind's total kinetic energy. Still, higher wind speeds lead to substantially greater power generation.

Wind Farms

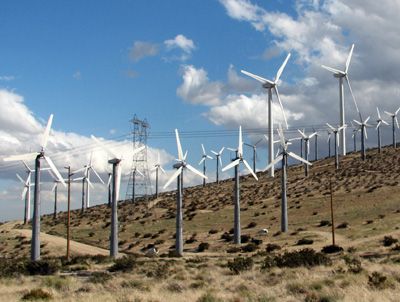

Efficiency in wind energy production, as in other power sectors, is achieved through scale. Large groups of turbines, known as wind farms or wind plants, represent the most cost-effective way to harness wind energy. Utility-scale turbines, typically ranging from 700 KW to 1.8 MW, are clustered to maximize electricity generation from available wind resources. These farms are often located in rural, high-wind areas, with horizontal-axis wind turbines (HAWTs) occupying minimal land, allowing agricultural activities to continue. Wind farm capacities vary from a few MW to several hundred MW. The Raheenleagh Wind Farm off Ireland's coast is the world's largest, with plans for 200 turbines, a total capacity of 520 MW, and a construction cost nearing $600 million.

Technological advancements and improved turbine designs have significantly reduced the cost of utility-scale wind power over the past two decades. In the early 1980s, wind energy cost around 30 cents per kWh. By 2006, this cost dropped to 3 to 5 cents per kWh in areas with abundant wind. Higher average wind speeds in a turbine's location further lower electricity costs. In the U.S., wind power typically costs between 4 and 10 cents per kWh.

Many energy providers offer "green pricing" programs, allowing customers to pay a premium for wind energy instead of relying on "system power," which includes both renewable and non-renewable sources. While customers near wind farms may directly use wind-generated electricity, most often, the premium supports wind energy development, with homes still drawing from the general power grid. In deregulated energy markets, consumers can purchase "green electricity" directly from renewable providers, ensuring their power comes from wind or other renewable sources.

Installing a small wind turbine system is an effective way to ensure your energy consumption is both clean and renewable. Residential or business turbine systems can range from $5,000 to $80,000, while large-scale setups are significantly more expensive. A single 1.8-MW turbine can cost up to $1.5 million, excluding land, transmission lines, and other infrastructure expenses. Wind farms typically cost around $1,000 per kW of capacity, meaning a farm with seven 1.8-MW turbines would total approximately $12.6 million. According to the American Wind Energy Association, the payback period for a large turbine—the time needed to generate enough electricity to offset its construction and installation energy—is between three and eight months.

Government Incentives

Government incentives for both large- and small-scale wind energy producers enhance the economic viability of wind-power systems. Some current incentive programs for renewable energy include:

• Production Tax Credit: Wind-power producers, typically businesses, receive 1.8 cents (as of Dec. 2005) per kWh of wind energy generated for wholesale distribution during the first 10 years of operation.
• Net metering: Individuals and businesses generating renewable energy earn credits for excess electricity produced. When their system generates more power than needed, the surplus is sent to the grid, and their meter runs backward, offsetting future energy costs. (This setup is less favored by large energy companies, as they pay retail prices for excess power instead of wholesale rates.)
• Renewable-energy credits: In states with renewable-energy quotas, individuals with turbines earn tradable credits for each megawatt-hour of renewable energy produced annually. These credits can be sold to conventional energy companies needing to meet state or federal renewable-energy requirements.
• Installation tax credits: Federal and state governments offer tax credits for renewable-energy system installation. For example, Maryland provides a 25% credit for businesses or landlords meeting specific green criteria when installing wind turbines.

Although wind energy still benefits from government subsidies, it has become a competitive and viable power source. According to the Battelle Pacific Northwest Laboratory, a U.S. Department of Energy facility, wind power could supply 20% of the nation's electricity based on available wind resources. The American Wind Energy Association suggests this figure could theoretically reach 100%. However, the U.S. is unlikely to achieve these levels soon. By 2020, wind is projected to provide 6% of the country's electricity. While the U.S. has one of the largest installed wind-power capacities globally in terms of wattage, it trails other developed nations in percentage terms. The U.K. aims for 10% wind power by 2010, Germany currently generates 8% from wind, Spain reaches 6%, and Denmark, a global leader in clean energy, derives over 20% of its electricity from wind.
