The Mechanism Behind Faraday Cages

Electricity powers countless facets of our daily lives. Without voltage and current, many of our technological advancements would come to a halt. Even our biological systems rely on electrical impulses to function properly. However, the same force that sustains can also destroy.

While electricity is essential for modern life, it must be carefully regulated. Excessive electrical energy can be deadly to humans and equally devastating to electronic devices and machinery.

Thanks to Michael Faraday, the renowned 19th-century scientist, and his groundbreaking invention, the Faraday cage, humanity has devised numerous methods to harness electricity safely. This innovation protects not only our computers, vehicles, and other technologies but also ourselves.

Faraday cages protect their interiors from electromagnetic interference. When an electromagnetic field encounters a conductive material, the charges accumulate on the surface instead of penetrating inside. These cages can take various forms, from simple chain-link fences to intricate metallic meshes.

Electromagnetic radiation surrounds us constantly. It’s present in visible and ultraviolet light, the microwaves that heat our meals, and even the FM and AM radio waves that deliver music to our radios. However, this radiation can sometimes be harmful or disruptive, which is why Faraday cages are essential.

A Faraday cage works by dispersing electrical charges or radiation across its outer surface, effectively neutralizing them inside the cage. Essentially, it’s a hollow conductor where the charge remains confined to the exterior.

This fundamental principle has countless applications in our technology-driven world. While Faraday’s invention gained prominence in his era, its origins trace back to earlier scientific discoveries. So, what inspired the creation of these incredibly useful cages?

Benjamin Franklin and Michael Faraday

While the Faraday cage bears Michael Faraday's name, Benjamin Franklin played a significant role in inspiring its foundational concepts. Franklin, known for his daring experiments with kites during thunderstorms, had already explored the principles of electricity.

In 1755, Franklin experimented with electricity in innovative ways. He charged a silver pint can and used a non-conductive silk thread to lower an uncharged cork ball into it. When the cork touched the can's interior, it showed no attraction or charge, unlike what would happen on the exterior. Franklin described this phenomenon as "singular" in a letter to a colleague.

Franklin was puzzled by the behavior of electricity and its interaction with charged and uncharged objects, openly admitting his confusion: "You seek an explanation; I don’t have one. Perhaps you’ll uncover it, and I hope you’ll share your findings with me."

Years later, Michael Faraday, an English physicist and chemist, made critical discoveries. He observed that when an electrical conductor, such as a metal cage, is charged, the charge only appears on its surface, leaving the interior unaffected.

Faraday confirmed this observation by covering a room with metal foil and charging it using an electrostatic generator. He placed an electroscope inside the room, which, as expected, detected no internal charge. The charge remained on the foil’s surface, unable to penetrate the room.

Faraday expanded on this discovery with his renowned ice pail experiment. By lowering a charged brass ball into a metal container, he replicated Franklin’s findings, achieving identical results.

This principle has numerous practical uses, one of which is crucial for air travel. When lightning strikes an airplane, the aluminum fuselage acts as a Faraday cage, allowing the lightning charge to flow over the exterior without harming the passengers or equipment inside.

It’s not surprising—it’s simply science. But how exactly does this ingenious cage design function?

What Does a Faraday Cage Do?

To grasp how Faraday cages function, a basic knowledge of electricity in conductors is essential. Here’s how it works: Metals, such as aluminum mesh, are conductors containing electrons (negatively charged particles) that move freely. In the absence of an electrical charge, the conductor maintains a balance of positive and negative particles.

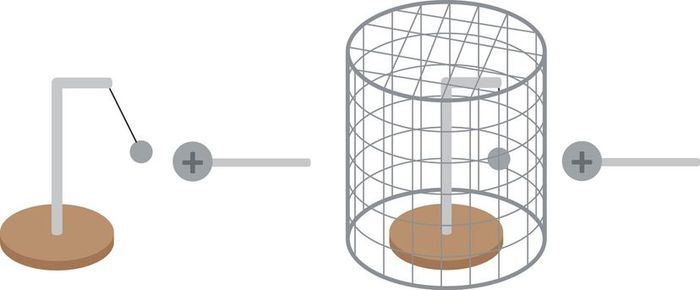

When an electrically charged object nears the conductor, the positive and negative particles within it separate. Electrons with a charge opposite to the external object are attracted to it, while those with the same charge are repelled. This movement of charges is known as electrostatic induction.

With the external charged object nearby, the positive and negative particles align on opposite sides of the conductor. This creates an opposing electric field that neutralizes the external charge’s field within the conductor. As a result, the net electric charge inside the aluminum mesh becomes zero.

The key takeaway is this: While there’s no charge inside the conductor, the opposing electric field plays a crucial role—it protects the interior from external static electric charges and electromagnetic radiation, such as radio waves and microwaves. This is the core benefit of Faraday cages.

The shielding effectiveness depends on the cage’s design. Factors like the conductivity of materials such as copper or aluminum, as well as the size of the mesh holes, influence its performance. These variables can be tailored to block specific frequencies and wavelengths of electromagnetic radiation.

Faraday cages are also known by other terms, including Faraday shields, RF (radio frequency) cages, or EMF (electromotive force) cages.

Regardless of their name, Faraday cages are predominantly utilized in scientific laboratories, whether for experiments or product development.

Modern Uses for Faraday Cages

Faraday cages serve a variety of purposes, from specialized lab applications to everyday products. For instance, your car essentially functions as a Faraday cage. This effect, not the rubber tires, safeguards you during a nearby lightning strike.

Many buildings unintentionally act as Faraday cages. Their walls, made of plaster or concrete reinforced with metal rebar or wire mesh, often disrupt wireless internet networks and cellphone signals.

The shielding effect often serves humanity in beneficial ways. Microwave ovens, for instance, confine waves within a cage to cook food quickly. Similarly, shielded TV cables enhance picture quality by minimizing interference.

Utility workers frequently wear specialized suits designed using the Faraday cage principle. These suits allow them to safely work on high-voltage power lines, significantly reducing the risk of electric shock.

Governments use Faraday cages to safeguard critical telecommunications infrastructure from lightning and electromagnetic interference. Additionally, research labs at universities and corporations utilize advanced Faraday cages to eliminate external electric charges and radiation, creating a neutral environment for experiments and product development.

Cutting-edge Cages

Hospitals utilize Faraday cages in MRI (magnetic resonance imaging) rooms. MRI technology relies on strong magnetic fields to produce detailed body scans, and these rooms must be shielded to prevent external electromagnetic interference from distorting the images.

Faraday cages also have significant political and military applications. Politicians often hold confidential discussions in shielded rooms designed to block eavesdropping devices. Modern militaries depend on electronics for communication and weaponry, but these systems are at risk from EMPs (electromagnetic pulses), whether caused by solar storms or human-made attacks. To protect vital systems, militaries employ shielded bunkers and vehicles.

This is why Faraday cages are popular among survivalists. Advocating self-reliance and skepticism of government aid during disasters, survivalists use homemade Faraday cages to shield essential electronics. In the event of an apocalyptic event, they aim to preserve shortwave radios and other devices that could prove crucial for survival.

Even if you’re not preoccupied with apocalyptic scenarios, Faraday cages likely impact your daily life. By leveraging fundamental physics principles, these cages enable people worldwide to apply them for safety, comfort, convenience, and to drive groundbreaking technological progress.
