The Science Behind Regenerative Braking

­

Each time you press your car's brakes, energy is lost. Physics teaches us that energy cannot be destroyed. As your car decelerates, the kinetic energy that was driving it forward must go somewhere. Most of this energy turns into heat and is wasted. This energy, which could have been harnessed for useful work, is essentially squandered.

Is there a way for drivers to prevent wasting energy when braking? Not really. In most vehicles, braking inevitably results in energy loss, as there's no way to avoid using the brakes occasionally. However, automotive engineers have given considerable thought to this challenge and developed a braking system that recaptures much of the car's kinetic energy, converting it into electricity to recharge the car's batteries. This system is known as regenerative braking.

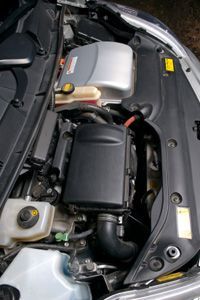

Currently, regenerative brakes are mainly used in hybrid vehicles such as the Toyota Prius and fully electric cars like the Tesla Roadster, where maintaining battery charge is crucial. However, this technology was first implemented in trolley cars and has since expanded to other applications, including electric bicycles and even Formula One race cars.

In a conventional braking system, brake pads generate friction with the brake rotors to slow or stop the vehicle. Additional friction occurs between the slowing wheels and the road surface, converting the car's kinetic energy into heat. Regenerative brakes, however, involve the vehicle's drive system in most of the braking process. When the driver applies the brake pedal in an electric or hybrid vehicle, the brakes reverse the electric motor, causing it to run backward and slow the car's wheels. This reversal of the motor also turns it into an electric generator, producing electricity that is sent to recharge the vehicle's batteries. These brakes are more effective at certain speeds, particularly in stop-and-go driving. However, hybrid and electric cars still rely on traditional friction brakes as a backup in situations where regenerative braking is insufficient. In such cases, drivers should be aware that the brake pedal might feel different, sometimes pressing closer to the floor, which can momentarily startle drivers.

In the upcoming sections, we will explore the inner workings of a regenerative braking system in greater detail and explain why regenerative braking is more efficient than conventional friction brakes.

Regenerative Braking Circuits

Regenerative braking is employed in vehicles powered by electric motors, particularly in fully electric and hybrid vehicles. One fascinating aspect of electric motors is that when they rotate in one direction, they convert electrical energy into mechanical energy for work (such as driving the car's wheels). However, when the motor spins in the opposite direction, a well-designed motor turns into an electric generator, converting mechanical energy back into electrical energy. This electricity can then be routed to recharge the vehicle's batteries.

In a regenerative braking system, the key to reversing the motor lies in using the vehicle's momentum as the mechanical energy that flips the motor's direction. Momentum is the force that keeps the car moving forward after it has gained speed. Once reversed, the motor generates electricity that is sent back to the batteries, where it can be stored for later use to accelerate the car again after stopping. Advanced electronic circuits determine when the motor should reverse, and other specialized systems direct the electricity produced by the motor into the vehicle’s batteries. In some setups, the generated energy is stored in capacitors for later use. Additionally, since vehicles with regenerative braking also have traditional friction brakes, the vehicle's electronics must decide which braking system to use depending on the situation. Thanks to the electronic control of these systems, drivers can even select presets to adjust how the vehicle reacts in different scenarios. For example, some vehicles allow the driver to choose if regenerative braking starts as soon as the foot leaves the accelerator, and whether the system will bring the car to a full stop or allow it to coast slightly.

The automotive industry is increasingly moving towards brake-by-wire systems, where many functions traditionally handled mechanically will be performed electronically. Hybrid and electric vehicles are likely to be the first to adopt these brake types. Currently, various automotive engineers have developed different circuit designs to manage the intricacies of regenerative braking. However, in all cases, the most critical component in the braking circuitry is the braking controller, which we will explore in the following section.

Regenerative Braking Controllers

­

Brake controllers are electronic systems that can manage brakes remotely, determining when to initiate or stop braking and how quickly the brakes should be applied. In situations like towing, brake controllers can help synchronize the braking of a trailer with that of the towing vehicle.

Regenerative braking works alongside anti-lock braking systems (ABS), meaning the regenerative braking controller operates similarly to an ABS controller, which monitors the speed of the wheels and any variations in that speed across the wheels.

In vehicles equipped with regenerative braking, the brake controller tracks wheel speed and calculates the available torque — the rotational force — that can be used to generate electricity, which is then directed back into the vehicle's batteries. During braking, the controller ensures the electricity produced by the motor is efficiently fed into the batteries or capacitors. It balances the power delivered to the batteries while preventing an overload that could damage them.

One of the most crucial tasks of the brake controller is to assess whether the motor can handle the force required to stop the vehicle. If it cannot, the brake controller switches the task to the friction brakes, preventing potential problems. In vehicles that use regenerative braking, as with many other electronic systems in hybrid or electric cars, the brake controller plays a pivotal role in making the entire regenerative braking process work.

Hybrid Regenerative Braking

­

How does a hybrid vehicle differ from a fully electric one? Hybrid electric vehicles use both an electric motor and an internal combustion engine to offer a balanced driving experience. They bring together the extended range of a combustion engine with the fuel efficiency and zero-emission benefits of an electric motor. To achieve the best fuel efficiency and minimize carbon emissions, it's crucial that the battery stays charged. If the battery drains, the internal combustion engine takes over completely, and the vehicle transitions from being a hybrid to a conventional fossil fuel-powered car.

Automotive engineers have developed various strategies to maximize hybrid efficiency, such as streamlining the vehicle's aerodynamics and using lightweight materials. However, one of the most vital innovations is regenerative braking. In hybrid vehicles, these brakes only recharge the electric motor portion of the drivetrain via the vehicle’s battery. The internal combustion engine does not benefit from this energy recovery system.

The internal combustion engine does not benefit from regenerative braking systems.

Part of the reason these efficiencies are necessary is the challenge of finding convenient places to recharge a hybrid. This makes longer trips more difficult without relying on the internal combustion engine, which essentially negates some of the benefits of owning a hybrid vehicle.

Next, we'll explore a new approach to regenerative braking technology.

Hydraulic Regenerative Braking

­

A different type of regenerative braking system is being developed by Ford and Eaton, known as Hydraulic Power Assist (HPA). In this system, when the driver applies the brake, the vehicle’s kinetic energy powers a reversible pump that moves hydraulic fluid from a low-pressure storage tank into a high-pressure accumulator. Nitrogen gas inside the accumulator is compressed as the fluid fills the space once occupied by the gas, slowing the vehicle. The pressurized fluid is stored until the driver presses the accelerator again, at which point the pump reverses and uses the fluid to help the vehicle accelerate. This system could potentially store up to 80 percent of the energy lost during braking, significantly outperforming current regenerative braking systems. HPA systems are particularly beneficial for city driving, where frequent stops are common [source: HybridCars.com].

Currently, HPA systems are mostly experimental and used in demonstration projects. They are not yet ready for production, as the hydraulic systems are noisy and prone to leaks. However, once refined, these systems will likely be most useful in large trucks, weighing over 10,000 pounds (4,536 kilograms), where they could be a more effective solution than the electronic regenerative braking systems currently used.

In the future, this technology could be adapted for smaller vehicles. For example, Hybrid-Drive Systems, LLC, in Michigan, retrofitted a 1968 Volkswagen Beetle with a hydraulic regenerative braking system. However, due to the space requirements of the accumulators, the focus for future development is on larger vehicles, such as vans. Meanwhile, the EPA has teamed up with Eaton Corporation to install hydraulic regenerative braking systems in UPS delivery trucks.

Regenerative Braking Efficiency

­

A traditional car's energy efficiency is only about 20%, with the other 80% lost as heat due to friction. What makes regenerative braking so remarkable is its ability to recover up to half of that wasted energy and send it back into use. This could result in a reduction of fuel consumption by 10 to 25%. Hydraulic regenerative braking systems could offer even greater benefits, with potential fuel savings of 25 to 45% [source: HybridCars.com].

In a world where fossil fuel reserves are dwindling, and concerns about carbon emissions are at an all-time high, this enhanced efficiency is becoming more critical than ever.

The 21st century could mark the end of the era where internal combustion engines are the standard in cars. Automakers are already shifting towards alternative energy sources,

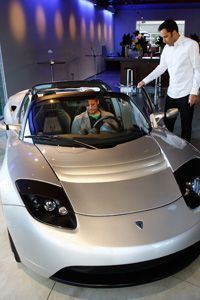

such as electric batteries, hydrogen fuel, and even compressed air. Regenerative braking plays a small but crucial role in our move away from fossil fuels. This technology allows vehicles to use their batteries for longer periods without needing an external charge. It also increases the driving range of fully electric vehicles. Thanks to such technology, we have cars like the Tesla Roadster, which runs solely on battery power. While they may still rely on fossil fuels during recharging—if the electricity comes from coal or similar sources—these vehicles can operate on the road without using fossil fuels, which is a significant step forward.

Regenerative braking boosts efficiency, which also reduces fuel costs, as hybrids with electric motors and regenerative brakes can travel much farther on a gallon of gas, with some achieving over 50 miles per gallon. This is something that most drivers can truly appreciate.

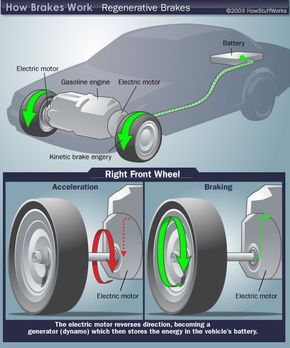

Regenerative Braking Diagram

This simple diagram illustrates how a regenerative braking system can capture a vehicle's kinetic energy and transform it into electricity, which is then used to recharge the vehicle's batteries.
