The Water Frame: A Landmark Innovation in Textile Manufacturing during the Industrial Revolution

The invention of the water frame sent shockwaves through the textile industry during the Industrial Revolution, revolutionizing the spinning process and yarn production. Its legacy is still felt today as modern textile technology continues to evolve based on the principles laid out by this groundbreaking creation.

From state-of-the-art spinning machines to computer-driven looms, the contemporary textile industry is a testament to the ongoing quest for greater efficiency, productivity, and innovation. The water frame laid the foundation for the remarkable advancements in textile manufacturing that we see today.

What Was the Water Frame?

The water frame, or spinning frame, is a water-powered mechanical spinning machine that brought about a dramatic transformation in the textile industry during the Industrial Revolution. Its main role was to automate the spinning of cotton fibers into yarn. In contrast to traditional spinning wheels that relied on manual labor, the water frame introduced mechanized spinning, boosting both productivity and efficiency.

The water frame's key element was a vertical structure with numerous spindles, each capable of spinning multiple threads simultaneously. By harnessing water power through a system of belts, pulleys, and gears, the machine converted rotational energy into the spinning motion of the spindles. This enabled the swift and consistent production of fine yarn at speeds far surpassing what could be achieved by hand labor.

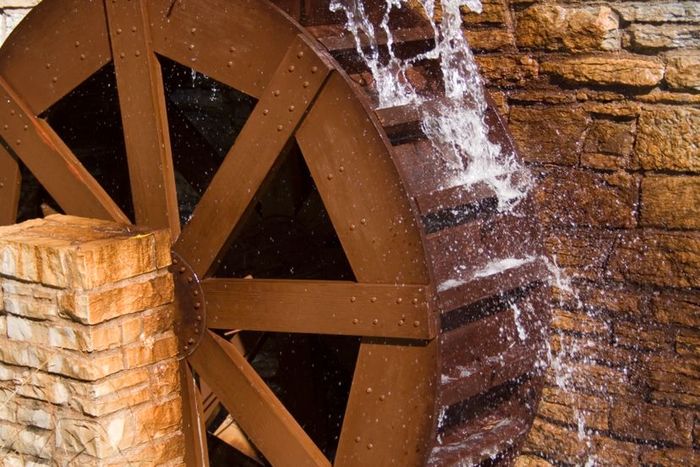

The water wheel utilized the energy from flowing or falling water to create mechanical power, which was then transmitted to operate various machines. It served as a mediator between the natural power of water and the mechanical systems of industry, enabling water to power a variety of industrial processes.

Imagine the water wheel as a conduit between the force of flowing or falling water and the machines it powers, much like a link that channels energy from a waterfall to turn a large wheel, thus generating power for different industrial machines.

Who Invented the Water Frame?

Richard Arkwright, an English engineer, invented the water frame in the late 18th century. A self-taught inventor with a passion for machinery and textiles, he conceived the revolutionary idea for the water frame while working as a wig maker. By observing the technique of using horsehair for wigs, he saw a way to adapt a similar process to spin cotton fibers into yarn.

Arkwright's first successful prototype was a spinning machine powered by a water wheel, which he patented in 1769. It featured multiple spindles that could spin several threads at once, significantly increasing productivity compared to traditional hand-spinning techniques.

This invention laid the groundwork for the water frame, an enhanced version that proved even more efficient and was widely embraced by the textile industry.

Arkwright's pioneering use of water power and his skill in designing and improving spinning machinery marked a major milestone in the evolution of textile technology.

How the Water Frame Works

A water wheel or turbine was linked to a network of belts, pulleys, and gears to run the water frame. As water from the river flowed onto the wheel or turbine, it generated rotational energy. This energy was transferred through the system to power the spinning process.

The spindles in the water frame were positioned vertically and capable of holding multiple bobbins, resembling a Ferris wheel with baskets. Each bobbin contained a length of roving, made of cotton fibers that had been carded and drawn. As the water frame turned, the spindles rotated quickly, twisting the cotton fibers into fine, smooth yarn. This method, spinning multiple threads at once, was far more efficient than traditional manual spinning techniques.

Significance and Influence

Richard Arkwright's water frame revolutionized the textile industry through its mechanized spinning process. Its impact was profound, transforming manufacturing techniques and setting the stage for major advancements in the production of cotton yarn.

Centralization of Production

The water frame laid the foundation for the centralization of textile manufacturing in factories, which facilitated economies of scale and brought together resources in a single location.

Uninterrupted Production and Enhanced Output

The mechanized spinning process, which allowed for the steady and rapid production of cotton yarn, transformed the textile industry by enabling round-the-clock production, far surpassing the limitations of manual labor. The water frame operated continuously, even beyond daylight hours, significantly boosting output and fueling industry expansion.

Economic Influence

The innovation boosted productivity and efficiency, fueling the growth of the textile industry, opening up broader markets for cotton products, and driving further technological breakthroughs.

Automated Spinning

The water frame revolutionized the spinning process by automating the labor-intensive task, enhancing the speed, efficiency, and uniformity of yarn production.

Shift to Factory System

The water-driven spinning machine was instrumental in the rise of the factory system, helping transition from small-scale, home-based industries to large, centralized factories.

Harnessing Water Power

The water frame utilized the force of water through waterwheels or turbines, enabling textile mills to be built near rivers and streams for easy access to energy.
