Understanding How Israel's Iron Dome Defense System Operates

When Israel introduced its Iron Dome missile defense system in 2011, it was an advanced, cutting-edge piece of technology that could snatch incoming short-range rockets from the sky before they could reach their targets.

Though the Iron Dome is no longer the only top-tier missile defense system globally—America has larger systems like THAAD and Patriot, and Israel has David's Sling—it's still one of the most effective, most-tested, and widely used systems, especially against short-range threats. It's arguably the most successful missile defense system ever.

The recent surge in violence between Israel and Palestine, where Hamas launched thousands of short-range rockets at Israeli positions starting May 10, 2021, has highlighted just how essential the Iron Dome defense system is.

How the Iron Dome Functions

The Iron Dome system is built by American defense company Raytheon, in collaboration with the Israeli defense contractor Rafael Advanced Defense Systems. Here's how Raytheon describes the technology:

Here's how Rafael describes it:

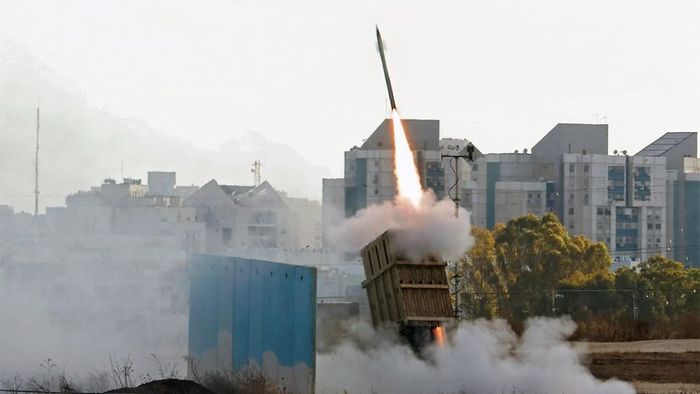

Iron Dome is composed of three primary components. A high-tech radar that spots approaching dangers. A control system crafted by the Israeli company mPrest which processes the radar data, swiftly evaluates it, and determines the next course of action. Lastly, mobile "firing units" equipped with 20 Tamir missiles each, capable of neutralizing incoming threats. Israel deploys numerous batteries of these systems, covering areas of about 60 square miles (155 square kilometers), with each system reportedly priced at $10 million.

The remarkable effectiveness of the Iron Dome lies in its ability to rapidly distinguish between actual threats (such as a rocket targeting a city center, military installation, or a troop assembly) and non-threats (like a group of birds or a rocket that poses no risk), then deploy Tamir interceptor missiles when necessary.

According to Raytheon, the Iron Dome is engineered to identify threats from a distance ranging from 2.5 to 4 miles (4 to 70 kilometers). It operates efficiently even when Hamas launches multiple rockets simultaneously, alongside mortars, other types of artillery, and even drones.

Command and Control

"Arguably, one of the most remarkable aspects of this system is its command and control," says Ian Williams, a fellow in the International Security Program at the Washington-based think tank Center for Strategic & International Studies, and the deputy director of CSIS's Missile Defense Project. "These rockets move extremely fast. The engagement time, when control needs to be established, is very brief. We're talking seconds to minutes. And, importantly, these rockets don't come in just a few at a time. They arrive in groups of 10, 20, 30, or more."

The Tamir rockets, traveling at subsonic speeds (a few hundred miles per hour), aren't controlled by human hands. Instead, they're equipped with a range of onboard sensors, such as GPS and electro-optical sensors, plus steering fins to adjust their paths as they track down their targets. Their "fuze blast warheads" explode near the incoming threats (not necessarily on impact), neutralizing them in the air. "The goal is to detonate the warhead," Williams explains. "It doesn't entirely destroy the rocket but disables it."

While the process isn't always flawless, as fragments from the explosions occasionally cause damage when falling back to Earth, Iron Dome's performance is impressive. Rafael boasts a success rate exceeding 90 percent.

Limitations of the Iron Dome

Although the Iron Dome is effective against many incoming threats, it is not designed to intercept more advanced weapons such as ballistic missiles. These are faster, larger, and follow different flight patterns that the system cannot address.

Despite the Iron Dome's impressive success in intercepting rockets, the threat persists as long as nations like Iran continue to supply Israel's adversaries with weapons. This ongoing issue poses a significant challenge to resolving the long-standing conflict.

Hamas, labeled a terrorist organization by numerous countries, including the United States, may find a long-term strategic benefit in sustaining its rocket attacks despite the Iron Dome's defenses. Even though the rockets are not extremely powerful and only about 10% get through, this still means that Israel faces dozens, if not hundreds, of potential threats over an extended period.

"The impact accumulates," Williams explains. "It's the sheer volume of attacks that raises concern, as well as the widespread destruction of life. But more than that, it's the psychological toll it takes."

"When you read the statements and propaganda from Hamas and some Iranian sources, they'll boast about the effect. They'll claim, 'We forced 3 million Israelis to flee to bomb shelters.' It's that kind of psychological impact that they aim for."

Despite its limitations, the Iron Dome undeniably fulfills its primary function of intercepting and neutralizing short-range missile threats effectively.
