Understanding How Patriot Missiles Operate

The MIM-104 Patriot (Phased Array Tracking Radar to Intercept On Target) missile system serves as the primary air and missile defense tool for the U.S. Army. Originally created for anti-aircraft purposes, the latest models are capable of detecting, targeting, and tracking ballistic missiles, cruise missiles, and aircraft.

The development of the Patriot missile system began in the 1960s, aiming to replace both the Nike Hercules and Hawk air defense systems. Initially named Surface-to-Air Missile, Development (SAM-D), the first tests took place in 1969 and 1970.

In the 1970s, the Department of Defense enhanced the SAM-D system by incorporating a Track-Via-Missile (TVM) guidance system. This improved version was renamed Patriot and began full production in 1980. The first Patriot missile battalion was activated by the Army in May 1982.

As stated by Raytheon Missiles and Defense, the company responsible for designing and manufacturing the Patriot system, this missile defense technology has been deployed by five countries in over 250 combat missions since its introduction in 1982. Additionally, Raytheon has produced and delivered more than 240 Patriot systems to 17 nations.

Patriot missiles are launched from ground-based missile batteries. A typical Patriot missile battery consists of five key components:

In the subsequent sections, we will explore each component of the system individually and then explain how the entire system functions together.

The Patriot Missile Defense System

Similar to the Stinger missile, the Patriot is a guided missile, although it is more advanced. The Stinger locks onto the infrared signature of an aircraft's engine exhaust. It is a man-portable system, where the user aims and fires the missile from their shoulder.

In contrast, the Patriot missile employs ground-based radar to monitor, track, and engage its targets. A missile can be detected from as far as 50 miles (80.5 kilometers), and the system's radar can lock onto it even though it would be invisible from the ground and difficult to identify at that range.

The Patriot missile has undergone several important upgrades since its initial design, including:

Since its initial deployment in Operation Iraqi Freedom, the PAC-3 missile has received additional enhancements. The PAC-3 Missile Segment Enhancement (MSE) includes a larger motor, nearly doubling the missile's range. The U.S. Army fully approved this upgrade in 2018.

The Patriot system currently supports both the PAC-2 and PAC-3 missiles.

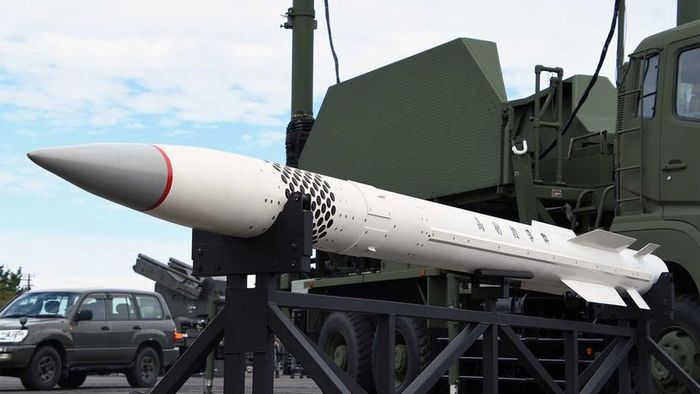

PAC-2 Missile Specifications

The PAC-2 missile flies directly toward the incoming threat and detonates at the point of closest approach. The explosion can either destroy the missile with fragments from the fragmentation bomb or deflect the incoming missile off course, causing it to miss its target.

PAC-3 Missile Specifications

While the PAC-3 missile shares the same length as the PAC-2, it is significantly lighter, weighing only one-third of the PAC-2’s mass. This smaller size allows 16 PAC-3 missiles to be loaded onto a launcher, whereas only four PAC-2 missiles can fit on the same launcher.

When a PAC-3 missile is deployed, it directly impacts the incoming target and detonates, ensuring complete destruction of the enemy missile. This characteristic makes it particularly effective against chemical and biological warheads, as they are neutralized well before reaching their intended target.

The primary distinction between the PAC-2 and PAC-3 — and what enables the PAC-3 to successfully strike its target — lies in the PAC-3's integrated radar transmitter and guidance system.

The Patriot Missile Launcher and Associated Systems

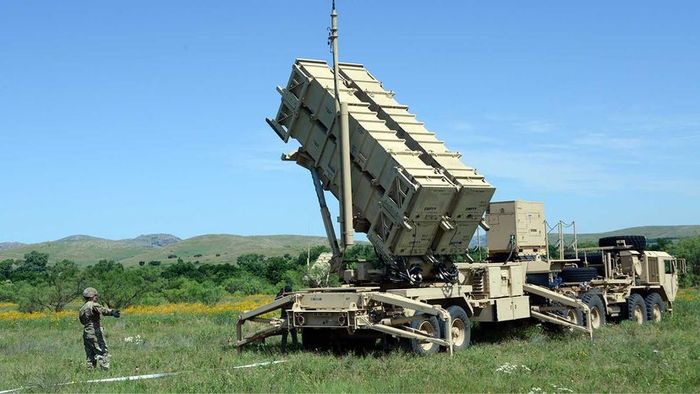

The Patriot system launches its missiles from the M901 station, which can carry up to four launch canisters, each holding a different variant of PAC-3 missiles. These launchers are roughly the size of a tractor-trailer, and they receive their power from the electric power plant (EPP) vehicle.

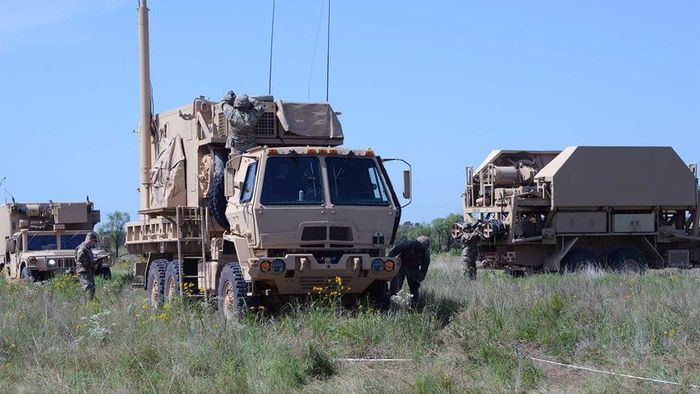

Each launch station is towed by an M983 truck. A standard Patriot battery typically includes six to eight launch stations, along with a radar set, an engagement control station (ECS), power generators, and additional support vehicles.

A Patriot battery usually consists of about 90 soldiers, but only the ECS vehicle — mounted on a military cargo truck — is manned. The ECS contains two computers and space for a tactical control officer, a tactical control assistant, and a communications operator. These operators can monitor the status of all tracked targets and let the system run autonomously or manually intervene to select or deselect targets. The ECS also includes a communications station for coordinating with other batteries or the regional command center.

Every Patriot missile battery is equipped with a radar set, typically using a single AN/MPQ-53, AN/MPQ-65, or AN/MPQ-65A system to detect incoming targets. The radar plays several critical roles, such as:

Putting Everything Together

A Patriot missile battery functions slightly differently depending on whether it is launching PAC-2 or PAC-3 missiles. Let’s begin by exploring how the PAC-2 missile operates.

The radar antenna continuously scans the sky for incoming threats. Once a target is identified, it is further analyzed and communicated with the ECS. The radar's primary objective is to assess the target's speed and direction, as well as determine if it is a friendly or enemy object. When an enemy is confirmed, the ECS calculates a path for the Patriot missile, selects the appropriate missile, and transmits the initial guidance data to launch it.

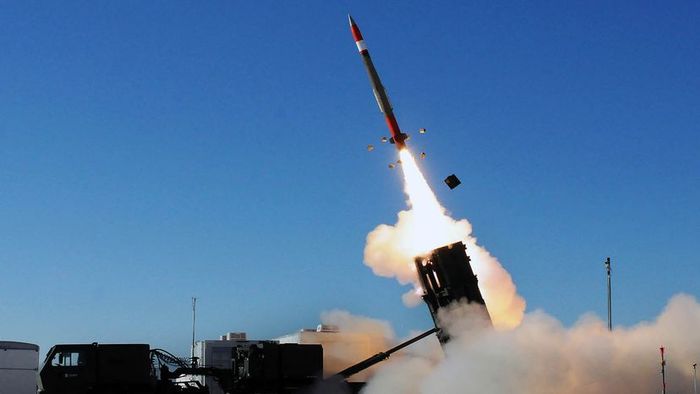

Within just three seconds, the missile reaches Mach 5 and begins its journey toward the target. At this stage, the ground-based radar plays three important roles:

The illumination signal bounces off the target and is received by a sensor in the nose of the approaching PAC-2 missile. The missile then transmits this signal back to the ECS. Using the information from the illumination signal combined with the radar data on both the incoming target and outbound missile, the ECS guides the missile. The system sends commands to adjust the missile’s trajectory, and when it reaches its closest point to the target, the missile’s fragmentation warhead detonates.

In contrast to the PAC-2, the PAC-3 missile is equipped with its own radar transmitter and computer, enabling it to self-guide. Upon launch, the PAC-3 activates its radar, locks onto the target, and heads directly for a collision. This method has been likened to shooting a bullet with another bullet. The major difference is that both the incoming missile and the outbound Patriot are traveling at speeds up to five times that of a typical bullet, closing in at Mach 10 (around 2 miles or 3.2 kilometers per second). At such extreme velocities, any miscalculation—even by 1/100th of a second—could result in a miss of more than 100 feet (30.5 meters).
