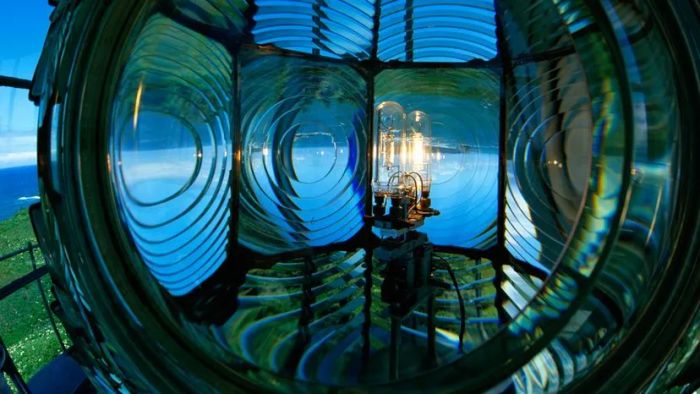

Developed by French physicist Augustin-Jean Fresnel, the Fresnel lens is a compact, composite lens originally designed for lighthouse applications. Credit: Terry W. Eggers / Getty ImagesHave you ever marveled at the powerful beam of a lighthouse, stretching far across the horizon? Or perhaps you’ve held a slim plastic magnifier, astonished by its ability to make small text appear larger?
The secret behind the lighthouse lens and these remarkable tools is the Fresnel lens. Join us as we explore the intriguing mechanics of this extraordinary lens and uncover its inner workings.
Understanding the Fresnel Lens Structure
The Fresnel lens might seem like a complex term, but its idea is straightforward. Picture a traditional lens, thick at the center and thinning towards the edges, resembling a lentil. Now, imagine flattening the lens while retaining its magnifying ability. That’s the essence of the Fresnel lens.
- Flat on one side and ridged on the other: This unique design ensures the lens remains thin and lightweight, ideal for situations where a heavy lens isn’t practical.
- Concentric rings: Visualize cutting a lens into multiple circular layers, each progressively thinner. Flatten them, and you have the distinct structure of a Fresnel lens.
- Focusing light
: Each ring is engineered to direct light towards the center, producing a strong, concentrated beam.
The Origins and the Innovator
Named after its inventor, French physicist Augustin Jean Fresnel, this lens emerged from his extensive research into light and optics during the 19th century. His groundbreaking work led to the creation of this lens, transforming the way lighthouses project light.
The Lighthouse Lens and Its Wider Applications
Originally, Fresnel lenses were the cornerstone of lighthouse technology, amplifying light to travel vast distances over the ocean. However, their utility extends far beyond lighthouses. Modern plastic Fresnel lenses are widely used as magnifying tools, while glass versions serve specialized roles across diverse industries.
Fresnel Lenses vs. Traditional Lenses: A Comparison
Though both Fresnel and traditional lenses focus light, their designs and uses vary significantly.
- Thickness and Weight: Traditional lenses are often thick and heavy, limiting their practicality. Fresnel lenses, with their slim profile, are ideal for lightweight applications.
- Optical Quality: While traditional glass lenses provide better image clarity, Fresnel lenses are sufficient for uses like RVs or traffic signals, where absolute precision isn’t critical.
- Focal Length Variations: Fresnel lenses can be designed with varying focal lengths, enabling them to produce specific light patterns, from concentrated beams to parallel rays.
Exploring the Science of Lenses
Light and Its Behavior
As light travels through a lens, it undergoes refraction, bending at specific angles depending on the lens's shape and thickness. In a Fresnel lens, each ring is meticulously designed with a unique angle and thickness to direct light rays toward a precise focal point.
Polarized Light and Color Distortion
Light isn’t uniform; polarized light, for example, oscillates in a particular direction. Lenses, including Fresnel types, influence how polarized light behaves. Another issue is chromatic aberration, where light of different wavelengths focuses at varying points, creating color fringes. This is a persistent challenge that lens engineers strive to address.
Contemporary Uses of Fresnel Lenses
Fresnel lenses are now integral to numerous modern technologies, from solar energy systems that harness sunlight to cameras and traffic signals. Their lightweight construction and ability to generate intense light beams make them indispensable across various industries.
Léonor Fresnel, a family member of Augustin Jean Fresnel, also played a pivotal role in advancing the wave theory of light. Clearly, the fascination with optics was a family trait!
