Understanding the Functionality of Brake Lines

­

Every driver has experienced this scenario. You're driving smoothly, enjoying the journey from one destination to another, when suddenly, an obstacle appears on the road. Immediate action is required to bring your vehicle to a halt.

Emergency braking situations highlight the critical role of your car's braking system. Often overlooked during routine driving, this system becomes the focal point during urgent stops. Discover how the pressure applied to the brake pedal is converted into the force that stops your car.

­

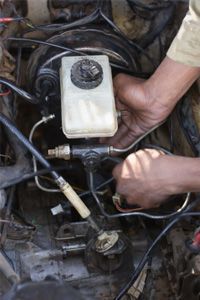

One of the most crucial components in transforming pedal pressure into stopping force is a vehicle's brake lines. Most cars and light trucks utilize hydraulic braking systems, which rely on fluid to transfer the force from your foot to the brakes. In simple terms, here's how a standard disc brake system functions: Fluid is stored in the master cylinder. When the brake pedal is pressed, it pushes fluid from the master cylinder to the brake calipers, causing them to squeeze the brake rotors and slow the vehicle. This fluid travels through the brake lines, making them an essential part of the braking system. If the brake lines fail, the brakes won't function, leading to potentially dangerous situations.

In this article, we'll explore the workings of brake lines. We'll examine the tools required for their repair and replacement, how they are routed through the vehicle, and the various materials used to manufacture them. We'll also delve into motorcycle brake lines. But first, let's look at the essential tools needed for brake line maintenance.

Brake Line Tools

­

Since brake lines transport brake fluid from the master cylinder to other brake components, maintaining them in excellent condition is crucial. Brake lines should never appear frayed, cracked, brittle, or corroded. Wear can occur from friction against metal parts of the vehicle or other brake components, so inspect areas where the lines contact other parts closely. Address any leaks immediately before driving the vehicle. If you cannot repair the leak yourself without driving, arrange for the car to be towed to a certified repair shop. Faulty brake lines are a serious safety hazard.

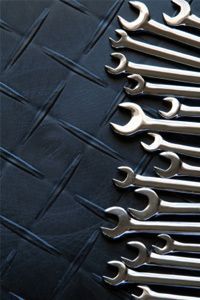

Tools for brake line repair are generally easy to acquire. You might already own one of the essential tools needed for such repairs. For basic brake line maintenance, a set of wrenches is necessary. Specifically, you'll need two wrenches to replace a brake line, as most connections feature hexagonal fittings on both ends. Loosening and tightening these fittings simultaneously requires two wrenches.

A tube cutter is another useful tool for brake line work. With a small tube cutter, you can purchase metal brake lines and trim them to the required length. This tool ensures a precise and clean cut, superior to what a hacksaw could achieve. It also minimizes fraying at the cut ends. Any minor fraying or rough edges can be smoothed out with a small metal file.

For more advanced brake line tasks, such as flaring—which we'll cover on the next page—additional tools are necessary. Continue reading to understand what flaring entails, its purpose, and the tools required to perform it.

Brake Line Flaring

Brake line flaring is a technique that creates a widened end on the brake line to ensure a secure, leak-free connection. Imagine the flare at the bottom of a pair of jeans—similarly, flaring expands the tubing's end, allowing for a deeper and more secure fit. This added width helps prevent leaks and ensures a tight seal.

Most brake lines purchased from auto parts stores come pre-flared at the ends. However, since these lines may not be the exact length required, you’ll often need to cut them and add a flare to at least one end to achieve the proper fit.

Flaring tools for brake lines are widely available online and at auto parts stores, often sold as part of comprehensive kits. These kits include all the necessary components for the job. The flare size is measured in degrees, and different car manufacturers require specific flare types. Ensuring the correct flare size for your vehicle is essential for safety and performance.

To flare a brake line, start by cutting the line to the desired length using a tubing clamp. Before creating the flare, slide the brake line fitting (which connects the line to other brake components) onto the tube. Secure the tubing in a clamp to keep it steady. Then, insert the flaring tool into the end of the tube. The tool resembles a pitchfork with three prongs: two attach to the clamp, while the middle prong creates the flare. By screwing the middle prong in and out, the tubing widens, forming the flare.

A well-executed flare will be uniform and perfectly aligned with the brake fitting's opening. Precision is key during this process, as the flare's quality directly impacts how securely the fitting connects the brake line to the intended brake component.

In addition to flares, brake lines feature numerous bends—lots and lots of bends. Continue reading to discover whether you have the skills to bend your own brake lines or if pre-bent lines are the better option for you.

Pre-Bent Brake Lines

­­

While the shortest distance between two points is a straight line, this isn't always the most practical or feasible option, especially for brake lines. In many cases, a straight path isn't the best solution due to the need for flexibility and proper routing.

Imagine needing to connect two brake components, such as the master cylinder and a brake caliper, with a straight line distance of just 3 feet (0.9 meters). While 3 feet of brake line might seem sufficient, it’s not that simple. Brake lines require some slack to remain flexible. Without flexibility, the lines can’t move with the vehicle, leading to stress on connection points and eventual failure. Broken brake lines mean losing the ability to stop when you press the pedal. Conversely, too much slack can cause the lines to drag or get in the way.

Bends in brake lines serve another critical purpose: they allow for logical routing, ensuring proper clearance around engine and chassis components. This keeps the lines neatly tucked away, reducing the risk of damage and maintaining a clean, functional setup.

While bending brake lines yourself is possible with the right tools, determining where and how much to bend can be challenging. Accurate measurements and patience are essential to ensure the brake line connects precisely to the intended component.

Many people opt for pre-bent brake lines to save time and effort. These lines are pre-measured and pre-bent to fit specific vehicle models, ensuring they follow the optimal route through the car. Unlike straight brake line material, which is commonly available at auto parts stores, pre-bent lines must be specially ordered. They come pre-flared and pre-bent, simplifying the installation process significantly.

Next, discover why some drivers might benefit from the enhanced durability of steel brake lines.

­

Steel Brake Lines

Brake lines are manufactured from various materials, with steel being a top choice for off-road enthusiasts and performance drivers. Steel offers several key benefits:

For off-road adventurers, the risk of puncturing a brake line is a constant worry. Soft brake lines are vulnerable to damage from rocks or debris, which can lead to serious issues. Steel brake lines eliminate this concern. Additionally, steel lines don’t swell under pressure, unlike flexible lines. Over time, flexible lines can stretch due to the fluid pressure, a phenomenon known as brake line swelling. This stretching reduces line pressure, weakening braking performance. In emergency situations, swollen lines can be dangerous. Steel lines maintain consistent performance, ensuring reliable braking.

While steel brake lines are durable, they aren’t without drawbacks. They are prone to corrosion and breakage, just like other brake components. Their lack of flexibility also means connections to brake parts need more frequent inspection to ensure they remain secure.

On the next page, we’ll explore the features of braided steel lines.

Braided Brake Lines

Braided steel lines are designed to address some of the limitations of solid steel brake lines. These lines consist of a soft brake line enclosed within a mesh of braided steel strips, resembling a slender steel basket. This design is also used in household plumbing, and you might find similar lines under your kitchen sink.

The flexibility of braided steel mesh reduces stress on connections compared to rigid steel tubing. At the same time, the steel mesh protects the inner line from damage and prevents swelling. Additionally, braided steel lines are aesthetically pleasing, making them a favorite among hot rod and classic car enthusiasts who enhance their engine compartments with both functional and stylish components like chrome air filters, valve covers, and exhaust headers.

Since the soft tubing is covered by braided steel, visual inspection for leaks or corrosion is impossible. This isn’t an issue for racecars or off-road vehicles that frequently replace brake parts, but it can pose a risk for everyday street cars. Regular brake system maintenance becomes essential to avoid unexpected failures.

Motorcycle Brake Lines

Motorcycle brake lines function similarly to car brake lines, transporting brake fluid under pressure from the master cylinder to the brakes. While the principle is the same, practical differences exist.

In cars, a brake proportioning valve manages brake balance by distributing hydraulic pressure to each axle for safe stopping. On motorcycles, this responsibility falls on the rider, who manually controls the front and rear brakes. The front brake is activated by the right hand, and the rear brake by the right foot. Riders must skillfully balance the pressure applied to both brakes.

Another distinction lies in the visibility of brake lines. On motorcycles, brake lines are often more exposed than on cars or trucks. While custom builders may conceal them within the frame, most factory bikes display the lines prominently along the frame. This visibility makes aesthetics a key consideration for riders. Braided steel lines are a popular choice, and connectors—where lines attach to components like the caliper or master cylinder—often feature decorative engravings. Motorcycles can also use hard steel lines, similar to cars.

­While brakes aren’t typically associated with performance, upgrading to performance brake lines can significantly enhance your car’s capabilities.

Performance Brake Lines

If you’re enhancing your car’s engine performance, it’s essential to upgrade the braking system too. Greater engine power demands greater stopping power. While high-performance components like multi-piston calipers and ceramic brake pads are popular, upgrading your brake lines can also significantly boost performance.

As previously discussed, braided steel lines are an excellent option for performance brake lines. They maintain consistent braking performance by preventing swelling, unlike rubber lines. Swelling reduces brake fluid pressure, weakening the vehicle’s braking capability and resulting in a spongy or unresponsive brake pedal. Braided steel lines also resist damage from road debris while offering flexibility and a secure connection to brake components.

Performance brake lines are available in various materials, such as braided carbon fiber (a costly option), Kevlar, or even Teflon. While these materials enhance strength, durability, and performance, they also come with a higher price tag.

Before upgrading your brake lines, consider your typical driving habits. If you frequently take your car to the racetrack or venture off-road with your truck, an upgrade could be beneficial. However, if your vehicle is primarily used for daily commuting, it’s more practical to stick with cost-effective, low-maintenance lines.
