Understanding the Functionality of the World Trade Center Slurry Wall

Main Points

On September 11, 2001, when terrorists flew two fuel-laden planes into the World Trade Center (WTC), the intense fire and structural damage led to the collapse of what were then New York City's tallest skyscrapers, reducing them to a heap of smoldering debris [source: NIST]. Remarkably, after the dust cleared, engineers found that a crucial component of the WTC complex had endured. The slurry wall -- a 3-foot-thick (91 centimeters), underground, concrete structure encircling the World Trade Center, built to prevent the Hudson River from flooding its basement levels -- remained standing [source: Nelson]. Arturo Ressi, an engineer involved in the wall's construction during the 1960s, noted that its survival was a miracle. In a discussion with the 9/11 Memorial Museum, he highlighted that if the wall had failed, the New York subway system could have been inundated, potentially leading to a far greater loss of life [source: 911memorial.org].

As workers at the site known as "Ground Zero" cleared the 1.2 million tons of steel and debris from the fallen structures, they meticulously worked around the slurry wall. They cautiously removed the debris that had supported it after the buildings' collapse and reinforced the wall with steel cables to ensure its stability [source: Glanz and Lipton]. Even after the site was cleared, Daniel Libeskind, the architect leading the redevelopment, advocated for preserving a section of the original slurry wall. Though no longer functional, the wall had gained symbolic significance as a memorial. It honored the ingenuity of the architects, engineers, and workers who built the tallest skyscrapers in New York City on unstable landfill. It also served as a poignant reminder of the tragedy, a place for mourning, and a symbol of national resilience. Libeskind described the wall as a document "as eloquent as the Constitution itself" [source: Dunlap].

Before delving into the slurry wall's role as a memorial, let's explore its origins. How was this unique structure conceived, and what critical function did it serve for the Twin Towers?

Purpose of the World Trade Center Slurry Wall

The slurry wall's story begins in the mid-1960s when the Port of New York Authority planned to construct two 110-story office towers with over 10 million square feet of office space—more than Houston's entire office inventory—in lower Manhattan [source: Glanz and Lipton]. The chosen site, a Lower West Side warehouse district on an old landfill, posed a significant challenge: builders needed to dig a massive six-story-deep hole into soft soil to reach bedrock for the towers' foundation. However, they first had to ensure the hole was waterproof to prevent the Hudson River's tides from flooding it during construction. A 1966 New York Times article noted, "Without protective measures, the site would quickly become a reservoir" [source: Phillips].

To prevent flooding, builders needed a waterproof barrier around the future World Trade Center basement. However, digging a 60- to 80-foot-deep (18 to 24-meter-deep) trench and pouring a concrete wall was challenging due to the soft, unstable soil. Fortunately, a solution emerged from Italian engineering. In the late 1940s, inspired by oil drilling techniques, Italian builders developed slurry trenching. This method involved coating the trench walls with a clay-water mixture to prevent soil collapse and water seepage. Once the trench was dug, concrete was pumped in from the bottom, displacing the slurry and forming a solid wall [source: Phillips].

Once the World Trade Center's slurry wall was completed, the builders proceeded to construct the six-story underground basement, often referred to as the "bathtub" [source: Phillips]. On the following page, we'll explore the construction process of the slurry wall itself.

World Trade Center Slurry Wall Construction

The slurry trench method appeared to be the ideal solution for the World Trade Center's builders, but it came with a challenge: the technique had only been used twice in the United States, and never on such a massive scale. In 1964, as plans for the project were being finalized, the Port Authority dispatched engineer George J. Tamaro to Italy to study the slurry trench method. Three years later, Tamaro led the construction of the World Trade Center's slurry wall. Italian engineer Arturo Ressi also contributed to the project [sources: Ressi, Phillips].

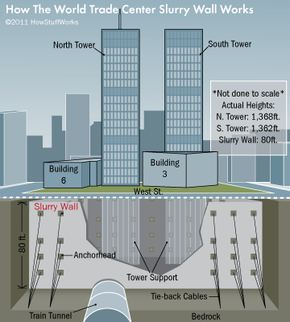

The initial phase involved using drills and clamshell buckets to excavate the soil and remove obstacles like old wharf timbers, piers, and sunken ships buried underground. Next, a special powdered clay containing bentonite, a mineral that becomes thick and viscous when mixed with water, was transported from Wyoming. This clay was combined with water to create a dense slurry, which was then applied to the trench walls. Eventually, the slurry was replaced with concrete, forming a durable waterproof barrier [source: Phillips, Gutberle]. Once completed, the 3-foot-thick (91-centimeter) underground wall extended 3,500 feet (1,066 meters) around the towers' basement and reached depths of up to 80 feet (24 meters) in some areas [source: Tamaro].

One of the most challenging aspects of constructing the wall was navigating around century-old train tunnels. In certain sections, the base of the slurry wall abutted the top of these tunnels, which were partially carved into bedrock. For instance, along the West Street section, the slurry wall extended to cover the tunnels, sealing against the iron rings embedded in the bedrock to ensure watertight integrity. To reinforce the structure, 1,500 high-strength steel anchors were embedded into the slurry wall and driven 35 feet (10.6 meters) into the bedrock, secured with grout. Each anchor could withstand loads of 100 to 300 tons, providing critical support against groundwater pressure [source: Tamaro].

Designed for durability, the slurry wall proved resilient enough to withstand the collapse of the towers it was built to protect. How did it eventually become a memorial honoring the Twin Towers and those who tragically lost their lives on September 11, 2001?

World Trade Center Slurry Wall as a Monument

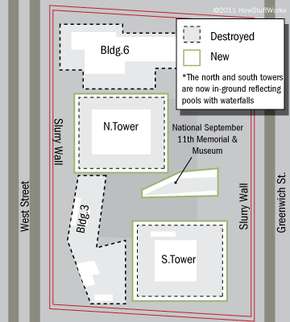

During the planning of the September 11 museum as part of Ground Zero's redevelopment, it became clear to many that a portion of the original slurry wall should be incorporated into the memorial. Stefan Pryor, president of the Lower Manhattan Development Corporation, emphasized this in a 2005 New York Times interview: "Now that the slurry wall has been exposed and imbued with significance, it's our duty to preserve it, allowing visitors to see it and honor its legacy" [source: Dunlap].

With a museum construction budget of only $11 million, builders could preserve a small section of the original slurry wall, comprising three 20-foot-wide (6-meter-wide) panels. A 2008 New York Times article detailed the meticulous efforts to protect the wall during reconstruction. Excavation around the wall was done by hand to avoid damage. A new concrete liner was added in front of the original wall to prevent collapse or leaks, and steel cables were installed to replace the support once provided by the towers' basement. To shield the wall's surface, it was coated with shotcrete, a protective layer of liquefied concrete [source: Dunlap].

Museum officials aim to create a profound experience for visitors. Joseph C. Daniels, the museum's president, shared in a 2008 New York Times interview his vision of the slurry wall becoming as iconic as Jerusalem's Western Wall, a sacred site for the Jewish faith. "The ability to connect with the past in such a tangible way is crucial," he remarked [source: Dunlap].
