Understanding the Mechanics of Analog and Digital Recording

When CDs emerged in the early 1980s, their primary role was to store music in a digital format. To grasp how a CD operates, it's essential to first understand the mechanics of digital recording and playback, as well as the distinction between analog and digital systems.

This article delves into the nuances of analog and digital recording, providing a comprehensive understanding of the differences between these two methods.

The Beginning: Etching Tin

Thomas Edison is renowned for inventing the first device capable of recording and playing back sound in 1877. His method utilized a straightforward mechanism to physically store an analog wave. In Edison's original phonograph, a diaphragm directly controlled a needle, which then etched an analog signal onto a tinfoil cylinder:

You would speak into Edison's device while rotating the cylinder, and the needle "etched" your words onto the tin. As the diaphragm vibrated, the needle followed suit, creating impressions on the tin. To replay the sound, the needle passed over the groove formed during recording, and the vibrations transferred to the tin, causing the needle to vibrate, which in turn made the diaphragm vibrate and produced the sound.

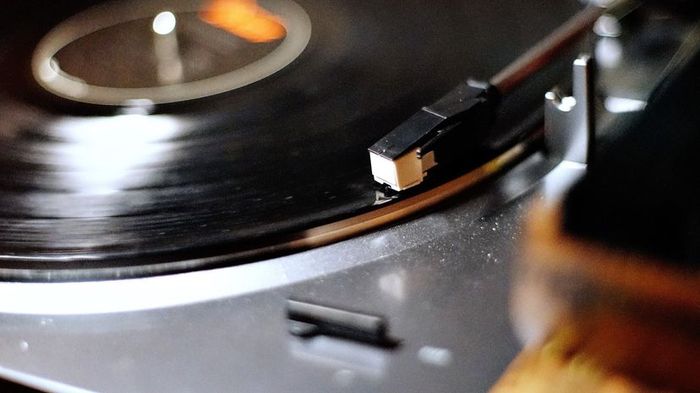

This system saw an enhancement by Emil Berliner in 1887, leading to the creation of the gramophone, a similar purely mechanical device using a needle and diaphragm. The key advancement was the use of flat records with a spiral groove, which simplified mass production. The modern phonograph still operates on the same principle, but now the signals read by the needle are amplified electronically rather than being directly conveyed through mechanical vibrations of a diaphragm.

Analog Wave

What is it that the needle in Edison's phonograph is etching onto the tin cylinder? It's an analog wave, a representation of the vibrations produced by your voice. For example, here is a graph depicting the analog wave produced when saying the word "hello":

This waveform was captured electronically instead of on tinfoil, but the concept remains unchanged. The graph essentially shows the position of the microphone's diaphragm (Y axis) over time (X axis). The vibrations are rapid—the diaphragm vibrates around 1,000 oscillations per second. This is the kind of wave etched onto the tinfoil in Edison's device. Notice how the waveform for the word "hello" is quite intricate. A pure tone, by contrast, is a simple sine wave vibrating at a specific frequency, like this 500-hertz wave (500 hertz = 500 oscillations per second):

You can observe that the process of storing and playing back an analog wave can be quite basic—scratching onto tin is a direct and no-frills method. However, the downside to this simplicity is that the fidelity is low. For instance, using Edison's phonograph results in a lot of scratchy noise along with the desired signal, and the signal is distorted in various ways. Additionally, repeated playbacks of a phonograph eventually cause wear and tear—the needle slightly alters the groove with each pass (and eventually erases it).

Digital Data

In a CD (or any digital recording medium), the objective is to achieve a recording with exceptionally high fidelity (ensuring the reproduced signal closely matches the original) and perfect reproduction (the playback will sound identical each time, regardless of how many times it's played).

To meet these objectives, digital recording transforms the analog wave into a series of numbers, recording the numbers rather than the actual wave. This conversion is handled by a device known as an analog-to-digital converter (ADC). During playback, the stream of numbers is converted back into an analog wave by a digital-to-analog converter (DAC). The analog wave from the DAC is then amplified and sent to the speakers to generate the sound.

The analog wave produced by the DAC will be consistent each time, provided the numbers remain intact. Additionally, the analog wave will closely resemble the original one if the analog-to-digital converter sampled at a high rate and generated precise numbers.

The reason CDs offer such high fidelity becomes clear when you better understand the analog-to-digital conversion process. Imagine you have a sound wave and want to sample it with an ADC. Here’s a typical wave (consider each tick on the horizontal axis as one-thousandth of a second):

When you sample the wave using an analog-to-digital converter, you have control over two key variables:

In the next illustration, let's assume the sampling rate is 1,000 samples per second and the precision is 10:

The green rectangles represent the samples. Every one-thousandth of a second, the ADC examines the wave and selects the nearest number between 0 and 9. This chosen number is indicated at the bottom of the figure. These numbers form a digital version of the original wave. When the DAC reconstructs the wave using these numbers, you get the blue line shown in the following figure:

You can see that the blue line has lost much of the detail originally captured by the red line, which means the fidelity of the reproduced wave is quite poor. This loss is known as the sampling error. To reduce sampling error, you can increase both the sampling rate and precision. In the next figure, both the rate and precision are doubled (with 20 gradations at a rate of 2,000 samples per second):

In the following illustration, the sampling rate and precision have been doubled once more (40 gradations at 4,000 samples per second):

As the rate and precision continue to increase, the fidelity (the closeness between the original wave and the DAC's output) improves. For CD sound, fidelity is a critical goal, which is why the sampling rate is 44,100 samples per second and the number of gradations is 65,536. At this level, the DAC's output so closely mirrors the original waveform that the sound appears essentially "perfect" to most human ears.

CD Storage Capacity

One aspect of the CD’s high sampling rate and precision is that it generates a vast amount of data. On a CD, the digital values produced by the ADC are stored as bytes, and 2 bytes are needed to represent 65,536 gradations. Two sound streams are recorded (one for each speaker in a stereo system). A CD can hold up to 74 minutes of music, so the total digital data that must be stored on a CD is:

44,100 samples/(channel*second) * 2 bytes/sample * 2 channels * 74 minutes * 60 seconds/minute = 783,216,000 bytes

That's a significant amount of data! Storing such a vast number of bytes on a simple piece of plastic that is durable enough to withstand the wear and tear most people subject a CD to is quite an achievement, especially when you consider that the first CDs were released in 1980. Read How CDs Work for the full story!

Does Digital Sound Better Than Analog?

Some audiophiles argue that digital recordings do not fully capture sound in its purest form. They often use complex language filled with technical terms to explain the strengths and weaknesses of an audio system. Much of their criticism revolves around sound frequency.

Humans can hear frequencies ranging from 20 hertz (Hz) to 20 kilohertz (kHz) [source: Hyperphysics]. The frequency of a sound wave is what determines how we perceive its pitch. The higher the frequency, the higher the pitch we perceive.

Audiophiles often characterize an audio system's sound quality using terms like full, warm, and airy. A full or warm sound comes from a system that reproduces low frequencies accurately. An airy sound refers to a music reproduction that gives the sensation of spaciousness, typically referring to sounds in the higher frequency range.

Some audiophiles believe that vinyl records excel in the lower frequencies, delivering a warm, rich sound. They claim that compact discs are less accurate when it comes to reproducing sounds in this range. On the other hand, some people argue that there's no noticeable difference between a well-crafted digital file and a pristine vinyl record.

An audiophile would probably emphasize that the quality of your sound system plays a more significant role in your listening experience than the format of the media. But assuming you've set up a high-end system capable of handling both analog and digital formats, which format should you pick when shopping for a new album?

It largely depends on how the recording was made. If the artist used an analog format to create the master recording, audiophiles would suggest an analog copy of the music would be ideal. This is because there’s no need to convert the sound from analog to digital, and the reproduction would be a more faithful reflection of the original track.

However, if the artist recorded digitally, the best option would be to buy the album on CD. Pressing a vinyl album from a digital recording requires converting the music from a digital signal back to an analog waveform. Every time engineers switch formats, there's a risk that the quality of the sound might degrade.

Ultimately, how one perceives the quality of music is subjective. Two people listening to the same song in the same room might have completely different opinions on the recording's quality. One might describe the sound as warm and airy, while the other might call it harsh and flat. This can happen whether the music is on a digital or analog medium.

So, in conclusion, which is superior? After extensive research and hours of immersing ourselves in music, we've reached a decision. It seems we’ll have to declare this one a draw.
