What is HVAC? A Guide to Heating and Cooling Systems

Chances are, you've spotted this abbreviation on the side of a service vehicle and thought to yourself, "What does HVAC stand for?" It sounds crucial—and it is: HVAC represents heating, ventilation, and air conditioning, systems designed to regulate indoor temperature and air quality.

We rely on our heating systems to keep us warm in the cold months, while air conditioning ensures our comfort during the summer heat.

However, most of us are unaware of how these systems operate. What's the distinction between heat pumps and heat exchangers? And what exactly is an air handler? Gaining a better understanding of how your home's heating and cooling systems work can help you address issues before they escalate into major problems.

What is an HVAC System?

HVAC, which stands for heating, ventilation, and air-conditioning, is a holistic solution designed to control the climate within buildings and vehicles. Its main goal is to maintain ideal indoor temperature, airflow, and air quality for comfort and health.

Heating

The heating system is responsible for increasing the interior temperature during the colder seasons. This is generally accomplished with furnaces or boilers that either warm air or heat water, which is then distributed throughout the space via duct systems or radiators.

Ventilation

Ventilation plays a vital role in sustaining indoor air quality. It involves the exchange of indoor air with fresh outdoor air, eliminating moisture, unpleasant odors, smoke, heat, dust, airborne bacteria, and carbon dioxide, while also replenishing oxygen levels.

Ventilation can be achieved either mechanically, using fans and ductwork, or naturally through openings like windows and vents.

Air Conditioning

Air conditioning, one of the most commonly recognized aspects of HVAC systems, cools indoor air during the hotter months. It functions by extracting heat and humidity from the interior of the building and releasing it outside, through a system of coils that contain refrigerant.

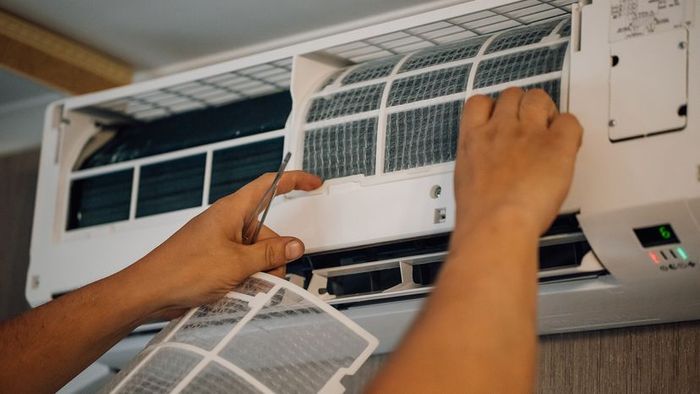

Contemporary HVAC systems are built for optimal efficiency and may include components like air filters, humidifiers, and dehumidifiers to enhance the indoor atmosphere.

How Heating and Cooling Systems Operate

Climate control systems in residences and buildings, such as heating and air conditioning, are made up of three key components: a source for heating or cooling air, a distribution system to circulate the air, and a control unit—like a thermostat—to manage the system's operation.

Usually, the same systems that distribute and control warm air from furnaces also handle the cooling from air conditioners. For instance, in homes with central air conditioning, cool air often flows through the same ducts as heating, and is controlled by the same thermostat.

The fundamental concept behind both heating and cooling is the transfer of heat from a warmer area to a cooler one. Furnaces and heaters introduce heat to the air to warm your home, while air conditioners extract heat to cool the space.

Various energy sources power these systems: Air conditioners typically run on electricity, while home heating systems can be fueled by gas, oil, or electricity.

An electric heat pump is a flexible climate control device that operates on electricity, capable of both heating and cooling. During the summer, a heat pump extracts heat from inside your home. In winter, it pulls heat from the outside air to warm the interior.

When the furnace is in operation, it burns fuel (gas, oil, or electricity) to generate heat, which is then transported via ducts, pipes, or wires and released through registers, radiators, or heating panels.

Older heating systems may heat water to warm the air, utilizing a boiler to store and heat the water, which then circulates as hot water through pipes embedded in walls, floors, or ceilings.

Conversely, when an air conditioner is activated, it uses electrical energy to convert gas in a coil into a liquid. This process cools the warm air in your home as it passes over the cooling coil. The chilled air is then distributed to various rooms via ducts or, in the case of room air conditioners, directly from the unit itself.

Distribution Systems for Heating and Cooling

After air is heated or cooled at the source, it must be distributed throughout your home. This can be achieved through forced-air, gravity, or radiant systems, which are explained below.

Forced-Air Systems

A forced-air system circulates the heat generated by a furnace or the cool air from a central air conditioner using an electrically driven fan, known as a blower. The blower pushes the air through a network of metal ducts, distributing it to the various rooms in your home.

As warm air from the furnace enters the rooms, cooler air in the rooms flows downward through another set of ducts, referred to as the cold-air return system, back to the furnace to be reheated.

This system is flexible: You can adjust the amount of air circulating through your home. Central air-conditioning systems utilize the same forced-air mechanism, including the blower, to deliver cool air to rooms and return warmer air to be cooled.

Common issues with forced-air systems usually stem from blower failures. The blower might also create noise, and it adds an additional electrical cost on top of furnace fuel expenses. Nevertheless, the blower makes the forced-air system an efficient method for distributing warm or cool air throughout a home.

Gravity Systems

Gravity systems function based on the principle that warm air rises and cool air sinks. Consequently, gravity systems are unsuitable for distributing cool air from an air conditioner.

In a gravity system, the furnace is typically positioned near or beneath the floor. The heated air rises and travels through ducts to the registers located in the floor across the house.

When the furnace is placed on the main floor, heat registers are generally mounted high on the walls because the registers must be above the furnace. The warm air ascends toward the ceiling.

As the air cools, it descends, enters the return air ducts, and flows back to the furnace to be reheated.

A different method for distributing heat is the radiant system, which typically uses hot water heated by the furnace and circulated through pipes embedded in the walls, floors, or ceilings.

Radiant Systems

Radiant systems work by warming the walls, floors, or ceilings of rooms, or more commonly, by heating radiators within the rooms. These objects, in turn, heat the surrounding air.

Some systems use electric heating panels to produce heat, which is then radiated into the rooms. These panels are typically found in warmer climates or areas where electricity is relatively affordable. Radiant systems are unsuitable for distributing cool air from an air conditioner.

Radiators and convectors are the most common methods of radiant heat distribution in older homes. These devices are used with hot water heating systems, which may rely on gravity or a circulator pump to move heated water from the boiler to the radiators or convectors.

A system that utilizes a pump, also known as a circulator, is referred to as a hydronic system.

Modern radiant heating systems are often installed in homes built on concrete slab foundations. A network of hot water pipes is embedded beneath the surface of the concrete slab.

When the pipes in the concrete are heated, the floor warms up and radiates heat into the air that comes in contact with it. The slab doesn't need to reach high temperatures; as it warms, it gradually heats the air throughout the home.

Older radiant systems, particularly those that rely on gravity, often face issues. For example, the pipes distributing the hot water may become clogged with mineral deposits or may be installed at an incorrect angle. The boiler used to heat the water may also experience malfunctions.

In contrast, modern radiant heating systems typically use circulator pumps and are engineered to prevent these types of problems.

The thermostat, a heat-sensitive switch, serves as the primary control for regulating your home's temperature. It detects changes in the ambient air temperature where it's placed and turns the furnace or air conditioner on or off to keep the temperature at a predetermined level, known as the set point.

The thermostat, a device that responds to temperature changes, controls the operation of your heating and cooling system by turning it on or off to maintain a consistent temperature in your home.

The thermostat's primary component is a bimetallic element that adjusts its shape by expanding or contracting as the temperature fluctuates within a home.

Older thermostats feature two exposed contacts. As the temperature drops, a bimetallic strip bends, first touching one electrical contact and then another. The heating system activates once the second contact closes, and the thermostat's anticipator kicks in.

The anticipator warms the bimetallic element, causing it to bend and break the second electrical contact. However, the first contact remains intact, allowing the heater to continue running until the temperature rises above the thermostat's setting.

More modern thermostats are equipped with coiled bimetallic strips, and the contacts are sealed behind glass to protect them from dirt. As the temperature decreases, the bimetallic elements begin to uncoil.

The force of the uncoiling elements separates a stationary steel bar from a magnet at the coil's end. The magnet pulls the contact arm inside the tube, causing the contacts to close, which completes the electrical circuit, activating both the heater and the anticipator.

As the room's air warms up, the coil begins to rewind, releasing the magnet's grip on the contact arm. The arm then drops, breaking the circuit and shutting off the system.

At this point, the magnet moves upward, returning to the stationary bar, keeping the contacts open and the heater off until the room cools down again.

The newest controls for heating and air-conditioning systems use solid-state electronics to regulate the temperature. These modern controls are typically more precise and responsive compared to older systems. However, repairing solid-state controls usually involves replacing them.
