What’s the Distinction Between a Modem and a Router?

If you're reading this online — and how else would you be? — you're almost certainly using two crucial, yet often confused, devices: the modem and the router. Without them, most people would have no internet access at all.

However, their functions aren’t the same, which is why many are curious about the difference between the modem and the router and what each one does.

For your WiFi to work smoothly throughout your home, both the modem and the router must be functioning. Sometimes these two devices are combined into a single unit, but they still represent two distinct technologies within the same box.

What Exactly Is a Modem?

The modem is the device that allows the internet to enter your home by transmitting and receiving data. It’s basically a box with two ports: one that connects to the internet, and another that links it to either a computer or a router (typically using an ethernet cable).

Simply put, a modem connects your digital device to the internet, serving as a bridge between the incoming internet signal (via cable, fiber, or phone line) and your computer or smart devices.

If you check your internet bill, you might notice you're being charged a monthly fee to rent a modem from your internet service provider (ISP). However, you can often save money by purchasing your own modem, which typically costs less than a year’s worth of rental fees.

Modems: A Quick Overview

In the early days of the internet, the best and only way for most people to connect was through analog phone lines. The idea of multiple devices on a home network seemed like a distant fantasy, and wireless devices were typically large, cumbersome radios.

To connect with your internet service provider, you'd hook up your modem to a traditional phone line, designed to carry analog signals. This setup worked well for voice calls, but since computers communicate in binary code (not voices), a transformation was necessary.

The first modems had to modulate and demodulate electrical signals — the term itself comes from combining the words “modulate” and “demodulate.”

Things have evolved significantly since those early days. Nowadays, everything is faster, stronger, and fully digital, with many more modem options available.

What Exactly Is DSL?

One of the early advancements over old modem technology was DSL, which stands for Digital Subscriber Line. A DSL modem still uses the same analog phone lines once common for telephones but taps into a different segment of the signal's spectrum.

This breakthrough allowed digital signals to be transmitted, significantly boosting the speed and dependability of internet connections.

For a time, DSL seemed like the future of internet access, though it was quickly overtaken by newer technologies in terms of performance. However, in areas where cable, satellite, or fiber connections are scarce, DSL remains a viable option.

What Is a Cable Modem?

A cable modem enables high-speed internet through the same coaxial cable used for cable TV. This method is currently the most popular and standard form of internet service for most users. With the fast speeds offered by cable modems, managing a local area network for multiple devices becomes much easier.

A cable modem typically features a coaxial port, a power input port, and an Ethernet port. The casing is usually designed with ventilation for cooling, and it includes small lights that show when the internet connection is live. Some models even include an Ethernet cable for linking to your router.

What Is Fiber Internet?

Fiber internet, short for fiber optic internet, uses thin strands of glass or plastic to transmit digital data at incredible speeds. Technically, fiber internet requires an Optical Network Terminal (ONT), which acts as the fiber version of a modem.

Like other modems, it assigns the ISP (internet service protocol) to your home network, giving each device a local IP address. This allows the devices to communicate with each other and access the internet.

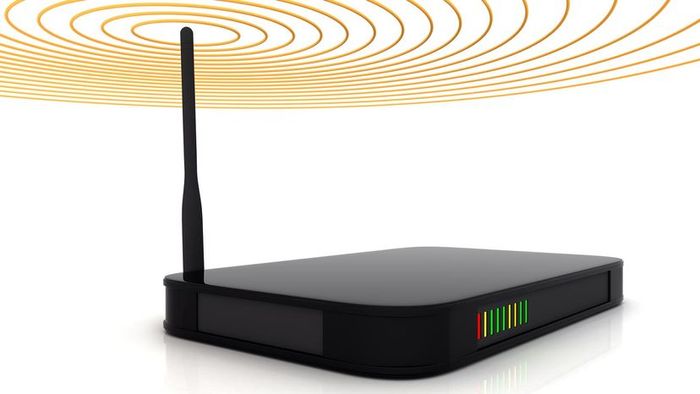

What Is a Router?

A router connects to your modem, enabling multiple wired and wireless devices to access the internet. With just a modem, you can only connect one device, such as your laptop, directly to it for internet access.

However, with a router, you can establish a 'home network' or 'local area network' (LAN), where the router distributes the internet connection throughout your home and also converts the modem's signals so that your wireless devices can understand them.

The router also serves as a traffic controller, managing the flow of the internet signal to prevent overcrowding. Its efficiency improves when fewer devices are connected to the same router.

The size and range of router you need depend largely on the size of your home or office. For larger spaces, you can purchase a router that comes with several small satellite routers to extend the signal across your entire area.

What Is a Gateway?

A gateway device essentially merges the functions of both a modem and a router into one unit. Despite its name, there's nothing particularly complex about it. It combines both components into a single package, which only requires one power cord to operate.

While the convenience of having a single device is appealing (why deal with two separate gadgets when one can do the job?), it does come with a downside.

Modem technology tends to evolve slowly, whereas router technology advances much faster. As a result, when you're ready to upgrade, the modem in your gateway will likely still be fine, but the router might be outdated. Many experts suggest maintaining separate modems and routers for this reason.
