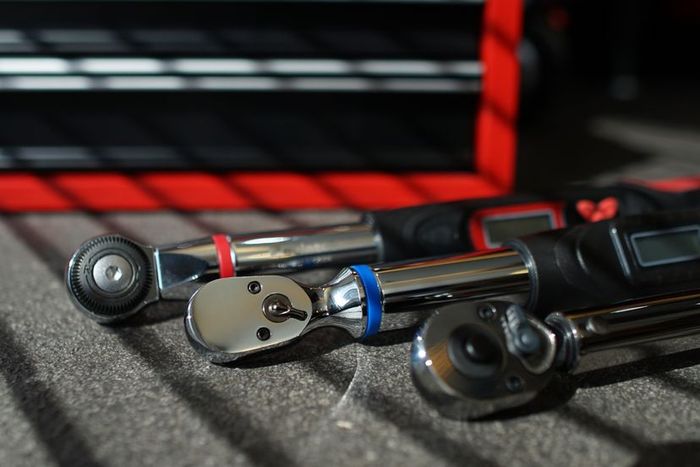

Torque wrenches are widely used in numerous industries. Shutterstock: Thusbaudin PHA torque wrench is designed to measure the tension or twist of bolts and nuts, ensuring they are tightened correctly without overdoing it. The key to their reliability is proper torque wrench calibration. Continue reading to explore more about these indispensable precision tools.
What Are Torque Wrenches?
Torque wrenches are precision tools used across a wide range of industries, such as automotive, manufacturing, and aerospace. They are designed to apply a precise amount of torque to fasteners like bolts and nuts.
By accurately measuring the tension applied to a fastener, torque wrenches help avoid under- or over-tightening, as well as preventing any mechanical or safety risks associated with improperly fastened components.
They are available in various types, including:
- Click-type torque wrenches: The most common type, these wrenches produce a click sound when the correct torque is reached [source: Keebler].
- Beam-type torque wrenches: Less precise than others, these wrenches feature an indicator bar that bends as torque is applied.
- Digital torque wrenches: Equipped with a digital display, these wrenches are ideal for situations requiring precise torque measurements.
- Hydraulic torque wrenches: Using hydraulic power, these industrial tools apply high torque with exceptional accuracy.
Why You Need a Torque Wrench
A torque wrench is unlike any other tool in your tool kit. Whether you're a seasoned engineer or an enthusiastic DIYer, having the ability to produce consistent torque readings is crucial for maintaining mechanical integrity and safety in your work [source: Dale]. Generally, incorporating a torque wrench into your toolkit will help you:
- Ensure precision and accuracy
- Prevent over-tightening
- Avoid under-tightening
- Guarantee safety
- Offer peace of mind
- Minimize unnecessary damage and maintenance costs
You don’t need to be a pro mechanic to benefit from a well-calibrated torque wrench. Clear some space in your toolbox and you'll be surprised how often you'll use it around the house.
How to Calibrate a Torque Wrench
Proper calibration is essential for a torque wrench’s effectiveness. These tools are built for precision and dependability, but they can’t fulfill those expectations without proper calibration. While the process can be a bit intricate, you can calibrate your torque wrench at home by following these steps:
- Gather and set up the necessary equipment: To calibrate a torque wrench on your own, you’ll need to acquire a calibrated torque tester, a device designed specifically for torque testing. Be sure to follow the manufacturer’s instructions for proper setup.
- Prepare the wrench: Start by setting the torque wrench to its lowest setting, then gradually adjust it to the target calibration point.
- Apply torque: Attach the wrench to the tester and apply force steadily and evenly.
- Read the measurements and adjust if needed: As you apply torque, monitor the readings and fine-tune the wrench by turning the adjustment screw on the tool.
While they are helpful, you don’t necessarily have to purchase heavy-duty torque testers to ensure your torque tool’s accuracy.
To calibrate your wrench without a torque tester, calculate the calibration ratio and multiply it by the required bolt torque. The torque wrench can measure distances in either inch-pounds or foot-pounds [source: Manouchekian].
Begin by measuring the distance from the center of the wrench head to the spot where you apply the most pressure. Next, clamp the wrench in a bench vice and hang a 20-pound (9-kilogram) weight from the wrench handle with a string. Adjust the string until it measures 40 foot-pounds (or 480 inch-pounds).
Then, measure the distance from the center of the wrench head to the string. Divide this second distance by the first to find the calibration ratio. Finally, set the torque wrench to the product of the calibration ratio and the required bolt torque.
Although DIY calibration is feasible, for high-precision tasks or if you're uncertain about the procedure, it's advisable to seek out professional torque wrench calibration services.
Precision, Safety, and Accuracy
From safeguarding road vehicles to ensuring the reliability of critical machinery, the torque wrench is essential. By understanding what it is, recognizing its significance, learning how to calibrate it, and appreciating the need for one, we deepen our respect for this indispensable tool.
Exploring the types and functions of torque wrenches reveals a tool that does more than tighten bolts — it ensures the reliability and safety of mechanical systems. Whether you’re a professional mechanic, an aerospace engineer, a DIY enthusiast, or someone who values precision, a torque wrench is a trusted companion in achieving excellence.
