Comprehensive and straightforward guide to installing washing machine water pipes

If you're looking to install washing machine water pipes at home but unsure about the correct technique and safety measures, then don't overlook this article. Mytour Supermarket will provide detailed and simple instructions for installing washing machine water pipes at home.

Comprehensive and straightforward guide to installing washing machine water pipes

To install water pipes for a washing machine or Samsung washing machine at home, you'll need: a 4-sided screwdriver, pliers, black tape or adhesive tape, a dry cloth, a bucket or basin.

Step 1: Install the washing machine water hose

You can utilize the water hose already attached to the wall to install the valve onto the end of the water hose.

+ For a standard water valve, you need to attach the valve eye to the washing machine's water supply valve. Ensure proper alignment and tighten the 4 fixing screws securely.

+ For a twist-type water valve, you only need to attach the valve directly to the water faucet and twist the connector.

Step 2: Connect the water supply hose to the washing machine

If the washing machine's water supply valve already has connectors at both ends, simply pull each connector towards each other. Then proceed to connect them properly to the water faucet and the washing machine's water inlet pipe.

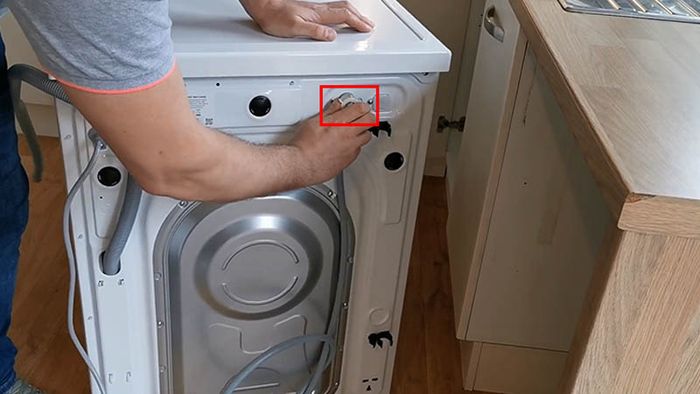

Connect directly to the water faucet and the washing machine's water inlet pipe

Step 3: Install the washing machine drain hose

There are 2 methods to install the washing machine drain hose, depending on the washing machine's design as well as personal preference, you can freely choose:

Method 1: Install the drain hose directly down to the ground, outside in the yard, or elsewhere.

To execute this method, you need to measure the size of the drain hose again, then use adhesive tape to tightly wrap around the drain hose to secure its position.

Method 2: Connect the washing machine drain hose together with other drainage outlets such as the hot water tank, sink,...

To perform this method, you need to ensure that the U-shaped section of the hose has a design higher than the ground level, up to a maximum of 60cm and not higher than 90cm to ensure the normal operation of the drain hose.

When connecting directly to the drainage pipe, the diameter of the hose must be smaller than that of the main water pipe.

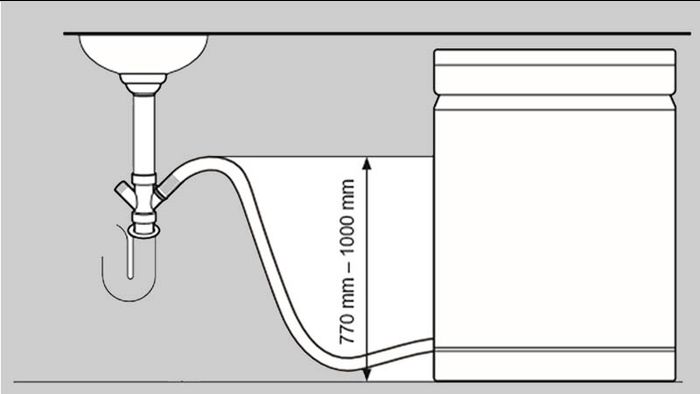

Connect the washing machine drain hose together with other drainage outlets

To ensure the safe installation of the washing machine water pipes, you need to pay attention to the following points:

+ Turn off the entire electrical system before proceeding.

+ Refer to the correct usage manual for the washing machine before proceeding, as there may be differences between machines.

+ During the pipe installation process, avoid bending or stretching the water hose too tightly as it may affect the machine's performance.

+ If you lack experience or technical expertise, it's advisable to contact a reputable repair center for safe assistance.

Contact a reputable repair center

Hope the information provided in this article helps you easily and quickly install the water pipes for your washing machine or Samsung Inverter 9.5 Kg WA95CG4545BDSV at home.
