How to Set Up a Wireless Router

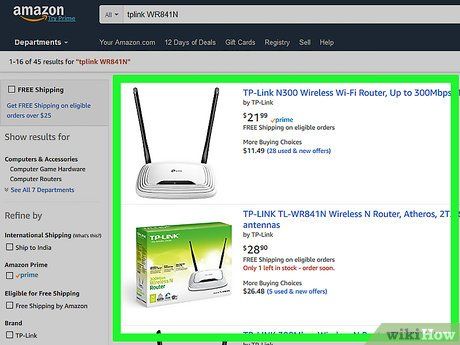

Purchase a wireless router. Routers come in various shapes and sizes. Compare features across models to find one that suits your needs. For large areas or homes with many walls, choose a router with optional antenna upgrades for better coverage. If multiple devices connect simultaneously at different speeds, opt for a MiMo router; otherwise, all devices will operate at the lowest supported speed.

• All modern routers support 802.11n (or Wireless-N) connections, offering the fastest and most stable performance while remaining backward-compatible with older standards like 802.11g.

Connect the router to the modem. Routers and wireless routers allow you to share a broadband internet connection with multiple devices. To do this, connect your broadband modem to the router. Place the router close to the modem for optimal results.

• Use an Ethernet cable to link the router and modem. Most routers come with a short Ethernet cable for this purpose.
• Connect the modem to the WAN/Internet port on the router. This port is usually separate and sometimes a different color from the LAN ports. WAN stands for "Wide Area Network," which refers to the internet. LAN stands for "Local Area Network." The router assigns internal or "private" IP addresses to devices connected via LAN or WiFi from a reserved range of private addresses.

Connect all wired devices using a CAT 5 Ethernet cable (or better). If you have multiple computers, gaming consoles, or TVs in close proximity, you can connect them to the router using Ethernet cables. This provides a faster and more stable connection without additional configuration.

Connect at least one computer using an Ethernet cable. You’ll need at least one computer connected via Ethernet to configure the router settings. You can disconnect it later if you prefer a wireless connection. Alternatively, you can connect wirelessly using a laptop; the default WiFi network name and password are printed on the router’s label.

The router only creates a WiFi network when powered on, and devices will connect to the router’s WiFi instead of the internet. To connect the router to the internet, some ISPs (like GTPL in India) require users to register the router’s MAC address on their website.

• The router’s MAC address is printed on the router or in the user manual.

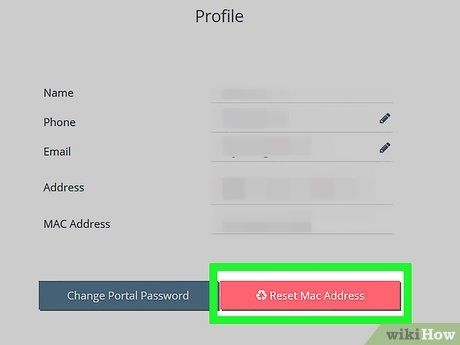

Visit your ISP’s website. Log in using the username and password provided by your ISP, then navigate to the MAC address update section. You’ll see the MAC address of the laptop/computer you’re using. Add the router’s MAC address to the list and save the changes. This process authorizes the router to use the internet provided by your ISP.

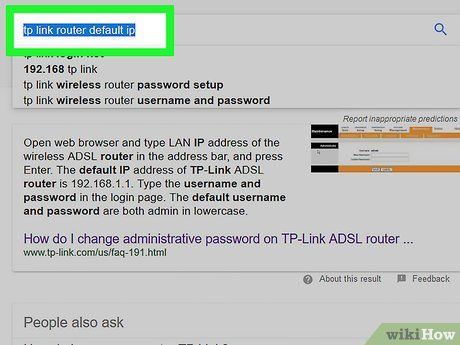

Find the router’s IP address. If this is a new setup or a new router, the default IP address can usually be found on the router’s label or in the user manual. If you can’t locate it, search online for the default IP address of your router model.

• IP addresses consist of four groups of up to three digits separated by periods.
• Common default internal IP addresses for routers include 192.168.0.1, 192.168.1.1, 192.168.2.1, and 10.0.0.1. Note that all addresses within the ranges 192.168.0.0 - 192.168.255.255, 172.16.0.0 - 172.31.255.255, and 10.0.0.0 - 10.255.255.255 are reserved for exclusive use in LANs; each address within these ranges is assigned to the connected router.

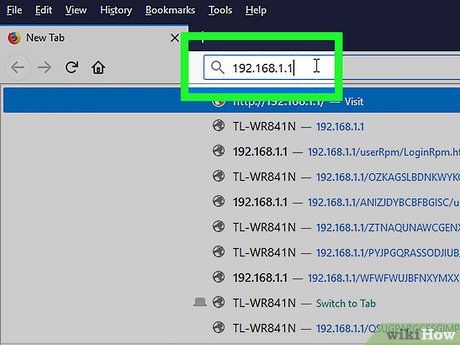

Open a web browser on the computer connected to the router. Enter the router’s IP address in the address bar and press Enter. Your browser will connect to the router’s configuration menu.

• If your router comes with a setup disk, you can use it to run the configuration program. This method offers similar functionality.

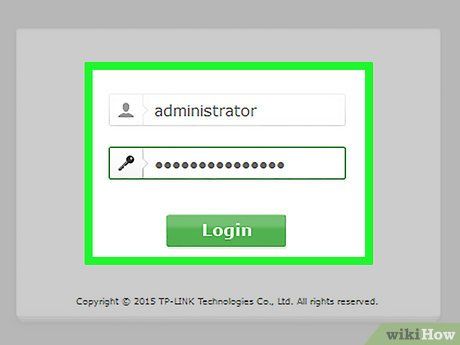

Enter the username and password. To access the configuration page, you’ll need to enter the router’s IP address and provide valid login credentials. Most routers come with default account details, which are often printed on the router or included in the manual.

• Common usernames include “admin.”
• Common passwords include “admin” and “password.”
• Some routers only require a username, while others allow you to leave both fields blank.
• If you don’t know the IP address, username, or password, search online for your router model’s default login details. If the credentials have been changed, press the Reset button on the back of the router for about 10 seconds (or longer, as specified in the manual) to restore default settings and try again.

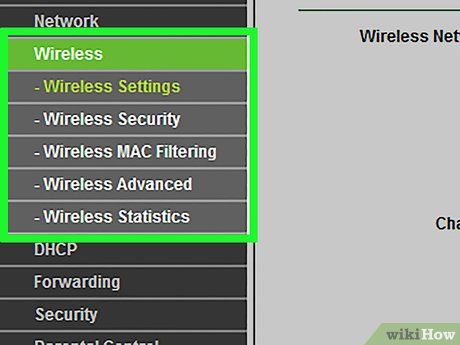

Access the Wireless Settings. Once logged into the router, you’ll be directed to the main menu or status screen. Several options will be displayed here. You can leave the default Internet settings unchanged unless your ISP provides specific instructions. The Wireless section allows you to configure your wireless network.

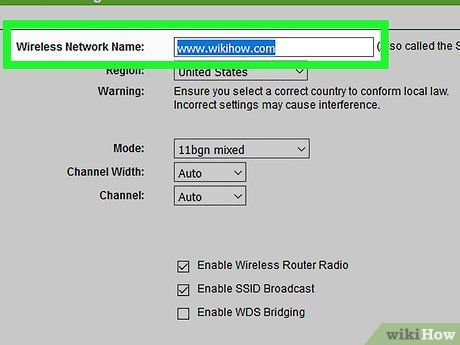

Enter a name for your wireless network. In the Wireless section, locate the SSID or Name field. Input a unique name for your wireless network. This is the name other devices will see when scanning for networks.

• Check the box to enable SSID broadcast. This “activates” the wireless network, making it discoverable within its signal range. Refer to the Tips section below for more details on SSID setup.

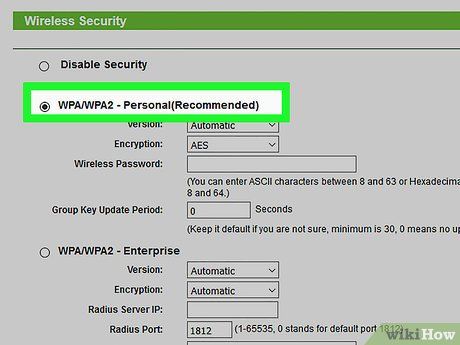

Choose a security method. Select a security option from the available list. For the highest level of protection, choose WPA2-PSK as your encryption method. This is the most secure barrier, safeguarding your network against hackers and unauthorized access.

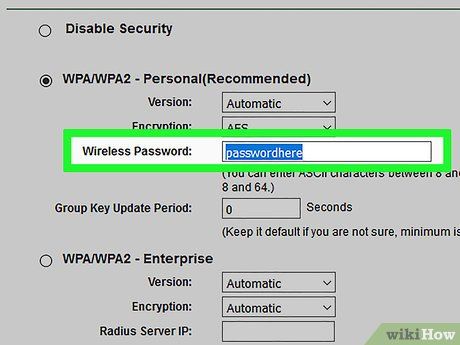

Create a password. After selecting the security method, set a password for your network connection. Use a strong, hard-to-guess password combining letters, numbers, and special characters. Avoid using passwords that can be easily guessed based on the network name or personal information.

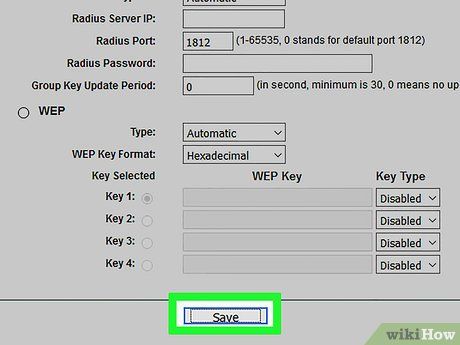

Save your settings. Once you’ve named and secured your wireless network, click the Apply or Save button. The changes will take effect on your router shortly. After the router reboots, your wireless network will be active.

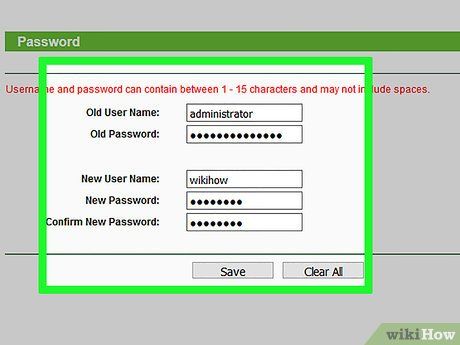

Change the default router username and password. After configuring your network connection, it’s essential to update the username and password used to access the router. This step prevents unauthorized changes to your router settings. You can modify these details in the Administration section of the router’s configuration menu.

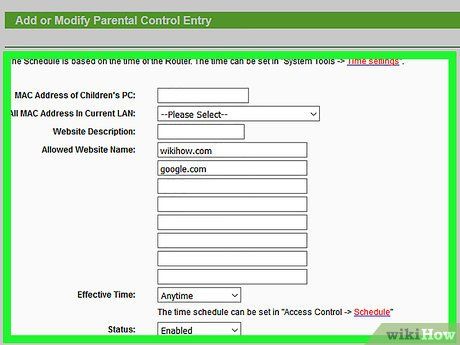

Block websites. If you want to restrict devices connected to your network from accessing certain websites, you can use the built-in blocking tool to limit access. This option is typically found in the Security/Block section of the router.

• You can usually block specific domains or keywords.

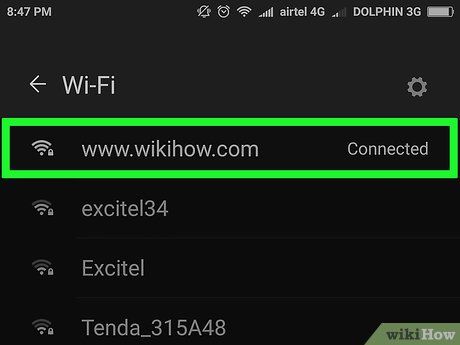

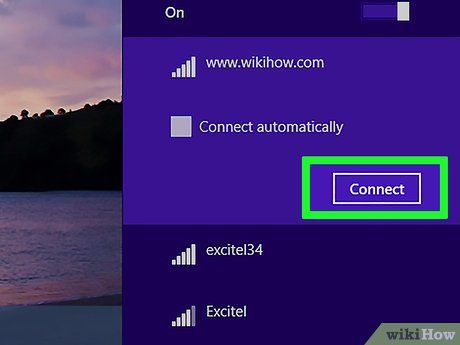

Connect your computer, tablet, or smartphone to the wireless network. Scan for available networks and locate the SSID you previously set. On any wireless-enabled device, the new network name will appear within the router’s signal range. Select the network name, and you’ll be prompted to enter the password.

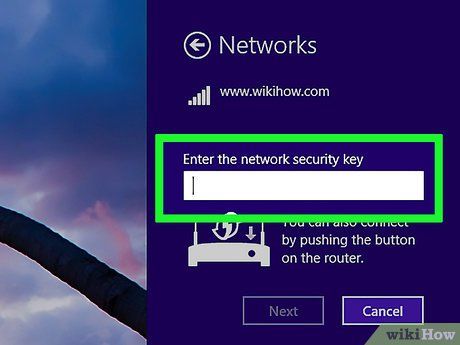

Enter the wireless network password. Once you input the password, your device will automatically connect to the wireless network. The connection will be saved on your device, allowing it to reconnect automatically when within range.

• For detailed steps on selecting and connecting to a wireless network on your computer, tablet, or smartphone, refer to this guide.

Connect other devices. In addition to computers and tablets, you can connect various devices to your wireless network, such as printers, gaming consoles, TVs, and more. Refer to the specific connection guides for each device.
