Upgrading to an M.2 SSD for your PC? Easier than eating cake.

Fortunately, installing an M.2 SSD is even easier than finding the best hard drive for your PC. If you're hesitant because you're unsure how to upgrade your PC's SSD, this article is for you.

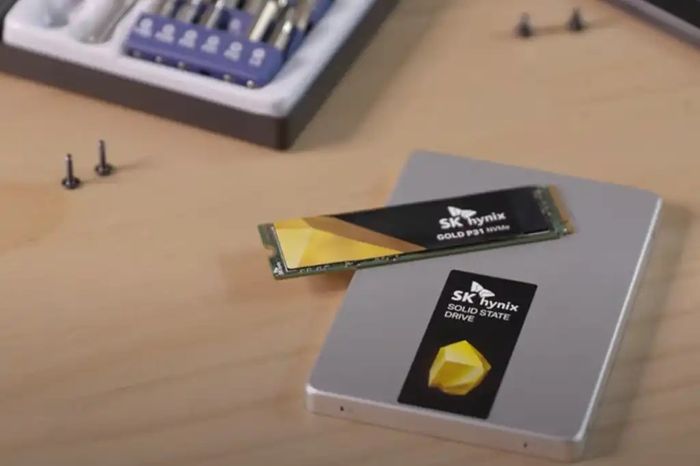

What is an SSD M.2?

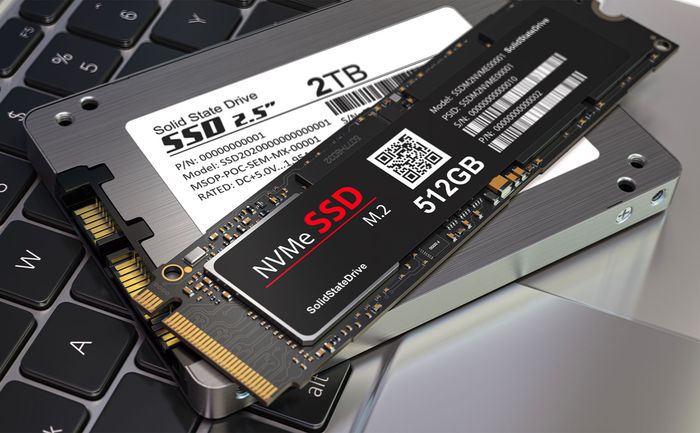

An M.2 SSD is a small, stick-shaped hard drive designed to plug directly into the M.2 slot on your computer's motherboard. M.2 SSDs have faster read/write speeds than traditional drives like HDDs or SATA SSDs, making them ideal for boosting performance. They also come in very compact sizes, saving space in compact or mobile computer systems.

Upgrading to an SSD M.2 is truly a breeze; it's a simple 'Plug and Play' affair, no complicated 'wiring' needed like with other types of hard drives. Below, I'll guide you through each step of installing an M.2 SSD into your PC, so let's dive in.

First, ensure your computer is completely powered off to guarantee electrical safety before proceeding to install the SSD M.2 into your PC. Then, remove the front face of the computer case to begin the installation process.

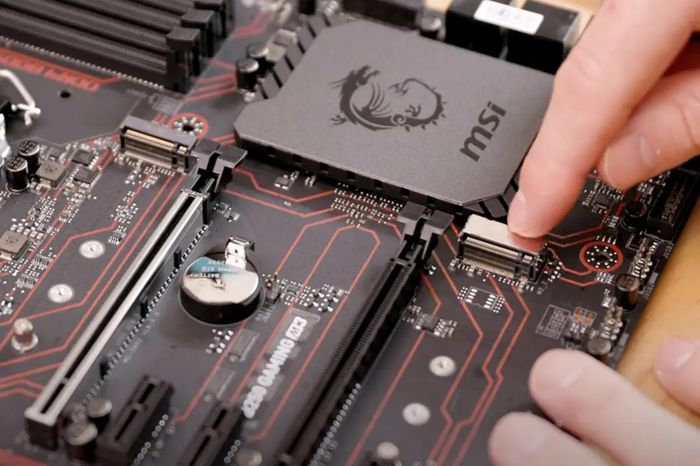

Next, you'll need to locate the M.2 slot on your motherboard. The M.2 slot is approximately 3cm in size and protrudes from the motherboard (you can see details in the image below).

Different motherboards will have varying numbers and arrangements of M.2 slots, but most are commonly positioned below the CPU and around PCIe slots in the lower half of the motherboard.

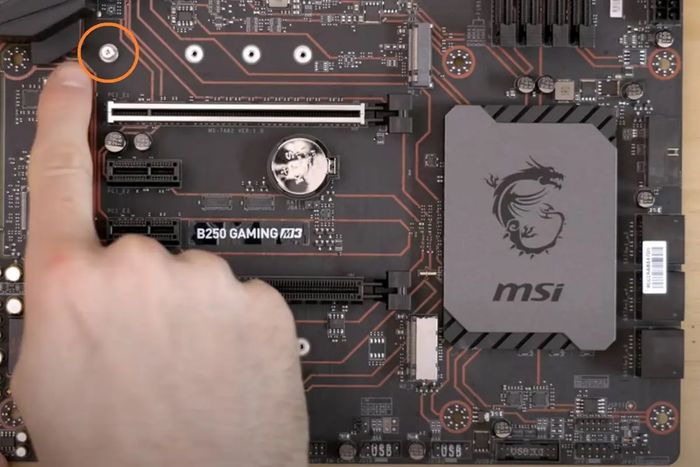

Once you've identified the M.2 slot, locate the screw to secure the SSD into one of the screw holes on the left side of the M.2 slot. If your motherboard doesn't come with screws, check the product box as they may be packaged in a small plastic bag.

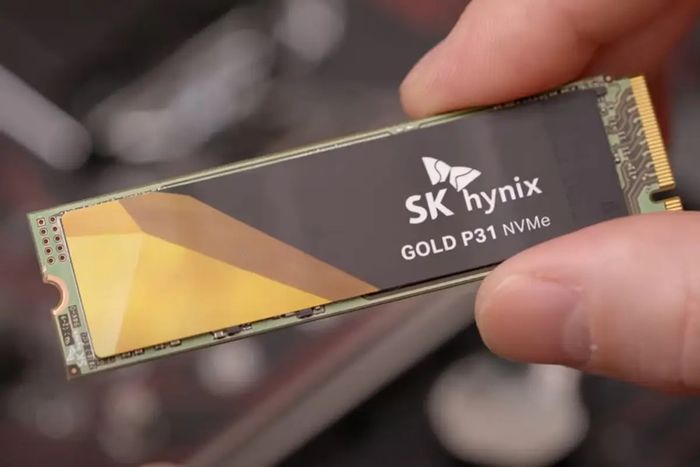

The next step is to insert the SSD into the M.2 slot. You need to identify the two ends of the M.2 SSD, one end with a semicircular shape is where the screw is fastened to secure the SSD, the other end is where the SSD contacts the M.2 slot.

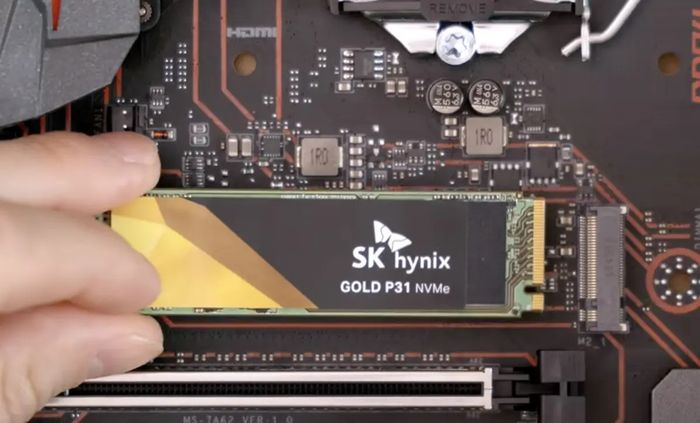

Observe carefully the contact area of the SSD; there will be a small notch dividing the contact point into two parts, similar to the M.2 slot on the motherboard. Use this detail to determine the correct installation position. Finally, align the SSD contact point with the M.2 slot, lift the other end to a 15-degree angle, and push the SSD into the M.2 slot until it clicks into place by hand.

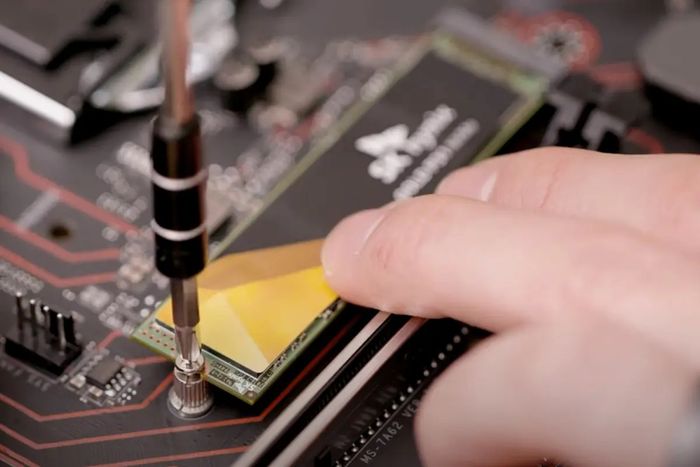

Then, press down the other end to fit snugly against the screw position and proceed to secure the SSD. Note that you should only tighten it just enough; do not overtighten as it may damage the drive, screw threads, or motherboard. That's it, quite simple, isn't it?

Now, all you need to do is put the front cover of the PC case back on, plug in the power, and turn on the computer to check your handiwork.

Conclusion:

Above are the detailed steps on how to install an M.2 SSD onto the motherboard of a computer quickly and easily. Hope this article is helpful to you. Wish you success!
